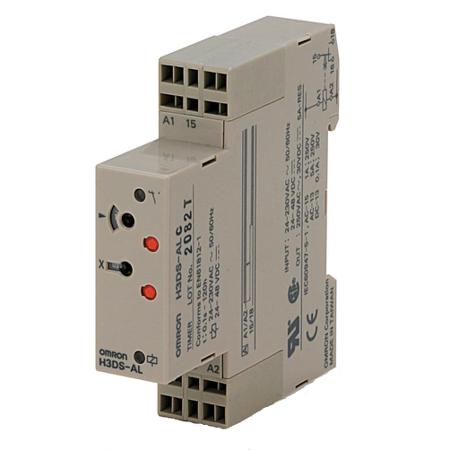

Omron H3DS Series Timer Relay, 24 to 230V AC/24 to 48V DC Supply Voltage, SPDT Contact Configuration - H3DS-ALC
This timer relay enhances automation and control systems by providing precise timing functions essential for diverse industrial applications. The ON delay operation mode allows users to implement programmable delays to ensure proper sequence operations. With a wide supply voltage range, it offers versatility across different setups while ensuring dependable performance.
Features & Benefits
• Designed for DIN rail mounting for easy installation
• Screwless terminals for straightforward wiring
• Handles currents up to 5A for significant applications
• Operates effectively at temperatures between -10°C and +55°C, ensuring longevity Applications • Industrial automation for process control
• Machinery requiring time-based operations
• Sequential starting of equipment in production lines
• Heating systems to manage start-up delays What is the most suitable supply voltage for installation? The unit operates efficiently within a supply voltage range of 24 to 230 V ac and 24 to 48 V DC, offering flexibility for various applications. How do I install the timer relay onto a DIN rail? The timer relay’s DIN rail mounting design allows for simple installation clip the relay onto the rail until it is securely locked in place. What are the dimensions of the device for enclosure compatibility? The timer relay measures 80mm in width, 74mm in depth, and 17.5mm in length, suitable for standard enclosure sizes on DIN rails. How frequently can the timer functions be adjusted? The time settings range from 0.1s to 120h, allowing precise timing adjustments based on application needs.
• Screwless terminals for straightforward wiring
• Handles currents up to 5A for significant applications
• Operates effectively at temperatures between -10°C and +55°C, ensuring longevity Applications • Industrial automation for process control
• Machinery requiring time-based operations
• Sequential starting of equipment in production lines
• Heating systems to manage start-up delays What is the most suitable supply voltage for installation? The unit operates efficiently within a supply voltage range of 24 to 230 V ac and 24 to 48 V DC, offering flexibility for various applications. How do I install the timer relay onto a DIN rail? The timer relay’s DIN rail mounting design allows for simple installation clip the relay onto the rail until it is securely locked in place. What are the dimensions of the device for enclosure compatibility? The timer relay measures 80mm in width, 74mm in depth, and 17.5mm in length, suitable for standard enclosure sizes on DIN rails. How frequently can the timer functions be adjusted? The time settings range from 0.1s to 120h, allowing precise timing adjustments based on application needs.
H3DS Series DIN Rail Mount Timer Relay, 24 → 230 V ac, 24 → 48V dc, 2-Contact, 0.1 s → 120h,
£ 71.18
Checking for live stock
Supply Voltage:
24 → 230 V ac, 24 → 48V dc
Mounting Type:
DIN Rail
Mode of Operation:
ON Delay
Time Range:
0.1 s → 120h
Number of Contacts:
2
Number of Timer Functions:
Single
Contact Configuration:
SPDT
Time Increment:
Hours, Minutes, Seconds
Maximum Current:
5A
Maximum Voltage:
48 V dc, 230V ac
Terminal Type:
Cage Clamp
Switch Configuration:
SPDT
