16A Sealed Switches (Screw terminal)
Built to MIL-DTL-3950
IP68 Sealed
Electrical life 20000 min, Mechanical life 40000 cycles
Standard silver plated contacts
Fitted with large reliable screw terminals
Electrical rating 20A @ 28Vdc, 15A @ 115Vac
IP68 Sealed
Electrical life 20000 min, Mechanical life 40000 cycles
Standard silver plated contacts
Fitted with large reliable screw terminals
Electrical rating 20A @ 28Vdc, 15A @ 115Vac

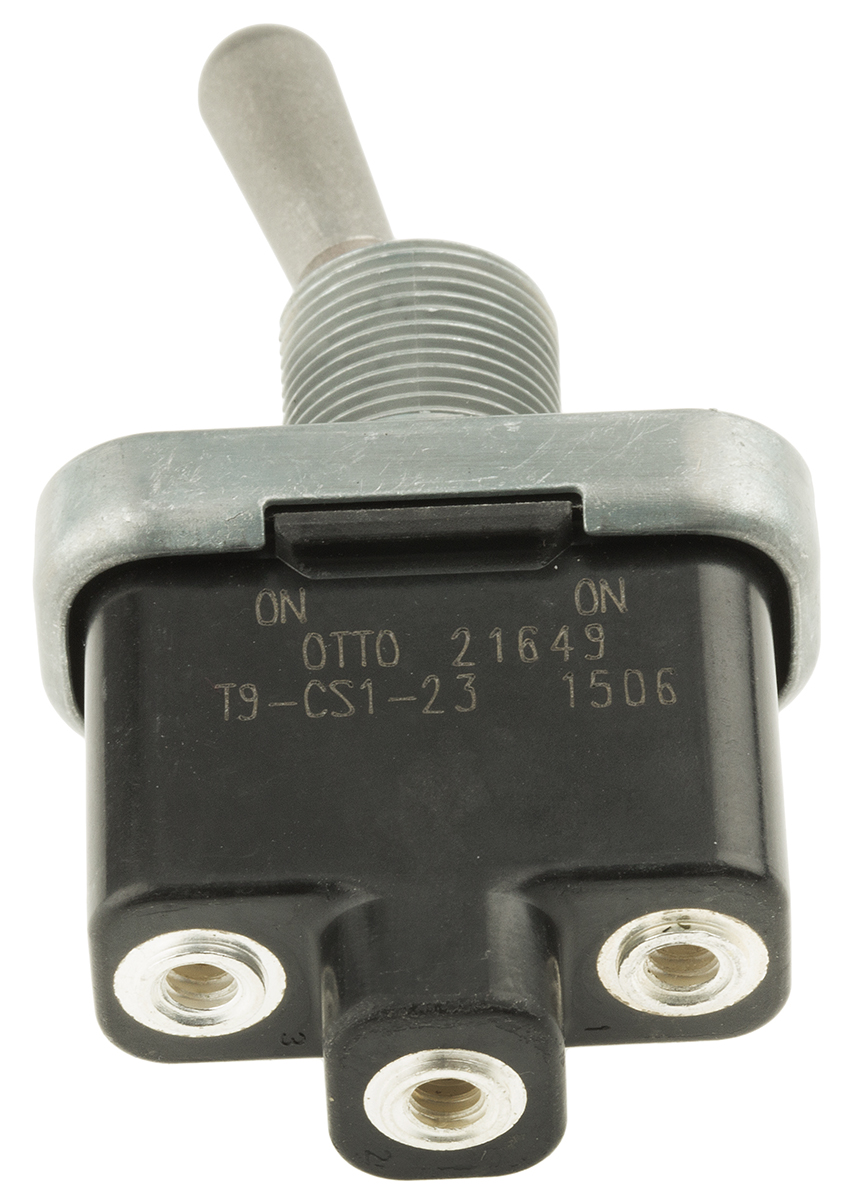

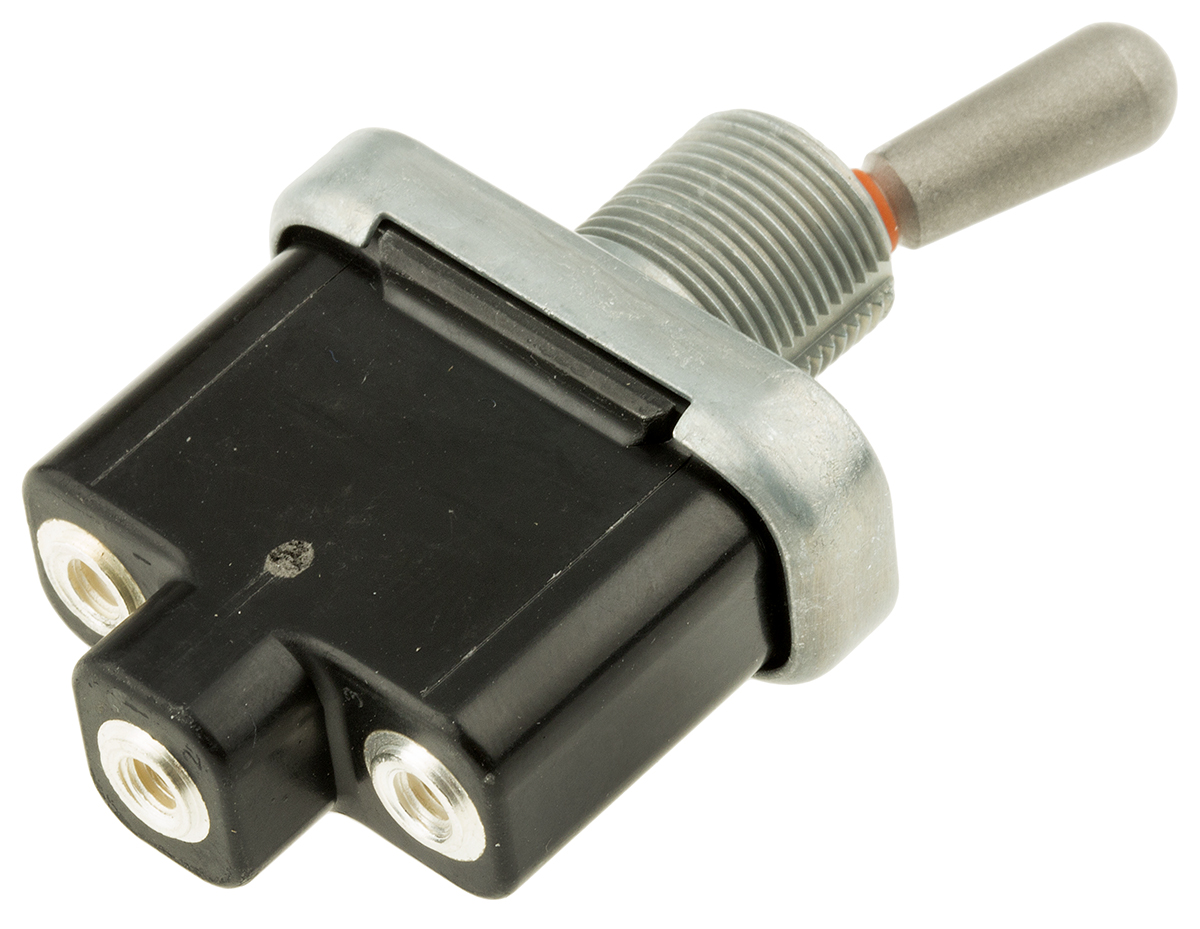

Toggle Switch, Panel Mount, On-On, SPDT, Screw Terminal
Manufacturer:
Otto
Manufacturer Part No:
T9-CS1-23
Enrgtech Part No:
ET14020416
Warranty:
Manufacturer
£ 42.41
Checking for live stock
Contact Configuration:
SPDT
Switch Operation:
On-On
Contact Current Rating:
20 A @ 28 V dc
Mounting Type:
Panel Mount
Terminal Type:
Screw
Actuator Length:
17.53mm
Actuator Material:
Stainless Steel
Contact Material:
Silver Plated
Minimum Operating Temperature:
-65°C
Standards Met:
RoHS
Maximum Operating Temperature:
+71°C
Mechanical Life:
40000Operations
