Large Lever Toggle Switches
Epoxy sealed terminals prevent contamination during soldering
Chrome Plated Brass actuator
Diallyl Phthalate (DAP) case (UL94V-0)
Silver contacts
Note
For biased switches '(on)' refers to momentary 'on' position
Approvals
UL E187490
Momentary function
(spring-loaded return):
The switch or contact breaker returns to its original position when the load is removed. E.g. bell push)
Stay-put function
:
The switch or contact breaker remains (stop) in the new position after the load has been removed.

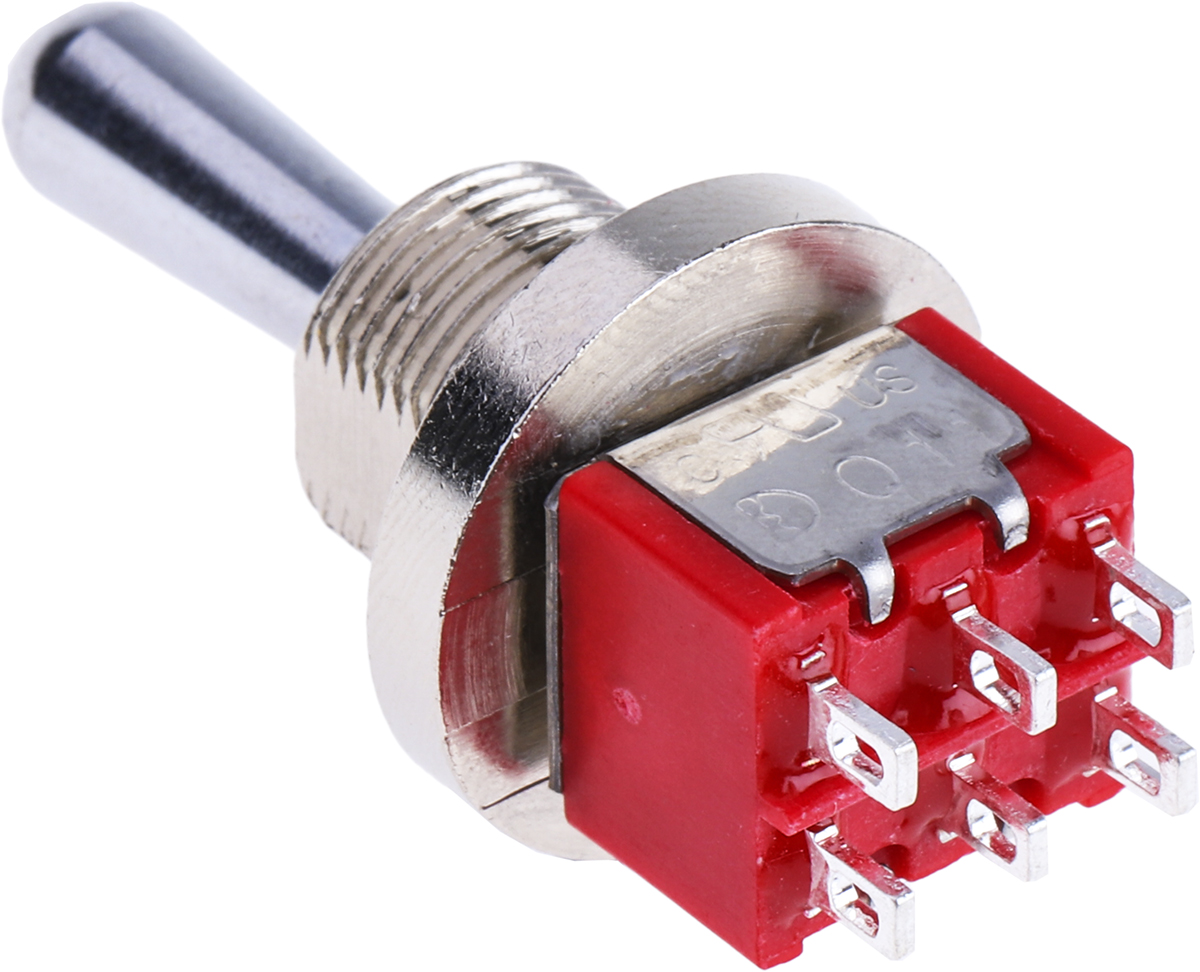

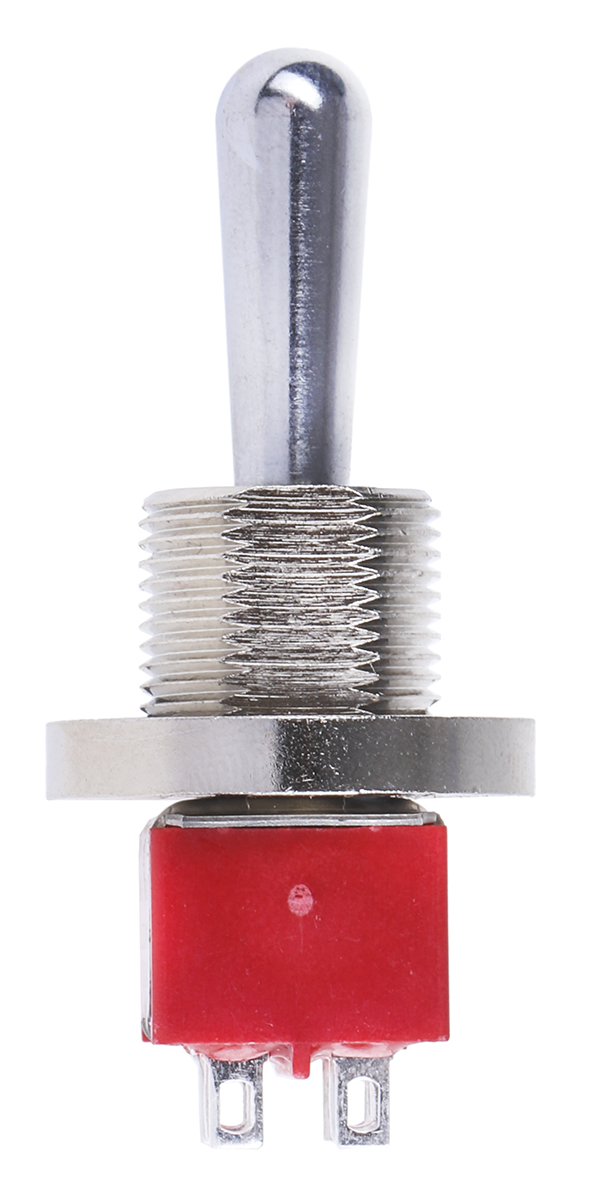

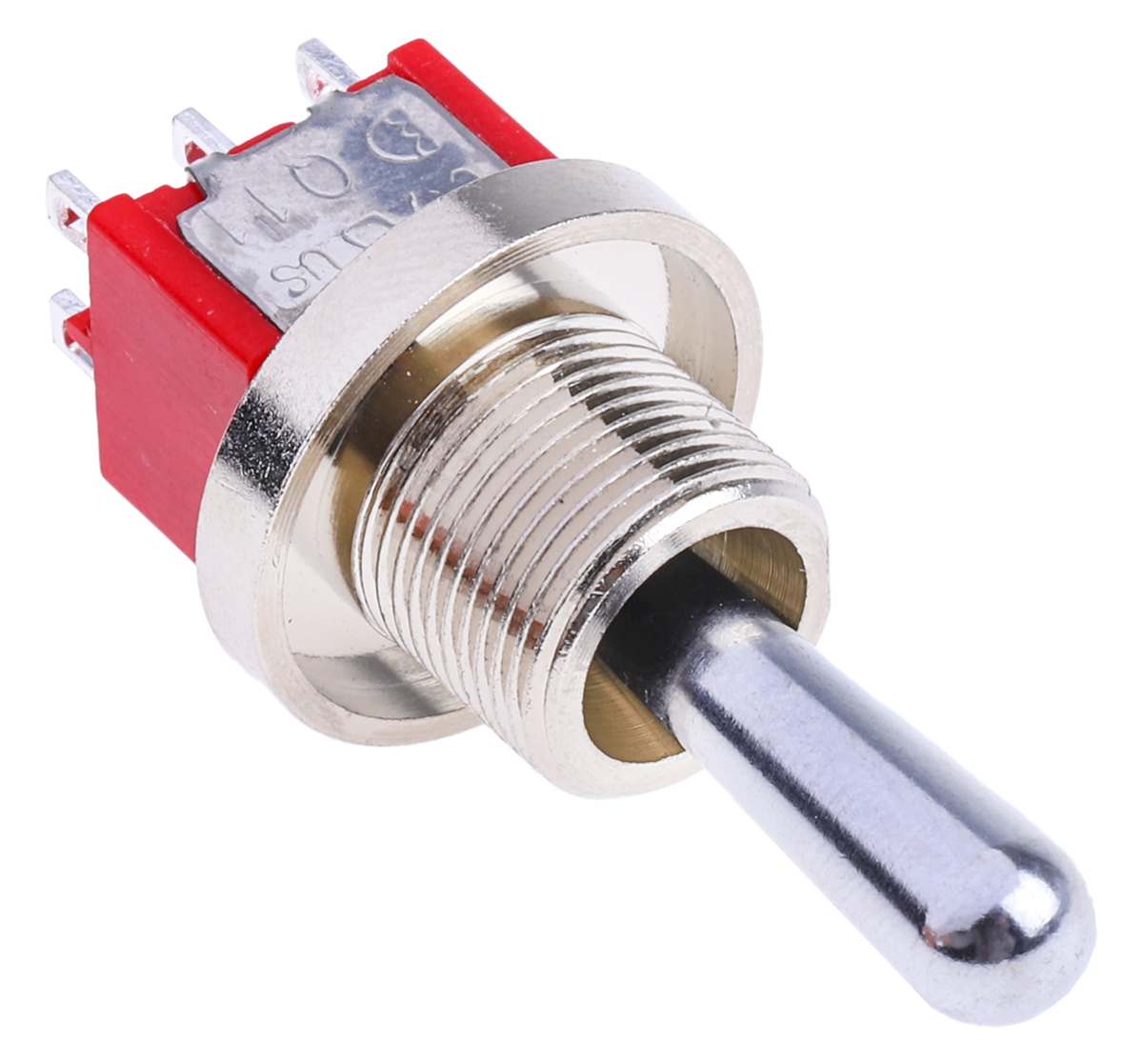

DPDT Toggle Switch, On-On, Panel Mount
£ 7.86
Checking for live stock
Contact Resistance:
0.01Ω
Actuator Length:
17.56mm
Standards Met:
RoHS & Lead Free
Mounting Type:
Panel Mount
Voltage Rating:
120 ac/dc, 28V ac/dc
Contact Current Rating:
5 A @ 28 V dc
Panel Cut Out Diameter:
11.91mm
Minimum Operating Temperature:
-30°C
Contact Configuration:
DPDT
Panel Cut Out Size:
11.91mm
Actuator Material:
Chromium Plated Brass
Operating Temperature Range:
-30 → +85°C
