Single Pole, Type MTA / STA
Miniature panel mount toggle switches
Copper alloy, silver plated solder tags
M6 x 0.75 bushing with locking plate, key 9 mm
Insulation resistance: > 1000 MΩ at 500 Vdc
Dielectric strength: 1500 V, 50 Hz for 1 minute
Chrome plated brass actuator and Diallyl Phthalate (UL 94 V-0) case
Copper alloy, silver plated solder tags
M6 x 0.75 bushing with locking plate, key 9 mm
Insulation resistance: > 1000 MΩ at 500 Vdc
Dielectric strength: 1500 V, 50 Hz for 1 minute
Chrome plated brass actuator and Diallyl Phthalate (UL 94 V-0) case

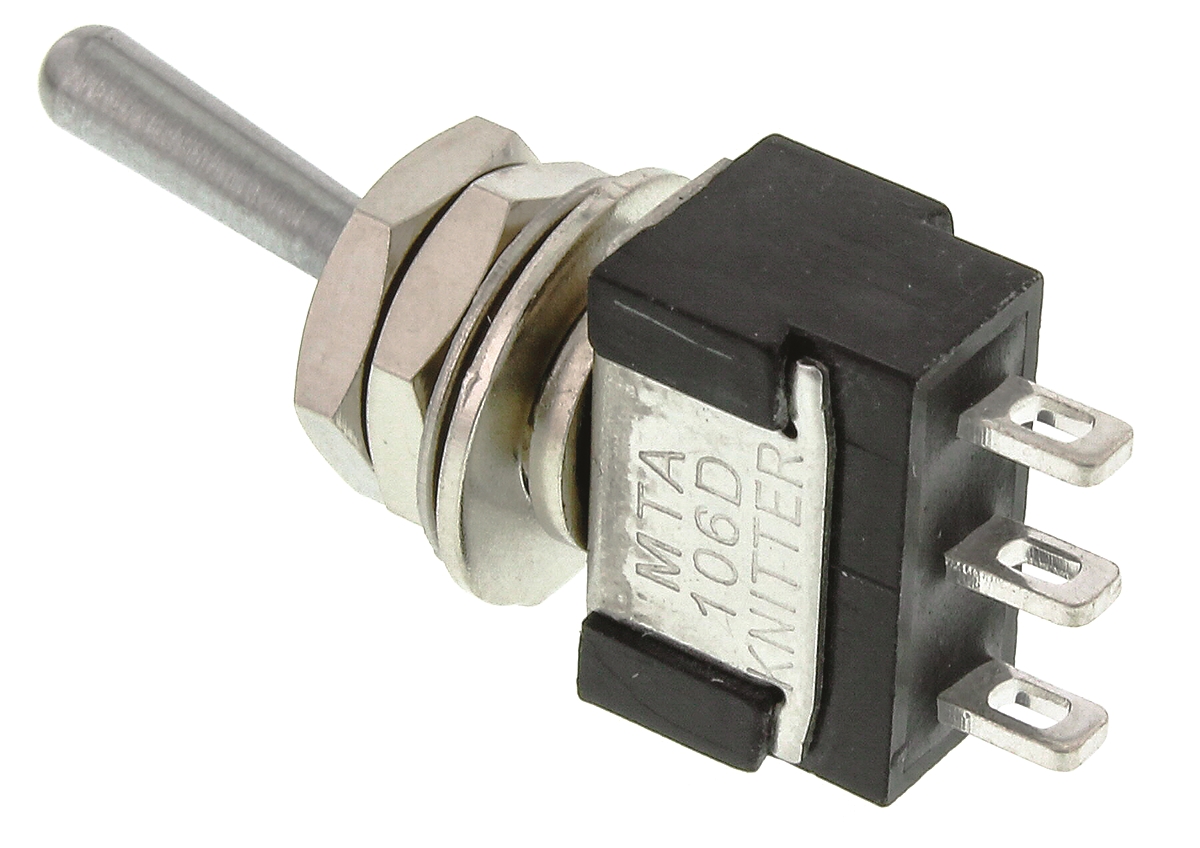

Toggle Switch, Panel Mount, On-On, SPDT, Solder Terminal
Manufacturer:
KNITTER-SWITCH
Manufacturer Part No:
MTA 106 D
Enrgtech Part No:
ET21575764
Warranty:
Manufacturer
£ 4.69
Checking for live stock
Contact Configuration:
SPDT
Switch Operation:
On-On
Contact Current Rating:
4 A @ 30 V dc
Mounting Type:
Panel Mount
Terminal Type:
Solder
Actuator Length:
10.5mm
Actuator Material:
Copper Alloy
Contact Resistance:
0.01Ω
Contact Material:
Silver Plated Copper Alloy
Operating Temperature Range:
-45 → +140°C
Mechanical Life:
200000Cycles
Maximum Operating Temperature:
+140°C
