RKD Toroidal Transformers dual 115Vac input
High quality open style toroidal transformers with dual 115Vac 50/60Hz primary and secondary windings which may be connected in series or parallel or used independently.
Small size and low weight compared with traditional stacked lamination types
Extremely low level of radiated magnetic field
Very low induced noise (hum)
Very low iron loss
Supplied with mounting kit
Insulation Class B
Extremely low level of radiated magnetic field
Very low induced noise (hum)
Very low iron loss
Supplied with mounting kit
Insulation Class B

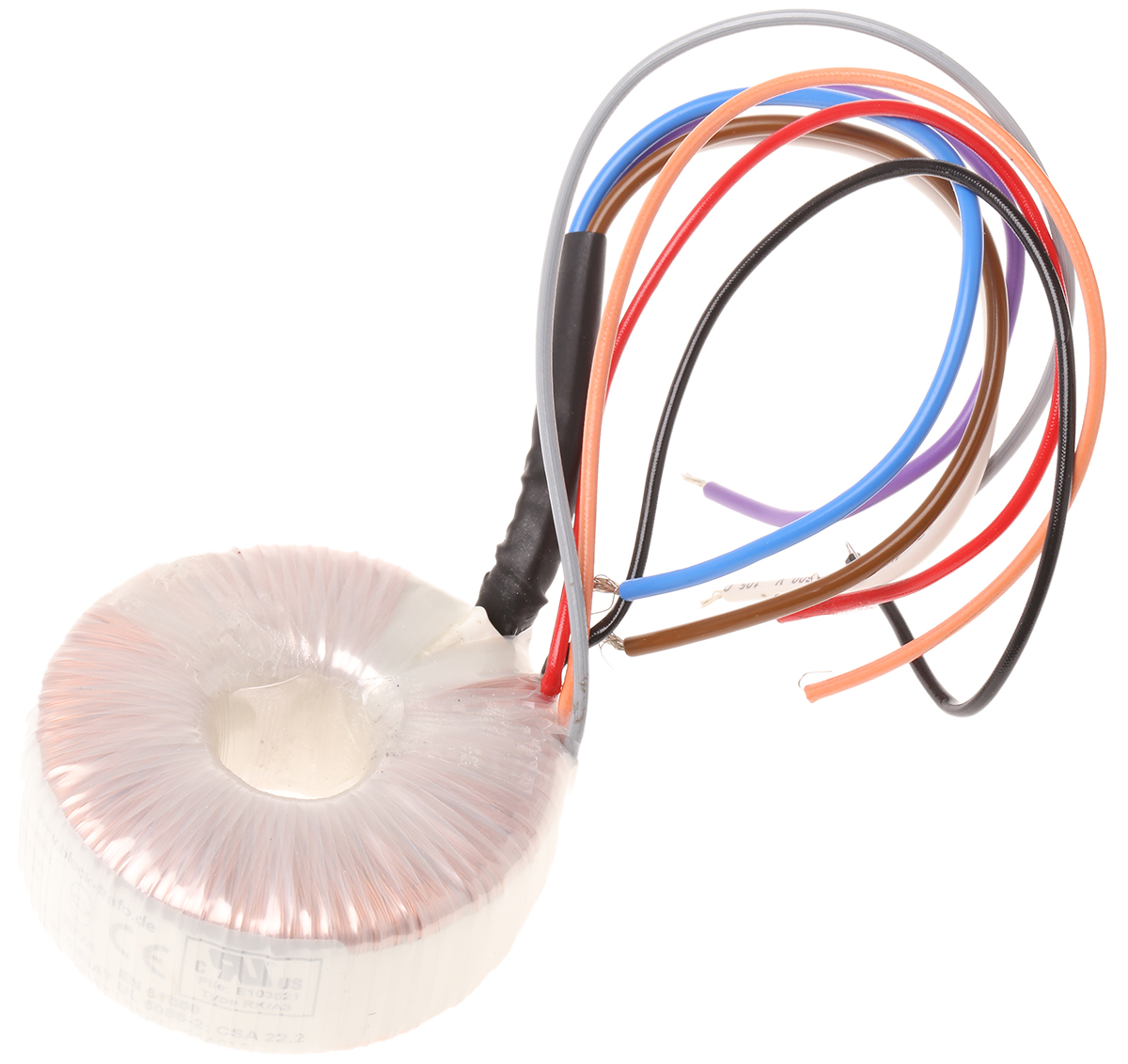

2 x 115V ac, 2 x 24V ac Toroidal Transformer, 30VA 2 Output
Manufacturer:
Block
Manufacturer Part No:
RKD 30/2x24
Enrgtech Part No:
ET16925552
Warranty:
Manufacturer
£ 32.54
Checking for live stock
Primary Voltage Rating:
2 x 115V ac
Secondary Voltage Rating:
2 x 24V ac
Power Rating:
30VA
Number of Outputs:
2
Weight:
470g
Diameter:
68mm
Minimum Operating Frequency:
50Hz
Maximum Operating Frequency:
60Hz
Termination Type:
Leads
Maximum Temperature:
+40°C
