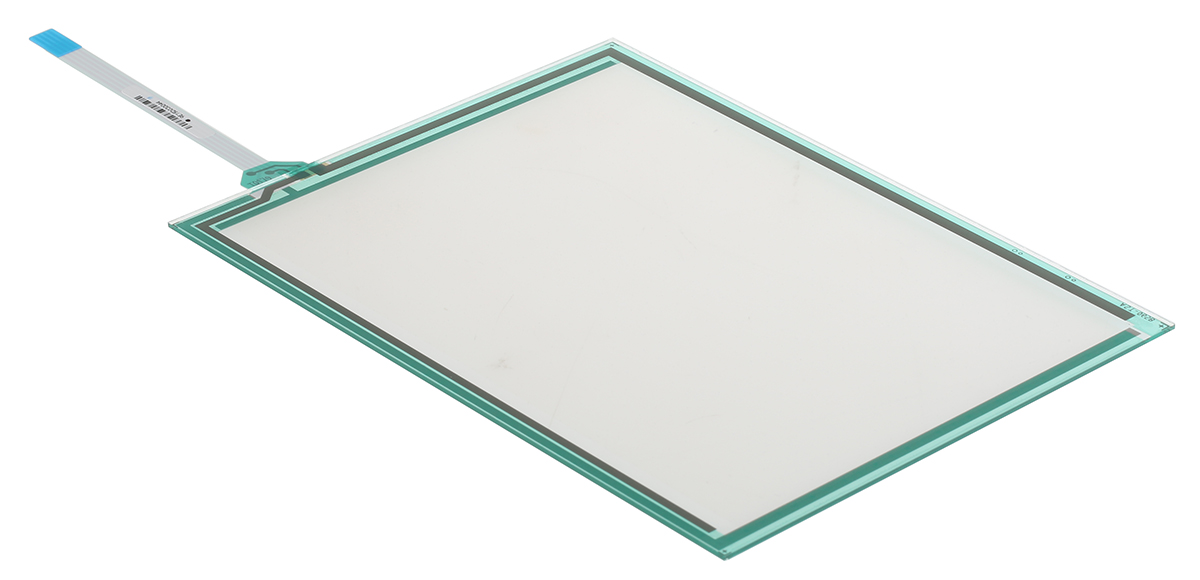

DMC Touch Screen The DMC touch screen sensor is suitable for displays having a size of 6.5in. It has resistive touch technology and a 4-wire connection.
Note:
See stock number 476-444 for analogue touch screen controller card. Features and Benefits Outline depth is 1.40mm
Outline horizontal dimension is 155.00mm
Outline vertical dimension is 117.00mm
Light Transmittance is 80% (typical)
Voltage rating is 6VDC
Current rating is 100mA
Terminal Resistance: <1kohm
Operating Life is >10 million touches
Interface touch is USB, RS232
Operating temperature ranges between -20°C and 70°C Applications Consumer electronics
Industry applications Certifications ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
