Raychem® Single-Entry Power Connection with Junction Box
Suitable for BTV/XTV heating cables in hazardous/non-hazardous areas
The kit integrates the functions of connection kit, insulation entry kit and support bracket
Heating cable is fully protected
Fast and easy to install
Cold applied, no need for heat guns
Cage clamp terminal for fast installation
Internal earth continuity plate
Kit contains all necessary materials for complete connection (excluding pipe strap)
2 Types of kit are available: JBM-100-EP multiple entry power connection to connect power to 3 heating cables, and the JBS-100-EP single entry power connection designed to connect a single heating cable
An E-150-E end seal kit is required to terminate each cable (see stock no. 380-9951)
The kit integrates the functions of connection kit, insulation entry kit and support bracket
Heating cable is fully protected
Fast and easy to install
Cold applied, no need for heat guns
Cage clamp terminal for fast installation
Internal earth continuity plate
Kit contains all necessary materials for complete connection (excluding pipe strap)
2 Types of kit are available: JBM-100-EP multiple entry power connection to connect power to 3 heating cables, and the JBS-100-EP single entry power connection designed to connect a single heating cable
An E-150-E end seal kit is required to terminate each cable (see stock no. 380-9951)

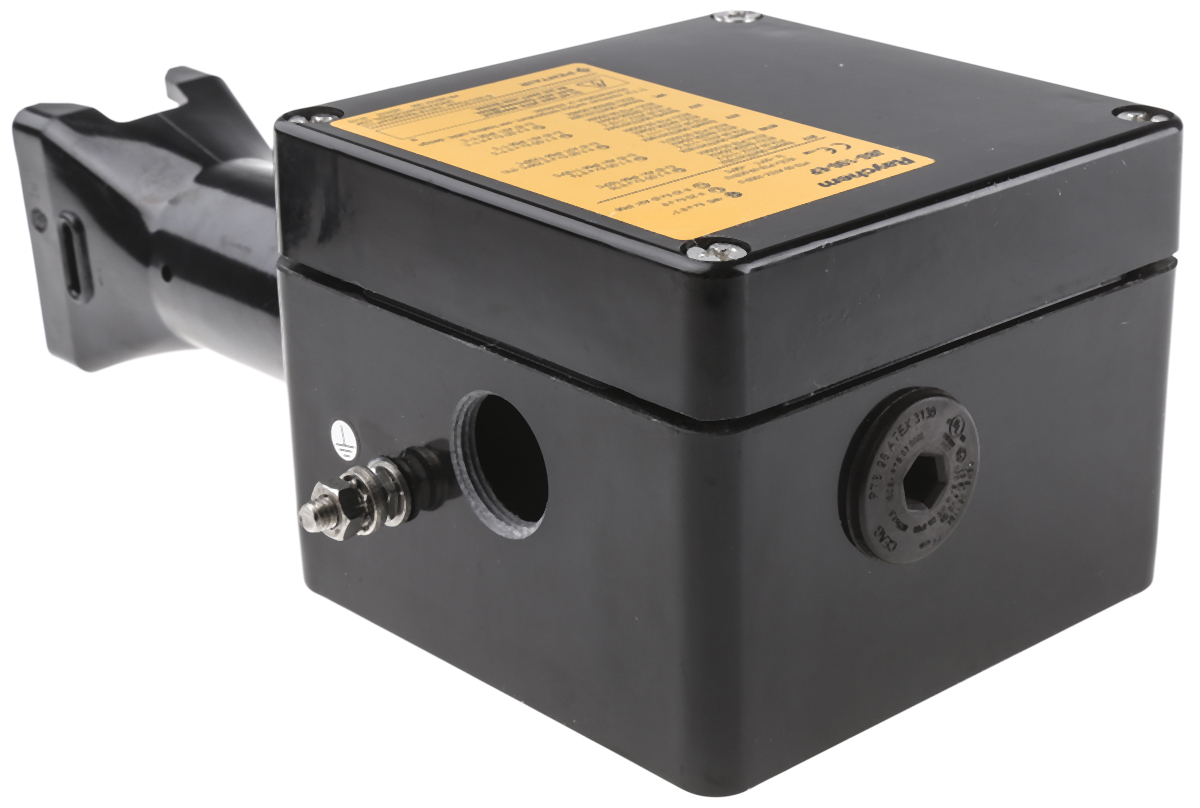

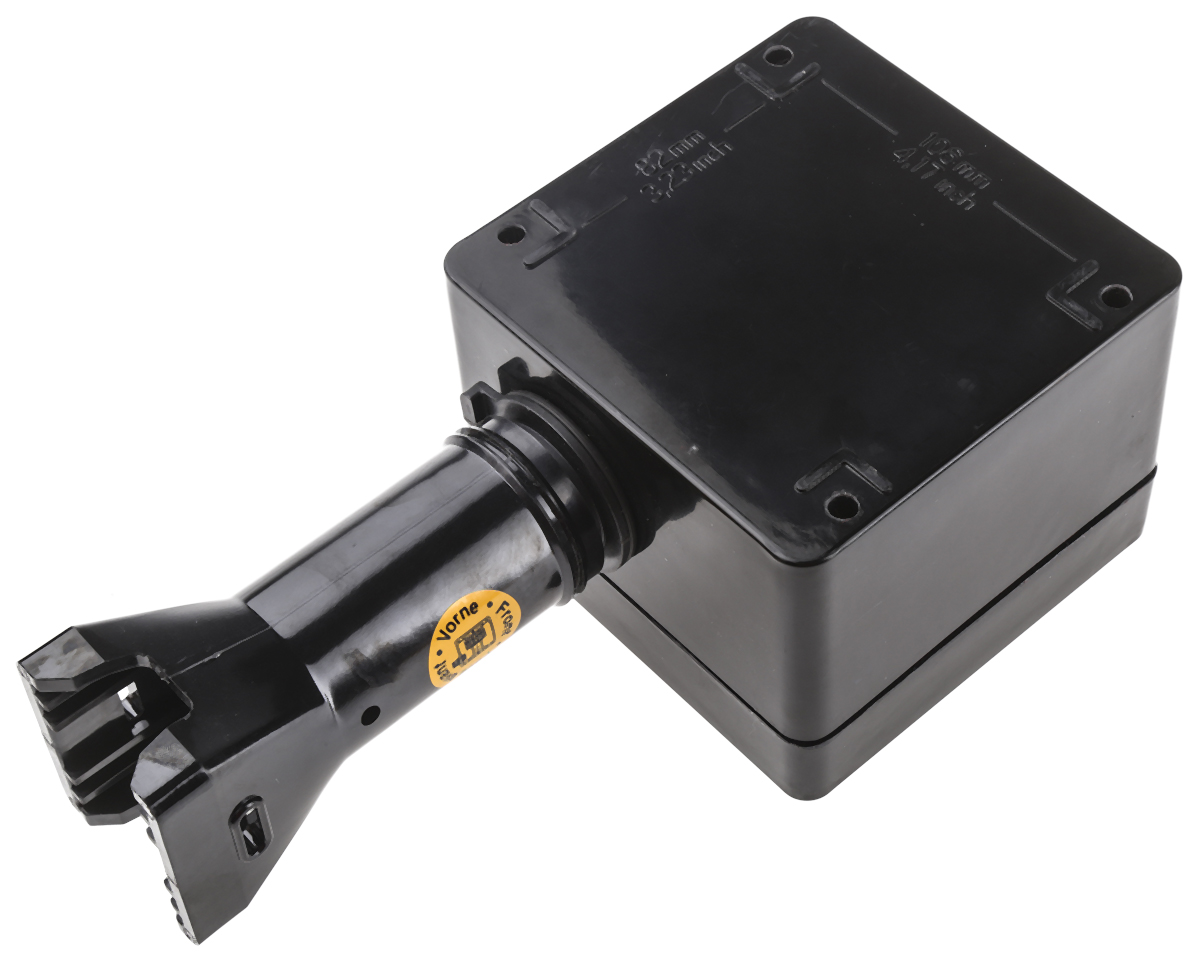

Trace Heating Junction Box 122mm x 120mm x 90mm, -50 → +40 °C
Manufacturer:
nVent RAYCHEM
Manufacturer Part No:
JBS-100
Enrgtech Part No:
ET14123321
Warranty:
Manufacturer
£ 192.12
Checking for live stock
Dimensions:
120 x 122 x 90mm
Minimum Operating Temperature:
-50°C
Maximum Operating Temperature:
+40°C
Height:
122mm
Length:
120mm
Width:
90mm
Hazardous Area Certification:
ATEX
