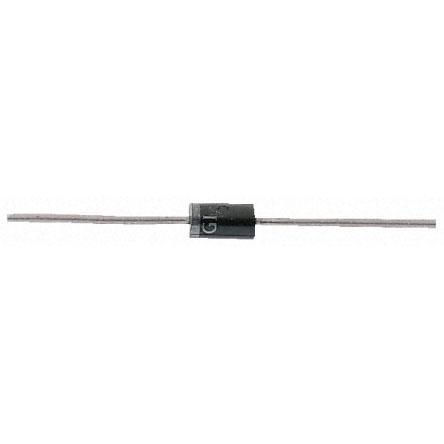

BZW50-39B, Bi-Directional TVS Diode, 5000W, 2-Pin R 6

Direction Type:

Bi-Directional

Diode Configuration:

Single

Maximum Clamping Voltage:

90V

Minimum Breakdown Voltage:

43.3V

Mounting Type:

Through Hole

Package Type:

R 6

Maximum Reverse Stand-off Voltage:

39V

Pin Count:

2

Peak Pulse Power Dissipation:

5000W

Maximum Peak Pulse Current:

667A

Number of Elements per Chip:

1

Dimensions:

9.1 (Dia.) x 9.1mm

Maximum Operating Temperature:

+175 °C

Test Current:

1mA

Diameter:

9.1mm

Maximum Reverse Leakage Current:

5µA

Length:

9.1mm
