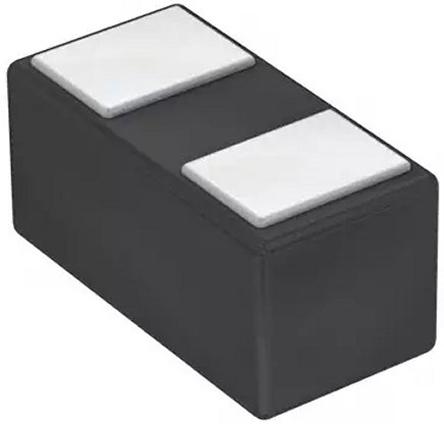

ESDARF02-1BU2CK, Bi-Directional ESD Protection Diode, 20W, 2-Pin ST-0201

Diode Configuration:

Single

Direction Type:

Bi-Directional

Maximum Clamping Voltage:

12V

Minimum Breakdown Voltage:

5V

Mounting Type:

Surface Mount

Package Type:

ST-0201

Maximum Reverse Stand-off Voltage:

3.6V

Pin Count:

2

Peak Pulse Power Dissipation:

20W

Maximum Peak Pulse Current:

1.5A

ESD Protection:

Yes

Number of Elements per Chip:

1

Minimum Operating Temperature:

-40 °C

Dimensions:

0.65 x 0.35 x 0.33mm

Maximum Operating Temperature:

+150 °C

Maximum Reverse Leakage Current:

100nA

Test Current:

1mA

Width:

0.35mm

Length:

0.65mm

Capacitance:

0.3pF

Height:

0.33mm
