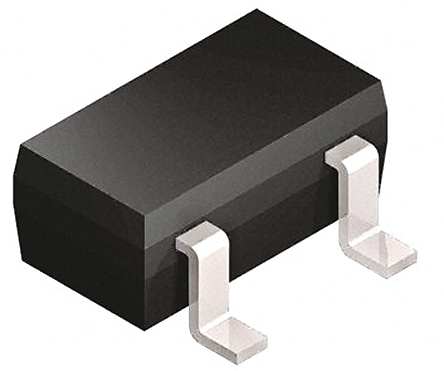

DiodesZetex DT1452-02SO-7 Diodes Inc DT1452-02SO-7, Quint-Element Uni-Directional TVS Diode Array, 0.3W, 3-Pin SOT-23

Direction Type:

Uni-Directional

Diode Configuration:

Array

Maximum Clamping Voltage:

7.5V

Minimum Breakdown Voltage:

7V

Mounting Type:

Surface Mount

Package Type:

SOT-23

Maximum Reverse Stand-off Voltage:

5.5V

Pin Count:

3

Peak Pulse Power Dissipation:

0.3W

Maximum Peak Pulse Current:

12A

ESD Protection:

Yes

Number of Elements per Chip:

5

Minimum Operating Temperature:

-55 °C

Maximum Operating Temperature:

+150 °C

Dimensions:

3 x 1.4 x 1mm

Maximum Reverse Leakage Current:

1µA

Height:

1mm

Capacitance:

1.7pF

Length:

3mm

Width:

1.4mm

Test Current:

1mA
