Automotive Transient Voltage Suppressor, Diodes Inc
A range of single, dual and quad Transient Voltage Suppressors (TVS) suitable for automotive applications. All are qualified to AEC-Q101 standard.
RS Product Codes
823-2974 DZQA5V6AXV5-7 Quad Uni-Directional 20W TVS Array
751-4969 SM05-7 Dual Uni-Directional 300W TVS Array
122-1212 SM05-7 Dual Uni-Directional 300W TVS Array (Pack of 3000)
790-4564 DESDA5V3L-7 Dual Uni-Directional 300W TVS Array
122-1506 DESDA5V3L-7 Dual Uni-Directional 300W TVS Array (Pack of 3000)
827-0402 DESD32VS2SO-7 Dual Uni-Directional 200W CAN/LIN Bus Protector
823-2909 DESD5V2S2UT-7 Dual Uni-Directional 260W TVS Array
827-0415 DFLT220A-7 POWERDI 225W 220V TVS Diode
823-2974 DZQA5V6AXV5-7 Quad Uni-Directional 20W TVS Array
751-4969 SM05-7 Dual Uni-Directional 300W TVS Array
122-1212 SM05-7 Dual Uni-Directional 300W TVS Array (Pack of 3000)
790-4564 DESDA5V3L-7 Dual Uni-Directional 300W TVS Array
122-1506 DESDA5V3L-7 Dual Uni-Directional 300W TVS Array (Pack of 3000)
827-0402 DESD32VS2SO-7 Dual Uni-Directional 200W CAN/LIN Bus Protector
823-2909 DESD5V2S2UT-7 Dual Uni-Directional 260W TVS Array
827-0415 DFLT220A-7 POWERDI 225W 220V TVS Diode

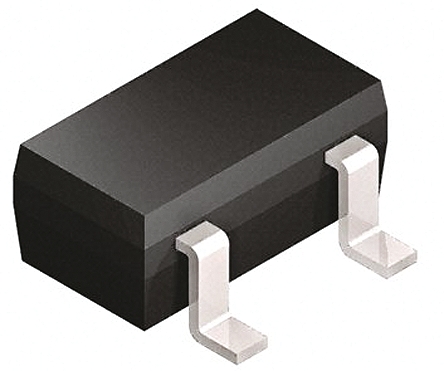

DiodesZetex DESD32VS2SO-7 Diodes Inc DESD32VS2SO-7, Dual-Element Uni-Directional ESD Protection Diode, 200W, 3-Pin SOT-23
Manufacturer:
DiodesZetex
Manufacturer Part No:
DESD32VS2SO-7
Enrgtech Part No:
ET14004927
Warranty:
Manufacturer
£ 0.08
Checking for live stock
Diode Configuration:
Common Anode
Direction Type:
Uni-Directional
Maximum Clamping Voltage:
50V
Minimum Breakdown Voltage:
34V
Mounting Type:
Surface Mount
Package Type:
SOT-23
Maximum Reverse Stand-off Voltage:
32V
Pin Count:
3
Peak Pulse Power Dissipation:
200W
Maximum Peak Pulse Current:
4A
ESD Protection:
Yes
Number of Elements per Chip:
2
