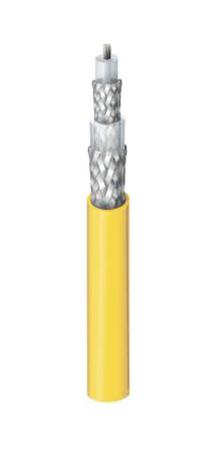

, 9222 series Copper Braid Yellow Triax cable, 6.12mm OD 30m, 50 Ω impedance

Sheath Material:

Polyvinyl Chloride PVC

Sheath Colour:

Yellow

Length:

30m

Characteristic Impedance:

50 Ω

Attenuation:

14 dB/100ft @ 500MHz, 18 dB/100ft @ 700MHz, 22 dB/100ft @ 900MHz, 24 dB/100ft @ 1GHz

Insulation Material:

PE

CPR Certification:

Fca

Outer Diameter:

6.12mm

Capacitance:

101.024 pF/m

Minimum Operating Temperature:

-40°C

Maximum Operating Temperature:

+75°C

Velocity ratio:

66%

Conductor Strand Type:

Stranded

Conductor Material:

Tinned Copper

Standards Met:

Euroclass Fca

Number of Strands:

7

Series:

9222

Cable Shape:

Coaxial

Core Strands:

7/28 AWG

Shielding:

Copper Braid

Size of Strands:

28 AWG
