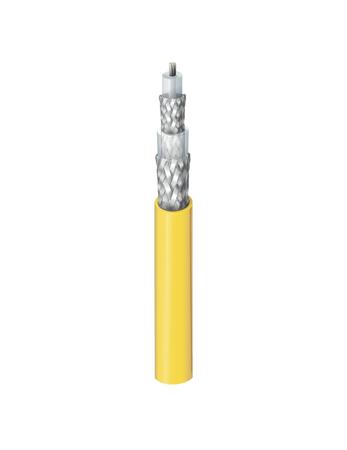

, 9222 series Tinned Copper Braid Yellow Triax cable, 6.12mm OD 152m, 50 Ω impedance

Sheath Material:

Polyvinyl Chloride PVC

Sheath Colour:

Yellow

Length:

152m

Characteristic Impedance:

50 Ω

Attenuation:

78.744 dB/100m @ 1000 MHz

Insulation Material:

PE

CPR Certification:

Fca

Outer Diameter:

6.12mm

Capacitance:

101.055 pF/m

Minimum Operating Temperature:

-40°C

Maximum Operating Temperature:

+75°C

Velocity ratio:

66%

Conductor Strand Type:

Stranded

Cable Shape:

Twinaxial

Standards Met:

CA Prop 65 (CJ for Wire & Cable), EU CE Mark, EU Directive 2000/53/EC (ELV), EU Directive 2002/96/EC (WEEE), EU Directive 2003/11/EC (BFR)

Shielding:

Tinned Copper Braid

Number of Strands:

7

Conductor Material:

Copper

Series:

9222

Size of Strands:

28 AWG

Core Strands:

7/28 AWG
