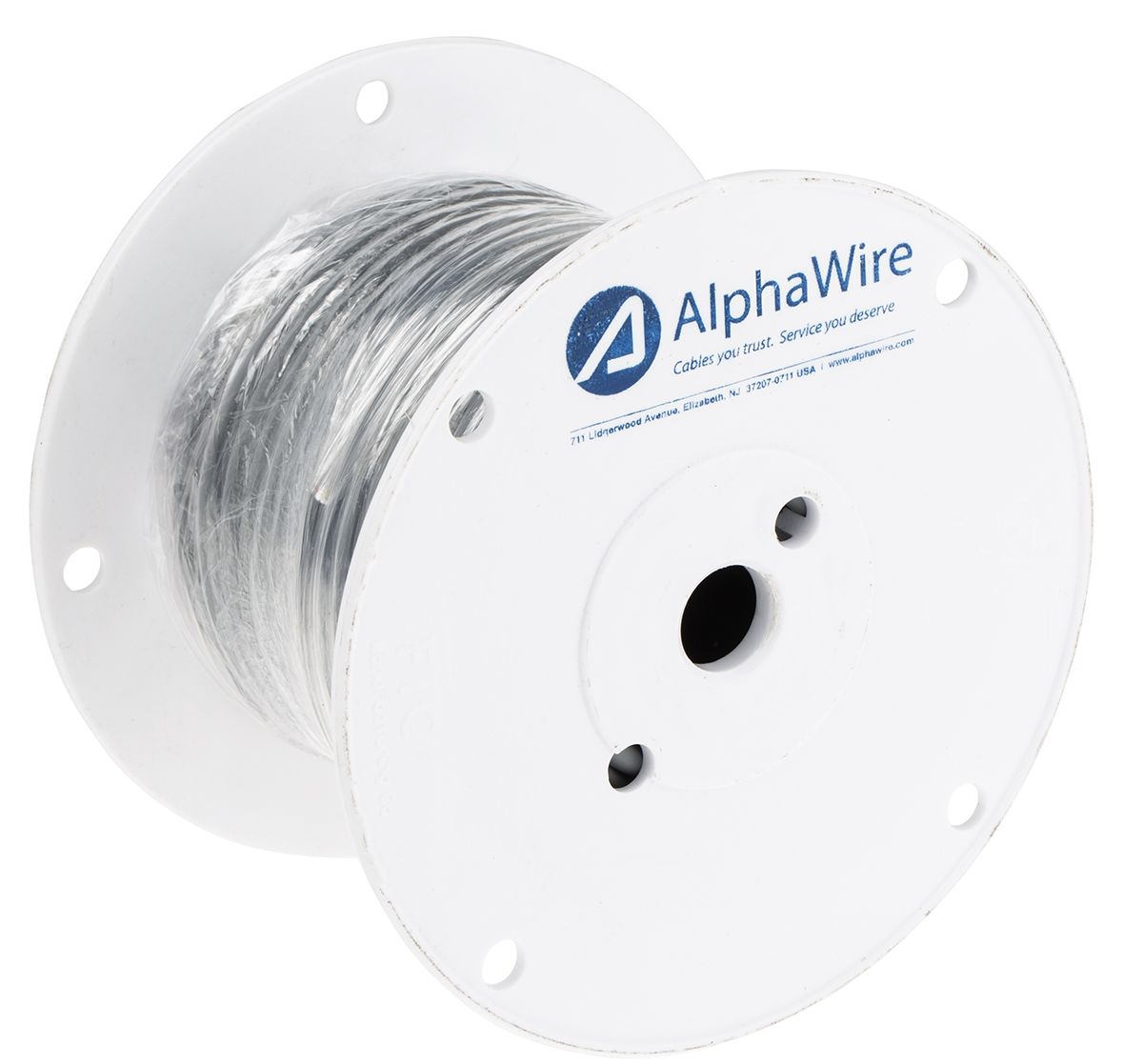

b953104-ge321 Alpha Wire Pro-Tekt Series Data Cable, 0.23 mm², 50 m, Grey Sheath Polyvinyl Chloride
b953104-ge321 Alpha Wire Pro-Tekt Series Data Cable, 0.23 mm², 50 m, Grey Sheath Polyvinyl Chloride
b953104-ge321 Alpha Wire Pro-Tekt Series Data Cable, 0.23 mm², 50 m, Grey Sheath Polyvinyl Chloride
b953104-ge321 Alpha Wire Pro-Tekt Series Data Cable, 0.23 mm², 50 m, Grey Sheath Polyvinyl Chloride
b953104-ge321 Alpha Wire Pro-Tekt Series Data Cable, 0.23 mm², 50 m, Grey Sheath Polyvinyl Chloride
b953104-ge321 Alpha Wire Pro-Tekt Series Data Cable, 0.23 mm², 50 m, Grey Sheath Polyvinyl Chloride
b953104-ge321 Alpha Wire Pro-Tekt Series Data Cable, 0.23 mm², 50 m, Grey Sheath Polyvinyl Chloride
b953104-ge321 Alpha Wire Pro-Tekt Series Data Cable, 0.23 mm², 50 m, Grey Sheath Polyvinyl Chloride

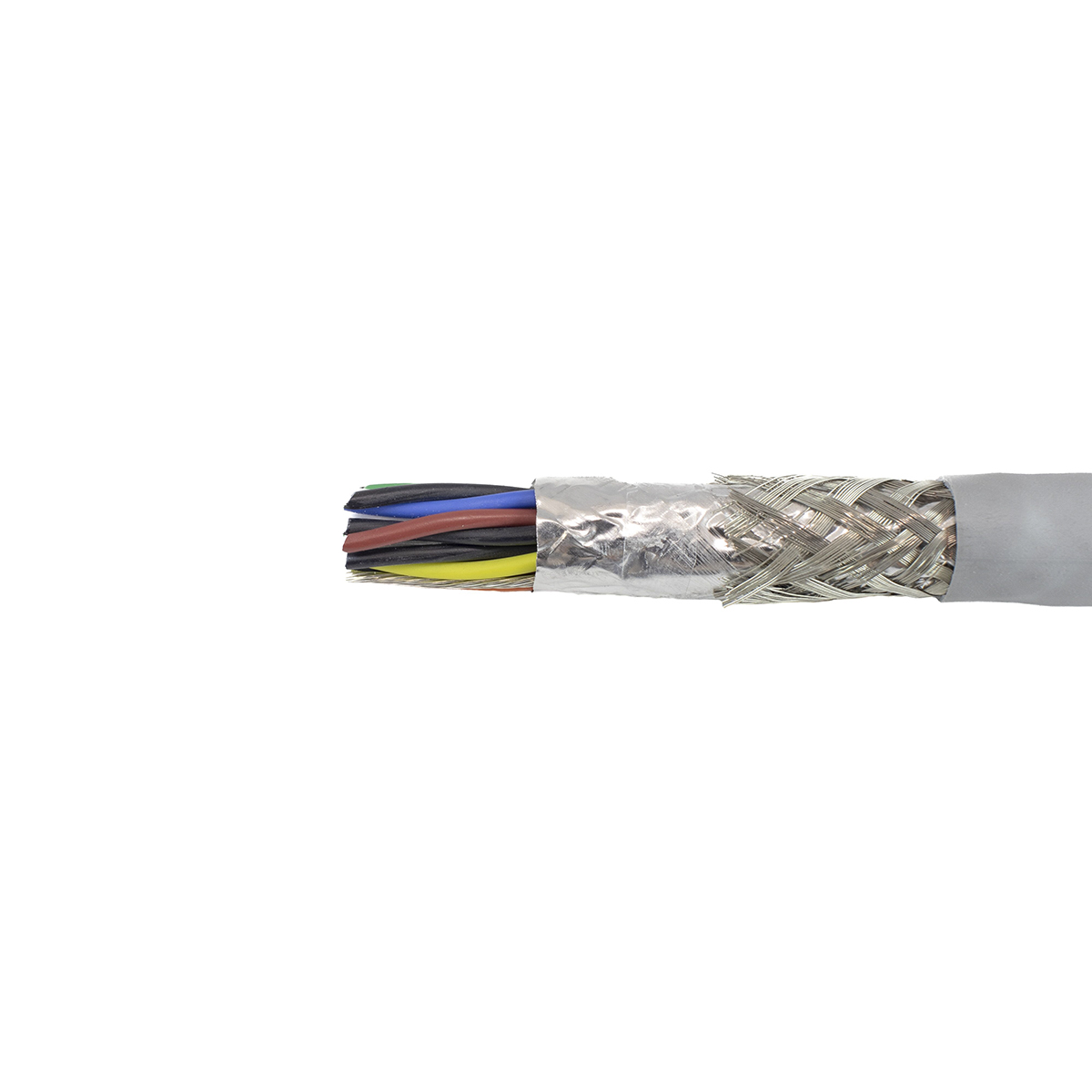

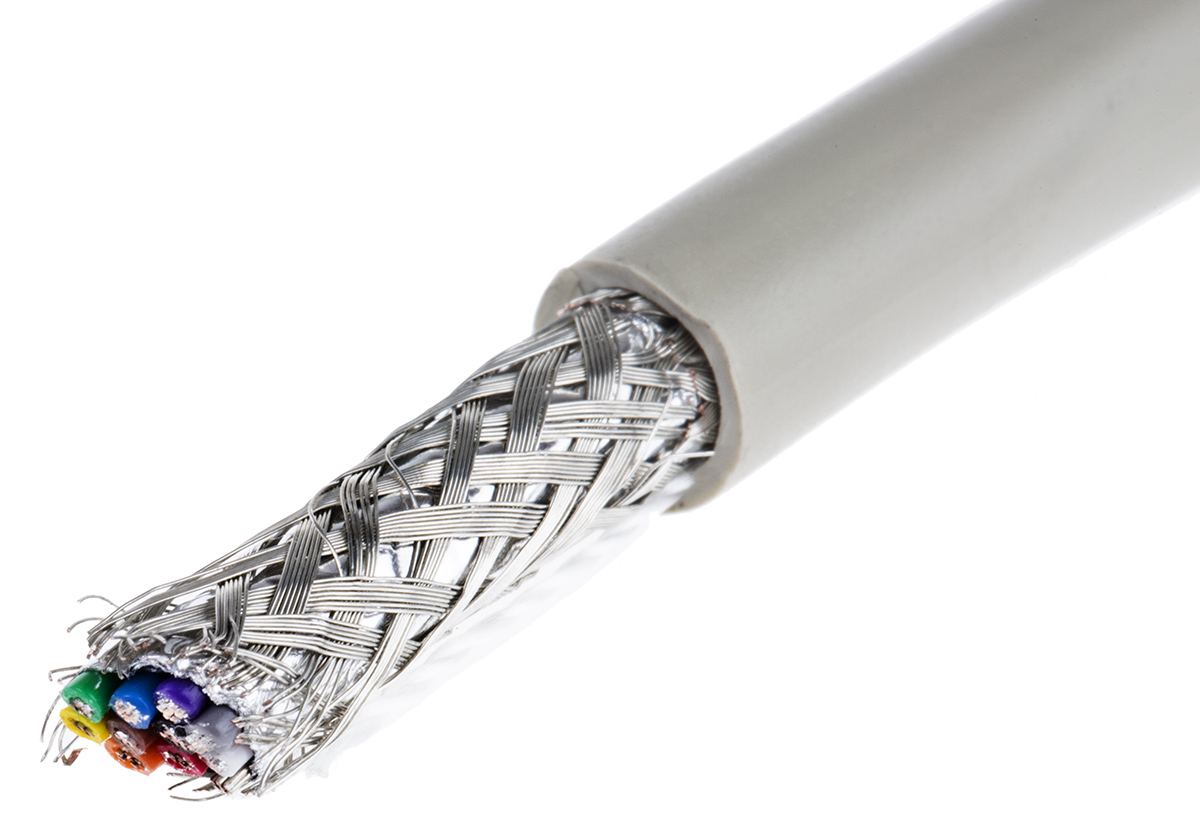

The Alpha Wire B953104 GE321 Multicore Data Cable (Pro Tekt series) is a rugged, premium-grade, 10-conductor (10-core) 24 AWG cable housed in a grey PVC sheath. It’s screened with foil, rated at 300 V, and supports a wide temperature range from –30 °C to +105 °C. The cable features stranded tinned copper conductors and flame‑retardant insulation and jacket. With an approximate outer diameter of 6.88 mm and UL, CSA, and CE certifications, it’s engineered for reliable signal transmission in demanding European industrial environments.

Why buy the Alpha Wire Multicore Data Cable?

Because Pro Tekt cables offer robust performance and versatility—featuring durable PVC insulation for easy routing, dual foil shielding for excellent EMI/RFI protection, and broad compliance (UL/CSA/CE). Its stranded tinned copper conductors ensure flexibility and corrosion resistance, while the wide temperature tolerance (–30 °C to +105 °C) makes it ideal for harsh industrial settings.

Typical applications of B953104 GE321 Multicore Data Cable, 24 AWG:

Designed for use wherever dependable multi‑conductor signal transmission is needed:

  • Industrial process control systems and PLC wiring
  • Computer peripherals and point‑of‑sale equipment
  • Medical‑grade electronics and laboratory instrumentation
  • Environments requiring EMI‑protected cabling and flame‑retardant safety.

RoHs Compliant

Alpha Wire Pro-Tekt Series Data Cable, 0.23 mm², 50 m, Grey Sheath Polyvinyl Chloride

Manufacturer:
Alpha Wire
Manufacturer Part No:
B953104 GE321
Enrgtech Part No:
ET14121830
Warranty:
Manufacturer
local
1 - In Stock

Ships in 2-3 business days

pcs

Quantity
Unit Price (ex VAT)
1
£ 208.05 £ 145.64
Order Today!
From: United Kingdom
Est Ship Date: 04 Sep, 2026
Est Fastest Delivery: 05 Sep, 2026
Series:
Pro-Tekt
Voltage:
300V
Cable Length:
50m
Core Strands:
7
Product Type:
Data Cable
Jacket Colour:
Grey
Conductor Type:
Stranded
Fire Behaviour:
Flame Retardant
Jacket Material:
Polyvinyl Chloride
Outside Diameter:
6.88mm
Conductor Material:
Tin Copper Wire
Standards/Approvals:
CE, CSA Certified, UL
Cross Sectional Area:
0.23mm²
Maximum Operating Temperature:
105°C
Minimum Operating Temperature:
-30°C
ECCN:
EAR99
HTSUS:
8544.49.3080
Usage:
-
Length:
164.0' (50.0m)
Series:
Pro-Tekt™
Package:
Spool
Ratings:
UL Style 2464
Voltage:
300 V
Features:
Drain Wire, Oil Resistant, Rip Cord, UV Resistant
Cable Type:
Multi-Conductor
Wire Gauge:
24 AWG
Cable Shape:
Multicore
RoHS Status:
ROHS3 Compliant
Shield Type:
Foil, Braid
Core Strands:
7/0.20 mm
Jacket Color:
Gray
REACH Status:
REACH Unaffected
Sheath Colour:
Grey
Standards Met:
CE, CSA Certified, UL
Fire Behaviour:
Flame Retardant
Outer Diameter:
6.88mm
Voltage Rating:
300 V
Number of Cores:
10
Priced to Clear:
Yes
Shield Coverage:
100%, 70%
Shield Material:
Aluminum; Copper, Tinned
Conductor Strand:
7/32
standardLeadTime:
5 Weeks
Conductor Material:
Copper, Tinned
American Wire Gauge:
24 AWG
Base Product Number:
B953104
Screened/Unscreened:
Screened
Shielded/Unshielded:
Shielded
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
Cross Sectional Area:
0.23 mm²
Number of Conductors:
10
Operating Temperature:
-30°C ~ 105°C
Outer Sheath Material:
PVC
Jacket (Insulation) Diameter:
0.271" (6.88mm)
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness:
0.0320" (0.813mm)
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-30°C
Moisture Sensitivity Level (MSL):
Not Applicable
