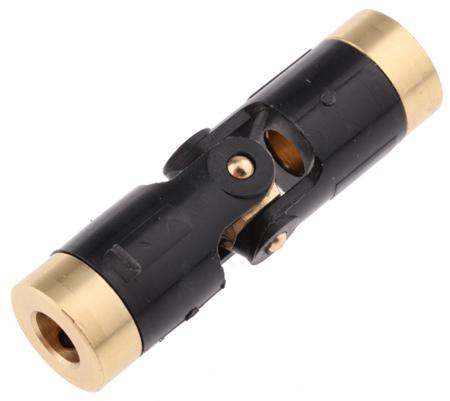

Miniature Acetal Fork Universal Joint
A comprehensive range of light duty universal joints manufactured in non-ferrous metals and Acetal, with a -40 to 85°C operating range.
Corrosion resistant construction
Freedom from backlash
No lubrication required
Electrical isolation between shafts
Available with metric or imperial bore sizes at both ends, or as combination metric/imperial types Additional bore combinations can be created using suitable reducing bushes, see Bushes, Clamps & Collars - Bore Reducing Bushes.
Freedom from backlash
No lubrication required
Electrical isolation between shafts
Available with metric or imperial bore sizes at both ends, or as combination metric/imperial types Additional bore combinations can be created using suitable reducing bushes, see Bushes, Clamps & Collars - Bore Reducing Bushes.
Universal Joint 103.13.2222, Single, Plain, Bore 6 x 6mm, 46.2mm Length
Manufacturer:
Huco
Manufacturer Part No:
103.13.2222
Enrgtech Part No:
ET16909852
Warranty:
Manufacturer
£ 19.66
Checking for live stock
Bore:
6 x 6mm
Number of Joints:
Single
Hub Outer Diameter:
14.3mm
Overall Length:
46.2mm
Joint Type:
Plain
Hub Type:
Bored Hub
Maximum Working Angle:
45°
Peak Torque:
0.85Nm
Material:
Brass
Maximum Speed:
1000rpm
Minimum Operating Temperature:
-20°C
Maximum Operating Temperature:
+60°C
