L78 Series Linear Voltage Regulator, STMicroelectronics
STMicroelectronics L78 Series of fixed output voltage regulators are useful in a wide range of applications within the electronics Industry. The three terminal positive linear voltage regulators can remove problems that are related with single point regulation by providing local on-card regulation. The ST Regulator IC can deliver up to 1.5A at the fixed output voltage, which can range from 5 V to 24 V. The voltage regulator offers safe area protection with the addition of internal thermal shutdown and current limiting.
Features and Benefits Output current up to 1.5 A
Thermal overload protection
Output transition SOA protection
Output current up to 1.5 A
Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18;
24 V Applications Power Management
Features and Benefits Output current up to 1.5 A
Thermal overload protection
Output transition SOA protection
Output current up to 1.5 A
Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18;
24 V Applications Power Management

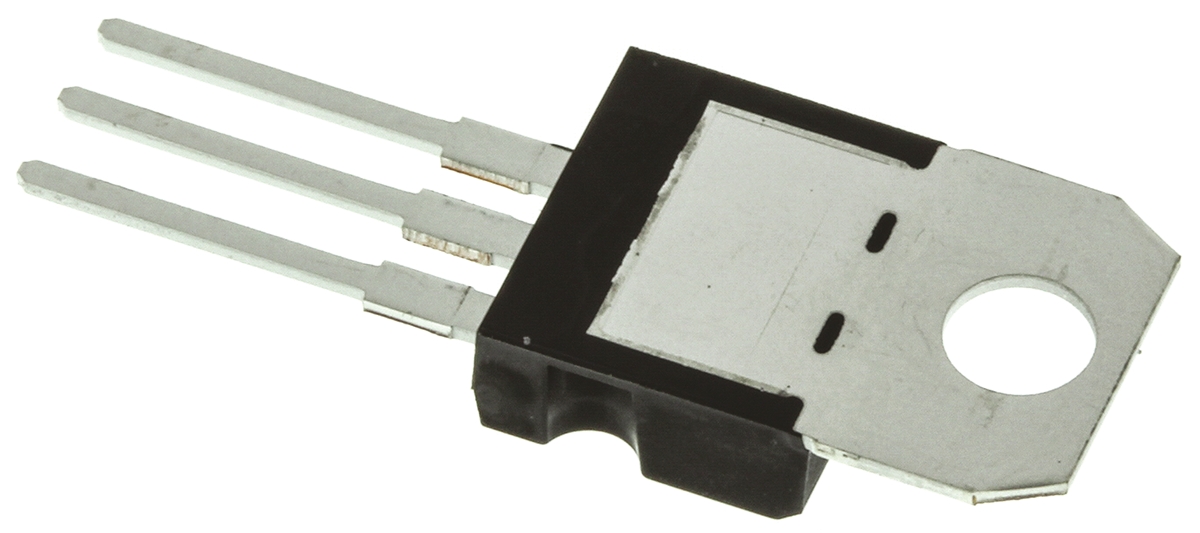

L7824CV, 1 Linear Voltage, Voltage Regulator 1.5A, 24 V 3-Pin, TO-220
Manufacturer:
STMicroelectronics
Manufacturer Part No:
L7824CV
Enrgtech Part No:
ET12116071
Warranty:
Manufacturer
£ 0.29
Checking for live stock
Maximum Output Current:
1.5A
Regulator Type:
Linear Voltage
Number of Outputs:
1
Output Voltage:
24 V
Line Regulation:
480 mV
Load Regulation:
480 mV
Polarity:
Positive
Mounting Type:
Through Hole
Quiescent Current:
8mA
Package Type:
TO-220
Pin Count:
3
Output Type:
Fixed
