L78 Series Linear Voltage Regulator, STMicroelectronics STMicroelectronics L78 Series of fixed output voltage regulators are useful in a wide range of applications within the electronics Industry. The three terminal positive linear voltage regulators can remove problems that are related with single point regulation by providing local on-card regulation. The ST Regulator IC can deliver up to 1.5A at the fixed output voltage, which can range from 5 V to 24 V. The voltage regulator offers safe area protection with the addition of internal thermal shutdown and current limiting.
Features and Benefits Output current up to 1.5 A
Thermal overload protection
Output transition SOA protection
Output current up to 1.5 A
Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18;
24 V Applications Power Management

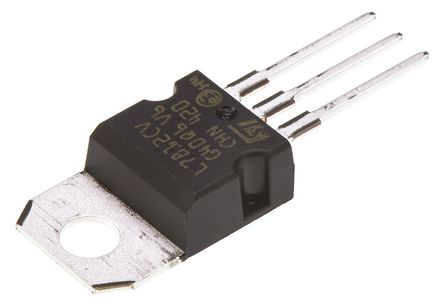

STMicroelectronics L7812CV, 1 Linear Voltage, Voltage Regulator 1.5A, 12 V 3-Pin, TO-220

Manufacturer:
Manufacturer Part No:
L7812CV
Enrgtech Part No:
ET12219397
Warranty:
Manufacturer
Checking for live stock
Regulator Type:
Linear Voltage
Maximum Output Current:
1.5A
Number of Outputs:
1
Output Voltage:
12 V
Line Regulation:
240 mV
Load Regulation:
240 mV
Mounting Type:
Through Hole
Polarity:
Positive
Package Type:
TO-220
Quiescent Current:
8mA
Pin Count:
3
Output Type:
Fixed
Dimensions:
10.4 x 4.6 x 15.75mm
Minimum Operating Temperature:
0 °C
Maximum Input Voltage:
40 V
Height:
15.75mm
Maximum Operating Temperature:
+125 °C
Length:
10.4mm
Width:
4.6mm
