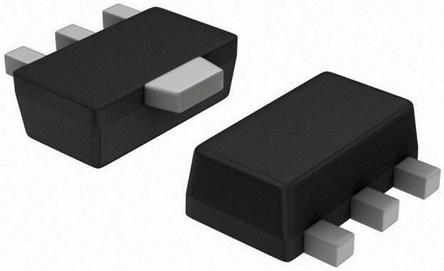

HT7533-1-SOT89, 1 Low Dropout Voltage, Voltage Regulator 100mA, 3.3 V 3-Pin, SOT-89

Regulator Type:

Low Dropout Voltage

Maximum Output Current:

100mA

Number of Outputs:

1

Output Voltage:

3.3 V

Line Regulation:

0.2 %/V

Load Regulation:

60 mV

Accuracy:

±3%

Polarity:

Positive

Mounting Type:

Surface Mount

Quiescent Current:

4µA

Package Type:

SOT-89

Pin Count:

3

Output Type:

Fixed

Dimensions:

4.6 x 2.6 x 1.6mm

Height:

1.6mm

Maximum Operating Temperature:

+85 °C

Maximum Input Voltage:

30 V

Minimum Operating Temperature:

-40 °C

Width:

2.6mm

Length:

4.6mm
