Spacial S3D Wall Boxes with Chassis Plate Plain door Degree of protection IP66 External mechanical impact resistance: IK10 Perforated rails on door, with drilled diameter of 4.2 mm on 25 mm pitch: (enclosures from an External Height of 400 mm have 2 vertical rails and enclosures from External Width of 800 mm have 2 horizontal and vertical rails) Door easily removable and reversible with double thickness 20mm return fold for excellent rigidity, 120° opening Enclosure supplied with 3mm double bar lock. The handle supplied has two functions as operating key and as tool for removal of stud protective caps M6 x 16 earthing screw for equipotential connection between enclosure door and body Wall mounting direct by 4 holes Ø10 4 shouldered back studs M8 x 25 for mounting of chassis and step slides, leaving 10mm clearance from rear panel Cable gland plate with grid pattern to facilitate drilling and assure maximum access Supplied complete with chassis plate One piece folded and welded body, double plate thickness gutter shaped front profile, flat rear panel Polyurethane door seal Textured 100% polyester powder paint finish, colour RAL 7035 light grey Standards Compliance with enclosure standards IEC 62208, UL, CUL, BV, DNV and GL. Supplied with Plain galvanised chassis plate.

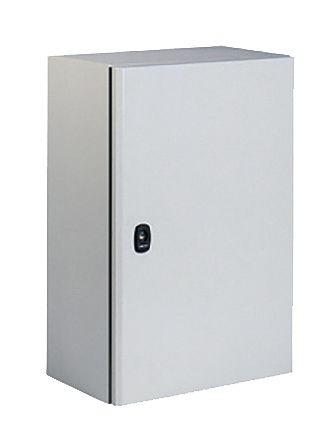

Schneider Electric NSYS3D10830P Spacial S3D IP66 Wall Box, Steel, Grey, 1000 x 800 x 300mm

Manufacturer:
Manufacturer Part No:
NSYS3D10830P
Enrgtech Part No:
ET13997671
Warranty:
Manufacturer
£ 503.42
Checking for live stock
RAL Code:
RAL 7035
External Mounting Type:
Bracket
Better World Verification:
Green Premium
Better World Product:
Yes
IP Rating:
IP66
Series:
PanelSet S3D
Colour:
Grey
Gland Plate:
Yes
Chassis Plate:
Yes
Transparent Door:
No
External Depth:
300mm
Door Lock Type:
Double Bar
Body Material:
Steel
Internal Mounting Type:
Panel
IK Rating:
IK10
External Height:
1000 mm
Fixing Kit:
Yes
Special Features:
120° Door Opening
External Width:
800 mm
Ratings:
IP66
Material:
Metal, Steel
HTSUS:
7310.10.0090
Thickness:
-
Area (L x W):
1240in² (8000cm²)
Container Type:
Enclosure
Material Flammability Rating:
-
Size / Dimension:
39.370" L x 31.496" W (1000.00mm x 800.00mm)
standardLeadTime:
5 Weeks
Features:
-
Color:
Light Gray
Series:
-
Height:
1.181" (30.00mm)
Packaging:
Bulk
Design:
Hinged Door
ECCN:
EAR99
