TANGO 23 – IP67 Dual Band WiFi/WLAN/Blurtooth/ZigBee Antenna, Siretta

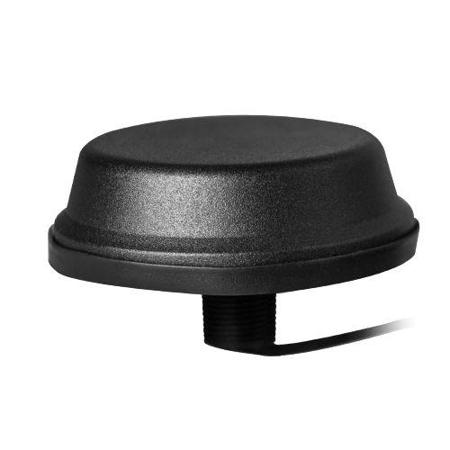

The Tango 23 is a dual band 2.4 GHz / 5 GHz - WiFi / WLAN / Bluetooth / ZigBee Antenna. It is compact, puck shaped and has a diameter of 80 mm and height of 23 mm. With an IP67 rating and weather sealing, this antenna suited to internal or external mounting.
Supplied with a 0.5 meter low loss, CLF100 cable with a reverse polarity SMA male connector. Operating Temperature: -40 to +85˚C
Impedance: 50 Ω
Gain: 3 dBi @ 2.5 GHz / 5 dBi @ 5 GHz
VSWR: <1.7
Polarisation: Vertical
Radiation: Omnidirectional
Operating Frequencies
WiFi / WLAN / Bluetooth / ZigBee: 2.4 GHz to 2.5 GHz
Dual Band WiFi / WLAN: 5.1 GHz to 5.9 GHz
Dimensions
Length: 80 mm (diameter) x 23 mm (height, excluding screw thread)
Mounting screw: 22 mm long, 17 mm wide with rubber gasket
Supplied with a 0.5 meter low loss, CLF100 cable with a reverse polarity SMA male connector. Operating Temperature: -40 to +85˚C
Impedance: 50 Ω
Gain: 3 dBi @ 2.5 GHz / 5 dBi @ 5 GHz
VSWR: <1.7
Polarisation: Vertical
Radiation: Omnidirectional
Operating Frequencies
WiFi / WLAN / Bluetooth / ZigBee: 2.4 GHz to 2.5 GHz
Dual Band WiFi / WLAN: 5.1 GHz to 5.9 GHz
Dimensions
Length: 80 mm (diameter) x 23 mm (height, excluding screw thread)
Mounting screw: 22 mm long, 17 mm wide with rubber gasket
TANGO23/1M/SMAM/S/RP/19 Puck WiFi Antenna with SMA RP Connector, Wi-Fi, Wi-Fi (Dual Band), Omni-directional,
Manufacturer:
Siretta
Manufacturer Part No:
TANGO23/1M/SMAM/S/RP/19
Enrgtech Part No:
ET16908648
Warranty:
Manufacturer
£ 23.11
Checking for live stock
RF Protocols:
Wi-Fi, Wi-Fi (Dual Band), Omni-directional, NB-IoT, NB IoT, ISM, ISM Band, Cat M, Bluetooth (BLE), IEEE 802.15.4, Wi-Fi 6, Zigbee
Internal/External:
External, Internal
Frequency Range:
2.4 GHz, 5.8 GHz
Antenna Physical Form:
Puck
Antenna Mounting Type:
Panel Mount, Screw, Through Hole, Through Hole/Bolted
Connector Type:
SMA RP
Mounting Type:
Through Hole
Gain:
5 → 7dBi
Antenna Directivity:
Omnidirectional
Cable Length:
1m
Connector Gender:
Male
Antenna Internal Construction:
Low Profile
