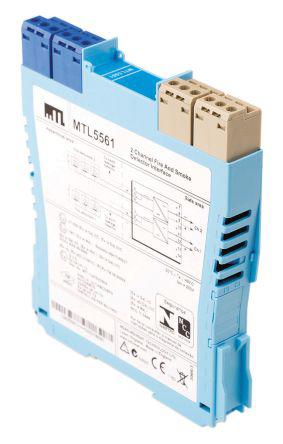

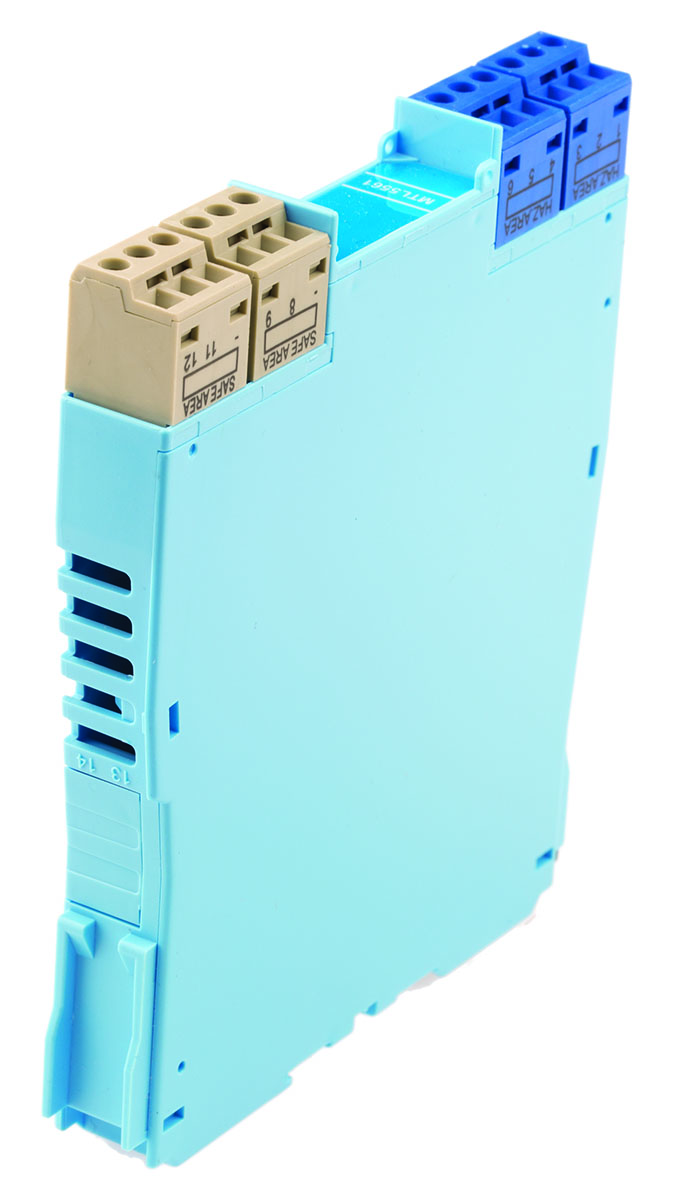

mtl5561 2 Channel Galvanic Isolator with Analogue Output, 28 V max, 42mA max

MTL5561 - Fire and Smoke Detector Interface The MTL5561 is a loop-powered 2–channel interface for use with conventional fire and smoke detectors located in hazardous areas. In operation, the triggering of a detector causes a corresponding change in the safe–area current. Two channel Reverse input polarity protection "No-fail" earth fault protection

For more information please check the datasheets.

MTL MTL5561 2 Channel Galvanic Isolator with Analogue Output, 28 V max, 42mA max

Name: 2 Channel Galvanic Isolator with Analogue Output, 28 V max, 42mA max
Brand: MTL
SKU: ET13801758
Availability: InStock

Manufacturer:

MTL

Manufacturer Part No:

MTL5561

Enrgtech Part No:

ET13801758

Warranty:

Manufacturer

£ 460.80

Checking for live stock

Signal Type:

Analog Input

Maximum Current:

42mA

Maximum Voltage:

28V

Series:

MTLx561

Barrier Type:

Zener Barrier

Hazardous Area Certification:

ATEX

Number of Channels:

Supply Voltage:

6 → 30V dc

Minimum Operating Temperature:

-20°C

Operating Temperature Range:

-20 → +60°C

Maximum Operating Temperature:

+60°C

MTL5500 Series - Instruction Sheet(Technical Reference)

MTL5561 Fire and Smoke Detector Interface - Datasheet(Technical Reference)

MTL MTL5561 2 Channel Galvanic Isolator with Analogue Output, 28 V max, 42mA max

Product Reviews
