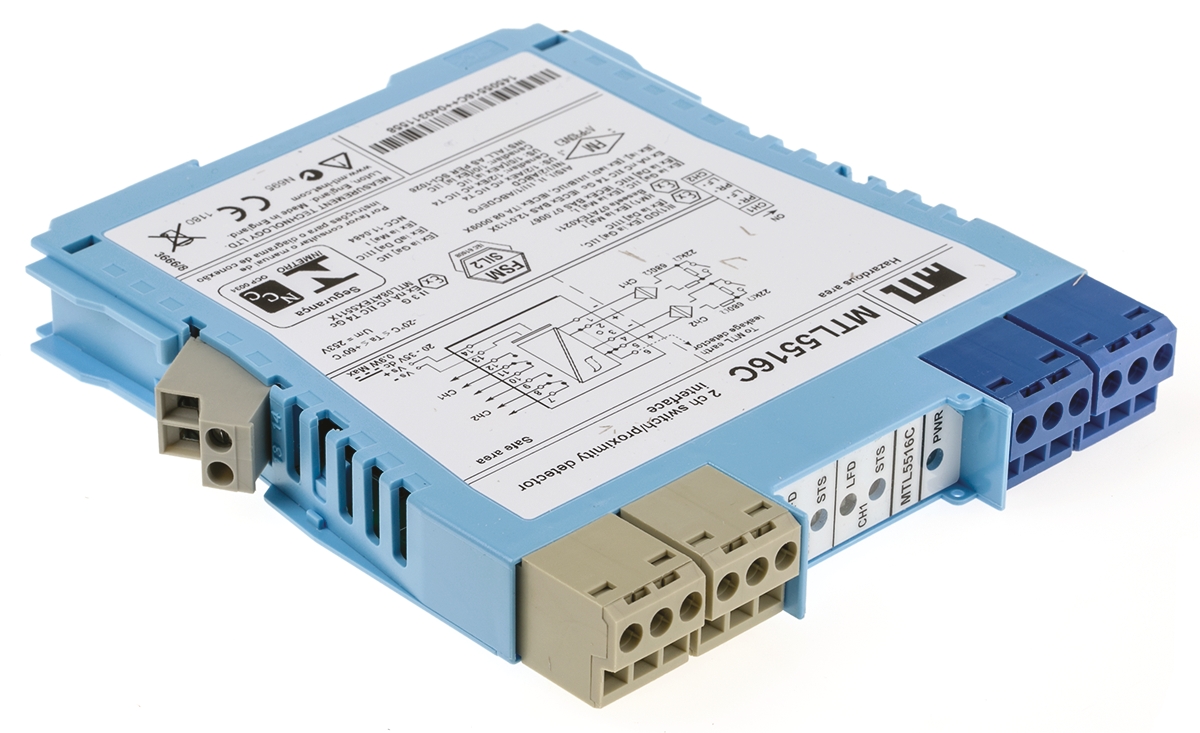

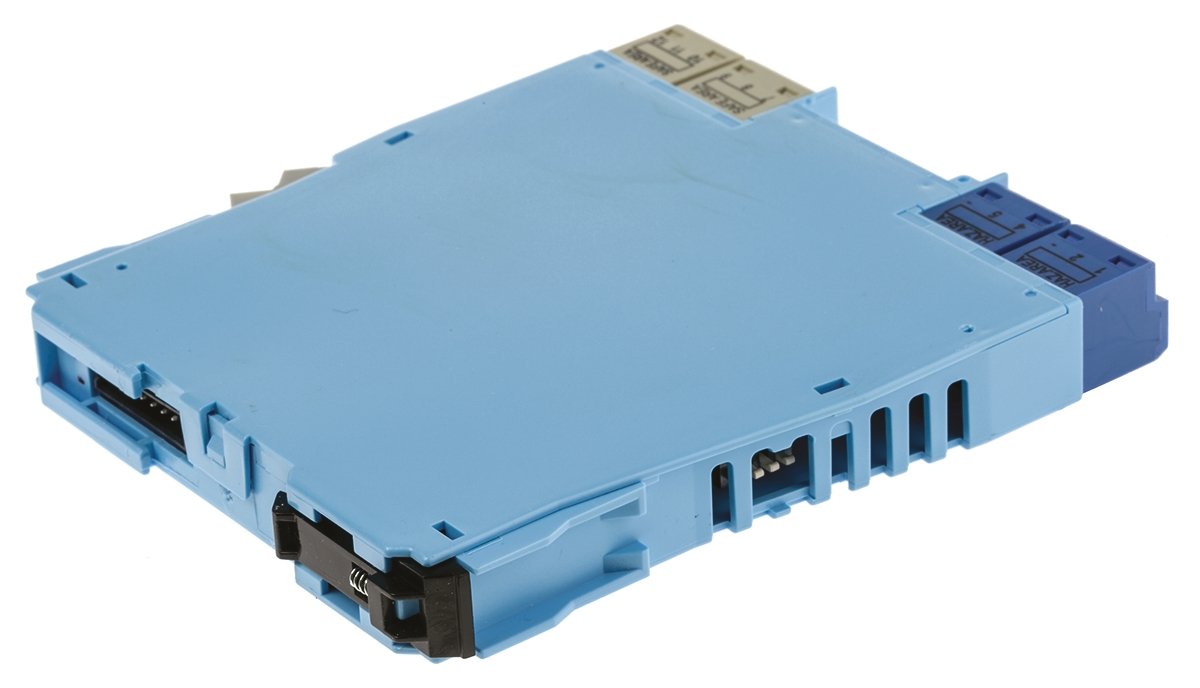

mtl5516c 2 Channel Isolation Barrier with NAMUR Input, Relay Output, 10.5 V max, 14mA max

5500 Series IS Interface Units The MTL5500 series is the latest generation of MTL isolators. Incorporating advanced circuit design and innovative isolating transformer construction. The compact 16mm wide design reduces weight and gives a high packing density and reduction in power consumption. They build on the success of the MTL5000 series to bring the benefits of galvanic isolation with exceptional design and reliability.,II (I) GD (Ex ia) IIC,IECEx, ATEX (Baseefa) FM, CSA 3-Port Isolation High Packing density Low power dissipation Multi-channel I/O modules Compatible with preceding MTL5000 series Assessed for Functional safety IEC61508 applications Required EX numbers and information displayed on cover where applicable

For more information please check the datasheets.

MTL MTL5516C 2 Channel Isolation Barrier with NAMUR Input, Relay Output, 10.5 V max, 14mA max

Name: 2 Channel Isolation Barrier with NAMUR Input, Relay Output, 10.5 V max, 14mA max
Brand: MTL
SKU: ET13899550
Availability: InStock

Manufacturer:

MTL

Manufacturer Part No:

MTL5516C

Enrgtech Part No:

ET13899550

Warranty:

Manufacturer

£ 295.20

Checking for live stock

Signal Type:

Digital Input

Maximum Current:

14mA

Maximum Voltage:

10.5V

Series:

MTL5500

Barrier Type:

Zener Barrier

Hazardous Area Certification:

ATEX

Number of Channels:

Supply Voltage:

20 → 35V dc

Minimum Operating Temperature:

-20°C

Operating Temperature Range:

-20 → +60°C

Maximum Operating Temperature:

+60°C

MTL5516C Switch / Proximity Detector Interface - Datasheet(Technical Reference)
