mtl7787 2 Channel Barrier with Analogue Output, 27 V dc max, 93mA max

7700 Series Safety Barrier Standard DIN rail mountRemovable, colour-coded terminalsBussed power feed to other modulesRelay and solid state switch modulesDual channel variants - 6.3mm per channelProximity detector inputsDirect replacement for MTL700 SeriesCompatible terminal numbering and safety descriptionsDimensions: 105 x 90 x 12.6mmManufacturer part no.Polarities availableMax. end to end resistance (Ohms)Vworking at 10AVmaxFuse rating (mA)Stock no.MTL7706++--3550612-5290MTL7728++33325.926.550612-5313MTL7741n/an/an/a3050612-5307MTL7756acAC19.0(0.7)2.7250612-5329MTL7760acAC756.06.750612-5341MTL7787++33326.627.250612-5335Note Power bus facility applicable to MTL7706+, 7741 and 7787+ barriers

For more information please check the datasheets.

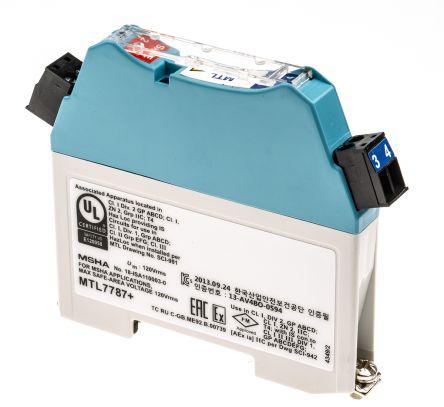

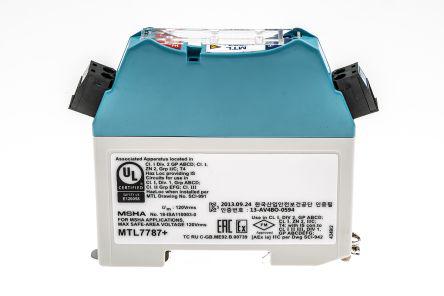

MTL MTL7787+ 2 Channel Barrier with Analogue Output, 27 V dc max, 93mA max

Name: 2 Channel Barrier with Analogue Output, 27 V dc max, 93mA max
Brand: MTL
SKU: ET13908475
Availability: InStock

Manufacturer:

MTL

Manufacturer Part No:

MTL7787+

Enrgtech Part No:

ET13908475

Warranty:

Manufacturer

£ 171.60

Checking for live stock

Barrier Type:

Zener

Safety Current Maximum:

93mA

Signal Type:

Analogue

Safety Voltage Maximum:

27 V dc

Hazardous Area Certification:

ATEX

Number of Channels:

Supply Voltage:

28 V dc

Minimum Operating Temperature:

-20°C

Operating Temperature Range:

-20 → +60 °C

Maximum Operating Temperature:

+60°C

Safety Current Resistance:

300Ω

Machine Guarding and Safety Range Overview(Technical Reference)

MTL7700 Series Shunt Diode Safety Barriers(Technical Reference)

MTL7787 Application Data Sheet(Technical Reference)

MTL7700 Series Datasheet(Technical Reference)
