5500 Series IS Interface Units
The MTL5500 series is the latest generation of MTL isolators. Incorporating advanced circuit design and innovative isolating transformer construction. The compact 16mm wide design reduces weight and gives a high packing density and reduction in power consumption. They build on the success of the MTL5000 series to bring the benefits of galvanic isolation with exceptional design and reliability.,II (I) GD (Ex ia) IIC,IECEx, ATEX (Baseefa) FM, CSA
3-Port Isolation
High Packing density
Low power dissipation
Multi-channel I/O modules
Compatible with preceding MTL5000 series
Assessed for Functional safety IEC61508 applications
Required EX numbers and information displayed on cover where applicable

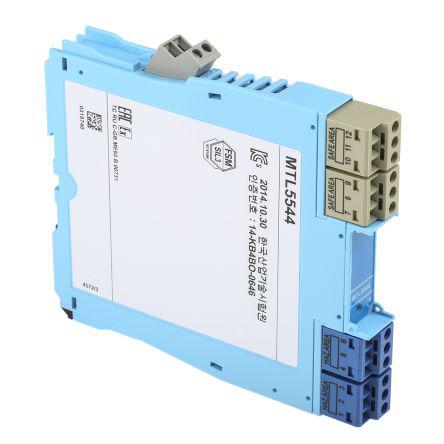

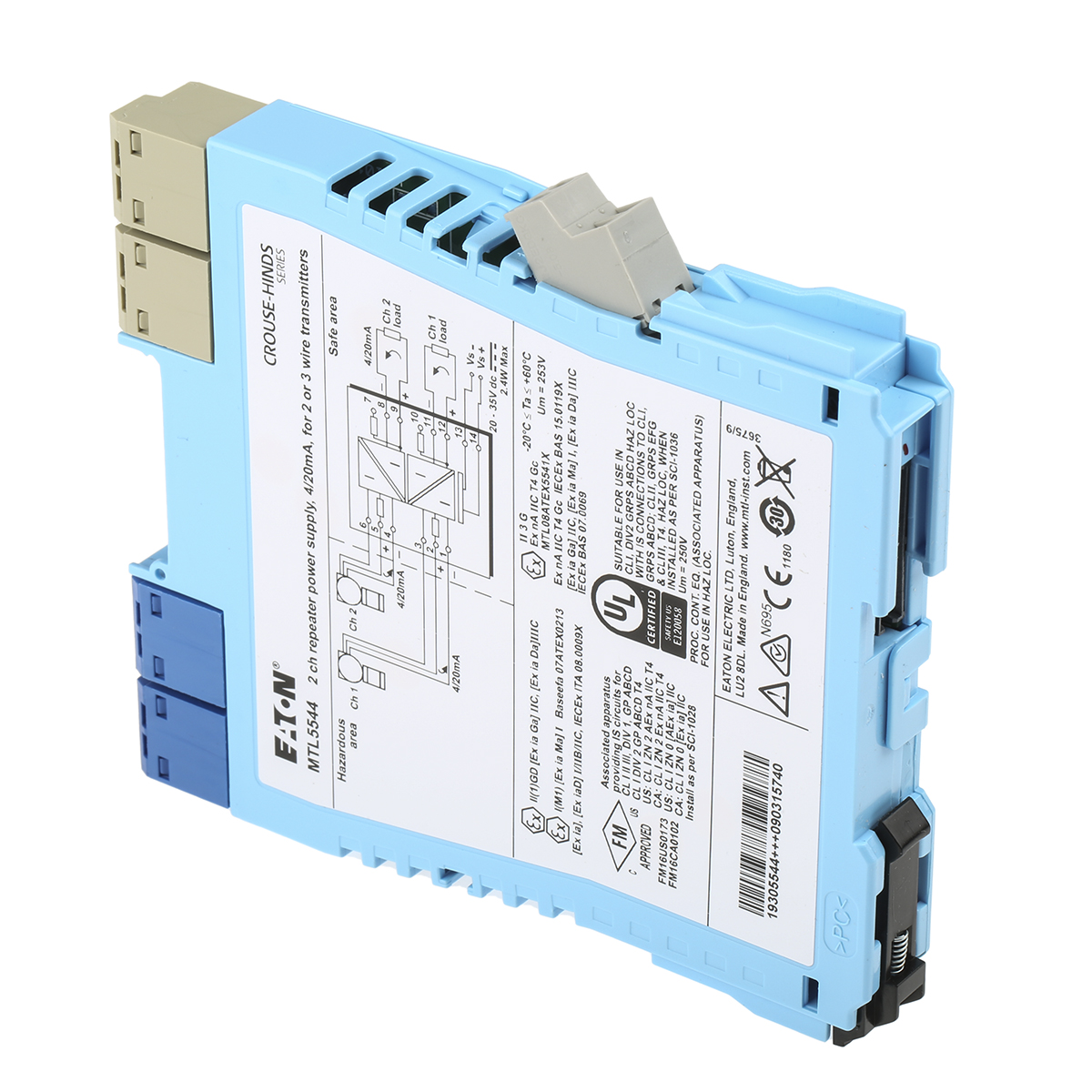

MTL MTL5544 2 Channel Isolation Barrier with Transmitter Repeater Power Supply, 28 V max
£ 663.60
Checking for live stock
Signal Type:
Analog Input
Maximum Voltage:
28V
Series:
MTL5500
Barrier Type:
Zener Barrier
Hazardous Area Certification:
ATEX
Number of Channels:
2
Supply Voltage:
20 → 35V dc
Minimum Operating Temperature:
-20°C
Operating Temperature Range:
-20 → +60°C
Maximum Operating Temperature:
+60°C
