Adaptaflex Conduit Fitting, M32 Thread Size, IP54 Rating - 7TCA296020R0247 SP32/M32/B Reduce strain on your flexible conduits with this swivel fitting from Adaptaflex. It uses screw fittings to secure conduits onto threaded enclosures and knockouts or to join two lengths of tubing together. The body is made from nickel-plated brass to make it strong and resistant to corrosion. Formed in two pieces, it swivels for easy installation and is capable of rotating 360° after tightening to reduce the twisting and pulling of conduits. This improves the durability of cable protection systems. Features & Benefits • IP54 rated to protect against dusty environments and splashes of water• Wide operating temperature between -45°C and +250°C, for use in harsh conditions• With minimal parts and tools needed for installation, it's easy to fit while you're out in the field Applications • Public buildings• Transport industry• Office and residential blocks Can I use this conduit fitting on any trunking? This fitting has a metric M32 thread size and nominal diameter of 32mm for use with compatible PVC and metal-coated conduits. This includes Adaptaflex's SP, SN and LFH-SP series of conduits.

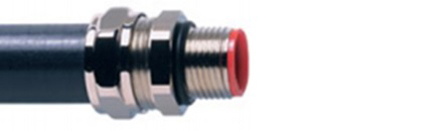

Adaptaseal® IP67 Straight These fittings are a three piece compression style system which can be used in external applications requiring assured IP67 weatherproofing, offering flexibility and high mechanical strength.

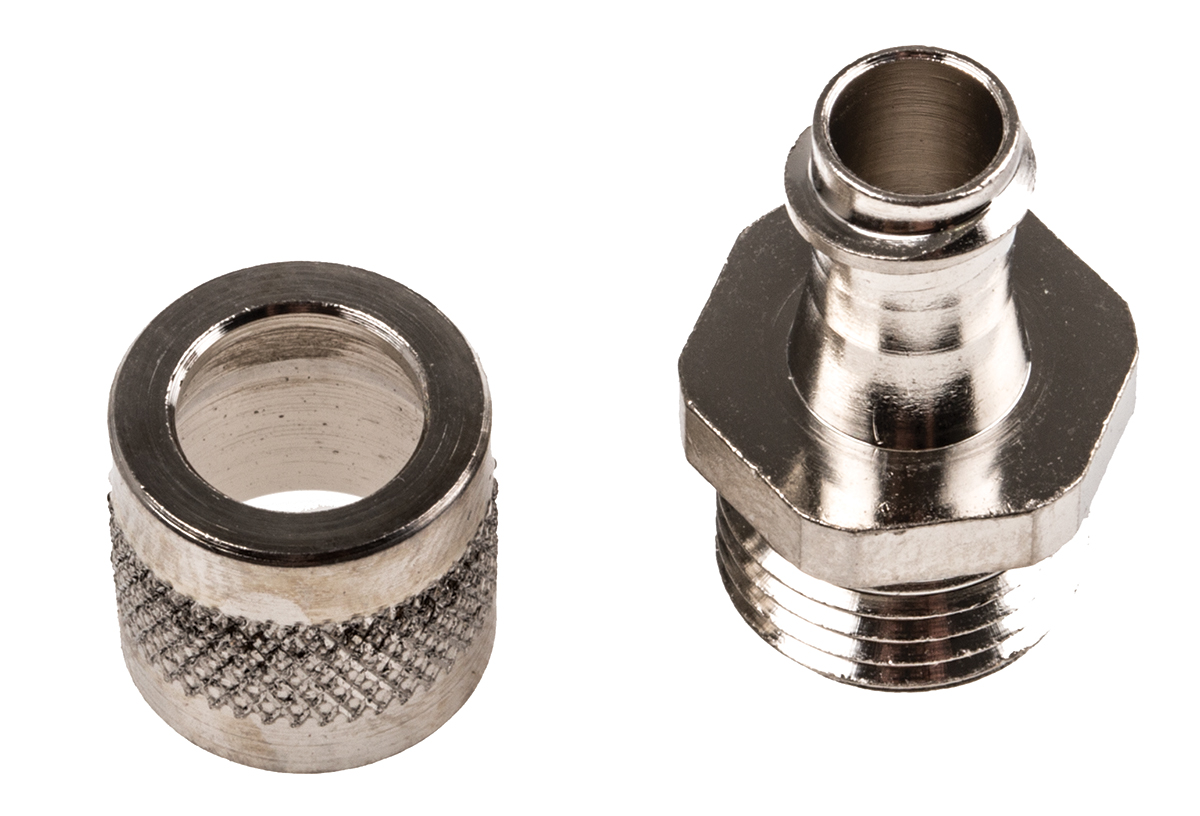

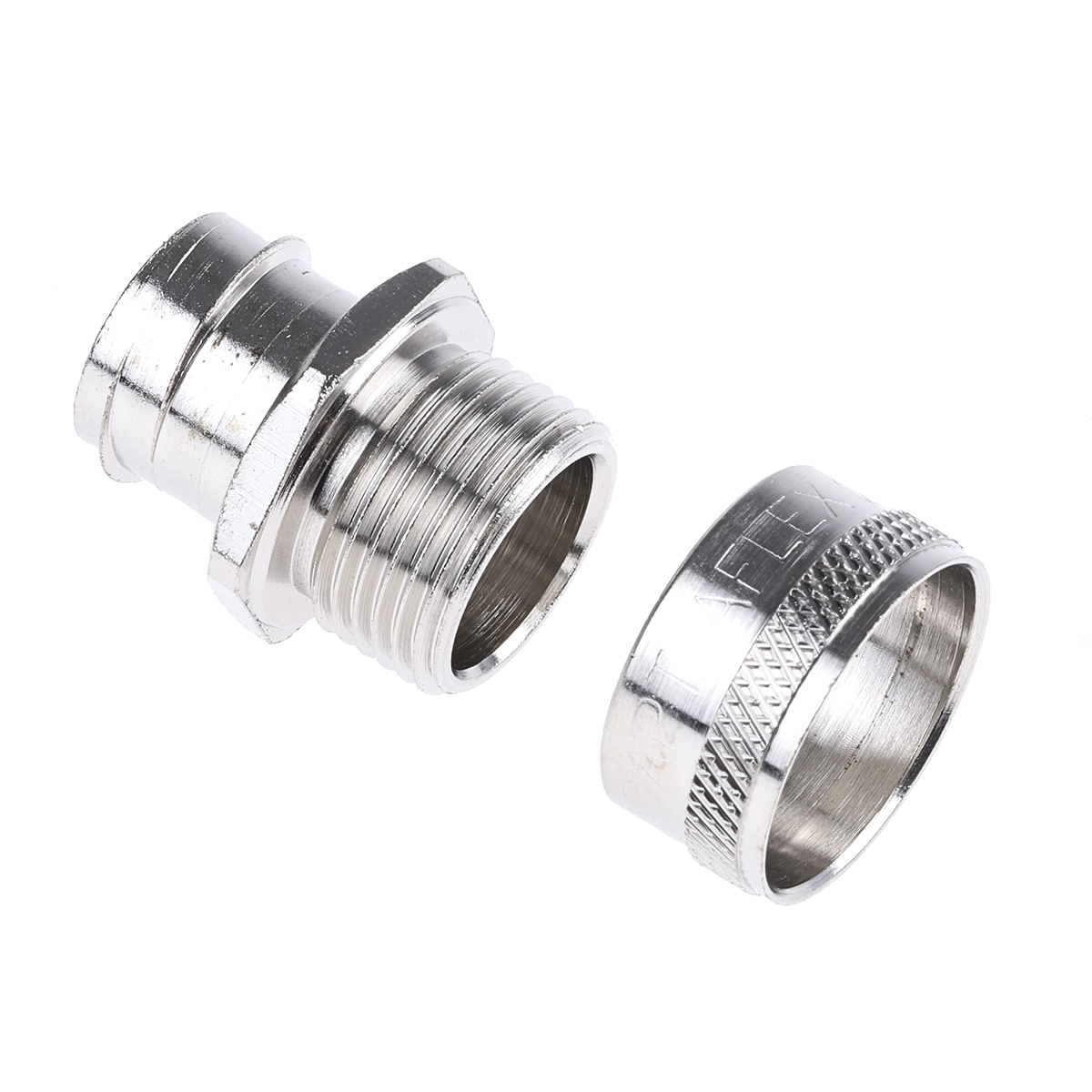

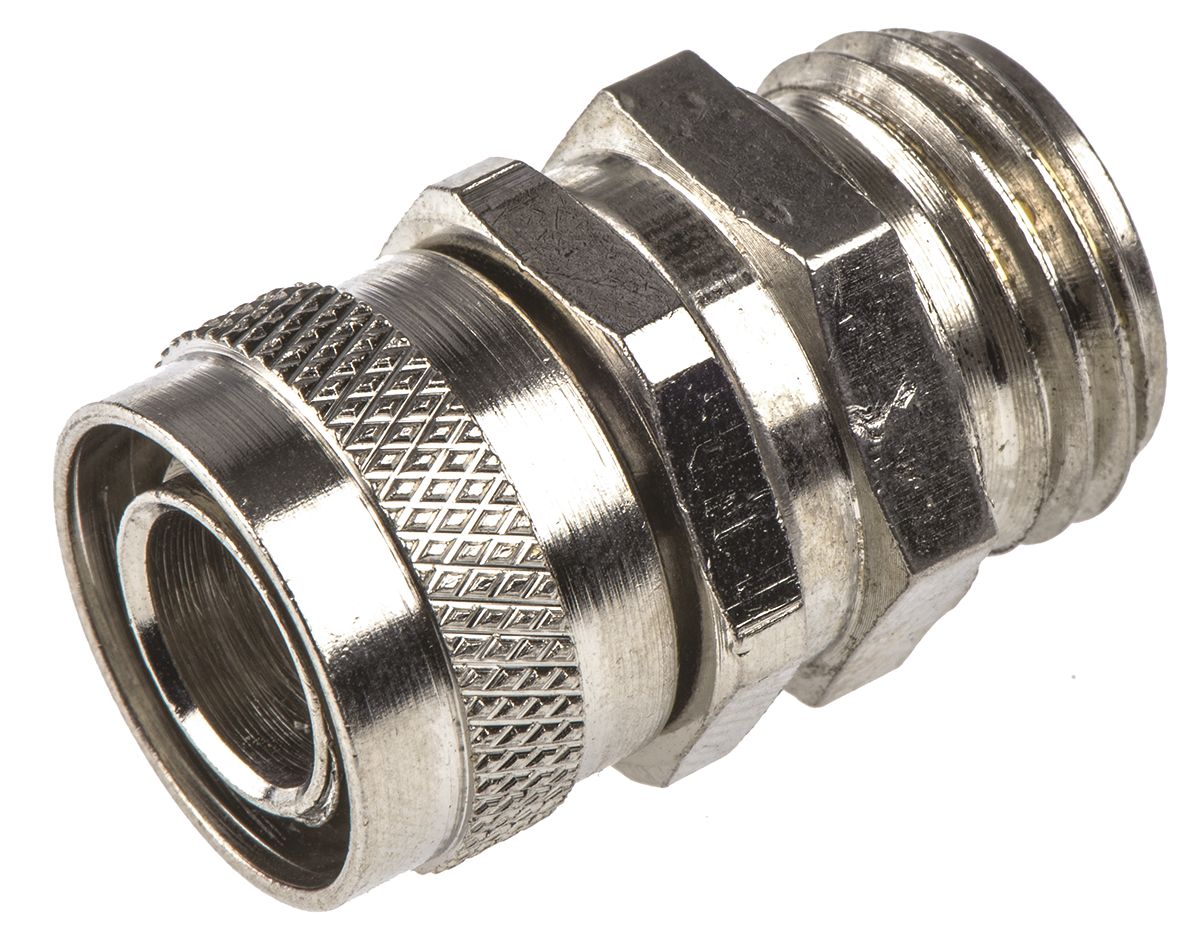

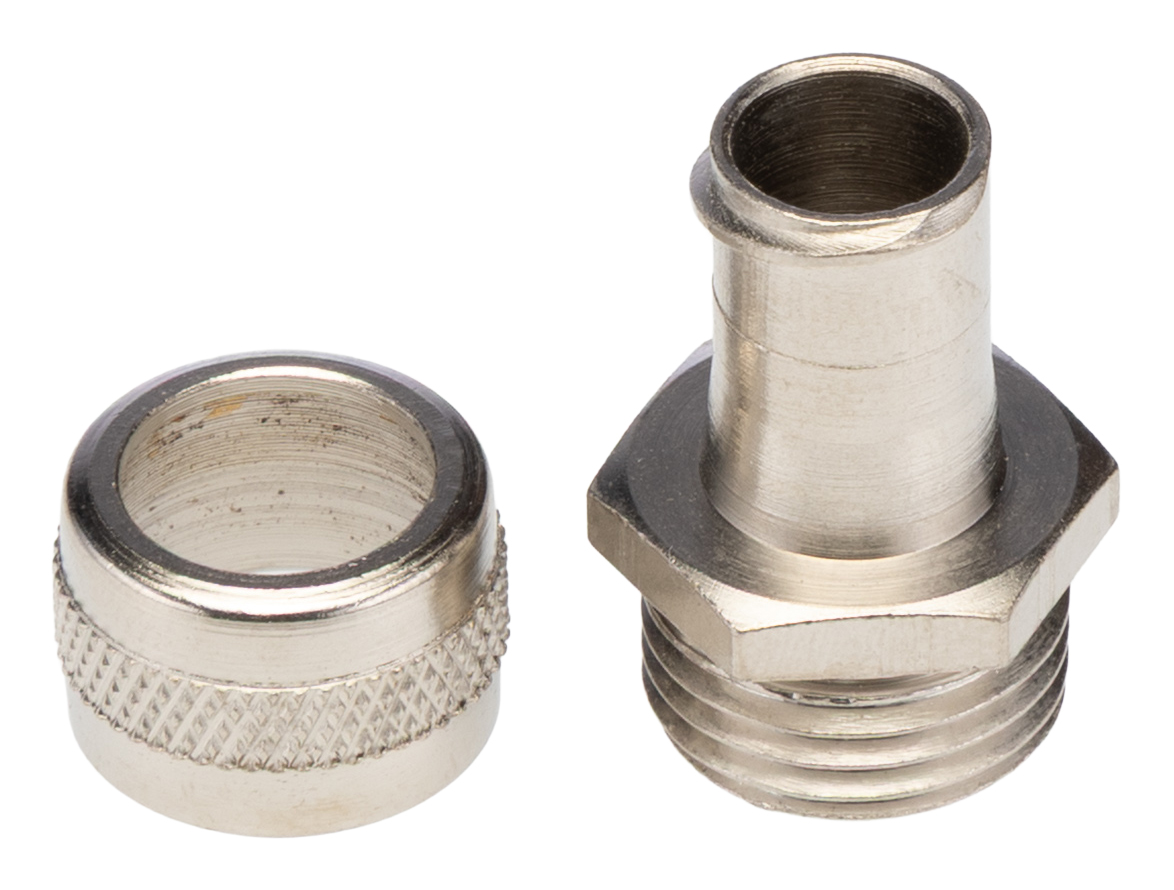

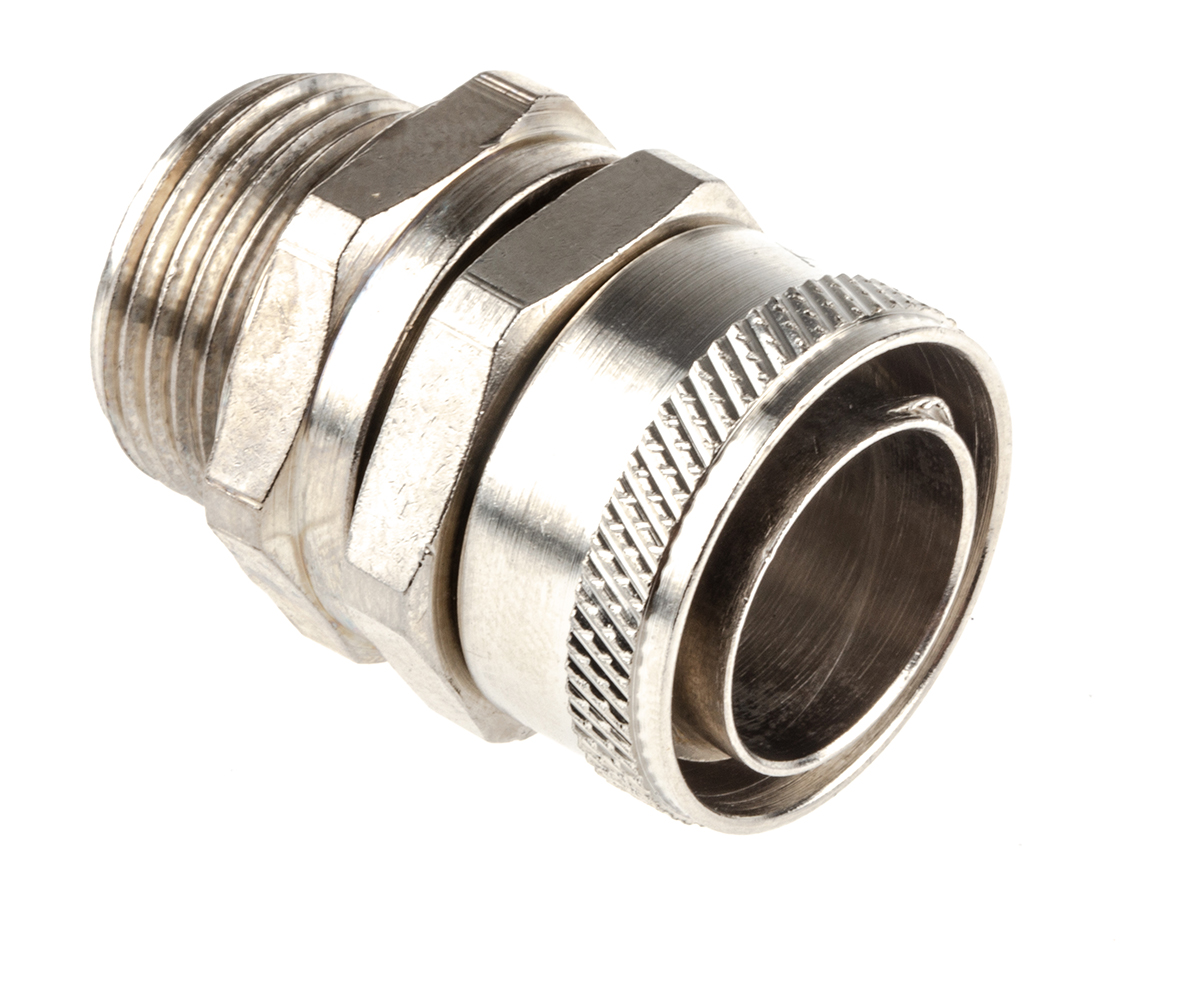

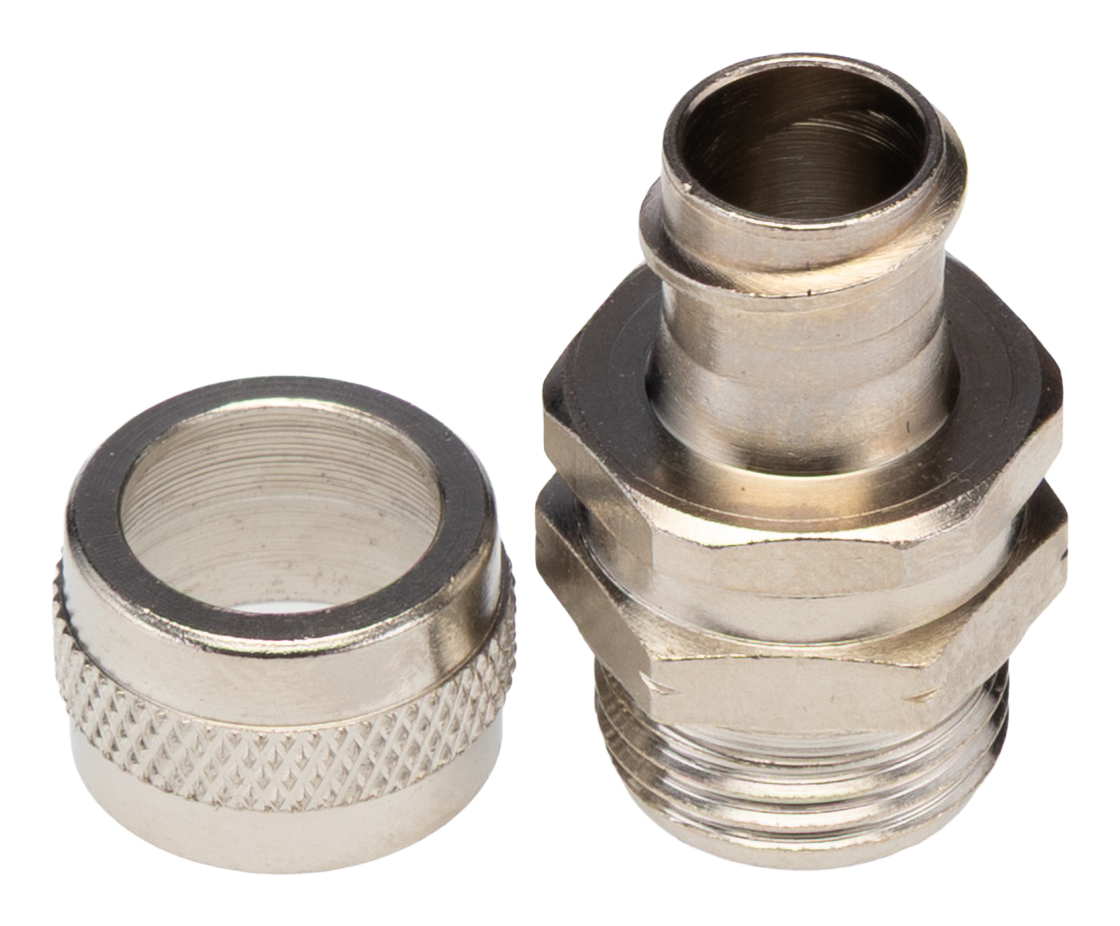

IP54 & IP65 Straight Fittings Type A - IP54 Straight fitting – Fixed External Thread Has a fixed external thread and is for insertion into knockouts using a locknut (not included). Type B - IP54 Straight Fitting – Swivel External Thread Has a two part construction without seals. When it is inserted into an enclosure or knockout and fully tightened, the fittings will still swivel 360°. Please note however, that this design is still not intended to be used on applications that are constantly moving. It is still intended as a ’swivel to fit’ product only. Type C - IP54 Smooth Entry Bush For locking conduit into plain holes in enclosures. Type M - IP65 Straight Swivel Fitting – External Thread Has a three part construction with additional face seals that allow it to achieve an IP65 fitting. When it is inserted into an enclosure or knockout and fully tightened the fittings do not swivel at all, meaning it is a true ’swivel to fit’ product only.

IP54 & IP65 Straight Fittings Type A - IP54 Straight fitting – Fixed External Thread Has a fixed external thread and is for insertion into knockouts using a locknut (not included). Type B - IP54 Straight Fitting – Swivel External Thread Has a two part construction without seals. When it is inserted into an enclosure or knockout and fully tightened, the fittings will still swivel 360°. Please note however, that this design is still not intended to be used on applications that are constantly moving. It is still intended as a ’swivel to fit’ product only. Type C - IP54 Smooth Entry Bush For locking conduit into plain holes in enclosures. Type M - IP65 Straight Swivel Fitting – External Thread Has a three part construction with additional face seals that allow it to achieve an IP65 fitting. When it is inserted into an enclosure or knockout and fully tightened the fittings do not swivel at all, meaning it is a true ’swivel to fit’ product only. Note Only PG7 fittings are supplied with locknuts.

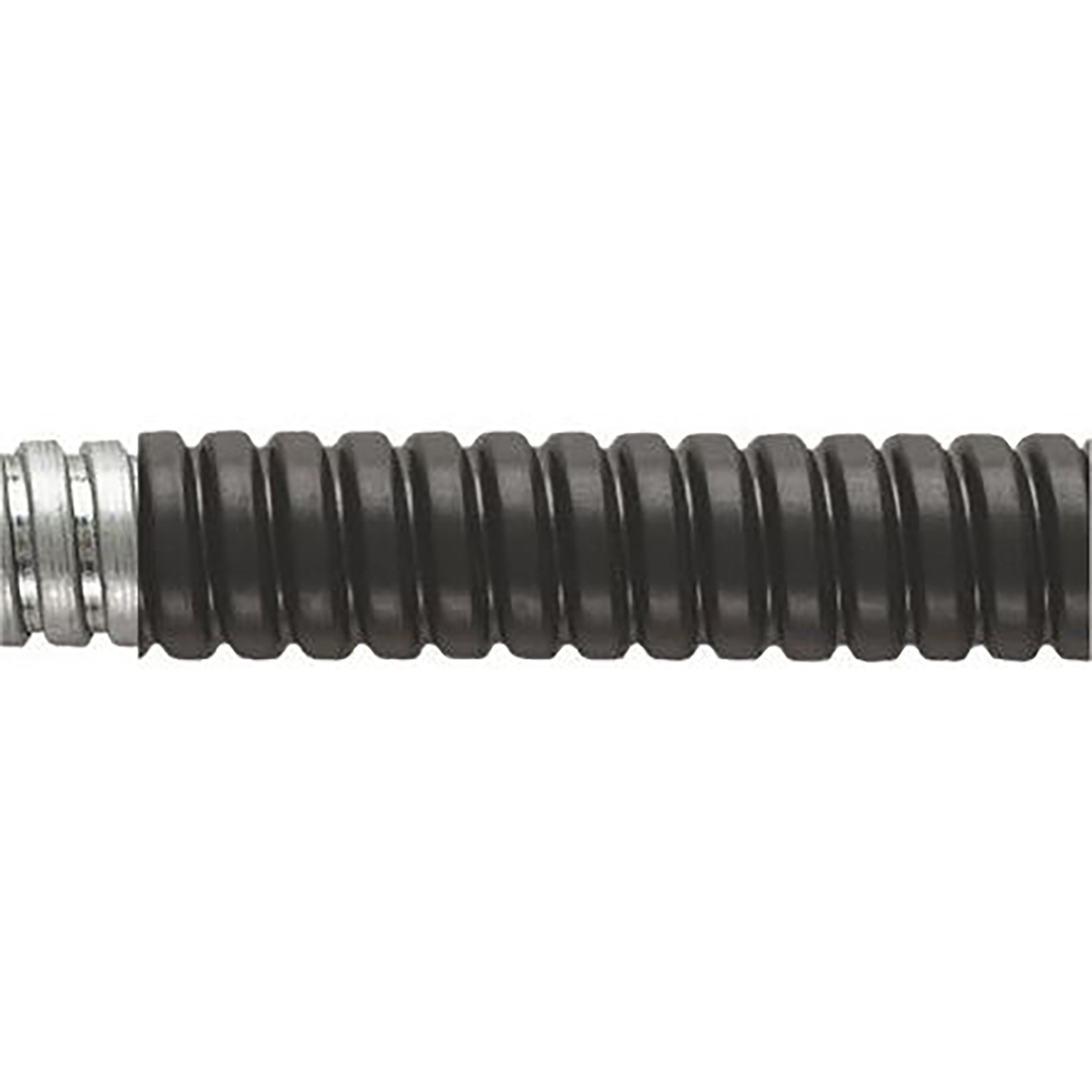

Standard & Low Fire Hazard Conduit Two types of flexible liquid resistant conduits from Adaptaflex, the standard version is a helically wound galvanised steel strip with a black PVC cover whilst the LFH (Low Fire Hazard) type is Polyolefin covered which has halogen free, flame retardant & low toxicity properties which complement Fire Performance cables where public safety is of concern e.g. Hospitals, Shopping centres, Underground Railways etc. IP54 or IP65 (dependant on Fitting)-15°C to +70°C operating temperature, -25°C to +90°C (LFH type)Non Flame propagating to EN50086UV resistantCompression strength 1500N/50mmHalogen Free (LFH type only) Low Smoke and Fume (LFH type only)

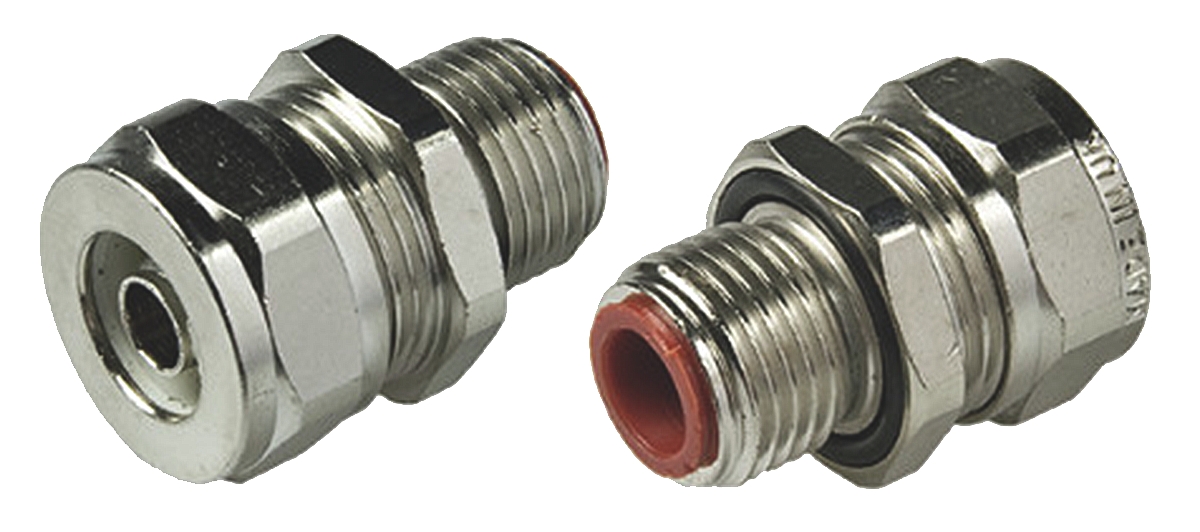

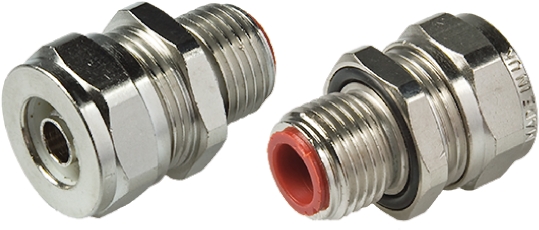

Adaptaseal® IP67 Straight These fittings are a three piece compression style system which can be used in external applications requiring assured IP67 weatherproofing, offering flexibility and high mechanical strength.

Adaptaflex Conduit Fitting, 3 Way, Push and Twist Mounting - Adaptalok Series - AL211616/Y Wrap up your cabling tasks in no time with this conduit fitting from Adaptaflex. It's a three-way coupler, so it's ideal for making simple and quick branch connections. When used with compatible ducting it helps to protect your electrical wires and also makes them easier to route. A user-friendly push-and-twist mounting method makes the connector a cinch to install without needing to rummage through your toolbox. Its tough PA66 construction gives it resistance to mechanical stress, for longevity in harsh operating conditions. Don't worry about accidental or unauthorised removal, as you need a tool to loosen the fitting. Features & Benefits • IP66-rated connection that's dust-tight and protected against high-pressure water jets and rain• Resists corrosion, for compatibility with moist conditions• Internal self-locking clips hold it securely in place• Withstands the corrosive effects of most fuels and oils, so you can be sure of its extended service life Applications • Hospitals and medical centres• Food and beverage industries• Public infrastructure• Aerospace technology What type of conduit is this fitting compatible with? This versatile connector is suitable for use with both fine-pitch and coarse-pitch flexible corrugated conduits.

Xtraflex Type XF Conduit & Fittings The Xtraflex type XF range from Adaptaflex is a standard weight flexible conduit with fixed external thread fittings that can be assembled by hand. Made from PVCu spiral with a plasticised PVC black covering this conduit offers very high flexibility. The straight connectors and 90° right angle connectors have an IP65 rating. IP65 (with fittings)-5 to +60°C operating temperature in both moving and static applicationsHigh UV resistanceSelf extinguishingFittings: Polyamide 6.6 (UL94 V2) (not supplied)

Xtraflex Type XF Conduit & Fittings The Xtraflex type XF range from Adaptaflex is a standard weight flexible conduit with fixed external thread fittings that can be assembled by hand. Made from PVCu spiral with a plasticised PVC black covering this conduit offers very high flexibility. The straight connectors and 90° right angle connectors have an IP65 rating. IP65 (with fittings)-5 to +60°C operating temperature in both moving and static applicationsHigh UV resistanceSelf extinguishingFittings: Polyamide 6.6 (UL94 V2) (not supplied)

Adaptaseal® IP67 90° Elbow These fittings are a three piece compression style system which can be used in external applications requiring assured IP67 weatherproofing, offering flexibility and high mechanical strength.

Adaptalok® IP66 Straight Swivel Flange Adaptalok® Swivel Flange types are suitable for panel mounting and come supplied with integral seal providing a sealed face entry point.These fittings are a one piece push/twist mounting system providing high mechanical strength, whilst unauthorised or accidental removal is prevented by the necessity to use a screwdriver or the dedicated tool available separately.

Adaptaflex Conduits Halogen freeOffer resistance against chemicals and oilsNon Flame propagating to EN50086UV resistant
