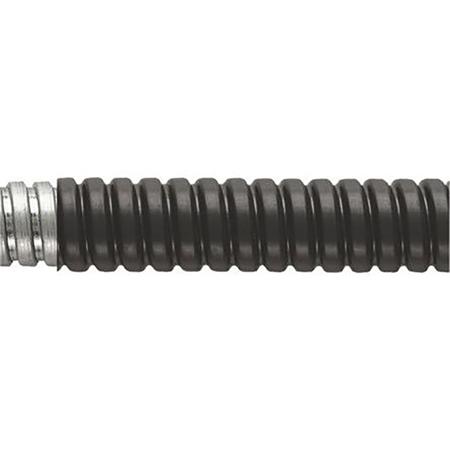

7tca296020r0133-sp20bl10m Adaptaflex Flexible Conduit, 20mm Nominal Diameter, Galvanised Steel, Black
7tca296020r0133-sp20bl10m Adaptaflex Flexible Conduit, 20mm Nominal Diameter, Galvanised Steel, Black
7tca296020r0133-sp20bl10m Adaptaflex Flexible Conduit, 20mm Nominal Diameter, Galvanised Steel, Black
Adaptaflex PVC Coated Galvanised Steel Flexible Conduit, 10m Length, 21.5mm OD - SP Series - 7TCA296020R0133 SP20/BL/10M Use this general-purpose conduit from Adaptaflex to shield your electrical cables in light industrial settings. It features a spiral steel core with a PVC cover for impact and abrasion resistance. A wide operating temperature range of -15°C to +70°C means you can use it in extremely demanding applications. As this conduit is easy to use and has a static bend radius of 45mm, it's a flexible option for installation around corners. You'll find conduits like this used for general building cabling. Features & Benefits • Conduit length of 10m provides an ample supply for long cable runs
• Tensile strength of 1500N/50mm to withstand compression
• Compact outer diameter of 21.5mm for space efficiency in small enclosures Applications • Residential buildings
• Medical equipment
• Office wiring Can I use this conduit outdoors? In addition to its strong resistance to weathering and abrasion, this cable is also UV stable, which means it won't deteriorate when exposed to sunlight. These features mean it'll perform reliably over the long term for both indoor and outdoor use.
Adaptaflex

Flexible Conduit, 20mm Nominal Diameter, Galvanised Steel, Black

Manufacturer:
Adaptaflex
Manufacturer Part No:
7TCA296020R0133 SP20/BL/10M
Enrgtech Part No:
ET21663407
Warranty:
Manufacturer
£ 68.36

Checking for live stock

Nominal Diameter:

20mm

Material:

Galvanised Steel

Conduit Type:

Flexible

Outer Diameter:

21.5mm

Series:

SP

Colour:

Black

Interior Diameter:

16.9mm

Length:

10m

IP Rating:

IP54, IP65

Thread Size:

M20

Coating Material:

PVC

Maximum Operating Temperature:

+70°C
