<B>Amprobe LAN-1 Network Cable Tester</B> Designed to work with various data cables and connectors, this cable tester provides a fast go / no-go LED display. It has the ability to either step through the test cable wiring one at a time or have the unit automatically pulse through the pin-outs to display the results.<BR/><BR/>Test opens, shorts and miswired cables, verify the wiring for continuity on wall plate or patch panels. <B>Features and Benefits: </B> • Loopback test or remote test<BR/>• Buzzer sound for errors in the cable<BR/>• 300m maximum line length<BR/>• Approx. 20 hour battery life<BR/>• 2 sets of LED, signal and test <B>Frequently asked questions:</B> <B>What is a LAN cable tester?</B> LAN testers are devices that allow a user to verify and test a connection or signal within a data cable. The types of tests include whether the cable is set up correctly, connected, the strength or speed of the signal being sent through the cable. <B>How do network cable testers work?</B> Usually made up of 2 sections or 2 boxes, a network cable tester will have a receiver and a transmitter. A cable is then connected directly or with connectors to both for testing. Once the tester is switched on a signal or data is sent via the cable and a report or the results are shown on the receiver. Receivers comes in a variety of types, shapes and sizes and therefore the results may vary in the way they are displayed. Some have LED's, some show patterns in lights and some different colours. The tester instruction manual will show what the results mean but some testers help determine the connection speed and detect problems. <B>What is the difference between RJ45 & RJ11?</B> RJ45 is an 8-pin connector whereas RJ11 is only a 4 wire connector. RJ45 is used in Ethernet connections to connect computers to networks. RJ11 is more of a conventional telephone wire used to bring fibre into your house. RJ is the abbreviation of &#146;registered jack&#146;.

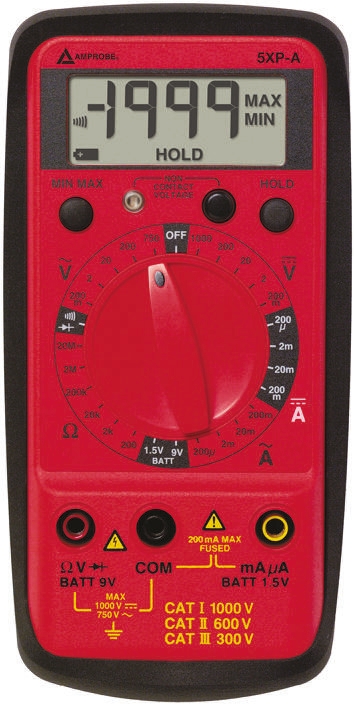

<B>Amprobe 5XP-A AC/DC Compact Digital Multimeter with VolTect</B> The Amprobe 5XP-A Digital Multimeter provides superior features and accuracy in a smaller form factor. The 5XP-A has unique features such as VolTect™ non-contact voltage detection and our exclusive Magne-Grip™ holster that frees both hands for work. The 5XP-A is the perfect choice for residential, commercial and general troubleshooting applications. <B>Features and Benefits:</B> &#149; General purpose compact multimeter<BR/>&#149; Designed for general repair applications in a commercial or residential environment<BR/>&#149; 2000 points, basic accuracy of 1 %<BR/>&#149; 27 rages / 10 functions<BR/>&#149; 750 Vac / 1000 Vdc.Current 200 mA AC / DC<BR/>&#149; Resistance of up to 20 Mohms<BR/>&#149; Audible continuity indicator<BR/>&#149; Diode test<BR/>&#149; Battery test (1.5 and 9 volts) with charge<BR/>&#149; Min / Max function including memory of min. and max. values<BR/>&#149; VolTect™<BR/>&#149; Magne-Grip™ case<BR/>&#149; Display freeze<BR/>&#149; Anti-overload/input alarm protection

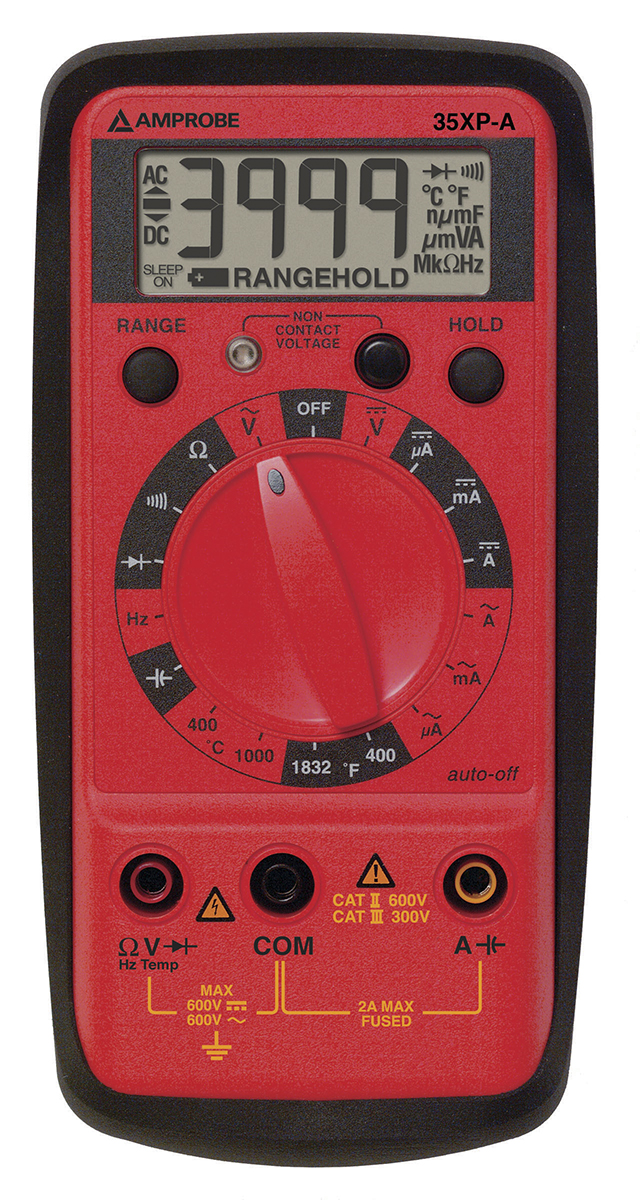

<B>Amprobe 35XP-A Digital Multimeter with Temperature</B> The compact 35XP-A Digital Multimeter offers all the right features for HVAC and plant maintenance. It measures temperature, plus capacitance for motor run/start test, and offers 0.1 μA resolution for flame sensor testing. <B>Features and Benefits:</B> &#149; Compact, multifunction digital multimeter for industrial maintenance, heating/ventilation/air conditioning/refrigeration, electricity and electronic applications<BR/>&#149; Automatic ranges for fast measurements<BR/>&#149; 4000 point resolution, basic accuracy of 0.5 %<BR/>&#149; 750 Vac / 1000 Vdc<BR/>&#149; 2A AC/DC, resolution of 0.1 μA for flame detector tests<BR/>&#149; Frequency of up to 20 MHz<BR/>&#149; Resistance of up to 40 Mohms<BR/>&#149; Temperature with type K thermocouple up to 1000 °C<BR/>&#149; Capacitance of up to 4000 μF for engine function/start-up tests<BR/>&#149; Audible continuity indicator<BR/>&#149; Display freeze<BR/>&#149; Diode test<BR/>&#149; Voldetect™<BR/>&#149; Magne-Grip™ case<BR/>&#149; Device auto-stop<BR/>&#149; Anti-overload/input alarm protection

LM-100 and LM-120 light meters Switch between measurements in lux or foot-candles<BR/>Measuring range of 20,000 lux or foot-candles<BR/>Silicon photodiode sensor<BR/>Data Hold to freeze readings on the display<BR/>MIN / MAX function<BR/>Protective sensor cap included<BR/>Large 3 1/2-digit digital display LM-120 additional features Automatic or digital scale<BR/>Zero function to null display before a reading<BR/>Auto power-off function

TACH20 hand-held tachometer Measures length, rotational and linear speed<BR/>Built-in memory<BR/>Digital display<BR/>Auto power-off function<BR/>Simple user interface<BR/>Contact and non-contact measurement<BR/>Select rpm using laser or adapter: m/min, m/sec, ft/min, ft/sec, in/min, m, ft and in.

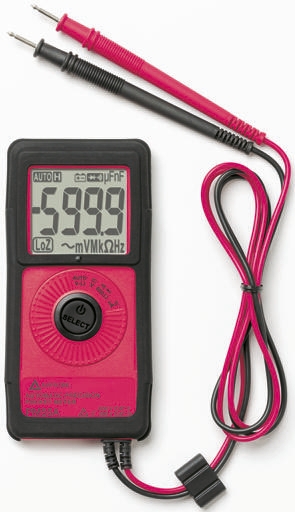

PM55A Shirt-Pocket Precision DMM with AutoTect & VolTect The Amprobe PM55A is the ultimate pocket sized multimeter. Being 20 mm think and less than 85 g with full functionality offering AC and DC voltage measurements. <B>Features and Benefits</B> 10.2mm thick and weighs less than 80g<BR/>Measures ac and dc voltage to 600V, ac and dc current to 2000μA, resistance to 6 MΩ, capacitance to 2000μF, frequency to 30kHz, diode test and continuity with beeper<BR/>AutoTect™ feature directs the meter to know if it is measuring ac volts, dc volts or resistance with no user interface required<BR/>The AutoTect™ feature has lower input impedence which zeros out ghost voltages<BR/>Meter includes VolTect™, which is a built-in, non-contact voltage detector<BR/>Complete user protection with full safety ratings of CAT III 300 V, CAT II 600V<BR/>Large 4000 count LCD screen<BR/>Data hold<BR/>Auto power off <B>AutoTect</B> The AutoTect feature automatically selects between AC and DC voltage, or resistance measurements based on the test point to which the leads are connected. Fully auto ranging, this meter offers nine different measurement functions please features that are normally found in more expensive meters. <B>Digital Display and Safety</B> The oversized digital display uses large digits and unit icons for easy readability. The PM55A is fully rated to CAT III 300 V, CAT II 600 V ad is UL listed.

ProInstall Series USB Cable and Driver The Telaris ProInstall Series have an IR (infrared) port which allows you to connect the tester to a computer and upload test data using a Amprobe PC software.<BR/>This automates your troubleshooting or recording process, reduces the possibility of manual error and allows you to collect, organize, and display test data in a format that meets your needs.

ACD-10 PLUS 600A Clamp Meter The ACD-10 PLUS Current clamp meter offers thinner jaws over standard clamp meters. The digital clamp meter takes AC/DC measurements and offers Capacitance and Frequency. The clamp meter also offers thinner jaws over standard clamp meters allowing access to tight areas and still accommodates conductors up to 26mm<BR/>AC and DC Voltage to 600V<BR/>AC Current to 600A<BR/>Thin Jaws, only 10mm thick<BR/>Resistance to 40MΩ<BR/>Continuity Buzzer<BR/>Capacitance to 3000 μF<BR/>Frequency measurement<BR/>In rush current <BR/>Hold and Maximum reading functions<BR/>Accommodates conductors up to 26mm in diameter<BR/>Auto ranging<BR/>Auto power off<BR/>Rubber over-molded case<BR/>Overload protected

LH41A AC/DC Current Clamp Meter This current clamp meter has been designed for reliable and accurate non-intrusive measurement of DC and AC currents using advanced Hall Effect technology. Measures AC and DC current into the low milliamp range up to 40A<BR/>Auto Zero DC for correct measurement every time<BR/>High 1 mA current resolution for quick circuit comparison on sensor and control circuits<BR/>Auto ranging<BR/>Data Hold<BR/>Auto power off function

ACD-14 Plus 600A Dual Display Clamp Multimeter The ACD-14 PLUS clamp meter is the perfect choice for both HVAC and electrical applications due to its versatile set of features which includes microamps, temperature with thermocouple, capacitance and frequency. Its dual displays allows viewing amperage and voltage simultaneously. The ACD-14 Plus 600A Dual Display Clamp Multimeter offers thinner jaws over standard clamp meters, allowing access to tight measurement areas and still accommodating conductors up to 28 mm<BR/>Dual Displays<BR/>AC Current to 600A <BR/>New thin jaws, 5 mm thinner than others to access tight measurement spaces <BR/>Micro Amps measurement for testing Flame Sensors <BR/>Capacitance to 3000 μF <BR/>Temperature with Type-K Thermocouple probe <BR/>AC and DC Voltage to 600V <BR/>Resistance to 40MΩ<BR/>Continuity Buzzer <BR/>Frequency measurement <BR/>Diode test <BR/>Hold and Maximum reading functions <BR/>In rush current <BR/>Accommodates conductors up to 28 mm in diameter <BR/>Auto ranging <BR/>Auto power off and low battery indication <BR/>Rubber over-molded case
