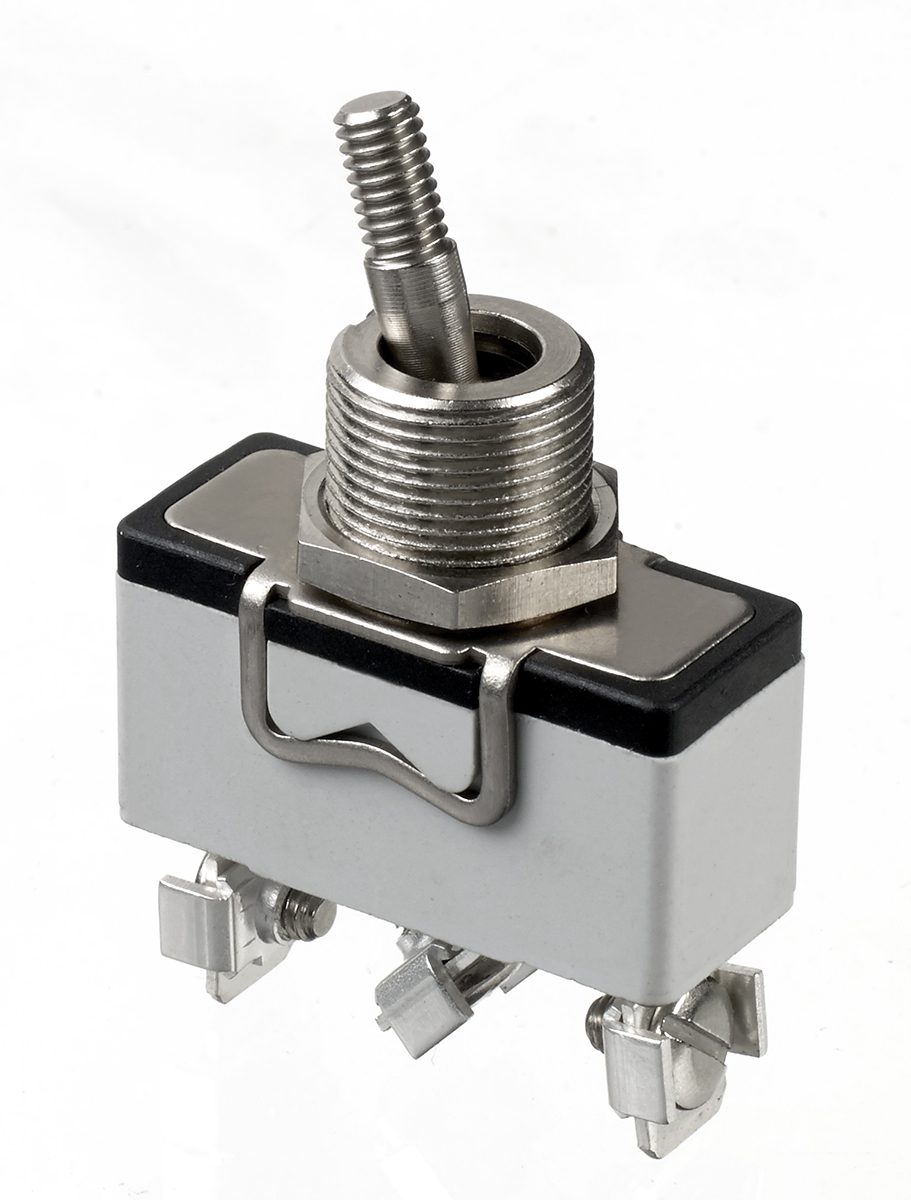

Toggle Switches, Std, 15A Metal Lever Single and double pole switches with a choice of flat insulated or nickel plated brass levers.12mm mounting bush250 ( 1/4 in.) terminalsBrass actuator and Melamine/Polyester caseSilver/Nickel Alloy contacts

Panel Mounted V4 1000 HE Series Joysticks Due to the proven success of the 1000 series joysticks, APEM decided to extend the range and include variations intended for use in harsh environments. All options include a panel seal rating of IP67 and an operating temperature range of -20 to +50°C. The series comes sprung to centre as standard with an open square gate giving full control of both the X and Y axis (north, south, east and west). To give you the highest possible flexibility of connection, they are supplied as standard without a cable harness.These units are fitted with the Option 3 version of switches and are able to switch up to 10A on a 240 V ac circuit, higher than most applications would require. The handles are mounted to a stainless steel shaft which in turn is fitted with a Kumho/Neoprene sealing boot. The boot is able to offer protection from substances such as oils and petroleum and is UV resistant. Features & Benefits Double sealedOil/acid/alkali resistant boot22 mm diameter bush mountingV4 switchesOuter hex nut for wrench tightening Product Application Information The high level of ingress protection and the high-quality materials used to produce these units makes them ideal for outdoor use, lifting platforms and materials handling devices.

Panel Mounted V4 1000 HE Series Joysticks Due to the proven success of the 1000 series joysticks, APEM decided to extend the range and include variations intended for use in harsh environments. All options include a panel seal rating of IP67 and an operating temperature range of -20 to +50°C. The series comes sprung to centre as standard with an open square gate giving full control of both the X and Y axis (north, south, east and west). To give you the highest possible flexibility of connection, they are supplied as standard without a cable harness.These units are fitted with the Option 3 version of switches and are able to switch up to 10A on a 240 V ac circuit, higher than most applications would require. The handles are mounted to a stainless steel shaft which in turn is fitted with a Kumho/Neoprene sealing boot. The boot is able to offer protection from substances such as oils and petroleum and is UV resistant. Features & Benefits Double sealedOil/acid/alkali resistant boot22 mm diameter bush mountingV4 switchesOuter hex nut for wrench tightening Product Application Information The high level of ingress protection and the high-quality materials used to produce these units makes them ideal for outdoor use, lifting platforms and materials handling devices.

Min Pushbutton Switch, Snap-Fit Panel Mount Snap-in, panel mounting, single pole, momentary switchesSolder terminalsPolyamide caseSilver contacts

Piezo pushbutton switches IP 68 Ø 19mm series PBA APEM Piezo switches are sealed to IP68 standards, are easy to clean and feature a very long mechanical life due to a solid-state output – making them an ideal choice for demanding applications where reliability is important. The one-piece construction of APEM Piezo switches allows for a completely closed flat actuation surface, ensuring the prevention of liquids or other contaminants whilst making the surface easy to clean. Features and Benefits Sealed to IP68: APEM Piezo switches are sealed to IP68 standards, ensuring protection against dust and water immersion. This makes them highly resistant to environmental factors, making them suitable for use in demanding applications.Easy to clean metal surface: The one-piece construction of APEM Piezo switches provides a completely closed flat actuation surface. This not only prevents liquids or other contaminants from entering the switch but also makes the surface easy to clean. It allows for hassle-free maintenance and ensures hygienic operation.Long life (50 million cycles): APEM Piezo switches feature a solid-state output, providing a very long mechanical life. With a lifespan of 50 million cycles, these switches offer exceptional durability and reliability. They can withstand repetitive use and continue to function reliably over an extended period. Applications Food processing industryMedical applicationsMining industry

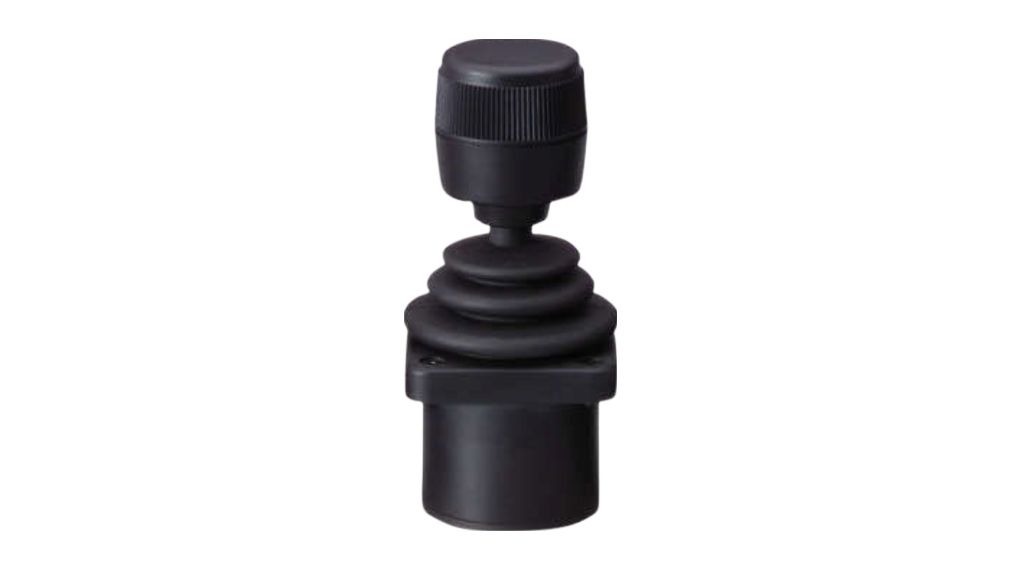

TS Series - Hall Effect Miniature Proportional Joystick The TS Series Thumb Stick is a proportional two axes joystick in a miniature package. Featuring non-contacting Hall Effect technology for long life performance, the TS Series Thumb Stick is available with multiple linear output options including single and dual (redundant) outputs. Similar in size and operation to "gamepad" controls but in a rugged industrial package. Features & Benefits Non-contact Hall Effect technologyCastle shaped thumb stickSubmersible to 1 m (3.28 ft) per IP68Pressure washable to IP69KConnection via 25 cm of PTFE 22 AWG wireDrop-in mounting (complete with mounting accessories bezel, O-Ring and 4 push in lugs) Product Application Information Typical applications for the TS Series Thumb Stick include pendant and remote controls as well as joystick handle and arm rest integration

AV Series Security Pushbutton Switches Brought to you by Apem, this Security Pushbutton Switch features a mechanical stop which protects the contact mechanism and provides a high degree of impact resistance. With a robust Polybutylene housing, nickel plated brass bushings and silver-plated contacts, this AV series security switch is designed for reliability and durability over a long length of service. Features and Benefits: • IP54 Environmental Protection• Momentary switch operation• Mechanical life of 100000 Cycles Available in this range: • Stock No: 278-1133 is a 16mm screw terminal curved push-button switch• Stock No: 278-1149 is a 16mm screw terminal flat push-button switch• Stock No: 190-0715 is a 16mm solder terminal flat push-button switch• Stock No: 179-0906 is a 19mm screw terminal curved push-button switch• Stock No: 179-0912 is a 19mm screw terminal flat push-button switch• Stock No: 190-0721 is a 19mm solder terminal illuminated push-button switch (Red)• Stock No: 174-6381 is a 22mm screw terminal curved push-button switch• Stock No: 179-0899 is a 22mm screw terminal flat push-button switch

Apem 5000 Series Short Flat Toggle Switch Apem 5000 series of short lever toggle switches provide a reliable & robust solution to a wide variety of applications. Contacts on the toggle switches are either brass or silver, offering a well-suited product for your application. Features and BenefitsProvided in silver & brass terminal materials.Offered in 1 to 4 pole variants.Various terminal options to ensure your application is covered.Momentary and latching options available.

Panel Mounted V4 1000 HE Series Joysticks Due to the proven success of the 1000 series joysticks, APEM decided to extend the range and include variations intended for use in harsh environments. All options include a panel seal rating of IP67 and an operating temperature range of -20 to +50°C. The series comes sprung to centre as standard with an open square gate giving full control of both the X and Y axis (north, south, east and west). To give you the highest possible flexibility of connection, they are supplied as standard without a cable harness.These units are fitted with the Option 3 version of switches and are able to switch up to 10A on a 240 V ac circuit, higher than most applications would require. The handles are mounted to a stainless steel shaft which in turn is fitted with a Kumho/Neoprene sealing boot. The boot is able to offer protection from substances such as oils and petroleum and is UV resistant. Features & Benefits Double sealedOil/acid/alkali resistant boot22 mm diameter bush mountingV4 switchesOuter hex nut for wrench tightening Product Application Information The high level of ingress protection and the high-quality materials used to produce these units makes them ideal for outdoor use, lifting platforms and materials handling devices.

Toggle Switches 5000 series - Epoxy Sealed Terminals

Toggle Switches, Standard Lever Panel mount switches with a large variety of contact configurationsSolder lug termination. Bush thread 1/4 - 40UNS (6.35 - 4UNS) Brass actuator and Diallyl Phthalate casePanel cut-out 6.35 mm

Apem 16 mm Secret Until Lit Automotive Indicator The Apem secret until lit series is designed to ensure highly visible graphics using bright LEDs. The Q16 Secret-Until-Lit indicators are perfect for automotive, construction, marine and materials handling applications.Featuring a black polycarbonate insert the symbols can be hidden until the indicator illumination is turned ’ON’.The lenses are engraved with a wide selection of automotive symbols in a selection of colours. These units are ideal for applications in harsh environments and are ingress protection sealed to IP67 standards. Features and Benefits16 mm panel mounting LED indicator.Flush bezel style.Plated brass bezel finished in black chrome.12 V dc.IP67 sealed.
