APEM Toggle Switch 600H Series
Introducing the 600H Series of Toggle Switch from Apem. These are industrial Toggle Switches with high amperage and available with a metal or insulated lever.
Features and Benefits
• Construction : Terminal and contact support are manufactured from a single piece of metal. The contacts are resistance-welded to the terminal for increased mechanical strength.
• Rating : These switches are suitable for motor loads and power applications up to 15A 250VAC or 10A 400VAC

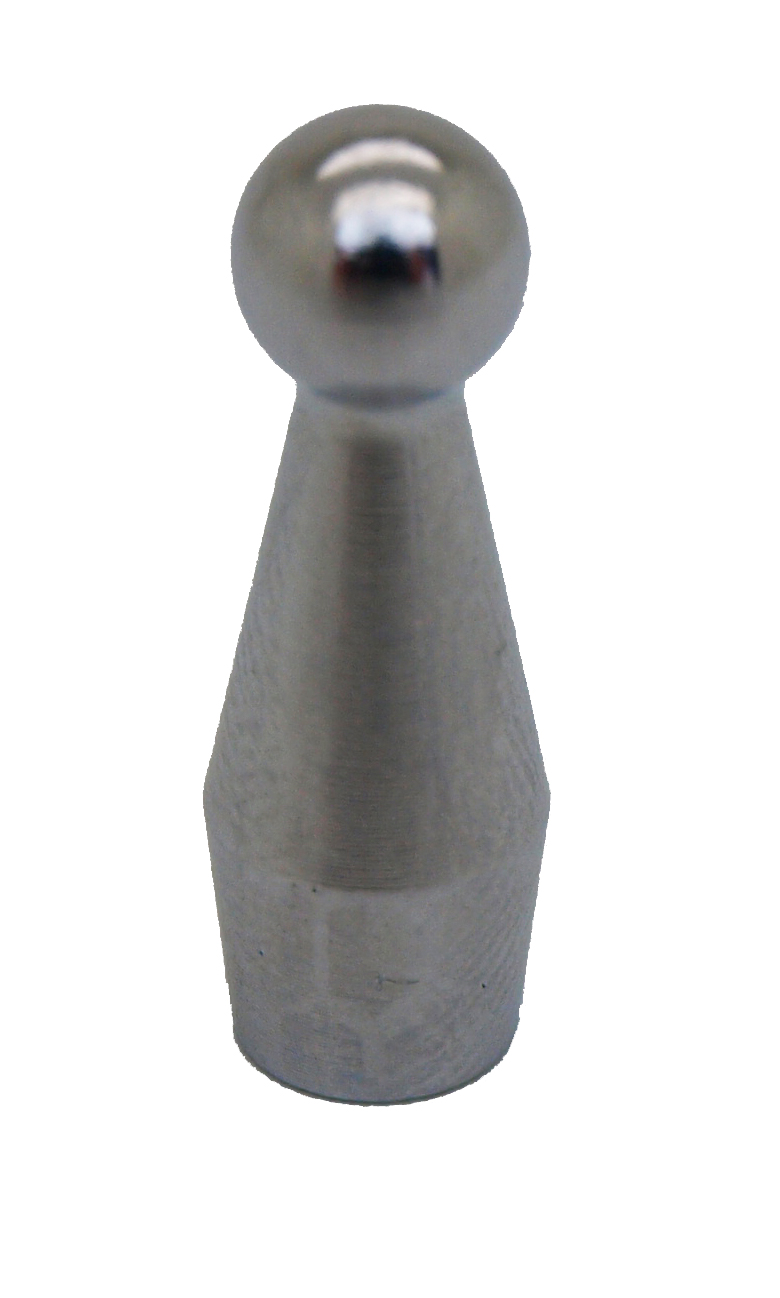

• Metal or insulated lever
• UL, CSA and NF-VDE (EN 61058-1) approved
• Rating : These switches are suitable for motor loads and power applications up to 15A 250VAC or 10A 400VAC
• Metal or insulated lever
• UL, CSA and NF-VDE (EN 61058-1) approved

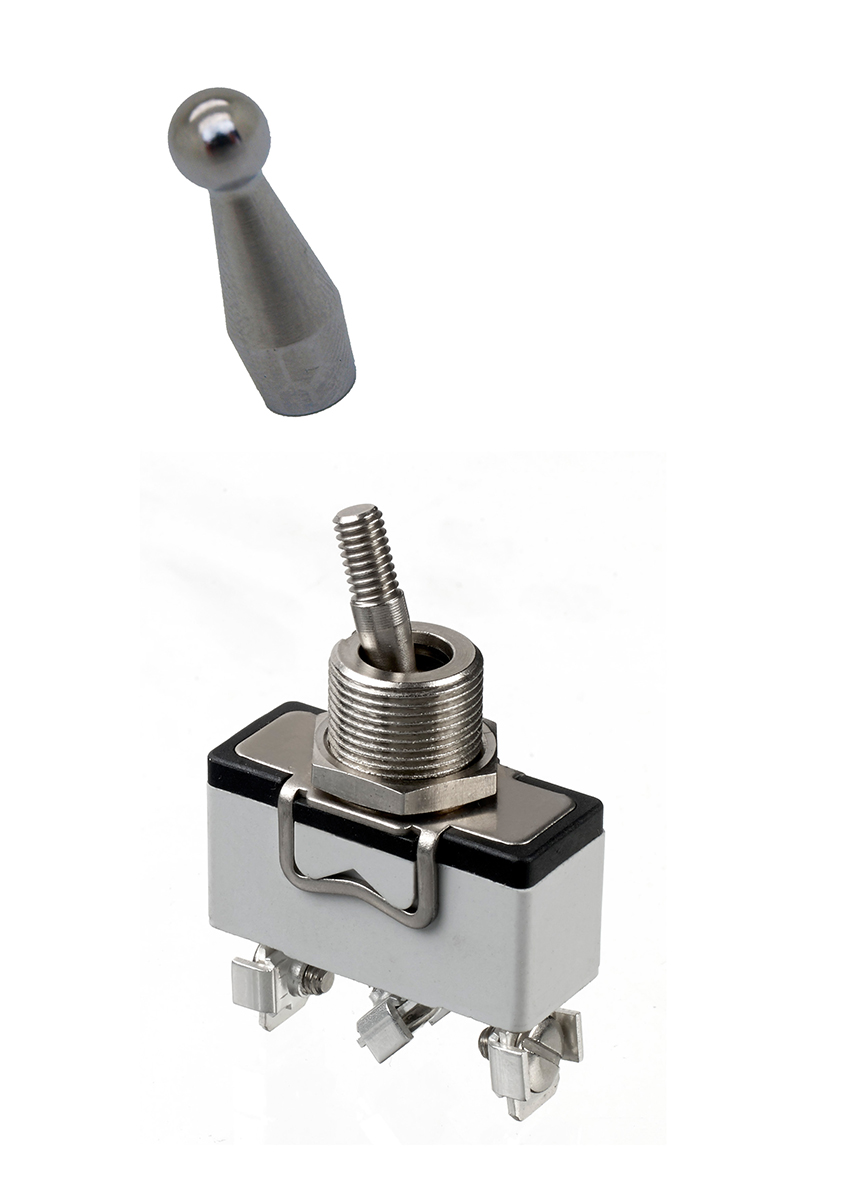

Toggle Switch, Panel Mount, On-(On), SPDT, Screw Terminal, 250V ac
Manufacturer:
APEM
Manufacturer Part No:
635H/X2330
Enrgtech Part No:
ET16911820
Warranty:
Manufacturer
£ 16.90
Checking for live stock
Contact Configuration:
SPDT
Switch Operation:
On-(On)
Contact Current Rating:
10 (CSA) A, 10 (NF-VDE) A, 10 (UL) A
Mounting Type:
Panel Mount
Terminal Type:
Screw
Illuminated:
No
Panel Cut Out Diameter:
12.2 (Dia.)mm
Actuator Length:
17.5mm
Actuator Material:
Brass
Voltage Rating:
250V ac
Contact Resistance:
10mΩ
Contact Material:
Silver Nickel Alloy
