The ERM20 series of high performance 20 watt isolated DC-DC converter modules are designed specifically for railway applications. There are 3 input versions available: 9 - 36Vin, 18-75Vin and 40-160Vin input. There is a choice of four single output models, offering single output voltages of 5 V, 12 V, 15 V or 24 V, and dual +/-12 and +/-15 versions. Fully encapsulated in a metal case the converters have an industry-standard 2 x 1 inch (50.9 x 25.4mm) footprint and a height of just 0.43 inch (11 mm). Reinforced insulation rated at 3000 Vac rms and high EMI immunity qualifies these converters for many demanding applications in railway and other transportation systems. Advanced circuit topology provides up to 88% efficiency and allows the converters to accommodate ambient operating temperatures as high as 85˚C with suitable derating. Further features include, voltage-adjust, remote On/Off and undervoltage shutdown, as well as overload and short-circuit protection.

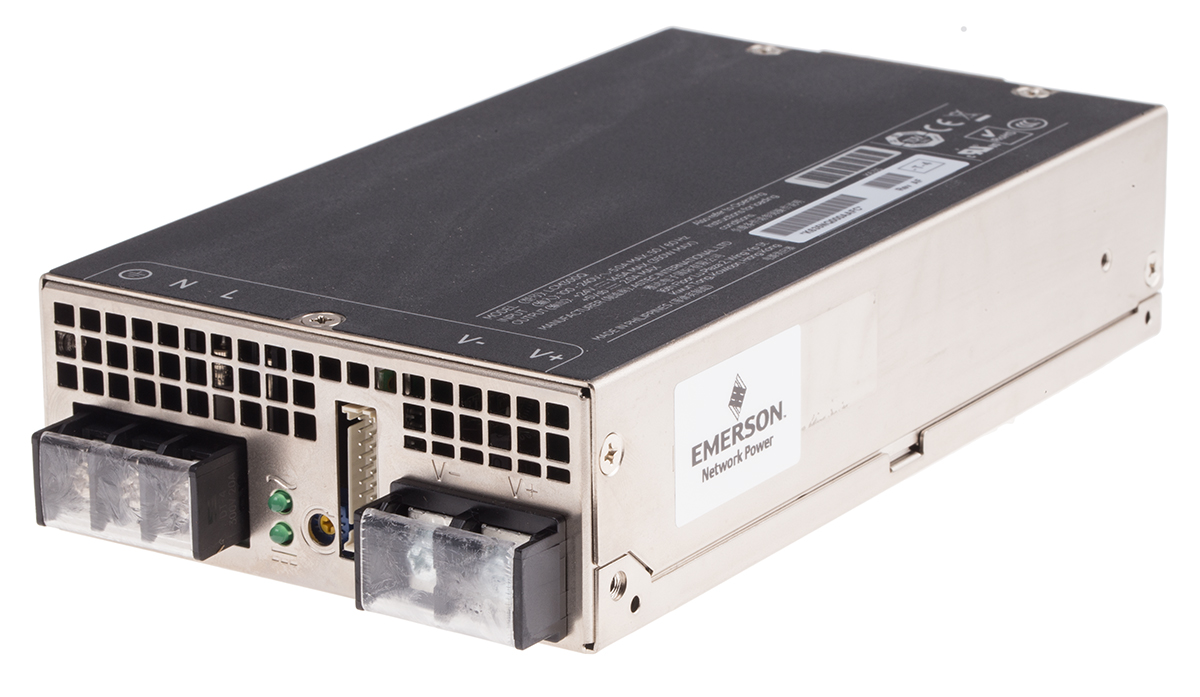

300W, Universal Input, 4x7 inch, Single Output, Medical Power Supply, LCM300 Series The Artesyn LCM300 series of enclosed front-end AC-DC power supplies comprises five single output models, providing standard voltages of 12V, 15V, 23V, 36V or 48V, plus a 5V standby output. Each model accepts a universal input of 90–264Vac, carries medical safety approvals and has a typical full load efficiency of 91%. These PMBus™-compliant digitally controlled power supplies offer a high level of modification flexibility, for application-specific functions, such as special battery charging and management, peak load handling, voltage control and fan speed profiles. Housed in a compact 4 x 7 inch enclosure that is less than 1U high, LCM300 power supplies incorporate built-in smart fans for cooling and can deliver up to 310W of output power. The 24V and 36V models can deliver up to 350W at operating temperatures up to 45°C. Medical and ITE safeties310W output power (350W at 45°C for 24V and 36V models)Industrial/Medical SafetyOptional 5V @ 2A HousekeepingHigh Efficiency up to 91%Variable speed Smart FansDSP controlledPMBus Comliant±20% adjustment rangeSingle outputOperating Temperature -40°C to +70°C

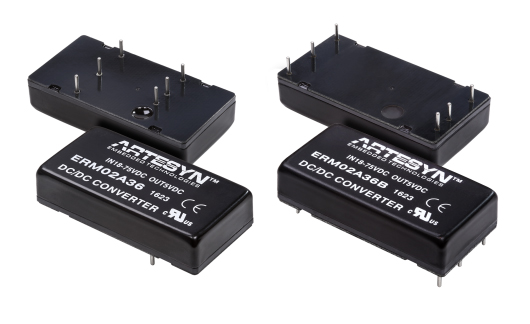

The ERM10 series of high performance 10 watt isolated DC-DC converter modules are designed specifically for railway applications. There are 3 input versions available: 9 - 36Vin, 18-75Vin and 40-160Vin input. There is a choice of four single output models, offering single output voltages of 5 V, 12 V, 15 V or 24 V, and dual +/-12 and +/-15 versions. Fully encapsulated in a metal case the converters have an industry-standard 2 x 1 inch (50.9 x 25.4mm) footprint and a height of just 0.43 inch (11 mm). Reinforced insulation rated at 3000 Vac rms and high EMI immunity qualifies these converters for many demanding applications in railway and other transportation systems. Advanced circuit topology provides up to 88% efficiency and allows the converters to accommodate ambient operating temperatures as high as 85˚C with suitable derating. Further features include, voltage-adjust, remote On/Off and under voltage shutdown, as well as overload and short-circuit protection.

Cover Kit for 2"x4" open-frame products. Replaces the LPX50 cover. Refer to Special Features for compatible power supply models. Compatible with LPS50 seriesCompatible with LPS50-M seriesCompatible with LPT50 seriesCompatible with LPS100-M seriesCompatible with LPT100-M series

Artesyn Embedded Technologies Switch Mode Power Supply The Artesyn Embedded Technologies 3kW enclosed chassis mount power supply operates on 90VAC to 264VAC voltage supply. It outputs DC voltage of 24V and rated current of 125A. It is a single output power supply. This device has a wide operating temperature range between -40°C and 70°C. Features and Benefits • Compact size• Conformal coat option• Controlled by digital signal processor• Cost-effective• High efficiency up to 90%• Optimum performance• Variable speed smart fans Applications • Machine tool industry• Mobile phone chargers• Security systems Certifications • IEC 61000 immunity• UL recognized

Artesyn AXA Series Isolated DC / DC Converter Artesyn AXA series of isolated DC / DC converters offer an ultra compact DIP or SIP package, with a low profile of 8 mm. The series offers a highly efficient option of up to 87% with an ultra-wide 4:1 input range. The AXA series alows offers a remote on/off functionality, adding an extra layer of customisation for your application.The AXA series is also qualified for lead-free reflow solder process according to IPC/JEDEC J-STD-020D. Features and BenefitsSingle & dual output.Ultra compact DIP & SIP options.Metal cased with isolated baseplate.Remote on/off functionality.Input filter adheres to EN55022, class A & FCC level A.

Artesyn Embedded Technologies Embedded Switch Mode Power Supply The Artesyn Embedded Technologies LPS365-M series embedded switch-mode power supply is 240W, AC to DC plug-in device with a single output. This power supply also provides a 12V fan and 5V standby outputs. Its full-load efficiency of up to 92% and depending on operating conditions it provides up to 220W output power with free air convection cooling and up to 360W with 400 LFM of forced air. It has a universal input supply voltage rating ranging between 90VAC and 264VAC or 120VDC and 300VDC. Features and Benefits Active power factor correctionAdjustable main outputBuilt-in class B EMI filterFootprint is 3in and 5in Isolated 12V fan outputLess than 1U highOutput current is 19.5A at 24VDCOverload and thermal overload protectionsOvervoltage protectionPower failRemote sensingStandby output is 5V Applications Light industrial systems Non-patient contact medical application Certifications CB certificate and reportCCC ApprovalCE certifiedcULus60601-1cULus60950TUV60601-1TUV60950UL60601-1 UL60950

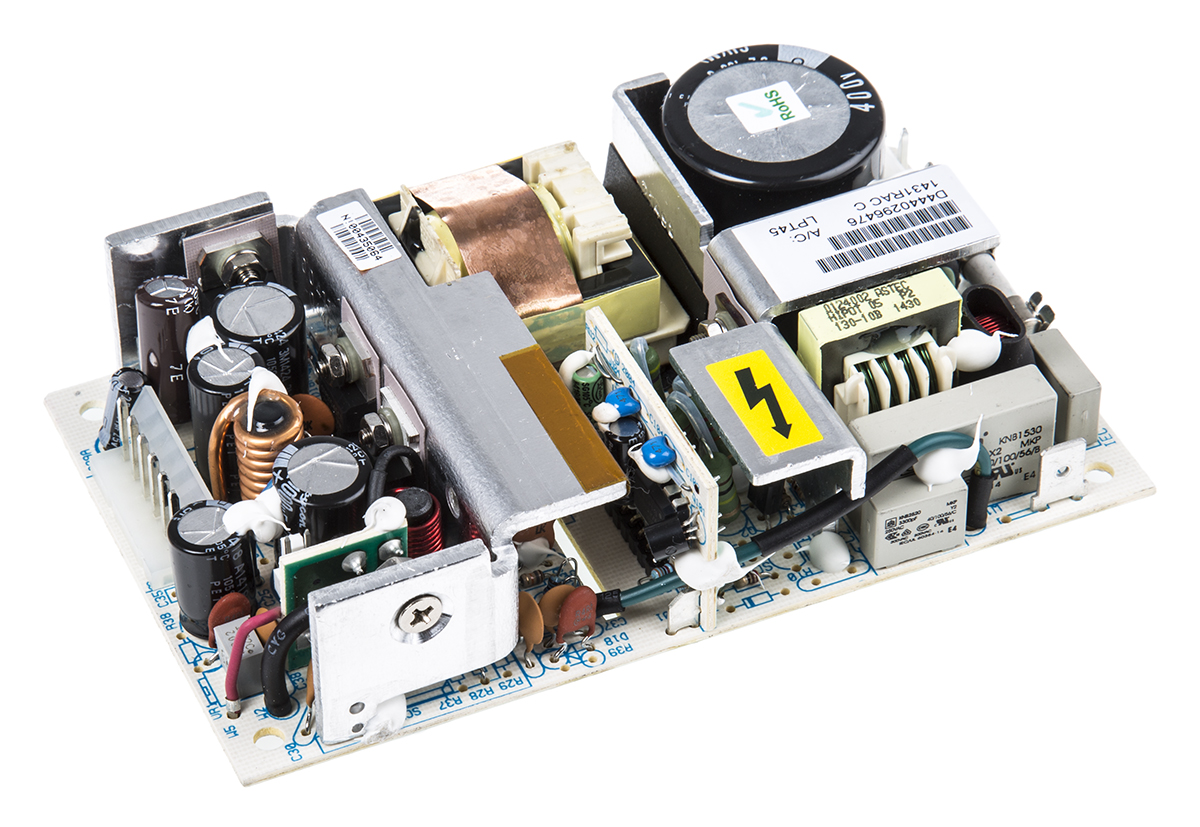

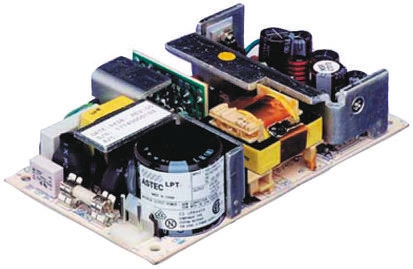

Artesyn Embedded Technologies Embedded Switch Mode Power Supply The Artesyn Embedded Technologies LPT series 40W triple output AC to DC embedded switch-mode power supply has an output voltage of 5VDC, 12VDC and -12VDC. It has a universal input supply voltage rating ranging from 85VAC to 264VAC or 120VDC to 300VDC. Note:Total of output loads must not exceed the rating of the unitForced air-cooling of 30CFM at 50°C increases the 25W O/P to 40W, the 40W O/P to 55W and the 60W O/P units to 80W and LPT80 units to 85W. Its ratings are reduced with a cover kit Features and Benefits Output currents are 8A ,0.7A and 0.7A (forced air)Output currents are 6A, 0.5A and 0.5A(Convection cooling)Frequency ranges from 47Hz to 440HzManufacturer part numbers with a T suffix denote terminal block connection, all others feature Molex mating connectors (not provided)In-built EMI filter (class B)Overvoltage protectionOverload protectionFootprint is 3in and 5in and open PCB formatRemote sense on main outputAdjustable main output (-5 +10%)Open frame package typeChassis mountHigh peak ratings for 30 seconds Certifications EN60950VDEUL approved CSA certified NEMKOBABTIEC950EN60950

Connector Kits

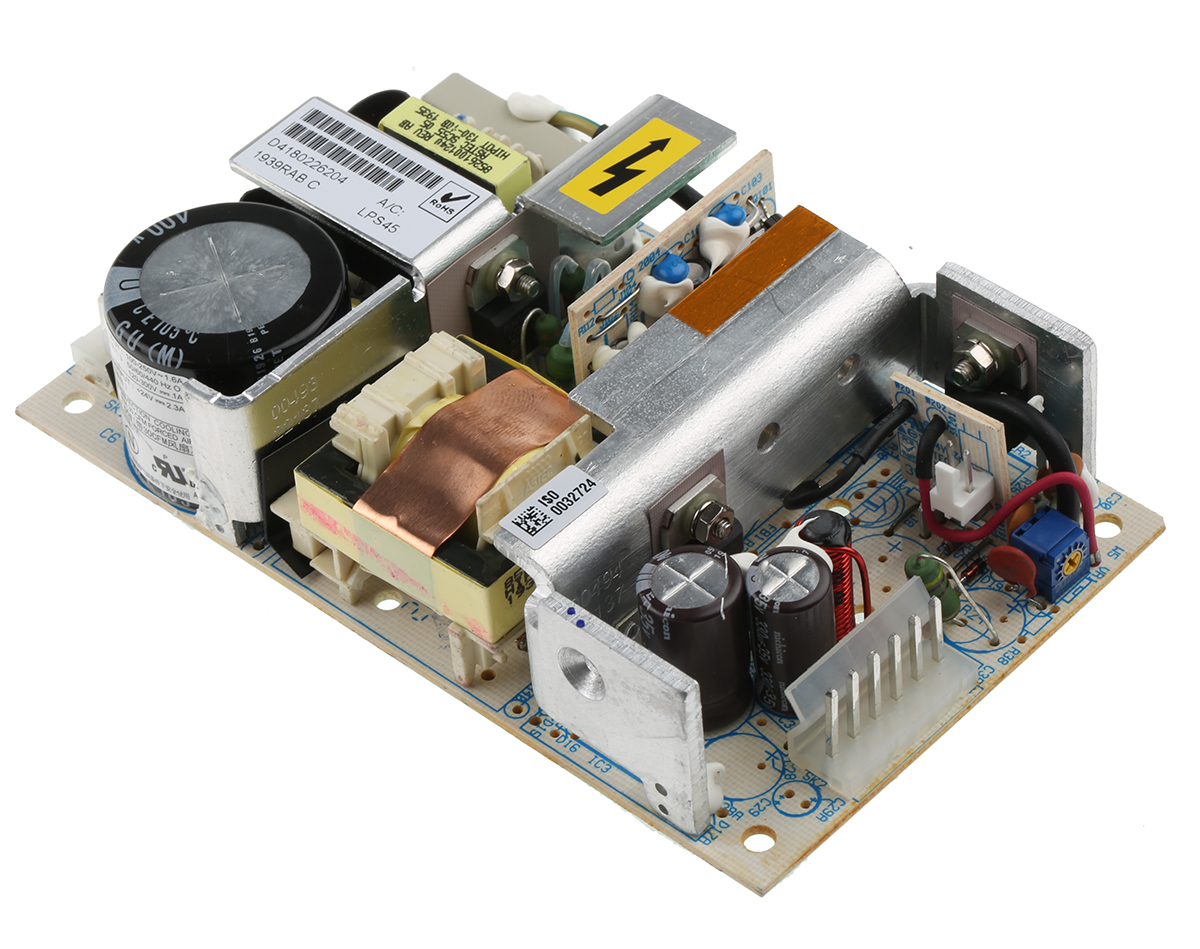

Artesyn Embedded Technologies Embedded Switch Mode Power Supply The Artesyn Embedded Technologies LPS45 series embedded switch-mode power supply is 40W, AC to DC plug-in device with a single output. It has a universal input supply voltage rating ranging between 85VAC and 264VAC or 120VDC and 300VDC. Note:Total of output loads must not exceed rating from a unit.Forced air cooling of 30CFM at 50°C increases the 25W output to 40W, the 40W to 55W and the 60W units to 80W, LPT80 units to 85W. Ratings are reduced with a cover kit. Features and Benefits Adjustable main output (-5 +10%)Chassis mountFootprint is 3in and 5in and open PCB formatFrequency ranges between 47Hz and 440HzHigh peak ratings for 30 secondsIn-built EMI filter (Class B)Open frame package typeOutput current is 2.3A at 24VDCOverload protectionOvervoltage protectionRemote sensing on the main output Certifications BABTCSA certified EN60950EN60950IEC950NEMKO UL approved VDE

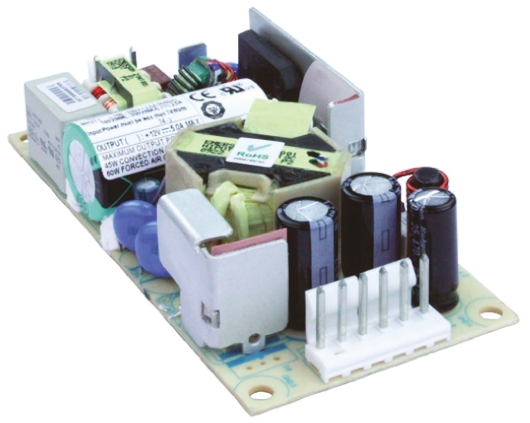

Switch Mode Medical Approved Single Output AC/DC Power Supply - NPS-M Series Switch mode single output AC/DC embedded power supplies with a low safety ground leakage current and medical and ITE approval. These switch mode AC/DC power supplies have a universal AC input, adjustable output voltage, high efficiency, a built in EMI filter and dual AC fuses . The footprint for these AC/DC power supplies is 2" x 4" with a height of less than 1U. Suitable applications for these embedded AC/DC power supplies include information technology equipment (ITE) and light industrial systems, as well as for equipment intended for non-patient contact and non-patient critical use in low power medical, dental and laboratory applications. Worldwide IT equipment (ITE) approvalClass I approved (NPS60-M is UL Class I approved), Class II approved (with Class A EMI)Universal AC inputAdjustable output voltageHigh efficiencyOverload and overvoltage protectionRemote sensingBuilt in EMI filter (CISPR 22 Class B)Less than 300 mW no load power consumptionSafety ground leakage current of 275ua @ 50/60 Hz; 264 VAC inputEMI compliance: FCC Class B conducted; CISPR 22 Class B conducted; EN55022 Class B conducted, VDE0878PT3 Class B conductedHarmonic Current compliance: EN61000-3-2

Cover & Connector Kits
