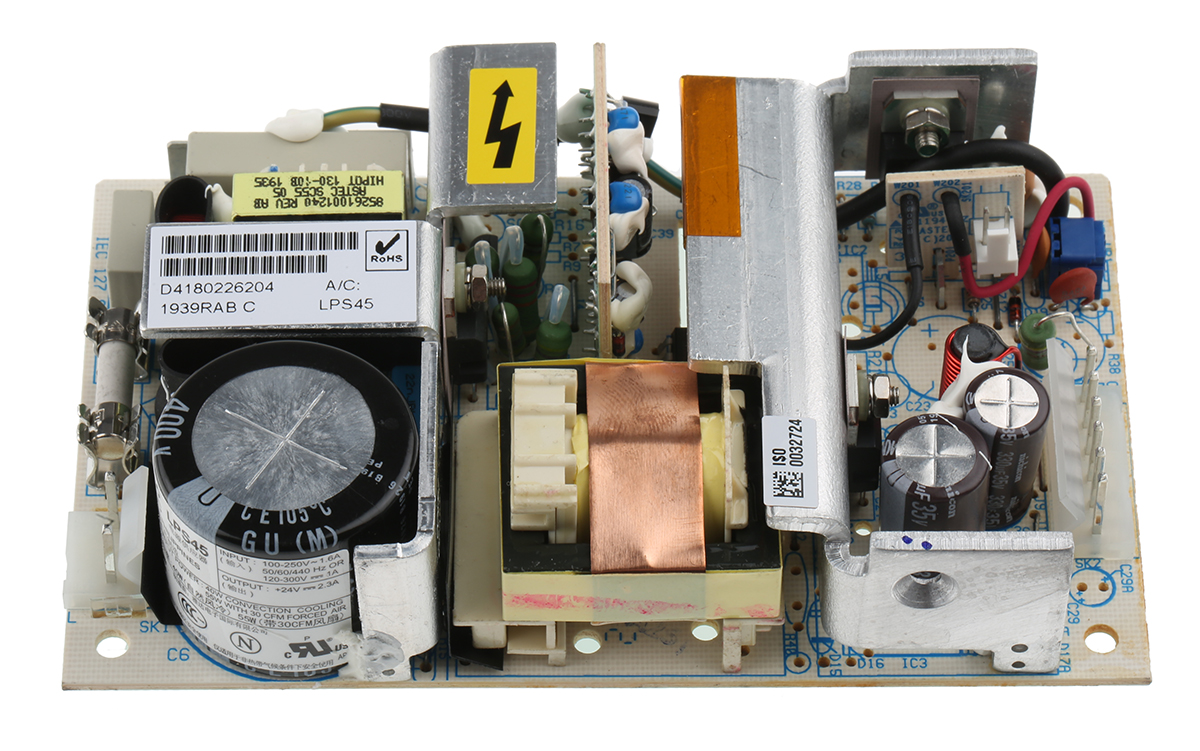

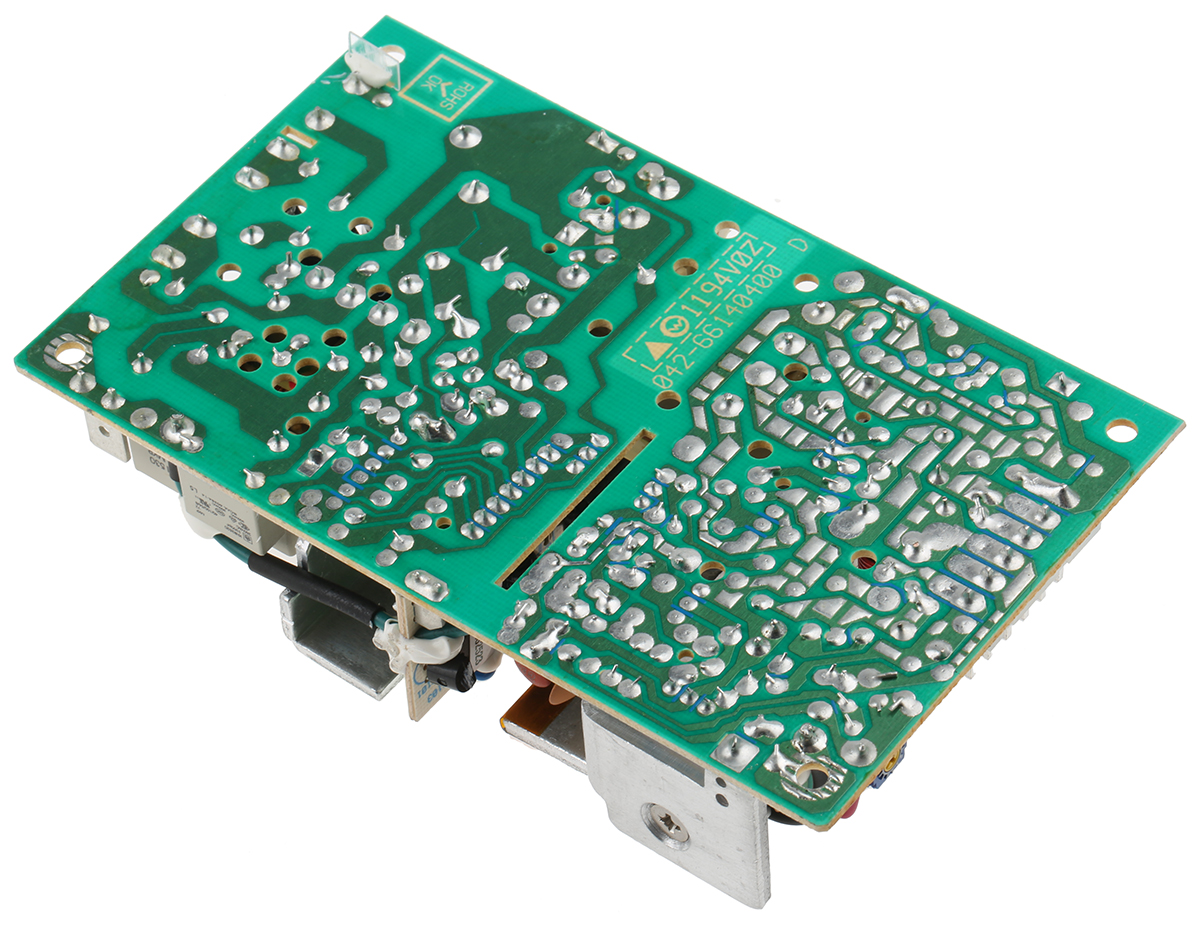

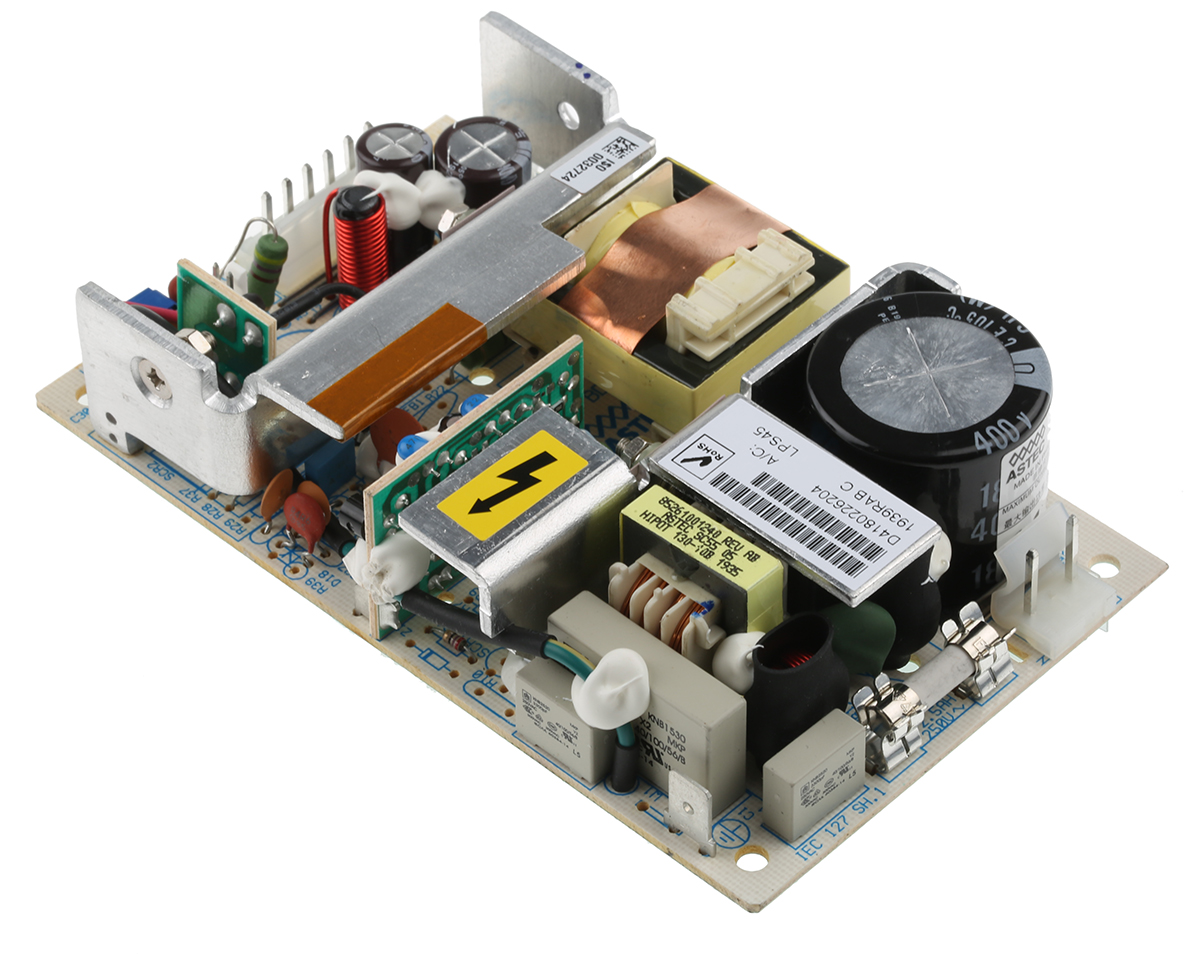

Artesyn Embedded Technologies Embedded Switch Mode Power Supply The Artesyn Embedded Technologies LPS45 series embedded switch-mode power supply is 40W, AC to DC plug-in device with a single output. It has a universal input supply voltage rating ranging between 85VAC and 264VAC or 120VDC and 300VDC.
Note:
Total of output loads must not exceed rating from a unit.
Forced air cooling of 30CFM at 50°C increases the 25W output to 40W, the 40W to 55W and the 60W units to 80W, LPT80 units to 85W. Ratings are reduced with a cover kit. Features and Benefits Adjustable main output (-5 +10%)
Chassis mount
Footprint is 3in and 5in and open PCB format
Frequency ranges between 47Hz and 440Hz
High peak ratings for 30 seconds
In-built EMI filter (Class B)
Open frame package type
Output current is 2.3A at 24VDC
Overload protection
Overvoltage protection
Remote sensing on the main output Certifications BABT
CSA certified
EN60950
EN60950
IEC950
NEMKO
UL approved
VDE
