Encoder Line Drivers for HEDS-55xx / 56xx / 9000 / 9100 / 9200 / 9040 / 9140 Series Encoder Line Drivers for HEDS-55xx / 56xx / 9000 / 9100 / 9200 / 9040 / 9140 Series enhances the performance of encoders when they are used in noisy environments or when they are required to drive long distances. The encoder line drivers use an industry standard IC, AM26C31Q that provides complementary outputs for each encoder channel. Single 5 V supplyOn-board bypass capacitor

Optocoupler, Intelligent Power Module (IPM) Interface, Avago Technologies Avago Technologies optocouplers for IPM (Intelligent Power Module) interface exhibit short propagation delay, fast IGBT switching, high common mode transient rejection and wide operating temperature range.Avago Technologies R2Coupler™ isolation products provide the reinforced insulation and reliability needed for critical automotive and high temperature applications.

Optocoupler, 1MBd Transistor Output, Avago Technologies 1 MBd maximum operation transistor output optocouplers are designed for use in industrial applications.

Avago HSMx-C120 Series LEDs The HSMx-C120 series, from Avago Technologies, are surface mount (SMT) Chip LEDs. They are in a smaller right angle package with industry standard 1.6 x 0.6 x 1.0 mm.The HSMx-C120 chip LEDs are designed in an industry standard package for ease of handling and use. Various different LED colours are available in nine compact, single colour packages. Suitable applications for the HSMx-C120 Chip LEDs include; keypad backlighting, push-button backlighting, LCD backlighting, symbol backlighting and front panel indicators. Features of the HSMx-C120 series:- Compact package- Industry standard 0603 footprint- Viewing angle: 155°- Compatible with IR solder- Diffused optics- Operating temperature range of -30°C to +85°C- Various colours available

Isolating Amplifiers, Avago Technologies The range of isolation amplifier optocouplers from Avago Technologies is ideal for industrial environments where the optocoupler is used to insulate high voltages and isolate any unwanted signals. Sigma-delta modulator technology allows the current and voltage sensor families to provide precise measurements of phase current and bus voltage in motor drives, power inverters and voltage signals in general isolation circuits. These isolation amplifiers offer high CMR (common mode rejection) performance and built-in safety insulation. They are a suitable alternative to the Hall Effect isolation amplifiers, for current and voltage sensing in power converters. Various types available including:precision isolation amplifiersminiature isolation amplifiersprecision optically isolated voltage sensorsisolated linear sensing ICsisolation amplifiers with short circuit and overload detectionautomotive isolation amplifiers

Avago HLMP-Ax64/65 Series LEDs The HLMP-AG64/65, HLMP-AM64/65 and HLMP-AB64/65 series, from Avago Technologies, are precision optical performance LEDs. The HLMP-Ax64/65 LEDs are available in red, green and blue colour varieties. They are in a 5mm mini oval package which is tinted and diffused. Their oval shaped radiation pattern and high luminous intensity allow these LEDs to offer a wide field of view alongside readability in sunlight. These qualities make the HLMP-Ax64/65 LEDs ideal for outdoor applications, for example passenger information signs and full colour signs. The LED's package epoxy contains UV-A and UV-B inhibitors to reduce the effects of long term exposure to direct sunlight. Features of the HLMP-AG64/65, HLMP-AM64/65 and HLMP-AB64/65 LEDs:- Well defined spatial radiation pattern- High brightness material- Available in red, green and blue- Moisture resistant- Standoff package- 5mm mini oval package- Tinted and diffused- Typical viewing angle: 30° x 70°

Avago HLMP-Cx1A/1B/2A/2B/3A/3B Series LEDs Avago Technologies' HLMP-Cx1A/1B/2A/2B/3A/3B series are 5mm blue and green LED lamps. They come in T-1 3/4 (5mm) packages and are untinted and non-diffused. The HLMP-Cx1A/1B/2A/2B/3A/3B colours are high intensity blue and green. They use efficient InGaN material technology and incorporate second generation optic. They produce well defined spatial radiation patterns at specific viewing cone angles.This family also offer high temperature and moisture resistance performance in outdoor sign and signal applications. The epoxy package contains a UV inhibitor to reduce the effects of long term exposure to direct sunlight. Suitable applications for the HLMP-Cx1A/1B/2A/2B/3A/3B LEDs include; commercial outdoor advertising, traffic signs and variable message signs. Features of the HLMP-Cx1A/1B/2A/2B/3A/3B LEDs:- High luminous output- Untinted, non-diffused- Blue and green colours- Viewing angle: 15°, 23° and 30°

Broadcom Optocoupler The Broadcom optocoupler is a 6N134 series DC input transistor output dual optocoupler. It is capable of operation and storage over the full military temperature range and can be purchased as either a commercial product or with full MIL-PRF-38534 class level H or K testing and from the appropriate DLA drawing. Features and Benefits • 1500VDC withstand test voltage• 2500VDC withstand test voltage for HCPL-565x high radiation immunity 6N137, HCPL-2601, HCPL-2630/31 function compatibility reliability data TTL circuit compatibility• CMR: > 10,000V/s typical• Dual marked with device part number and DLA standard microcircuit drawing (SMD)• Five hermetically sealed package configurations performance guaranteed over full military• high-speed is 10Mbd typical• Manufactured and tested on a MIL-PRF-38534 certified line QML-38534, class H and K• Maximum forward voltage is 1.9V• Maximum input current is 20mA• Minimum current transfer ratio is 100%• Temperature ranges between -55°C and 125°C Applications • Harsh industrial environments• Isolated input line receiver• Isolated output line driver• Isolation for computer, communication, and test equipment systems• Line receiver• Logic ground isolation• Military and aerospace high reliability systems• T

AEAT-601B Incremental Magnetic Encoder The AEAT-601B is a low-cost rotary quadrature encoder that converts the rotation of a shaft to a series of pulses on 3 digital output channels. A suitable microcontroller can calculate angular position, speed and rotational direction from the two signals in phase quadrature and one-pulse per revolution index channel. The use of magnetic technology for motion control and sensing activities eliminates mechanical contact and enables this device to be free from mechanical wear and tear. The encoder maximum rotational speed is typically only limited by the application bearing speed. TTL 2-channel quadrature output + indexResolution: 256 ppr (CPR)Max rotational speed (mechanical): 12000 rpmMax rotational speed (electrical): 7000 rpmOperating temperature range: -40 to +125°CSupply voltage: +4.5 to +5.5 VShaft diameter: 6 mmShaft length: 8.5 ±1.0 mmApplications: Monitoring of shaft speeds, closed-loop (PID) control of DC motors, robots, automation

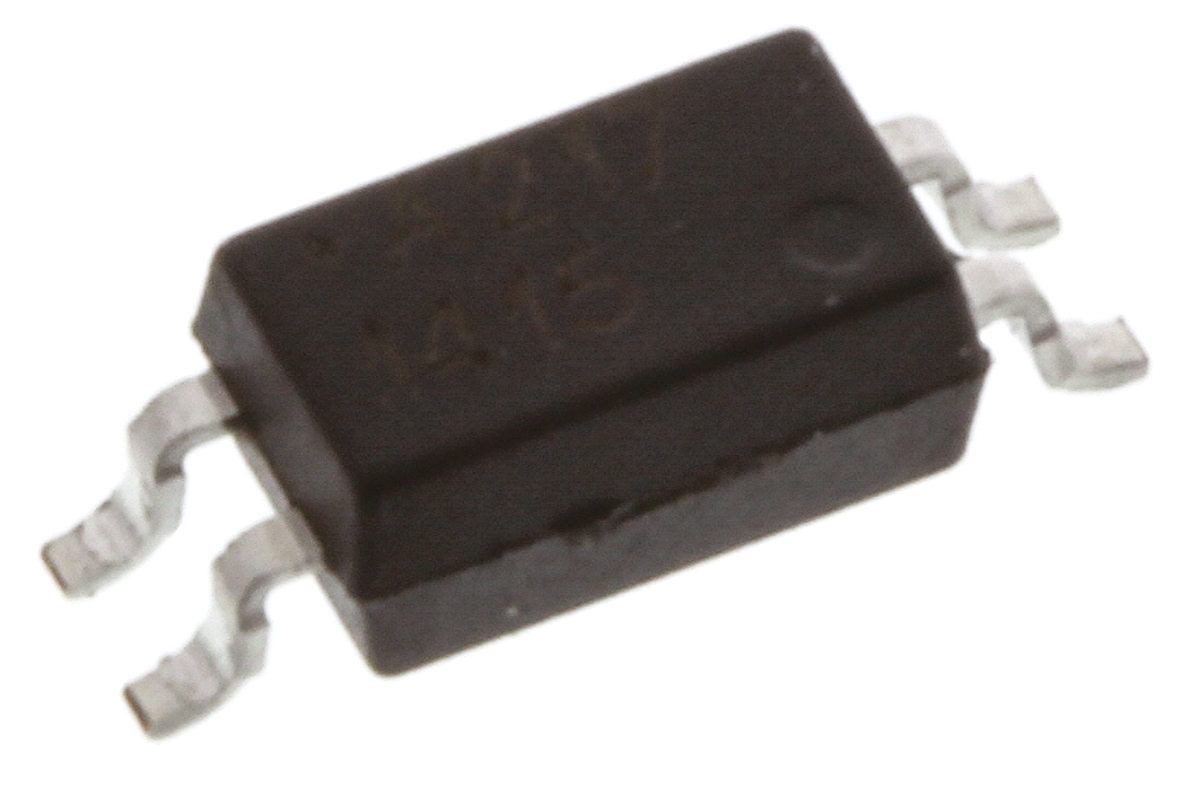

The ACPL-217-500E is a DC-input single channel half-pitch phototransistor optocoupler which contains a light emitting diode optically coupled to a phototransistor. It is packaged in a 4-pin SO package. The input-output isolation voltage is rated at 3000 Vrms. Response time, tr, is 2μs typically, while minimum CTR is 50% at input current of 5 mA. FeaturesCurrent transfer ratio(CTR: min. 50% at IF = 5mA, VCC = 5V)High input-output isolation voltage(VISO = 3,000VRMS)Non-saturated Response time(tr: typ. 2μs at VCC = 10V, IC = 2mA, RL= 100Ω)SO packageCMR 10 kV/μs (typical)Options available are:5XXE = Lead Free OptionApplicationsI/O Interface for Programmable controllers, computersSequence controllersSystem appliances, measuring instrumentsSignal transmission between circuits of different potentials and impedances

Smart Gate Drive Optocouplers, Broadcom The Broadcom optically isolated gate drive devices are optimised for driving IGBT and Power MOSFET transistors. The highly integrated smart gate drive optocouplers provide integrated protection features; Active Miller Clamp, under voltage lockout, fault and UVLO status feedback and desaturation detection. Beside the protection features, Broadcom have also an integrated DC-DC controller for floating power supply.The isolated gate driver optocouplers are ideal for use in motor control and power conversion applications. This solution isolates and protects logic signals from high voltages.

Optical Encoders This range of motion control optical encoders, by Avago Technologies, is available in two and three channel output options. These incremental encoders utilize optical technology for motion control. Incremental encoder devices provide position feedback for incremental counts. Where the feedback signal is always referenced to a start or home position, an incremental encoder provides a uniquely defined, relative position. Avago Technologies offer both optical reflective incremental encoders and optical transmissive incremental encoders. These devices are available as encoder modules for user integration or as complete housed or kit incremental encoders. This range of optical encoders provides accurate positioning and velocity sensing for a variety of applications. Possible applications include:printerscopiersscannersservo and stepper motor feedback systemsrobotic arms wafer-handling machines
