Ball Bushings Bearing Housings - Open Aluminium extrusion designed to house open ball bushings.

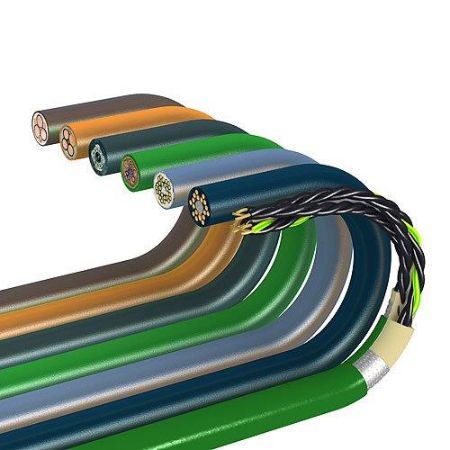

The Igus chainflex cables from igus are designed with one message in mind, &#147;cost down, life up&#148;. With our TPE jacket material, we provide products that can cope with highly demanding applications adopting very high abrasion resistance whilst providing excellent protection levels when faced with harsh chemical and oil-based environments. Our patented bundle design ensures small bend radius figures which make chainflex cables ideal for use in echain (cable carrier), flexible and fixed applications. Small bend radii, ideal for space saving installation <BR/> Patented core bundled design to ensure long lasting lifetime in dynamic applications <BR/> Oil resistant Class 4 which supports almost unlimited oil + bio-oil resistance <BR/> Low angled braided screen optimised for use in continuous flexing applications <BR/> 300/500v rated for use in control cable applications <BR/> Wide temperature ranges from -55°c to +100°c depending on application type <BR/> Guaranteed service life for use in echains, minimise risk of unplanned downtime <BR/> Long travel rated for reliable use up to 400m in echains® Twisted-Pair (TP) data cables are used in a wide variety of applications where EMC/EMI/Cross talk provide issues. Core sizing ranges from 0.25mm²-0.5mm², with core identification using DIN 47100 colour coding system. CF211.PUR is designed for heavy duty applications supported by its almost unlimited resistance to oil. Ideal for use on indoor and outdoor applications, supported by a working temperature range from -50°C to up +80°C. Typical application areas include Machining units/machine tools, storage and retrieval units, high-bay warehousing, packaging industry, quick handling, refrigeration sector. Medium UV resistance.<BR/>Oil-resistant (following DIN EN 50363-4-1).<BR/>Flame Retardant according to IEC 60332-1-2, CEI 20-35, FT1, VW1.<BR/>Halogen-free (Following DIN EN 60754).<BR/>Silicone-free following PV 3.10.7 – status 1992.<BR/>UL/CSA style 10493 and 20233.<BR/>NFPA following NFPA 79-2018, chapter 12.9.<BR/>ROHS-II (Lead-free) following 2011/65/EC.<BR/>Clean room according to ISO Class 1.<BR/>CE following 2014/35/EU.<BR/>DNV/GL approved.<BR/>MUD-resistant NEK 606 – status 2009.<BR/><BR/>Note<BR/>chainflex® guarantee, now verified by UL - all igus flexible cables are thoroughly tested in our 2,750m laboratory with reliable specialist equipment where we have over 600 tests running simultaneously, to confidently provide our 36-month guarantee.

The Igus chainflex cables from igus are designed with one message in mind, &#147;cost down, life up&#148;. With our TPE jacket material, we provide products that can cope with highly demanding applications adopting very high abrasion resistance whilst providing excellent protection levels when faced with harsh chemical and oil-based environments. Our patented bundle design ensures small bend radius figures which make chainflex cables ideal for use in echain (cable carrier), flexible and fixed applications. Small bend radii, ideal for space saving installation <BR/> Patented core bundled design to ensure long lasting lifetime in dynamic applications <BR/> Oil resistant Class 4 which supports almost unlimited oil + bio-oil resistance <BR/> Low angled braided screen optimised for use in continuous flexing applications <BR/> 300/500v rated for use in control cable applications <BR/> Wide temperature ranges from -55°c to +100°c depending on application type <BR/> Guaranteed service life for use in echains, minimise risk of unplanned downtime <BR/> Long travel rated for reliable use up to 400m in echains® Bus cables are used to ensure the safe and reliable data transmission between to electrical devices that support the dedicated Bus protocol (Ethernet, CAN-bus, Profibus/Profinet etc). Core configurations vary and are designed to conform to each Bus protocol including materials, sizing, colour coding and electrical properties and has guaranteed electrical and mechanical performance when used in accordance with the associated &#147;Guaranteed service life&#148; table. CFBUS is designed for extremely heavy-duty applications supported by its almost unlimited resistance to oil and bio-oils. Ideal for use on indoor and outdoor applications, supported by a working temperature range from -50°C to up +100°C. Typical application areas include storage and retrieval units, machining units/machine tools, quick handling, clean room, semiconductor insertion, outdoor cranes, low temperature applications. Medium UV resistance.<BR/>Oil-resistant (following DIN EN 60811-404).<BR/>Bio-oil resistant (following VDMA 24568).<BR/>Silicone-free following PV 3.10.7 – status 1992.<BR/>UL/CSA style 1589 and 21371, 11632 and 21218, 10138 and 21235.<BR/>ROHS-II (Lead-free) following 2011/65/EC.<BR/>Clean room according to ISO Class 1.<BR/>CE following 2014/35/EU.<BR/>EtherCAT.<BR/>CC-Link IE Field.<BR/>Profinet accreditation.<BR/><BR/>Note<BR/>chainflex® guarantee, now verified by UL - all igus flexible cables are thoroughly tested in our 2,750m laboratory with reliable specialist equipment where we have over 600 tests running simultaneously, to confidently provide our 36-month guarantee.

The Igus chainflex cables from igus are designed with one message in mind, &#147;cost down, life up&#148;. With our TPE jacket material, we provide products that can cope with highly demanding applications adopting very high abrasion resistance whilst providing excellent protection levels when faced with harsh chemical and oil-based environments. Our patented bundle design ensures small bend radius figures which make chainflex cables ideal for use in echain (cable carrier), flexible and fixed applications. Small bend radii, ideal for space saving installation <BR/> Patented core bundled design to ensure long lasting lifetime in dynamic applications <BR/> Oil resistant Class 4 which supports almost unlimited oil + bio-oil resistance <BR/> Low angled braided unscreened optimised for use in continuous flexing applications <BR/> 300/500v rated for use in control cable applications <BR/> Wide temperature ranges from -55°c to +100°c depending on application type <BR/> Guaranteed service life for use in echains, minimise risk of unplanned downtime <BR/> Long travel rated for reliable use up to 400m in echains® Unscreened motor cables are used in a wide variety of applications where EMC/EMI/Cross talk is not an issue. Core sizing ranges from 1.5mm²-50mm², with core identification using black cores, white numerals + earth (GY) core. CF30 is designed for heavy duty applications where the influence of oils is relatively light. Preferably for use on indoor applications or for outdoor applications at above freezing temperatures. Typical application areas include storage and retrieval units, high-bay warehousing, machining units, packaging machines, quick handling, indoor cranes. Medium UV resistance.<BR/>Oil-resistant (following DIN EN 50363-4-1).<BR/>Flame Retardant according to IEC 60332-1-2, CEI 20-35, FT1, VW1.<BR/>Silicone-free following PV 3.10.7 – status 1992.<BR/>UL/CSA style 10492 and 2570.<BR/>NFPA following NFPA 79-2018, chapter 12.9.<BR/>ROHS-II (Lead-free) following 2011/65/EC.<BR/>Clean room according to ISO Class 2.<BR/>CE following 2014/35/EU.<BR/><BR/>Note<BR/>chainflex® guarantee, now verified by UL - all igus flexible cables are thoroughly tested in our 2,750m laboratory with reliable specialist equipment where we have over 600 tests running simultaneously, to confidently provide our 36-month guarantee.

The Igus chainflex cables from igus are designed with one message in mind, &#147;cost down, life up&#148;. With our TPE jacket material, we provide products that can cope with highly demanding applications adopting very high abrasion resistance whilst providing excellent protection levels when faced with harsh chemical and oil-based environments. Our patented bundle design ensures small bend radius figures which make chainflex cables ideal for use in echain (cable carrier), flexible and fixed applications. Small bend radii, ideal for space saving installation <BR/> Patented core bundled design to ensure long lasting lifetime in dynamic applications <BR/> Oil resistant Class 4 which supports almost unlimited oil + bio-oil resistance <BR/> Low angled braided screen optimised for use in continuous flexing applications <BR/> 300/500v rated for use in control cable applications <BR/> Wide temperature ranges from -55°c to +100°c depending on application type <BR/> Guaranteed service life for use in echains, minimise risk of unplanned downtime <BR/> Long travel rated for reliable use up to 400m in echains® CF130.UL is designed for medium duty applications where there is no influence of oils. Preferably for use on indoor applications or for outdoor applications at above freezing temperatures. Typical application areas include Wood/stone processing, packaging industry, supply systems, handling, adjusting equipment. Flame Retardant according to IEC 60332-1-2, CEI 20-35, FT1, VW1.<BR/>Silicone-free following PV 3.10.7 – status 1992.<BR/>UL/CSA style 10493 and 20200.<BR/>NFPA following NFPA 79-2018, chapter 12.9.<BR/>ROHS-II (Lead-free) following 2011/65/EC.<BR/>Clean room according to ISO Class 1.<BR/>CE following 2014/35/EU.<BR/><BR/>Note<BR/>chainflex® guarantee, now verified by UL - all igus flexible cables are thoroughly tested in our 2,750m laboratory with reliable specialist equipment where we have over 600 tests running simultaneously, to confidently provide our 36-month guarantee.

Female Thread

Closed Bushing Standard Design,In some applications it may be necessary to replace the bearing liner only. Replacement liners are simply pushed into the aluminium housings.

Female Thread

Open Bushing Standard Design,Recommended tolerance for the shaft: h6-h10.

KMA with quick flange for short and log travel routes<BR/>Recommended for unsupported and gliding applications<BR/>For tight installation spaces<BR/>Universal mounting with attachment options from any side

Extreme accelerations<BR/>If space is limited for height<BR/>Can be mounted on either the<BR/>fixed or moving end of the chain
