ts-04-09-600 Igus TS-04-09-600, T Series, Linear Guide Rail 9mm width 600mm length

IGUS ®Drylin T Miniature Linear Bearings Resistant to dust, dirt and moisture, these rails and carriages are non-corrosive and require no lubrication Rails manufactured from aluminium with a hard anodised finish Carriages manufactured from aluminium with high performance polymer inserts Excellent wear resistance and able to withstand high static loads, shocks and vibrations in all directions Very high acceleration rates possible Lightweight, easy to assemble and maintenance free Exceptionally quiet as there are no moving parts Dimensions - Rails Nom. Width (mm) Weight (kg/m) A (mm) C4 (mm) C5 min (mm) C5 max (mm) C6 min (mm) C6 max (mm) H (mm) H1 (mm) K1 (thread) B (mm) Ly (mm 2 ) Lz (mm 4 ) Wby (mm 3 ) Wbz (mm 3 ) 09 0.110 9 20 5 14.5 5 14.5 6.3 4.6 M2 9.6 252 169 52 49 12 0.200 12 25 5 19.5 5 19.5 8.6 5.9 M3 13 856 574 132 120 15 0.330 15 40 10 29.5 10 29.5 10.8 7 M3 17 2420 1410 285 239 Dimensions - Carriages Nom. Width (mm) Weight (g) H (mm) A (mm) C (mm) A1 (mm) A2 (mm) C1 (mm) C2 (mm) H1 (mm) H5 (mm) K2 (thread) Offset Torque max (N) K3 (thread) 09 17 10 20 29 5.5 15 18 13 1.7 7.2 M2 25 M2 12 34 13 27 34 7.5 20 22 15 2.2 9.5 M3 50 M2(M3) 15 61 16 32 42 8.5 25 31 20 2.8 11 M3 50 M2(M3) Technical specification - Basic Load Ratings Nom. Width (mm) C OY (N) C O(-Y) (N) C OZ (N) M OX (Nm) M oy (Nm) M OZ (Nm) 09 480 480 240 3.4 1.8 1.8 12 960 960 480 9.2 4.4 4.4 15 1400 1400 700 17 8 8

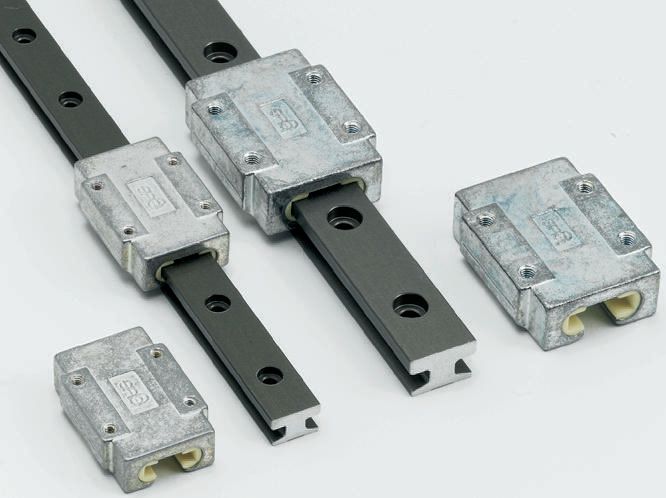

Igus TS-04-09-600, T Series, Linear Guide Rail 9mm width 600mm length

Manufacturer:
Manufacturer Part No:
TS-04-09-600
Enrgtech Part No:
ET14040907
Warranty:
Manufacturer
£ 26.04
Checking for live stock
Static Load Rating:
0.48kN
Material:
Hard Anodized Aluminium
Manufacturer Series:
T
Rail Width:
9mm
Rail Length:
600mm
pdf icon
Drylin T Miniature Linear Guide System Data Sheet(Technical Reference)
