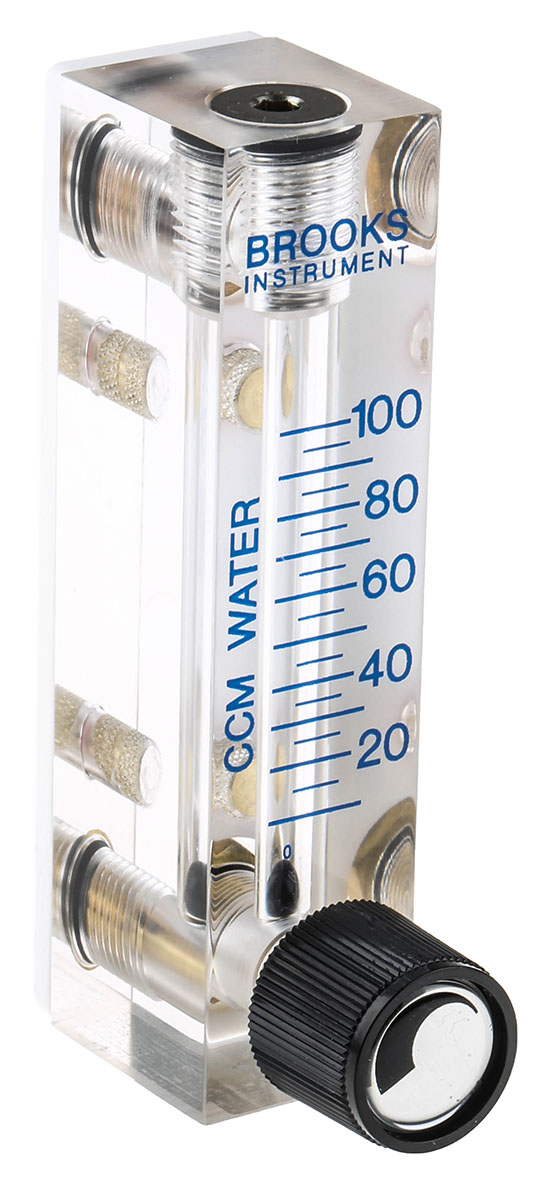

Key Instruments Flow Meter The Key Instruments FR2000 series variable area flow meter measures the liquid flow rate of 10 ccm to 100 cm³/min. This is a standard, precision-machined, acrylic flow meter for liquids or gases. It has direct-reading air or water scales and is available in either English or metric scales. This is a durable and affordable product that provides highly repeatable results. It can be configured with a control valve on the inlet. The fittings and the valve are specified in brass and the O-rings are provided with Buna-N. These precision-machined, 1-piece, acrylic-body blocks can handle demanding projects and mounting panels along with high durability. It is used for many non-corrosive, low-pressure air, water and gas flow applications. <BR/><BR/>Note:<BR/>Please ensure you have selected the correct gauge for air, gas, or water. Features and Benefits Pipe diameter range is 1/8 in<BR/>Connection type is 1/8 NPT female<BR/>Maximum operating pressure is 6.89bar<BR/>Maximum operating temperature is 65°C<BR/><BR/>Large scales are easy-to-read<BR/>Valve with positive stop stays in place under pressure<BR/>Rod guided float for stable measurements<BR/>Fitting, valve and O-ring options accommodate multiple applications<BR/>Multiple connection options for easier installation<BR/>Easy disassembly and assembly for maintenance<BR/>Durable 1-piece, clear, acrylic construction Applications Air sampling equipment aquaculture <BR/>Desalinisation equipment<BR/>Gas analysers<BR/>Medical systems<BR/>Photo processing equipment<BR/>Water treatment and distribution systems<BR/>Purge

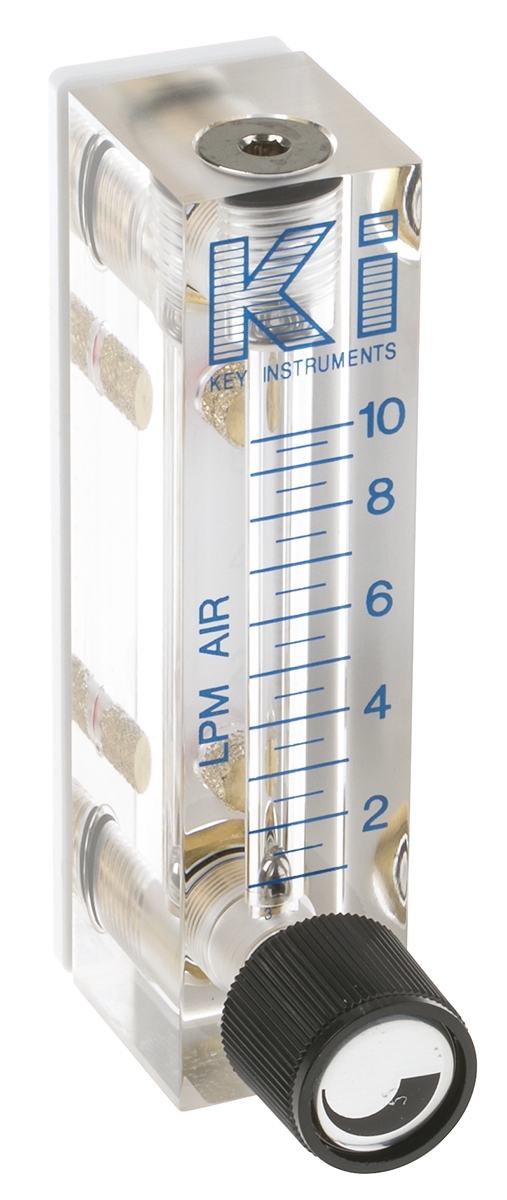

Key Instruments Flow Meter The Key Instruments FR2000 series variable area flow meter measures the gas flow rate of 1L/min to 10L/min. This is a standard, precision-machined, acrylic flow meter for liquids or gases. It has direct-reading air or water scales and is available in either English or metric scales. This is a durable and affordable product that provides highly repeatable results. It can be configured with a control valve on the inlet. The fittings and the valve are specified in brass and the O-rings are provided with Buna-N. These precision-machined, 1-piece, acrylic-body blocks can handle demanding projects and mounting panels along with high durability. It is used for many non-corrosive, low-pressure air, water and gas flow applications. <BR/><BR/>Note:<BR/>Please ensure you have selected the correct gauge for air, gas, or water. Features and Benefits Pipe diameter range is 1/8 in<BR/>Connection type is 1/8 NPT female<BR/>Maximum operating pressure is 6.89bar<BR/>Maximum operating temperature is 65°C<BR/><BR/>Large scales are easy-to-read<BR/>Valve with positive stop stays in place under pressure<BR/>Rod guided float for stable measurements<BR/>Fitting, valve and O-ring options accommodate multiple applications<BR/>Multiple connection options for easier installation<BR/>Easy disassembly and assembly for maintenance<BR/>Durable 1-piece, clear, acrylic construction Applications Air sampling equipment aquaculture <BR/>Desalinisation equipment<BR/>Gas analysers<BR/>Medical systems<BR/>Photo processing equipment<BR/>Water treatment and distribution systems<BR/>Purge

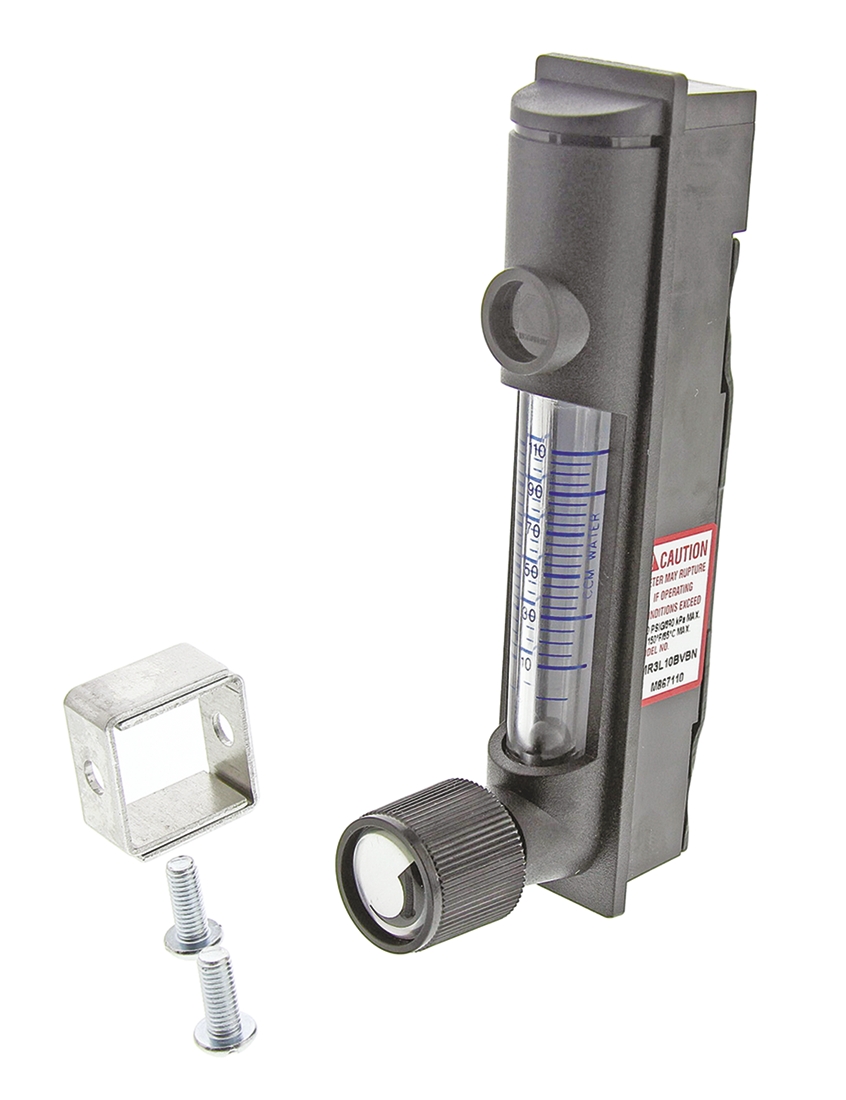

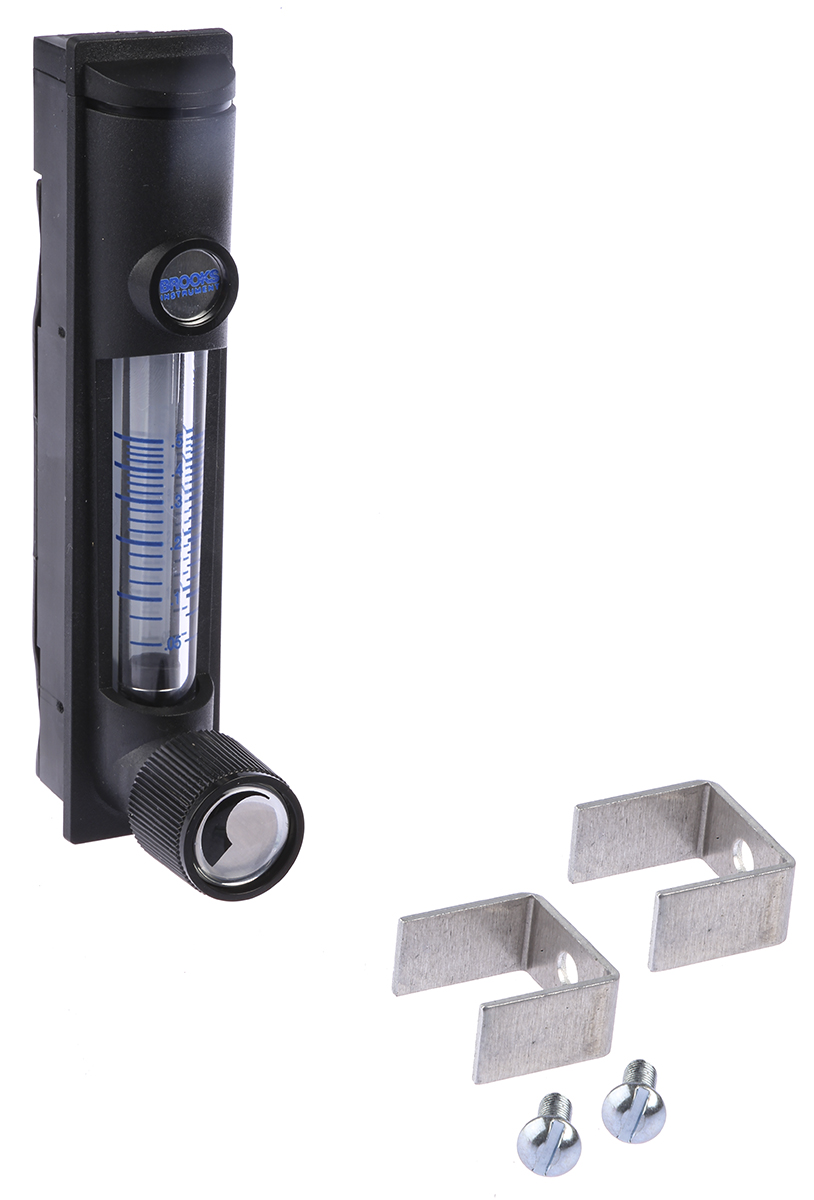

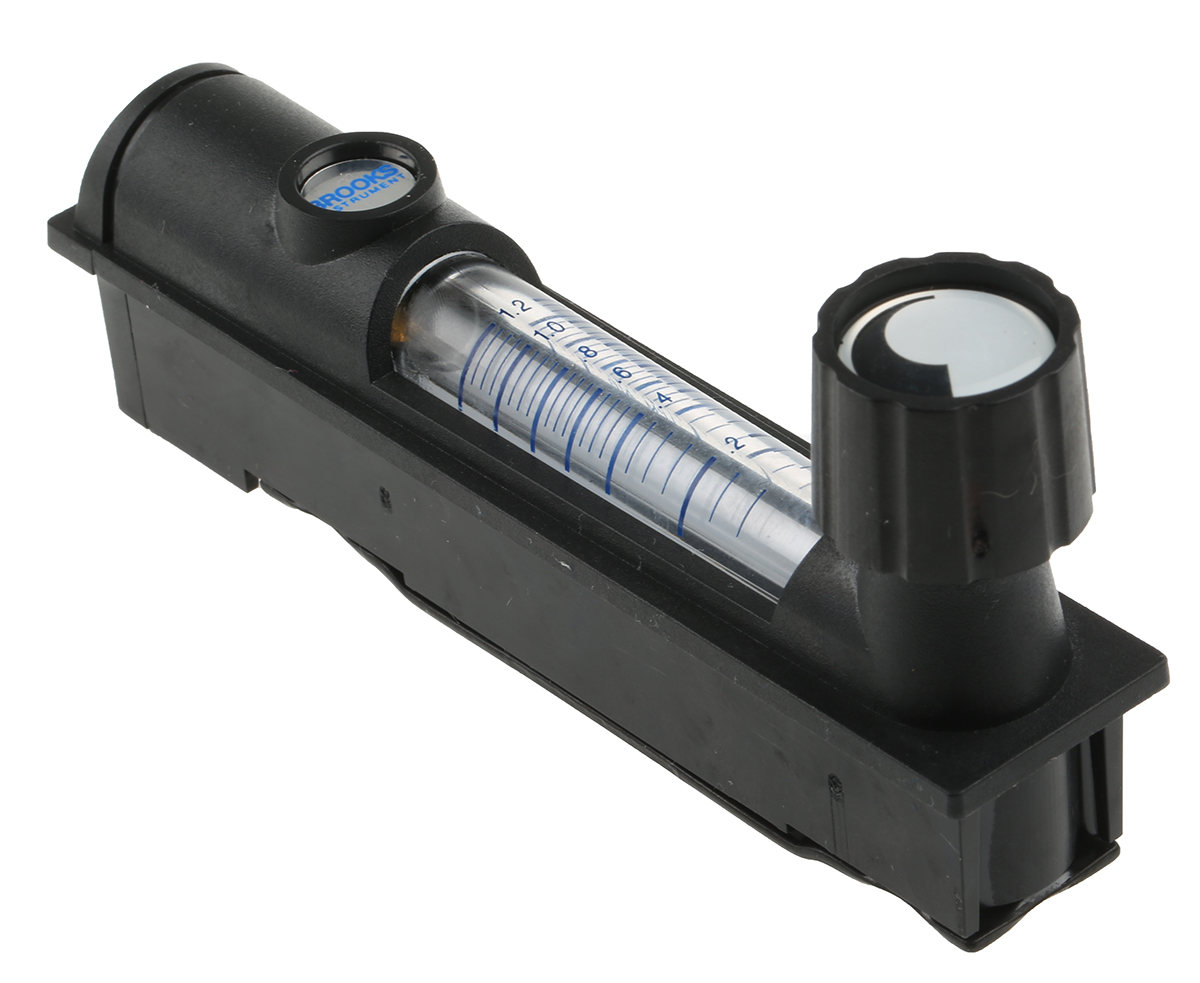

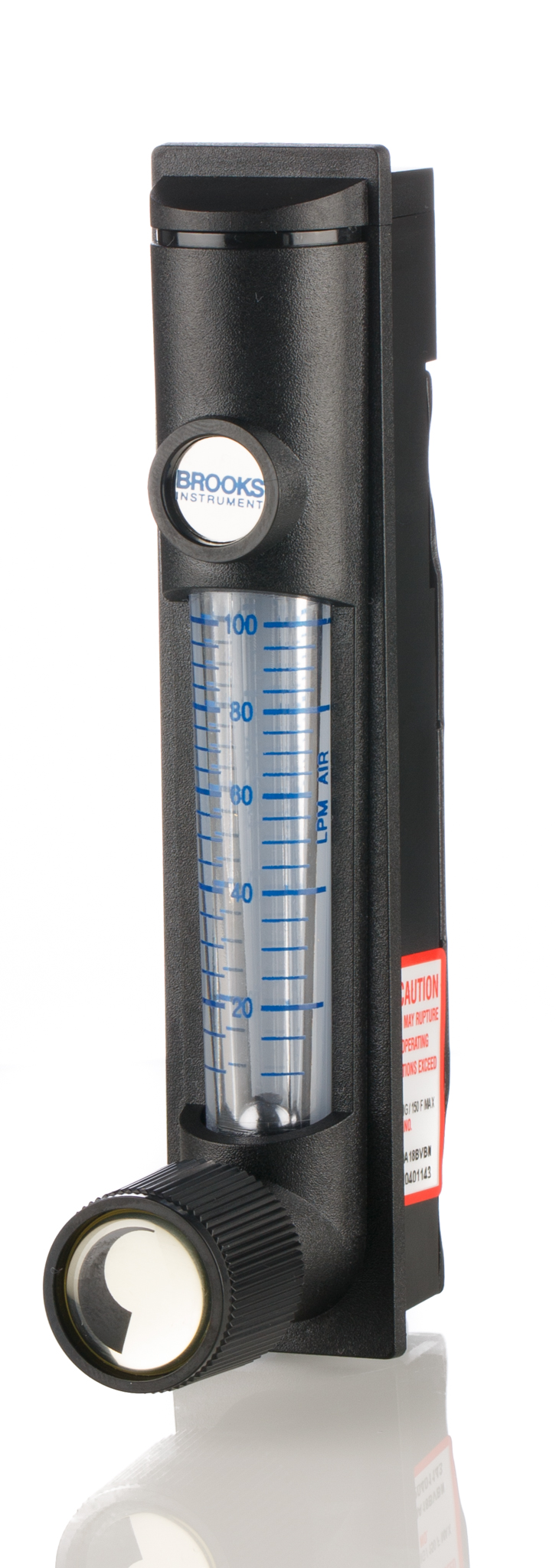

Low Cost Polycarbonate Flow Meters MR3000 molded flow meters supplied with scales in LPM and SCFH for air, or CCM and GPH for water.<BR/>Manufactured from high-impact polycarbonate, the MR3000 series can operate at pressures of 100 psig and temperatures of 150°F (65°C).<BR/>These economically designed units provide high quality and accuracy when properly installed. The durability of the polycarbonate allows the flow meter to provide years of trouble-free service. Features and Benefits &#149; High impact polycarbonate &#149; High quality construction &#149; Flow ranges: Air 50 CCM to 100 LPM, Water 4 CCM to 40 GPH &#149; 10:1 turn direct reading scales Product Application Information For use with air and water. Ideally suited for OEM applications.

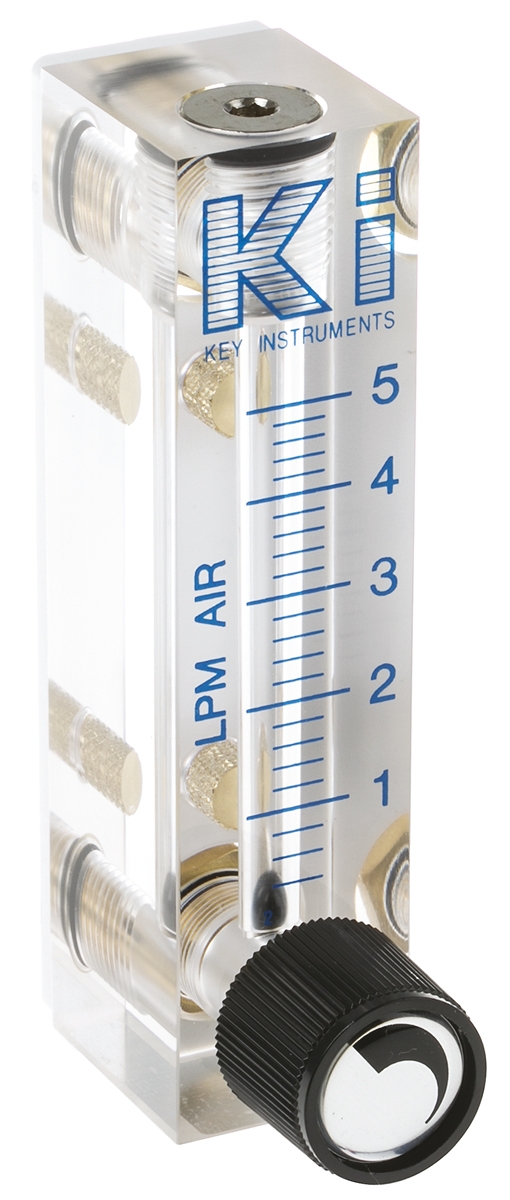

Key Instruments Flow Meter The Key Instruments FR2000 series variable area flow meter measures the gas flow rate of 0.4L/min to 5L/min. This is a standard, precision-machined, acrylic flow meter for liquids or gases. It has direct-reading air or water scales and is available in either English or metric scales. This is a durable and affordable product that provides highly repeatable results. It can be configured with a control valve on the inlet. The fittings and the valve are specified in brass and the O-rings are provided with Buna-N. These precision-machined, 1-piece, acrylic-body blocks can handle demanding projects and mounting panels along with high durability. It is used for many non-corrosive, low-pressure air, water and gas flow applications.<BR/><BR/>Note:<BR/>Please ensure you have selected the correct gauge for air, gas, or water. Features and Benefits Pipe diameter range is 1/8 in<BR/>Connection type is 1/8 NPT female<BR/>Maximum operating pressure is 6.89bar<BR/>Maximum operating temperature is 65°C<BR/><BR/>Large scales are easy-to-read<BR/>Valve with positive stop stays in place under pressure<BR/>Rod guided float for stable measurements<BR/>Fitting, valve and O-ring options accommodate multiple applications<BR/>Multiple connection options for easier installation<BR/>Easy disassembly and assembly for maintenance<BR/>Durable 1-piece, clear, acrylic construction Applications Air sampling equipment aquaculture <BR/>Desalinisation equipment<BR/>Gas analysers<BR/>Medical systems<BR/>Photo processing equipment<BR/>Water treatment and distribution systems<BR/>Purge

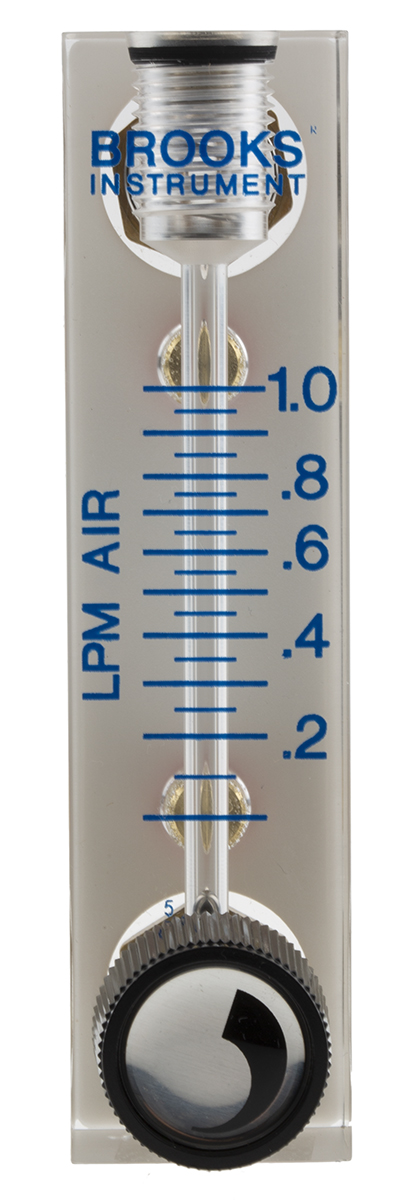

Key Instruments Flow Meter The Key Instruments FR2000 series variable area flow meter measures the gas flow rate of 0.1L/min to 1L/min. This is a standard, precision-machined, acrylic flow meter for liquids or gases. It has direct-reading air or water scales and is available in either English or metric scales. This is a durable and affordable product that provides highly repeatable results. It can be configured with a control valve on the inlet. The fittings and the valve are specified in brass and the O-rings are provided with Buna-N. These precision-machined, 1-piece, acrylic-body blocks can handle demanding projects and mounting panels along with high durability. It is used for many non-corrosive, low-pressure air, water and gas flow applications.<BR/>Note:<BR/>Please ensure you have selected the correct gauge for air, gas, or water. Features and Benefits Pipe diameter range is 1/8 in<BR/>Connection type is 1/8 NPT female<BR/>Maximum operating pressure is 6.89bar<BR/>Maximum operating temperature is 65°C<BR/><BR/>Large scales are easy-to-read<BR/>Valve with positive stop stays in place under pressure<BR/>Rod guided float for stable measurements<BR/>Fitting, valve and O-ring options accommodate multiple applications<BR/>Multiple connection options for easier installation<BR/>Easy disassembly and assembly for maintenance<BR/>Durable 1-piece, clear, acrylic construction Applications Air sampling equipment aquaculture <BR/>Desalinisation equipment<BR/>Gas analysers<BR/>Medical systems<BR/>Photo processing equipment<BR/>Water treatment and distribution systems<BR/>Purge

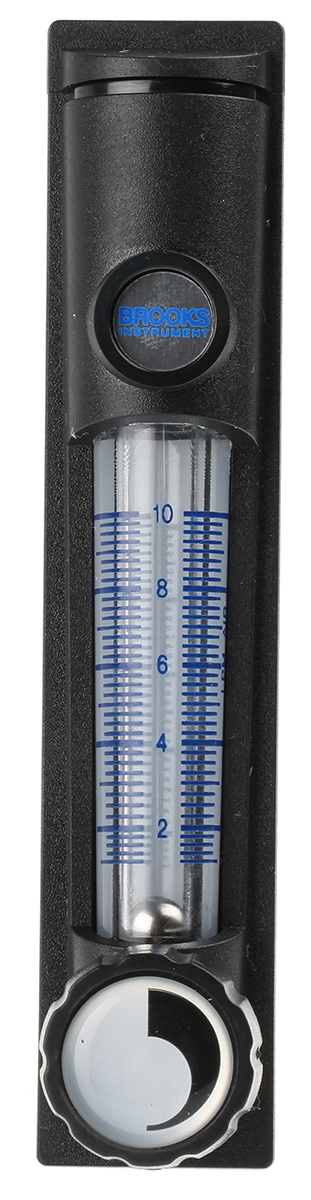

Key Instruments Flow Meter The Key Instruments MR3000 series variable area flow meter measures the gas flow rate of 1L/min to 10L/min. This is a high tech, moulded, low cost manufactured from high impact polycarbonate. It can operate at pressures of 100psig and temperatures of 150°F (65°C). These economically designed units provide high-quality and accuracy when installing properly. The durability of the polycarbonate allows the flow meter to provide years of trouble-free service. It is supplied with scales in LPM and SCFH for air, or CCM and GPH for water.<BR/><BR/>Inclusions:<BR/>Mounting brackets and built-in bezel. Features and Benefits Pipe diameter range is 1/8 in<BR/>Connection type is 1/8 NPT female<BR/>Maximum operating pressure is 6.9bar<BR/>Maximum operating temperature is 65°C<BR/>high-quality construction<BR/>10:1 turn direct reading scales<BR/>Monitor or control air and water flow<BR/>Supplied with east to read 10:1 turn direct reading scales<BR/>Fittings made of brass<BR/>Seal material is VITON W/ stainless steel Applications It is use with air and water<BR/>Ideally suited for OEM applications

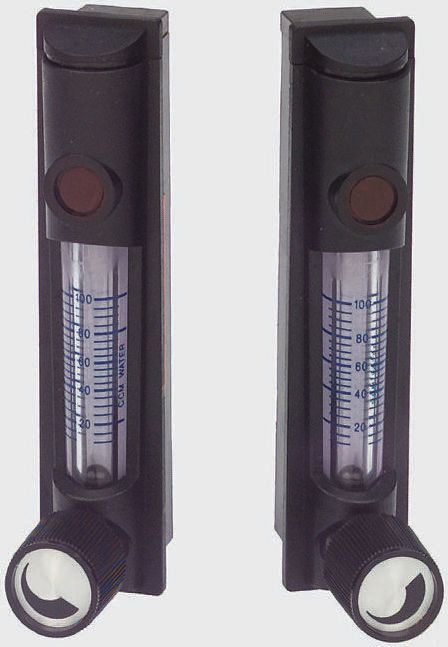

Low Cost Polycarbonate Flow Meters MR3000 molded flow meters supplied with scales in LPM and SCFH for air, or CCM and GPH for water.<BR/>Manufactured from high-impact polycarbonate, the MR3000 series can operate at pressures of 100 psig and temperatures of 150°F (65°C).<BR/>These economically designed units provide high quality and accuracy when properly installed. The durability of the polycarbonate allows the flow meter to provide years of trouble-free service. Features and Benefits &#149; High impact polycarbonate &#149; High quality construction &#149; Flow ranges: Air 50 CCM to 100 LPM, Water 4 CCM to 40 GPH &#149; 10:1 turn direct reading scales Product Application Information For use with air and water. Ideally suited for OEM applications.

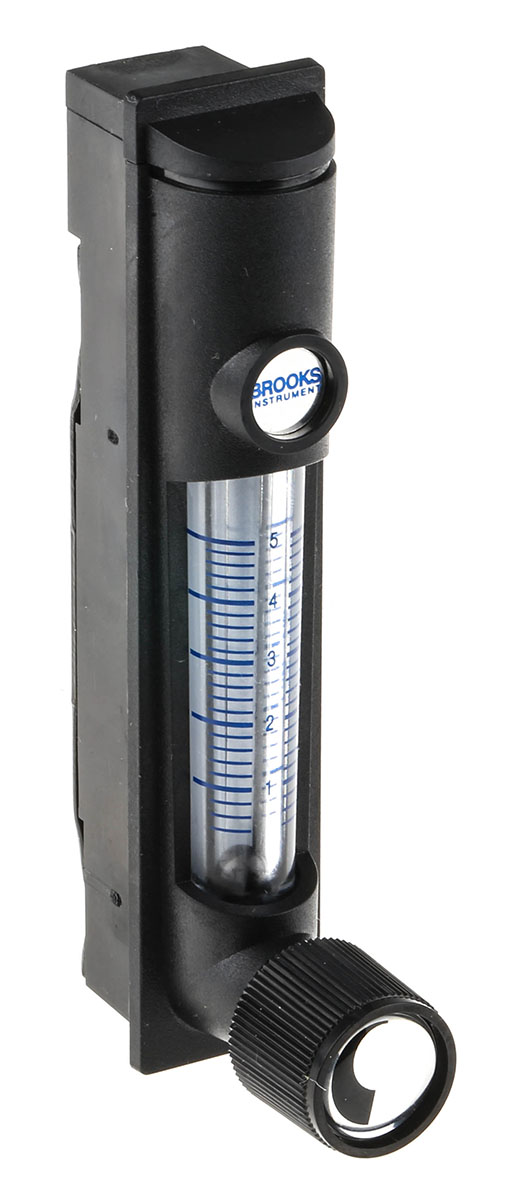

Key Instruments Flow Meter The Key Instruments MR3000 series variable area flow meter measures the gas flow rate of 0.4L/min to 5L/min. This is a high tech, moulded, low cost manufactured from high impact polycarbonate. It can operate at pressures of 100psig and temperatures of 150°F (65°C). These economically designed units provide high-quality and accuracy when installing properly. The durability of the polycarbonate allows the flow meter to provide years of trouble-free service. It is supplied with scales in LPM and SCFH for air, or CCM and GPH for water.<BR/><BR/>Inclusions:<BR/>Mounting brackets and built-in bezel. Features and Benefits Pipe diameter range is 1/8 in<BR/>Connection type is 1/8 NPT female<BR/>Maximum operating pressure is 6.9bar<BR/>Maximum operating temperature is 65°C<BR/>high-quality construction<BR/>10:1 turn direct reading scales<BR/>Monitor or control air and water flow<BR/>Supplied with east to read 10:1 turn direct reading scales<BR/>Fittings made of brass<BR/>Seal material is VITON W/ stainless steel Applications It is used for gas applications<BR/>Ideally suited for OEM applications

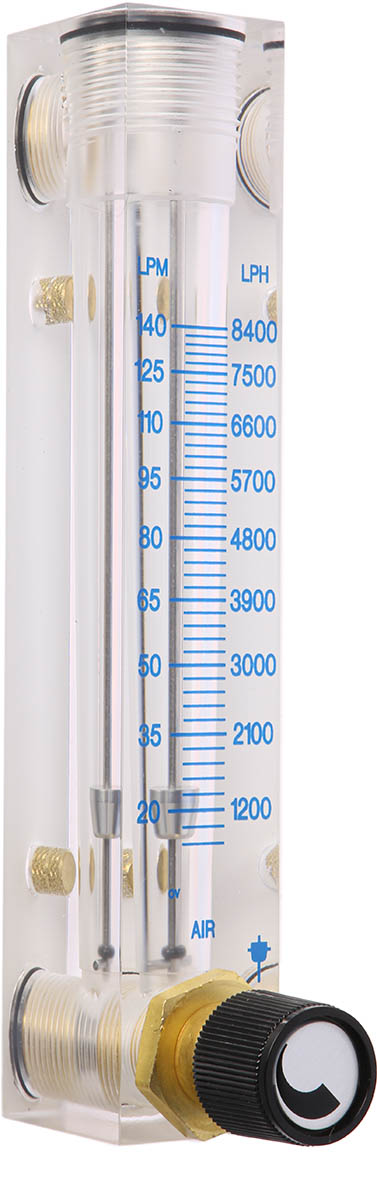

Key Instruments Flow Meter The Key Instruments FR4500 series variable area flow meter measures the gas flow rate of 14L/min to 140L/min. It is a standard, precision-machined, acrylic, flow meter for liquids or gases. It also has direct reading air and water scales. The FR4500 flow meters can be configured with a control valve on the inlet or no valve at all. The O-rings are provided as Buna-N.<BR/>Note:<BR/>Mounting screws are required (available separately). Features and Benefits Pipe diameter range is 1/4 in<BR/>Connection type is 1/4 NPT female<BR/>Maximum operating pressure is 6.89bar<BR/>Maximum operating temperature is 65°C<BR/><BR/>It is use for long term trouble free operation<BR/>Easy-to-read scales <BR/>Threaded brass inserts for quick installation<BR/>Easy disassembly and assembly for maintenance<BR/>Durable, 1-piece, clear, acrylic construction<BR/>Stable, easy-to-read float<BR/>Superior quality<BR/>Mounting inserts 10-32 UNF x 3/8in<BR/>It has maximum pressure 100PSIG Applications Compatible with most gases and fluids

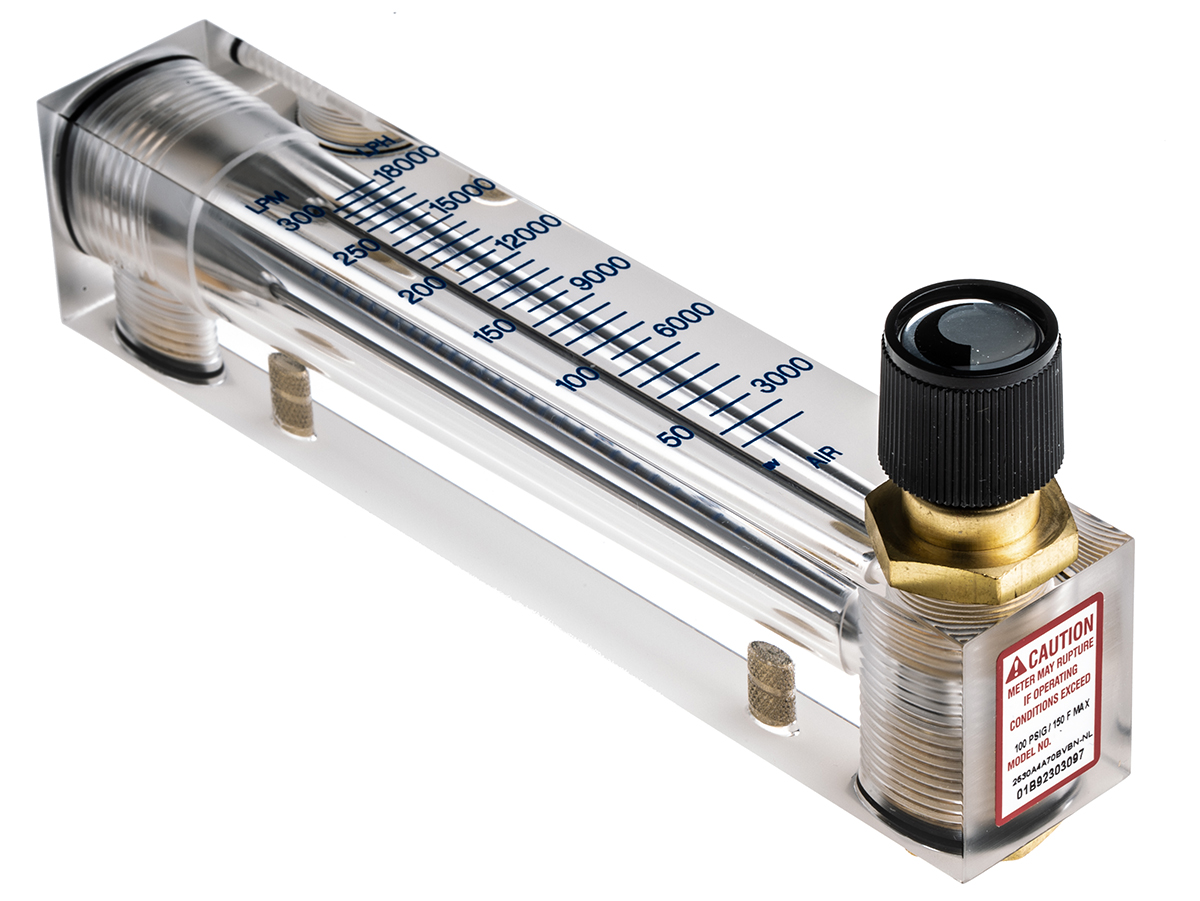

Key Instruments Flow Meter The Key Instruments FR4500 series variable area flow meter measures the gas flow rate of 30L/min to 280L/min. It is a standard, precision-machined, acrylic, flow meter for liquids or gases. It also has direct reading air and water scales. The FR4500 flow meters can be configured with a control valve on the inlet or no valve at all. The O-rings are provided as Buna-N.<BR/><BR/>Note:<BR/>Mounting screws are required (available separately). Features and Benefits Pipe diameter range is 1/4 in<BR/>Connection type is 1/4 NPT female<BR/>Maximum operating pressure is 6.89bar<BR/>Maximum operating temperature is 65°C<BR/><BR/>It is use for long term trouble free operation<BR/>Easy-to-read scales <BR/>Threaded brass inserts for quick installation<BR/>Easy disassembly and assembly for maintenance<BR/>Durable, 1-piece, clear, acrylic construction<BR/>Stable, easy-to-read float<BR/>Superior quality<BR/>Mounting inserts 10-32 UNF x 3/8in<BR/>It has maximum pressure 100PSIG Applications Compatible with most gases and fluids

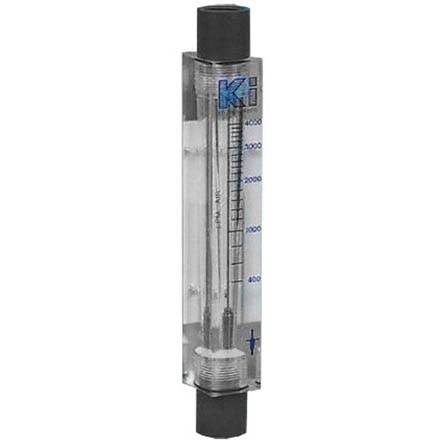

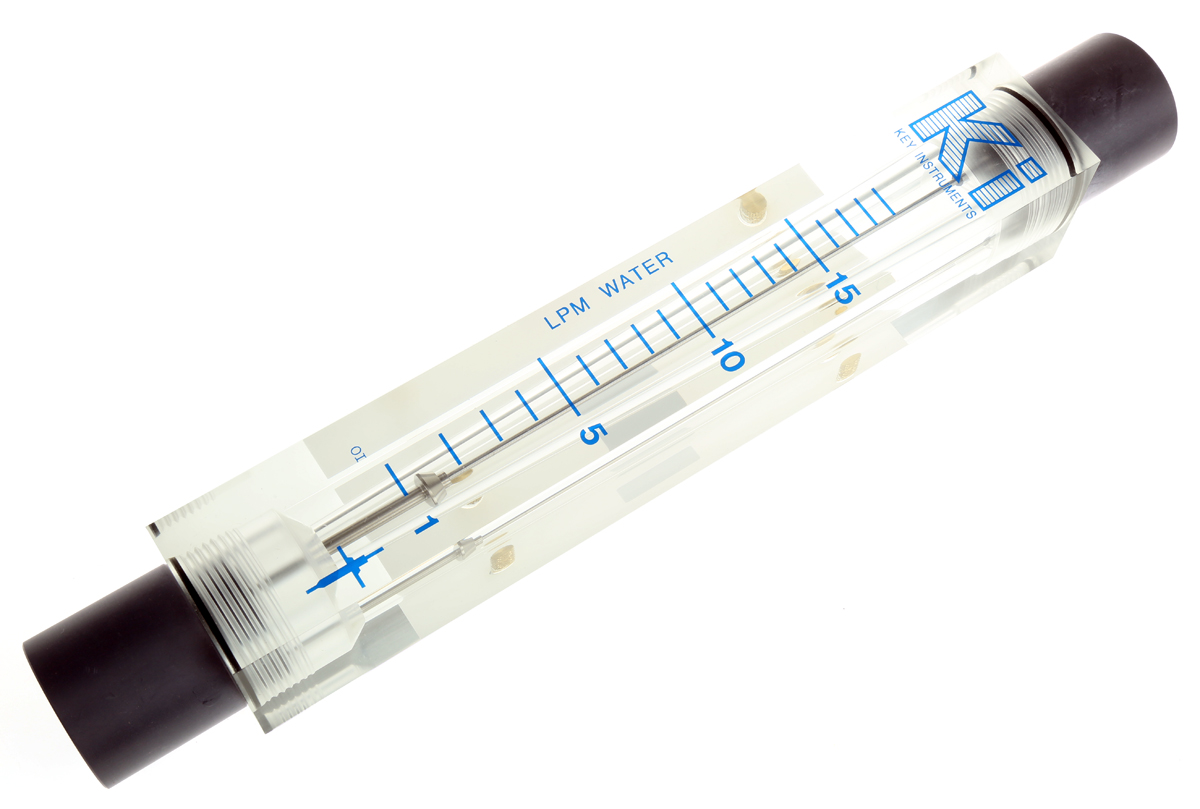

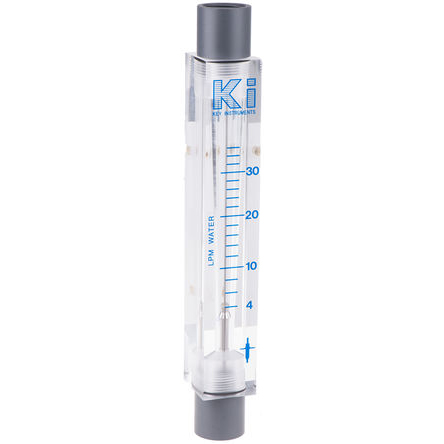

High Flow FR5000 Series Indicator Series FR5000 is a standard precision-machined acrylic flow meter for liquids and gases, with direct reading air or water scales. Model FR5000 flowmeters have standard 1"" FNPT PVC fittings. Features and Benefits &#149; Durable, 1 piece, clear acrylic construction &#149; Large scales are easy-to-read &#149; Valve with positive stop stays in place under pressure &#149; Rod guided float for stable measurements &#149; Fitting, valve and O-Ring options accommodate multiple applications &#149; Multiple connection options for easier installation &#149; Easy disassembly and assembly for maintenance Product Application Information &#149; Air sampling equipment aquaculture &#149; Desalinisation equipment &#149; Gas analysers &#149; Medical systems &#149; Photo processing equipment &#149; Water treatment and distribution systems &#149; Purge

High Flow FR5000 Series Indicator Series FR5000 is a standard precision-machined acrylic flow meter for liquids and gases, with direct reading air or water scales. Model FR5000 flowmeters have standard 1"" FNPT PVC fittings. Features and Benefits &#149; Durable, 1 piece, clear acrylic construction &#149; Large scales are easy-to-read &#149; Valve with positive stop stays in place under pressure &#149; Rod guided float for stable measurements &#149; Fitting, valve and O-Ring options accommodate multiple applications &#149; Multiple connection options for easier installation &#149; Easy disassembly and assembly for maintenance Product Application Information &#149; Air sampling equipment aquaculture &#149; Desalinisation equipment &#149; Gas analysers &#149; Medical systems &#149; Photo processing equipment &#149; Water treatment and distribution systems &#149; Purge
