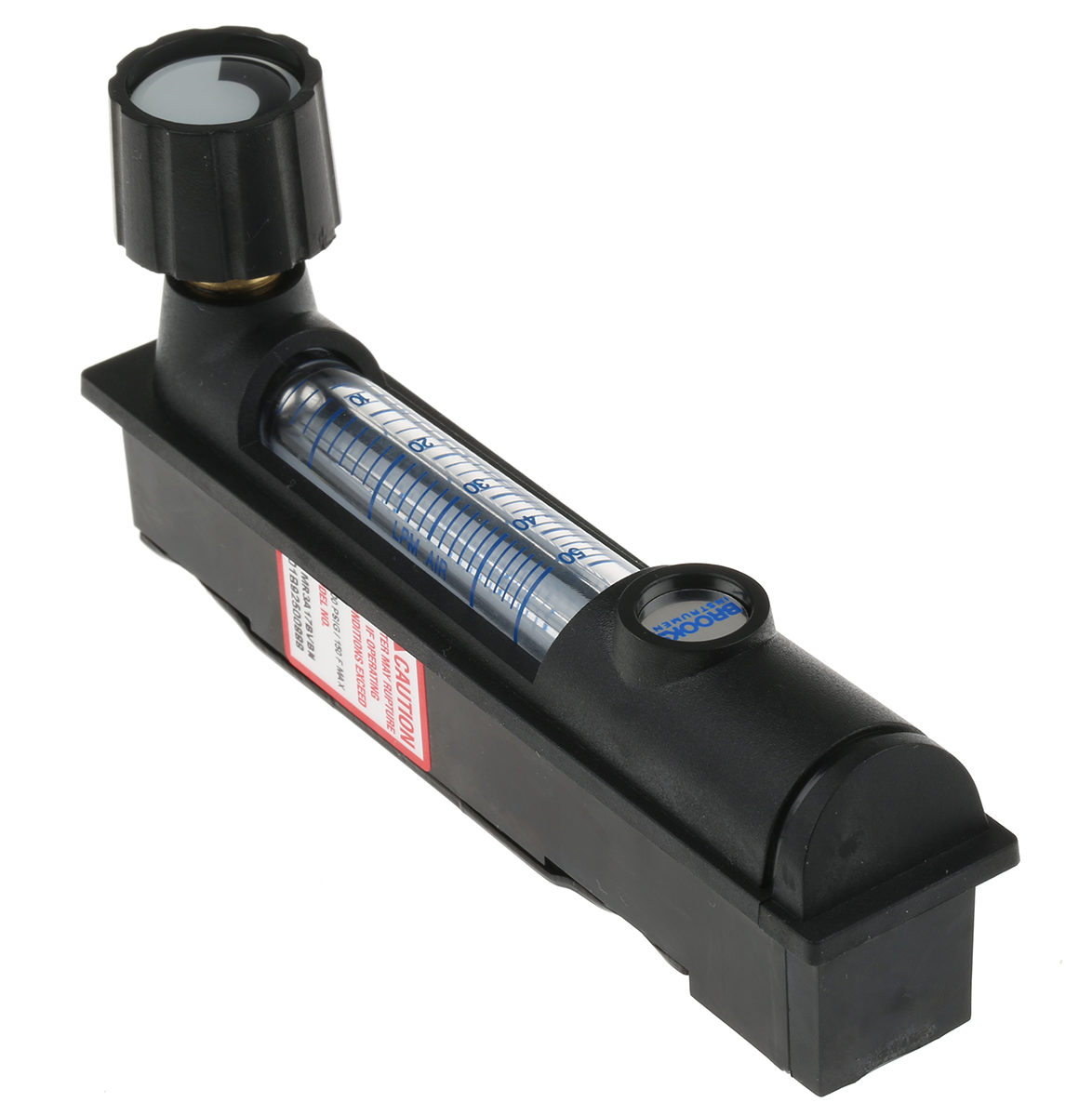

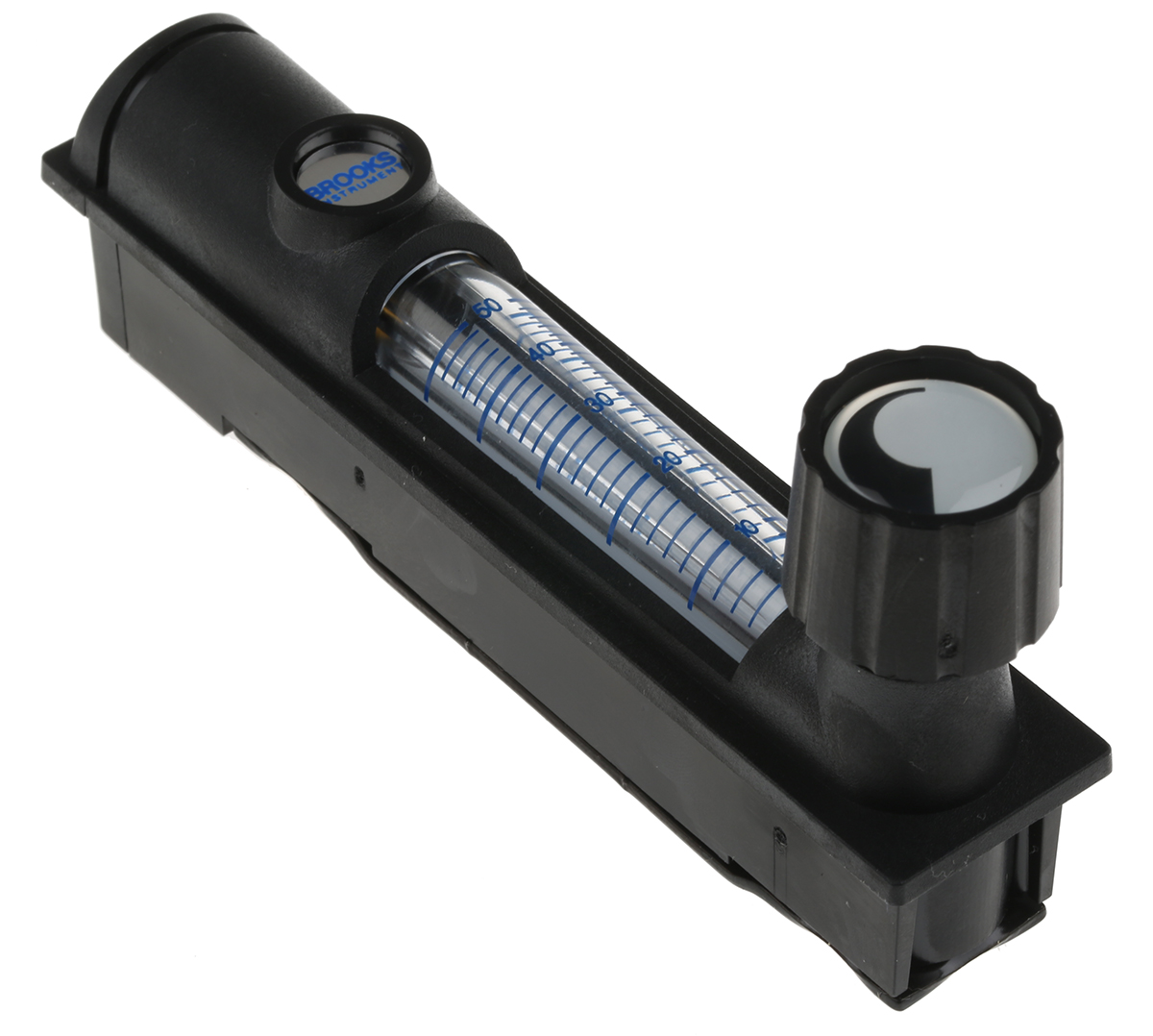

Key Instruments Flow Meter The Key Instruments MR3000 series variable area flow meter measures the gas flow rate of 4L/min to 50L/min. This is a high tech, moulded, low cost manufactured from high impact polycarbonate. It can operate at pressures of 100psig and temperatures of 150°F (65°C). These economically designed units provide high-quality and accuracy when installing properly. The durability of the polycarbonate allows the flow meter to provide years of trouble-free service. It is supplied with scales in LPM and SCFH for air, or CCM and GPH for water.

Inclusions:

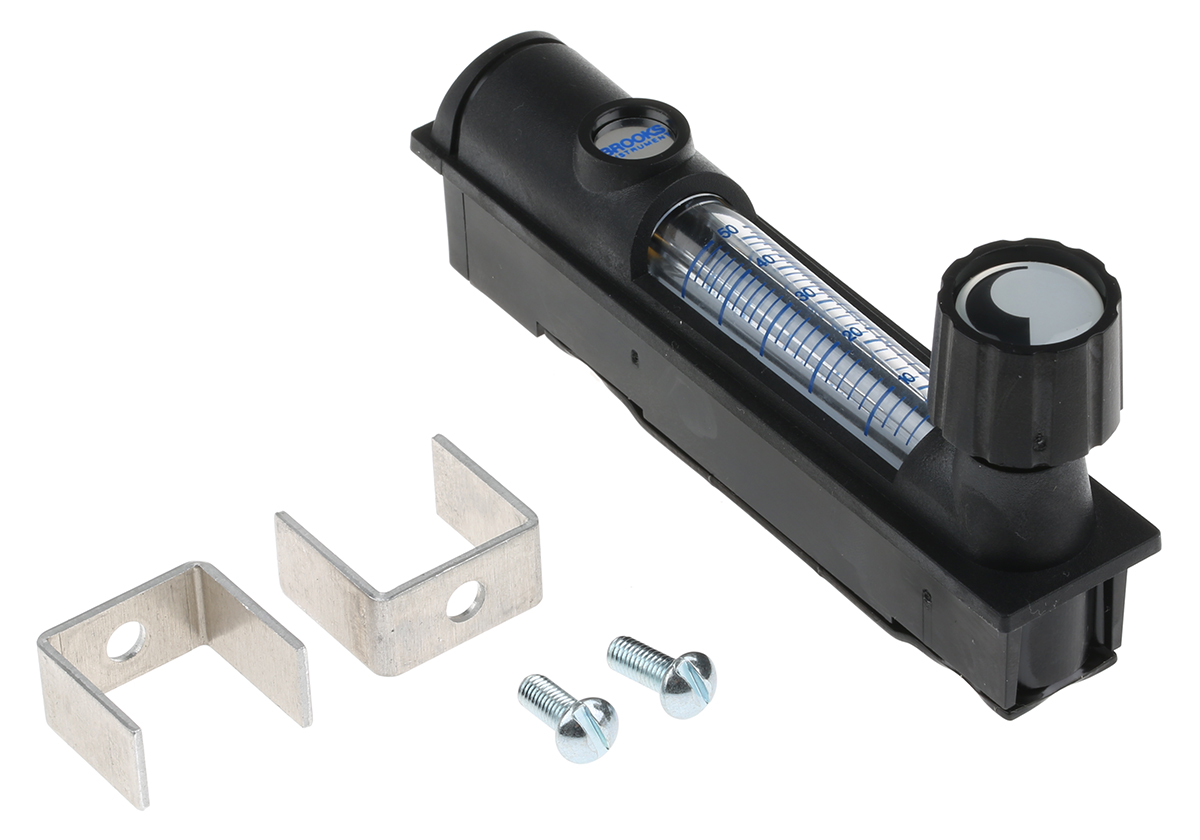

Mounting brackets and built-in bezel. Features and Benefits Pipe diameter range is 1/8 in
Connection type is 1/8 NPT female
Maximum operating pressure is 6.9bar
Maximum operating temperature is 65°C
high-quality construction
10:1 turn direct reading scales
Monitor or control air and water flow
Supplied with east to read 10:1 turn direct reading scales
Fittings made of brass
Seal material is VITON W/ stainless steel Applications It is use with air and water
Ideally suited for OEM applications
