KEW8035 Non-contact Phase Rotation Tester KEW8035 the first non-contact phase rotation tester. Safely test phase rotation without the need to expose live contacts. The unit requires no metal contact ideal for safer and faster testing. Super bright mode gives clear indication even in bright sunlight.<BR/><BR/>KEW8035 uses a combination of LED and audible tones to indicate phase direction. Green LEDs are used for clockwise direction with an intermittent tone. Red LEDs are used for anti clockwise direction with a continuous tone. The tester is suitable for a wide range of 3 phase installations from 70 V to 1000 V ac. It comes with a magnetised back for attachment to a metallic surface for hands-free testing. Permits safe testing, without the need of direct contact between probes and live wires<BR/>Wide measuring range for 3 phase installations from 70 V → 1000 V ac<BR/>The insulated crocodile clips can clip insulated cables from Ø 2.4 mm → 30 mm<BR/>Double insulated cables, length approx. 70 cm<BR/>KEW8035 can be fixed to a metal panel via the magnet on the back<BR/>Phase rotation is indicated by the rotary illumination of LEDs and logical audible tones.<BR/>Complies with IEC61010-1 CAT.IV 600 V and CAT.III 1000 V

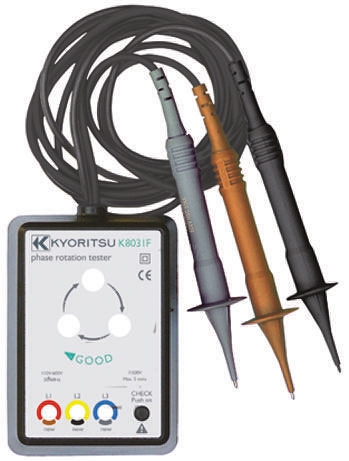

KEW8031F Phase Rotation Tester The 8031F tester indicates phase sequence by a rotating disc which gives clear feedback. A system of lamps also indicates open circuit phases.<BR/>Small, lightweight and compact in design with no exposed metal parts. A test button is incorporated in the design.<BR/>The unit is supplied with 1.5 m GS38 fused test lead with probe clip and crocodile clip options. The unit has a wide operating range from 110 V → 600 V and 40 Hz → 400 Hz. Phase indicator designed to check the presence of open phase and phase sequence by rotating disk lamps <BR/>Wide check range of 3 phase power source from 110 V → 600 V <BR/>Colour coded to conform with both old and new EU colour regulations<BR/>1.5 m fused leads with screw-in crocodile clips<BR/>Operational Voltage: 110 V ac to 600 V ac <BR/>Time limit for continuous >500 V: Within 5 min <BR/>Frequency Response: 40 Hz to 200 Hz (AC 110 to 200 V) 40 Hz to 400 Hz (AC 200 V to 600 V) <BR/>Safety Standard: IEC61010 to1 CATIII 600 V Pollution Degree 2

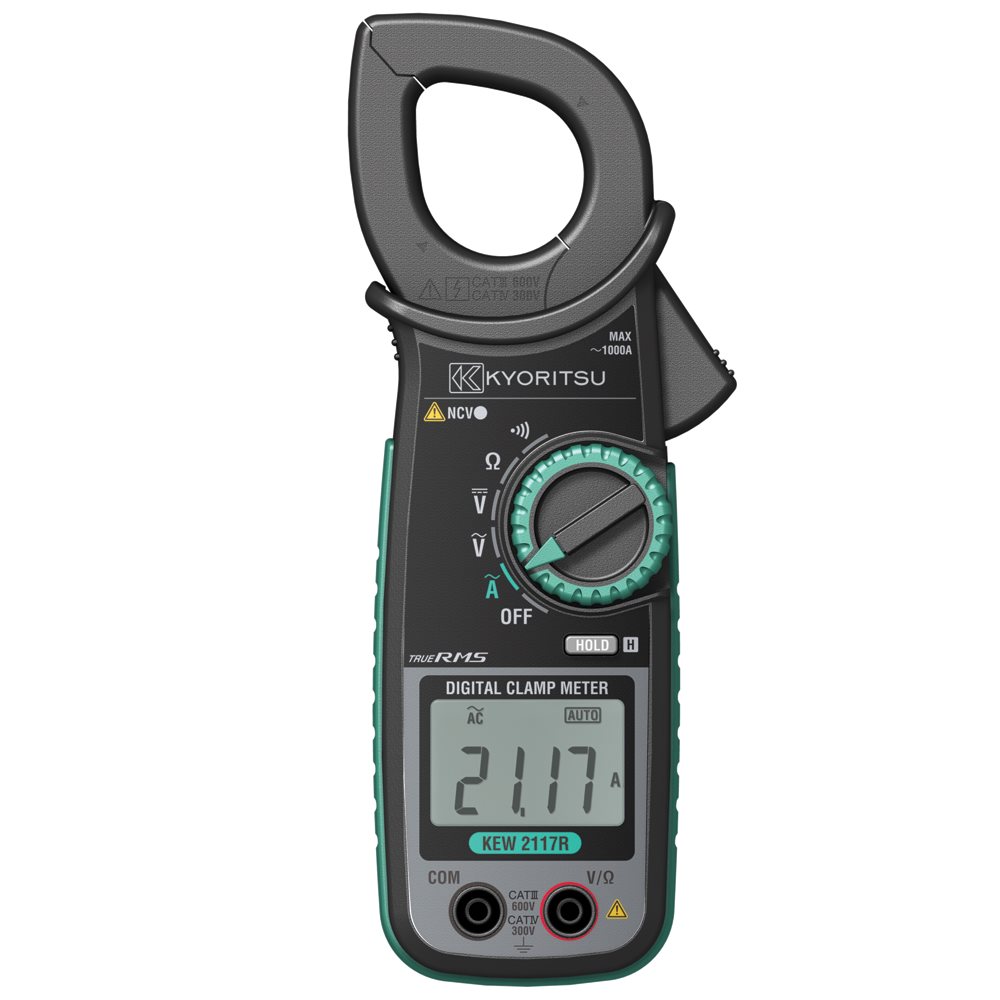

The Kyoritsu AC digital clamp meter has ergonomic over-molded body gives convenient one-hand operation. It has large easy-to-read display with 0.01 A resolution and long battery life. Fully safety jaw<BR/>Accurate reading with True RMS

The Kyoritsu has large display with 6000 counts and backlight. It has enhanced current measuring function using an external clamp sensor. This product has two detachable holders, flat and wing type. Also it has accurate reading with true RMS safety standard. Elegant and easy-to-use cabinet<BR/>Wing-type holder and flat-type holder

The Kyoritsu microprocessor controlled digital insulation tester. They not only permit insulation resistance measurement on three rated test voltage and continuity testing, but also offer a number of advanced feature such as a bargraph reading of insulation resistance, auto null function for continuity testing. Live circuit warning buzzer and neon lamp<BR/>Small and lightweight <BR/>Shock resistant new case material<BR/>Easy-to-read scale

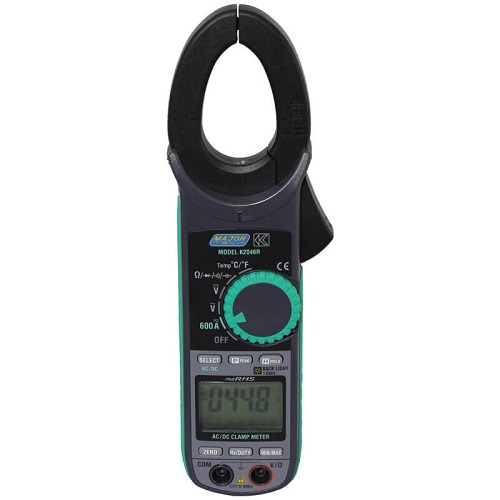

The Kyoritsu clamp meter can be measure the voltage and current in both very high and low power circuit. Thus, it is very useful for power distribution companies, power utilize and maintenance fields. It has double molding gives comfortable feeling in palm. True RMS enables an accurate measurement<BR/>6039 counts with bar graph display

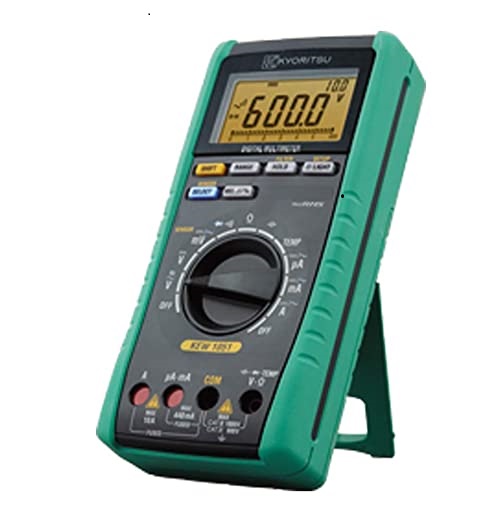

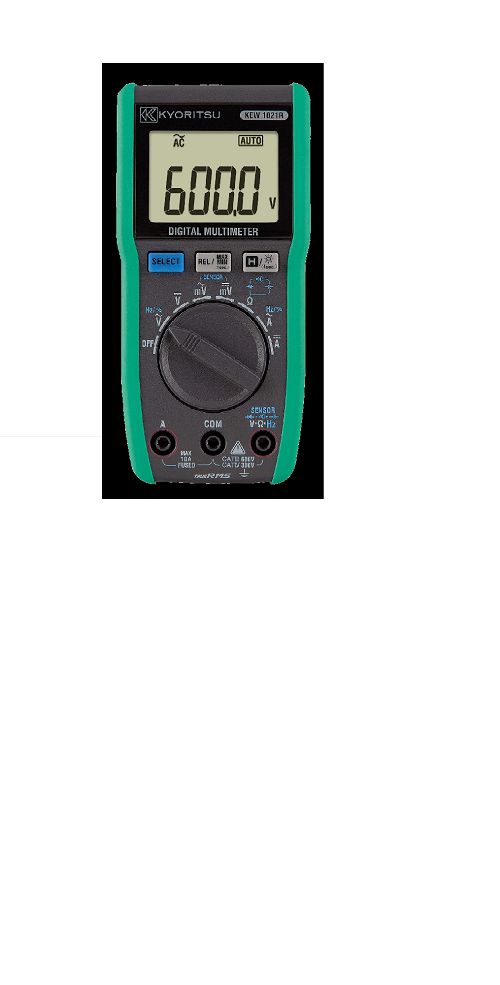

The Kyoritsu multimeter has high accuracy, high performance and reliable measurements. TRMS measurement ensures accurate readings, avoiding errors which can occur when non-sinusoidal waveforms, created by common non linear loads such PCs, Inverters, switch-mode power supplies are measured. Low-pass filter for motor drive measurements<BR/>User calibration function<BR/>Dual display

The Current clamp meter is designed to meet all user's technical needs with precision and reliability. It offers exceptional performance and durability in various applications, making it a versatile choice for professionals and enthusiasts alike. Highly efficient and reliable performance<BR/>Durable construction for long-lasting use<BR/>Precisely engineered for optimal technical specifications<BR/>Versatile and suitable for a wide range of applications<BR/>Easy to integrate and use in various setups
