Module Frames The frame is the integral part of the grid system that the modules clip into

MK Electric Unswitched Power Socket The MK Electric 1 gang panel mount unswitched power socket has a current rating of 13A and voltage rating of 230VAC. It has antimicrobial properties that inhibit the growth of infectious diseases. This safe and reliable socket incorporates a host of design features making the installation easy and quick. It consists of side-entry cable terminals and north-south fixing centres of 60.3mm. Features and Benefits Type G – BritishWhite in colour Screwed faceplate mountingCaptive screw terminalEarth terminalNumber of module is 1Semi-gloss finishUrea formaldehyde material Certifications IP2XD ratedANSI/ESD S20.20:2014BS EN 61340-5-1:2007

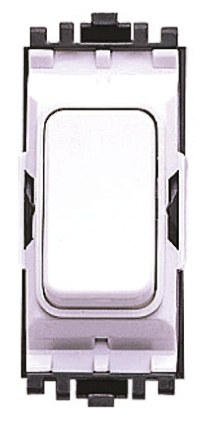

Modules They can be individually changed without re-wiring the whole assembly. All units are 1 module wide unless otherwise stated. Voltage rating 240V a.c. 50Hz.Dimensions:Switch Module 25 mm wide x 59 mm high and 25 mm deepBuzzer Unit 25 mm wide x 59 mm high and 34 mm deepSingle Dimmer Module are 25 mm wide x 59 mm high and 58 mm deepDouble Dimmer Module are 50 mm wide x 59 mm x 60 mm deep24/240V Buzzer Unit 25 mm wide x 59 mm high x 31.5 mm deepCord Unit 25 mm wide x 59 mm high x 42 mm deepFor the dimmer (RS 292-8809 MK ) the power / load ratings are: Min. W or VA = 60; Max. W or VA = 320 and it uses 2 module widths in a standard MK Grid Plus grid.

MK Electric UK to UK Plug Shaver Adapter This UK plug - Shaver plug adapter has been designed with a quality in mind and made from durable materials that guarantee long life and safe operation. The unique feature of the shaver adaptor is the raised wall on the socket face which restricts the size of a plug which can be inserted to the typical shaver plug. The shaver adaptor is designed to BS1363: Part3: 1995. Features and Benefits: • Made of durable ABS• Adaptor rated to 1A • Designed to take 2-pin shaver plugs • A raised wall on the socket face to restrict the size of a plug which can be used FAQs: Is this adapter grounded or non-grounded? No, this adapter is non-grounded which means it does not secure devices from electrical surges. How do shaver adapters work? Shaver adapters are simple devices that enable a user to plug a shaver into walls with a standard UK socket. On the one end adapter has prongs that fit the wall socket and at the other ends is a socket suitable for 2-pin shaver plug.

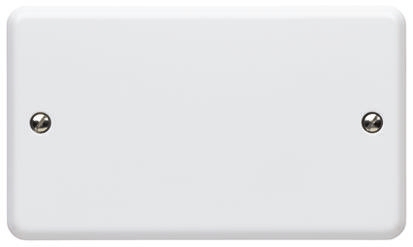

Blanking Plates 1 and 2 gang

20A Switch Modules Suitable for resistive and inductive loads and indicator modulesFully backed out angled terminals for easy wiring

Module Frames The frame is the integral part of the grid system that the modules clip into

Modules They can be individually changed without re-wiring the whole assembly. All units are 1 module wide unless otherwise stated. Voltage rating 240V a.c. 50Hz.Dimensions:Switch Module 25 mm wide x 59 mm high and 25 mm deepBuzzer Unit 25 mm wide x 59 mm high and 34 mm deepSingle Dimmer Module are 25 mm wide x 59 mm high and 58 mm deepDouble Dimmer Module are 50 mm wide x 59 mm x 60 mm deep24/240V Buzzer Unit 25 mm wide x 59 mm high x 31.5 mm deepCord Unit 25 mm wide x 59 mm high x 42 mm deepFor the dimmer (RS 292-8809 MK ) the power / load ratings are: Min. W or VA = 60; Max. W or VA = 320 and it uses 2 module widths in a standard MK Grid Plus grid.

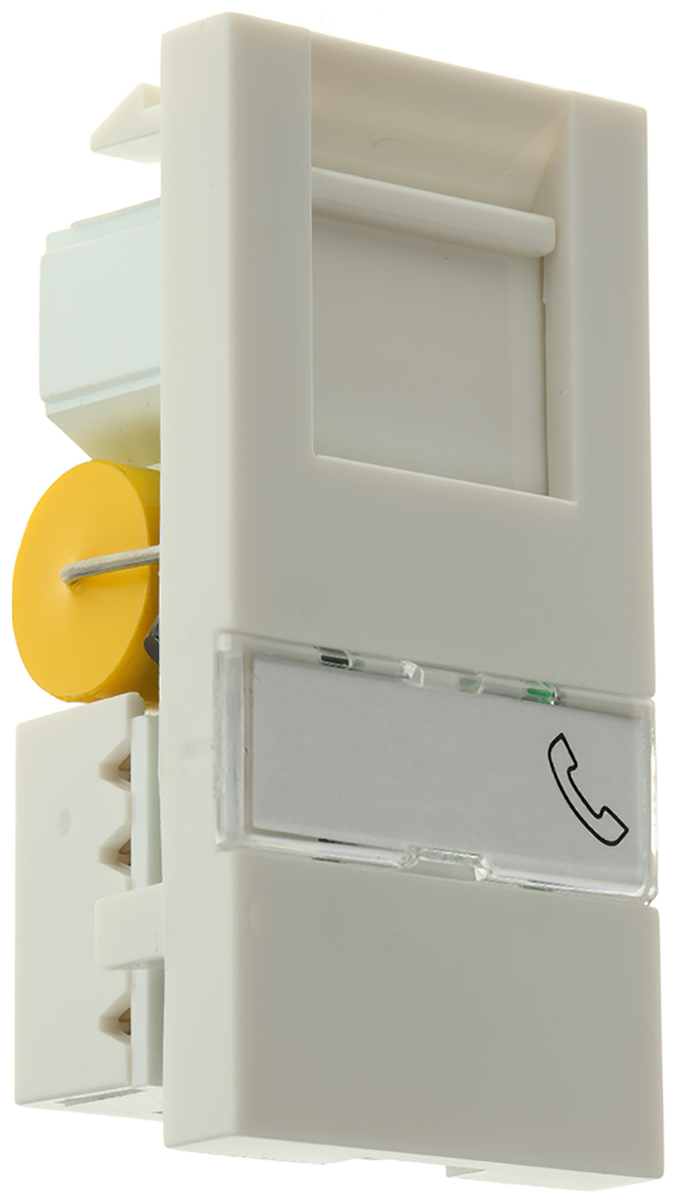

Euro Datacom Modules - Telephone BT telephone modules for MK Logic Plus BT Telephone Master Module (787-1294)BT Telephone Slave Module (787-1304)Dimensions: 25 x 50 mmBoth in white

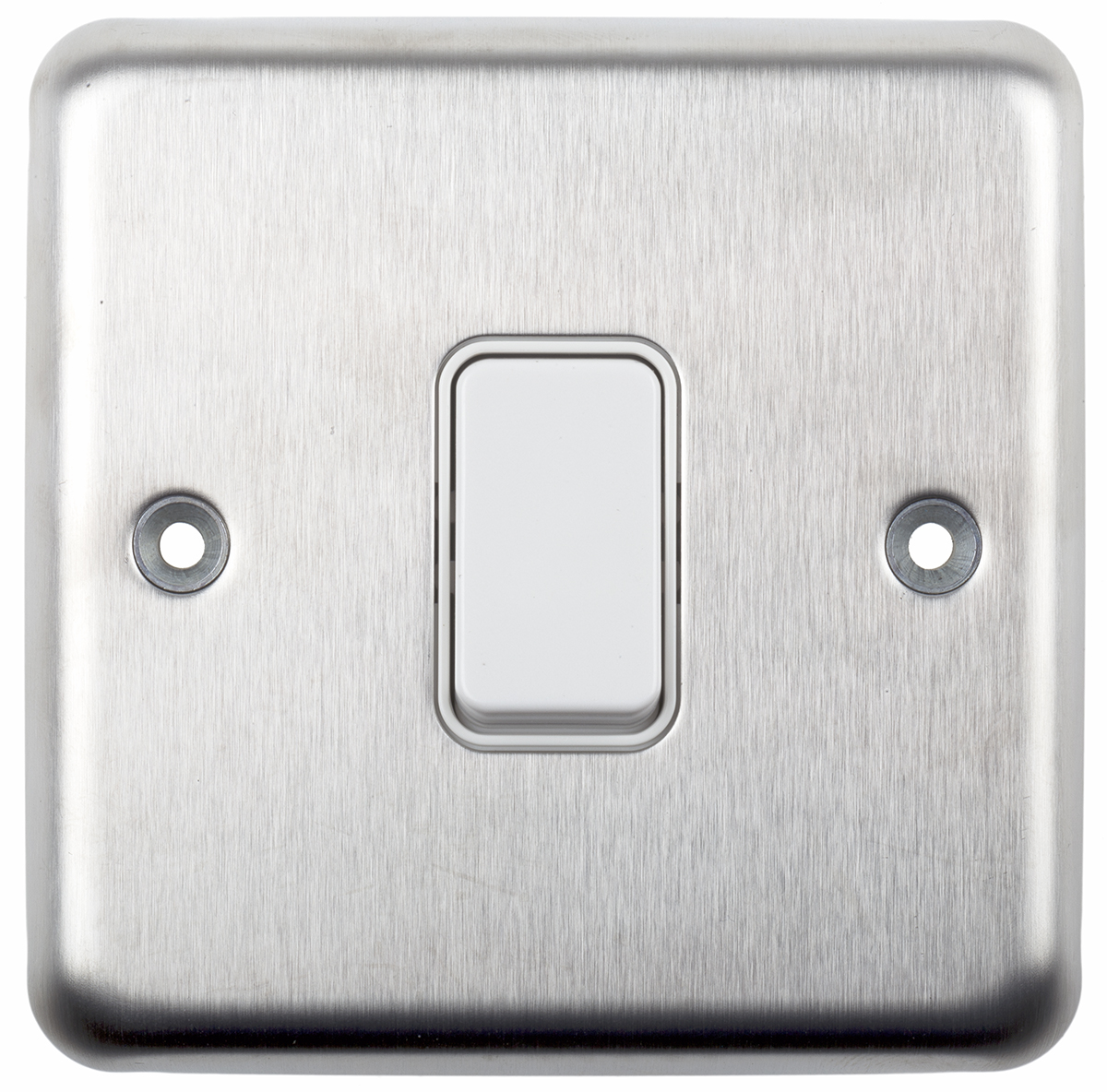

Flush Mount Plateswitches

MK Logic Plus 13A Flush Mounting Sockets MK Logic Plus white sockets in a choice of 1, 2 and 3 gang, switched or unswitched versions. These sockets are flush mounted and are manufactured from a high grade thermoset plastic. This plastic has an inherent antimicrobial property. In recent independent tests, the Logic Plus products were tested and found to be resistant to MRSA, E.Coli, Salmonella and Klebsiella pneumoniae. Features & Benefits Antimicrobial properties which inhibit the growth of infectious diseasesVoltage rating 250VFor backbox range see stock no. 222-8159

MK Electric Non Standard Mains Plug The MK Electric male mains plug has a current rating of 13A. It is white and has an urea-formaldehyde body with a PVC cover. It is a Type G -British BS1363 mains plug and has 2P+E pole format.Note:Red version marked ’hospital property’. All sleeved pin 13A mains plugs in this section are ASTA and/or BSI Kitemark approved. Features and Benefits Cable mountHighly impact-resistant Unique quick action cable gripCaptive locking screwSilver-plated fuse clips for low contact resistance Certifications ANSI/ESD S20.20:2014BS EN 61340-5-1:2007
