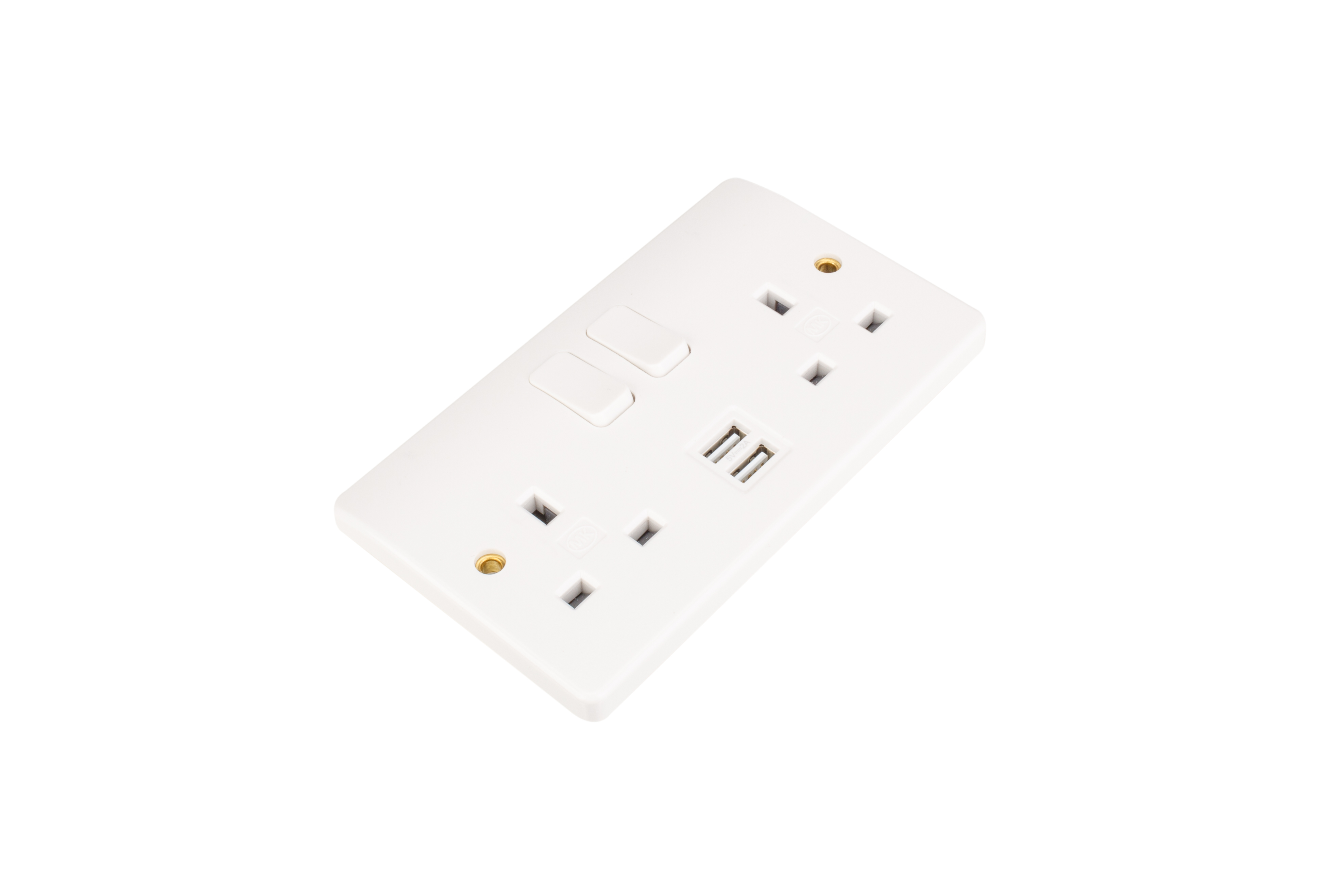

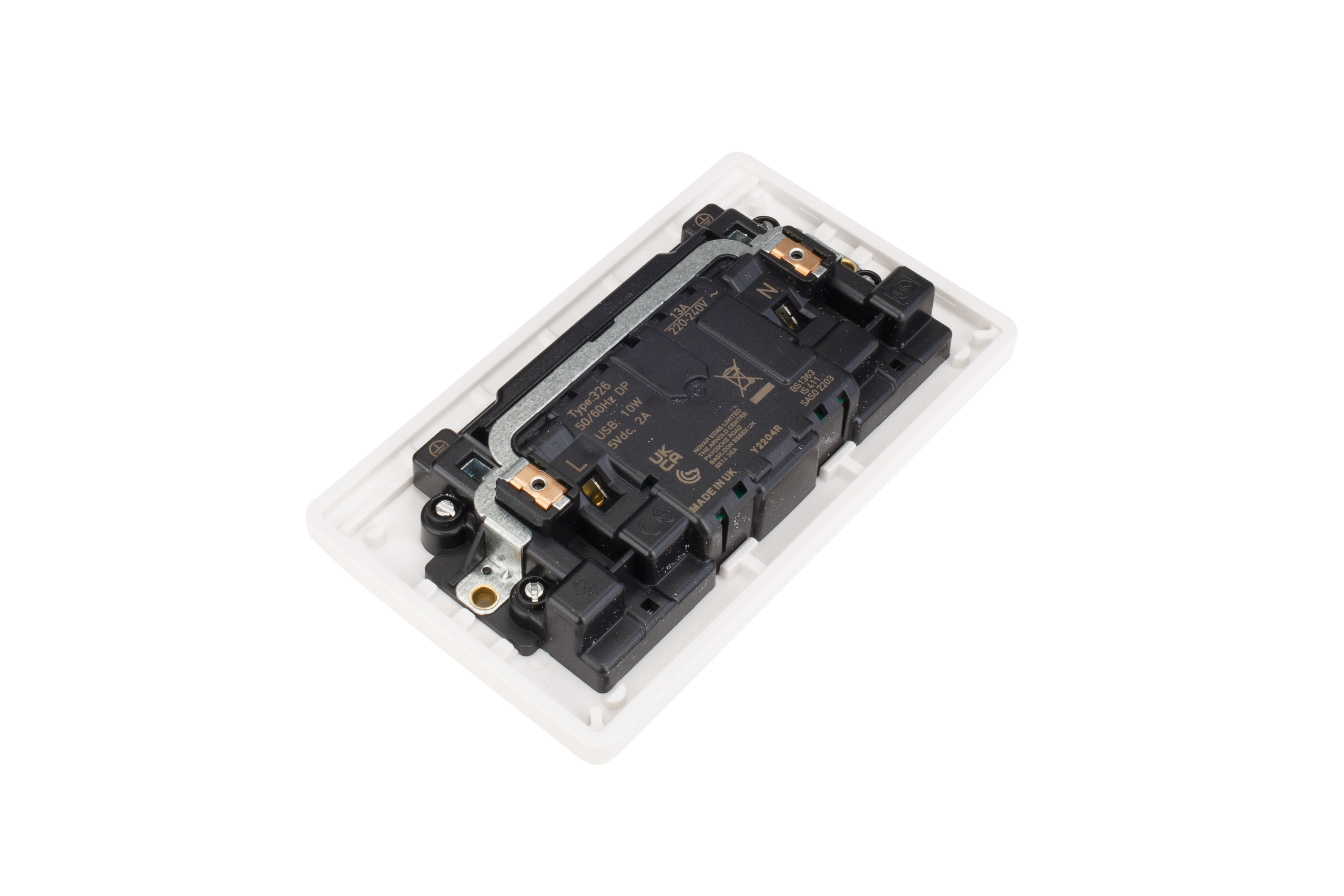

MK Electric Plug Socket The MK Electric plug socket is designed to provide optimal and efficient USB charging via two 5V outlets. The dual USB charging outlets offer end users with easy access to power for charging a variety of devices such as smartphones, tablets and cameras whilst offering ease of installation. It has a current rating of 2A and 13A, a voltage rating of 240V and is white.Integrated USB features USB 2.0 and 3.0 compatible dynamic device recognition ensuring that USB outlets provide optimum charging compatibility across a wide range of devices. It can charge a device at up to a full 2A, differing manufacturer’s devices can be charged simultaneously via the two USB outlets. When the total charging current exceeds the rated level of 2A, then the device will enter a current limiting safety mode, to maintain a steady a charge to electronically protect against an overload or short circuit on either USB outlet. Features and Benefits Printed terminal markings on grey rear mouldings for clearer identificationFully backed out terminal screwsTop access angled terminals making wiring easier and quickerTotally safe 3 pin operated safety shutterDouble pole switching as standard3mm minimum switch contact gapAdditional electrical safety from neutral 'make first' and 'break last' featureSELV isolation between mains and USB outlets for safetyOverall height is 85.6mmOverall width is 146mmOverall depth is 29.8mmEarth terminalNumber of poles are 2Number of modules are 2 Applications CommercialLight IndustrialResidential Certifications IP2XD ratedANSI/ESD S20.20:2014BS EN 61340-5-1:2007
