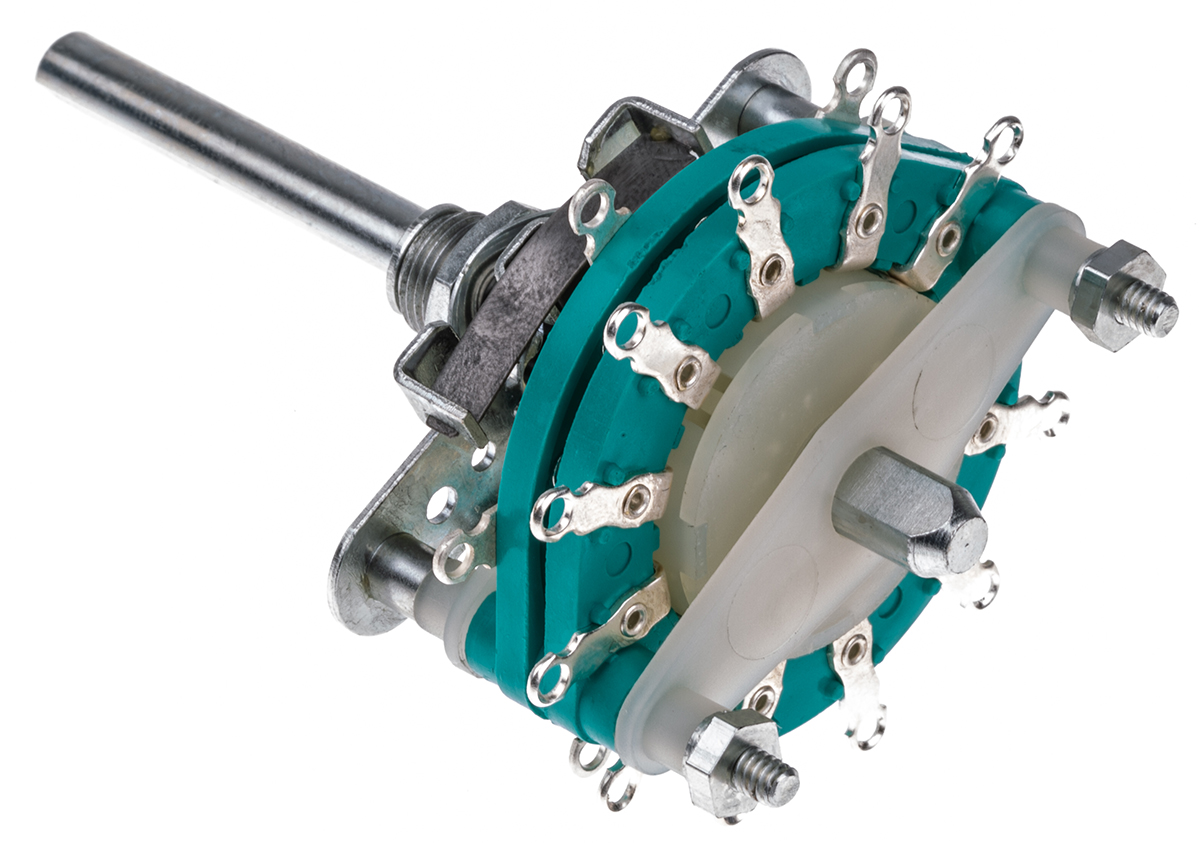

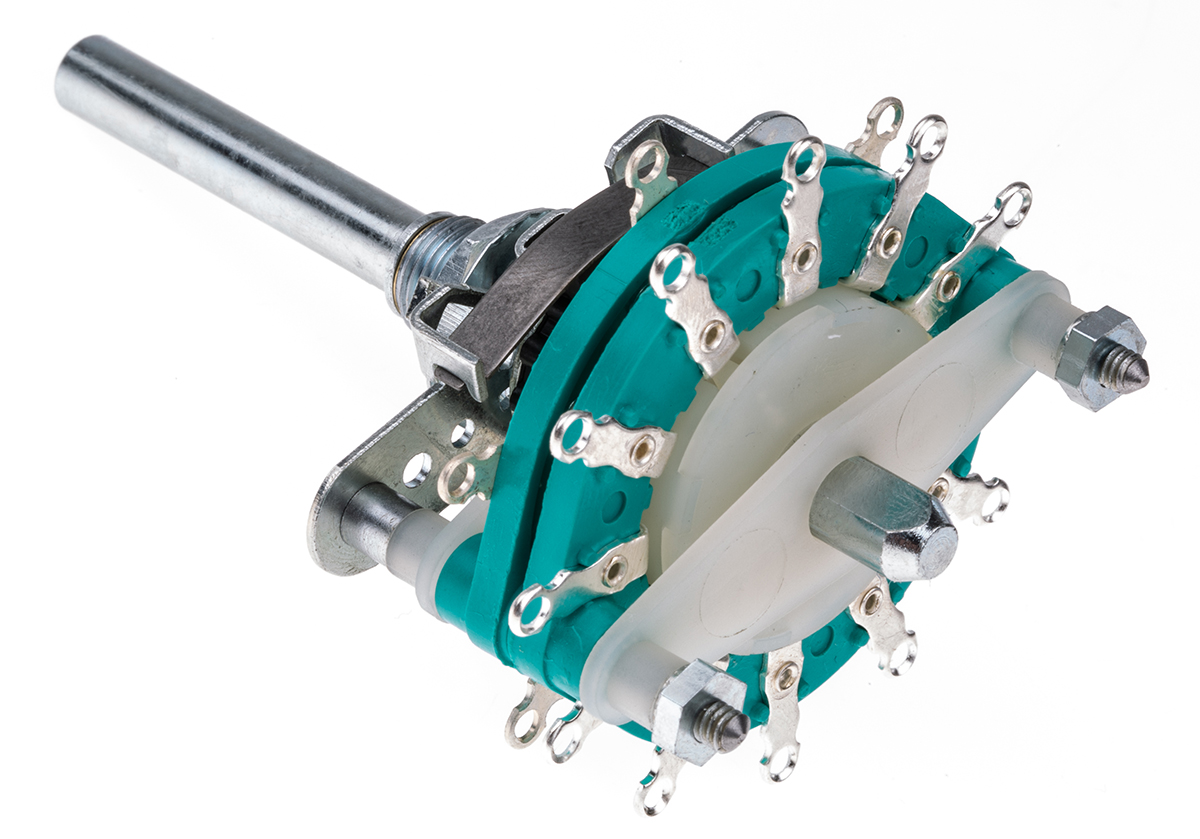

Mains Rated 6A Rotary Switches From NSF, the MSD heavy duty rotary wafer switch is high current and suitable for a variety of applications. Features and Benefits: • Single wafer switches with heavy duty spring loaded break-before-make wiping contacts <BR/>• Adjustable rotation limit stops <BR/>• Spindle 0.25in dia. with flat<BR/>• Contact Resistance: 5mΩ

Mains Rated 6A Rotary Switches From NSF, the MSD heavy duty rotary wafer switch is high current and suitable for a variety of applications. Features and Benefits: • Single wafer switches with heavy duty spring loaded break-before-make wiping contacts <BR/>• Adjustable rotation limit stops <BR/>• Spindle 0.25in dia. with flat<BR/>• Contact Resistance: 5mΩ

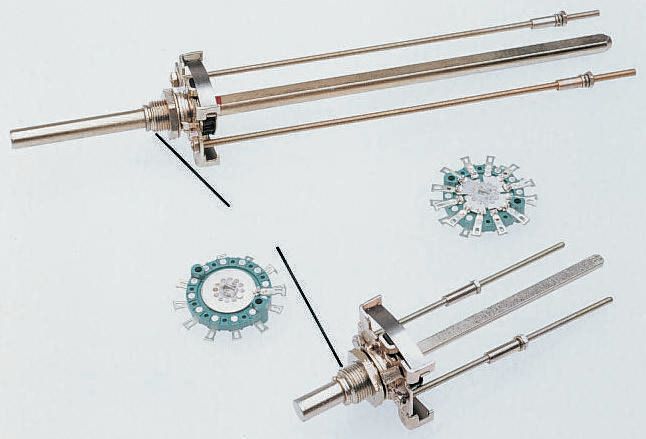

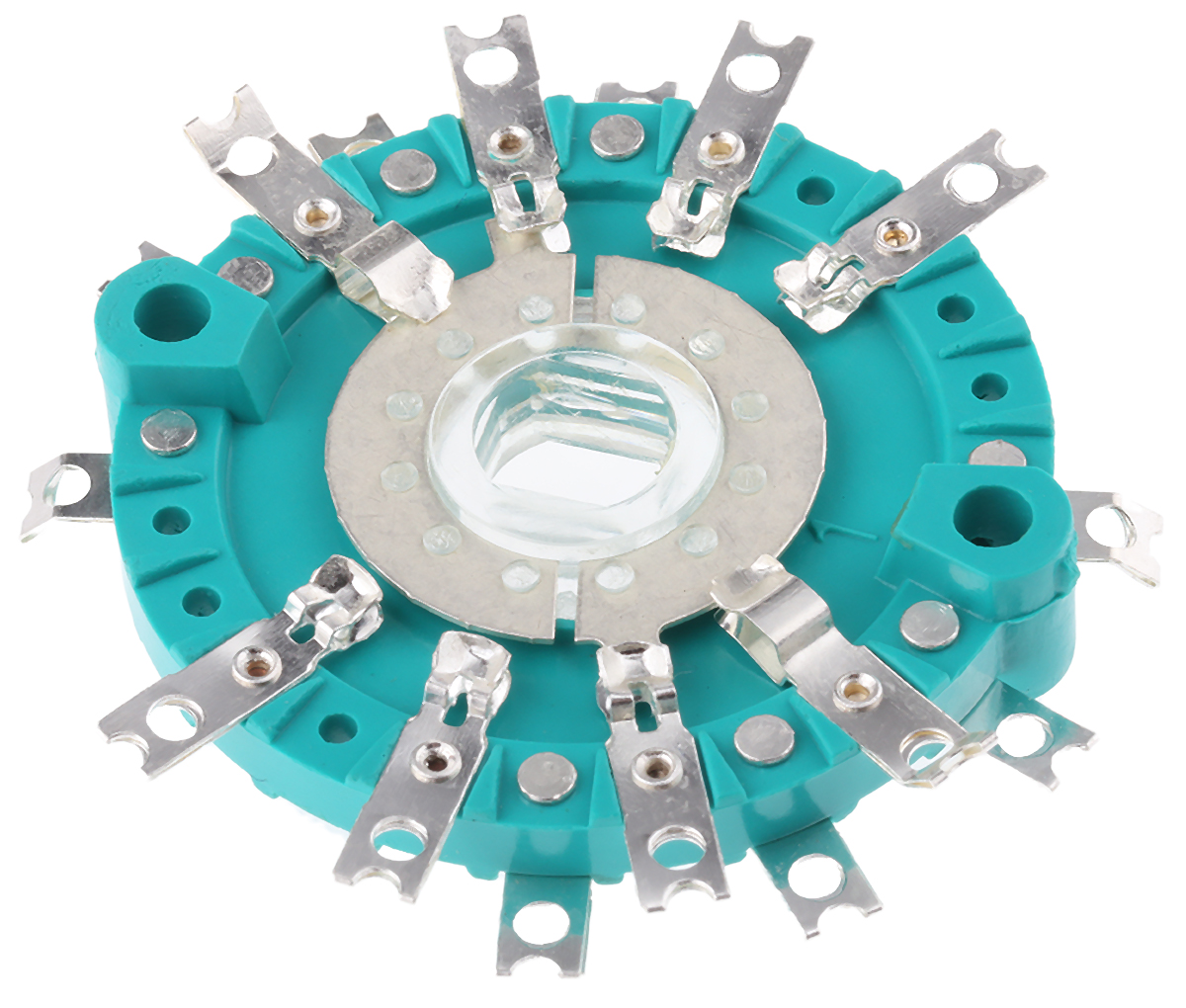

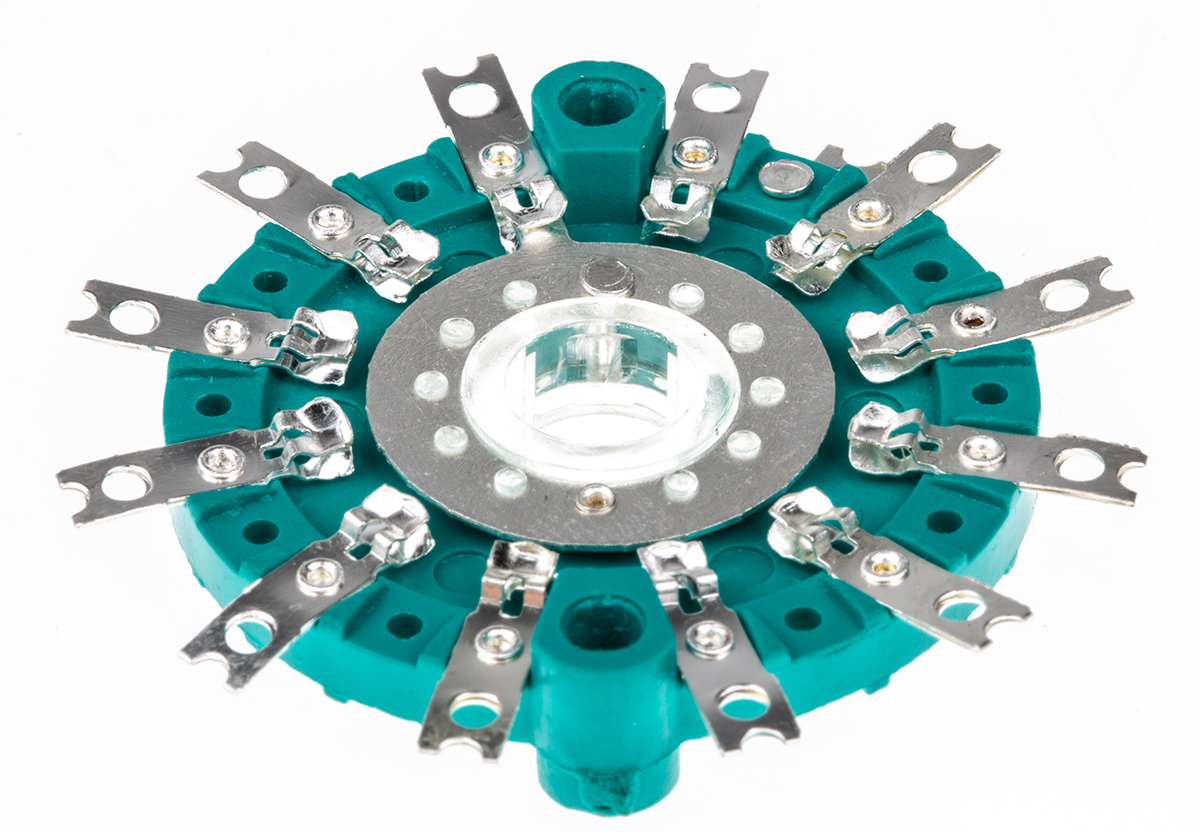

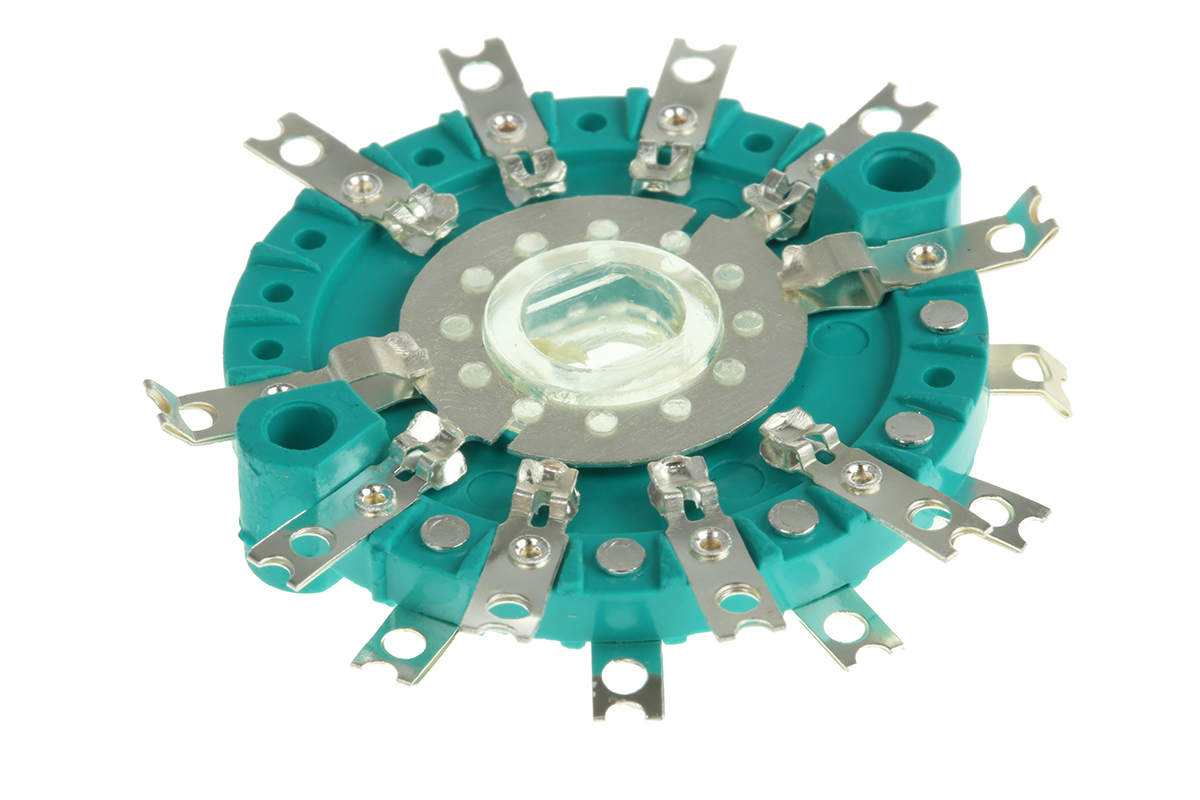

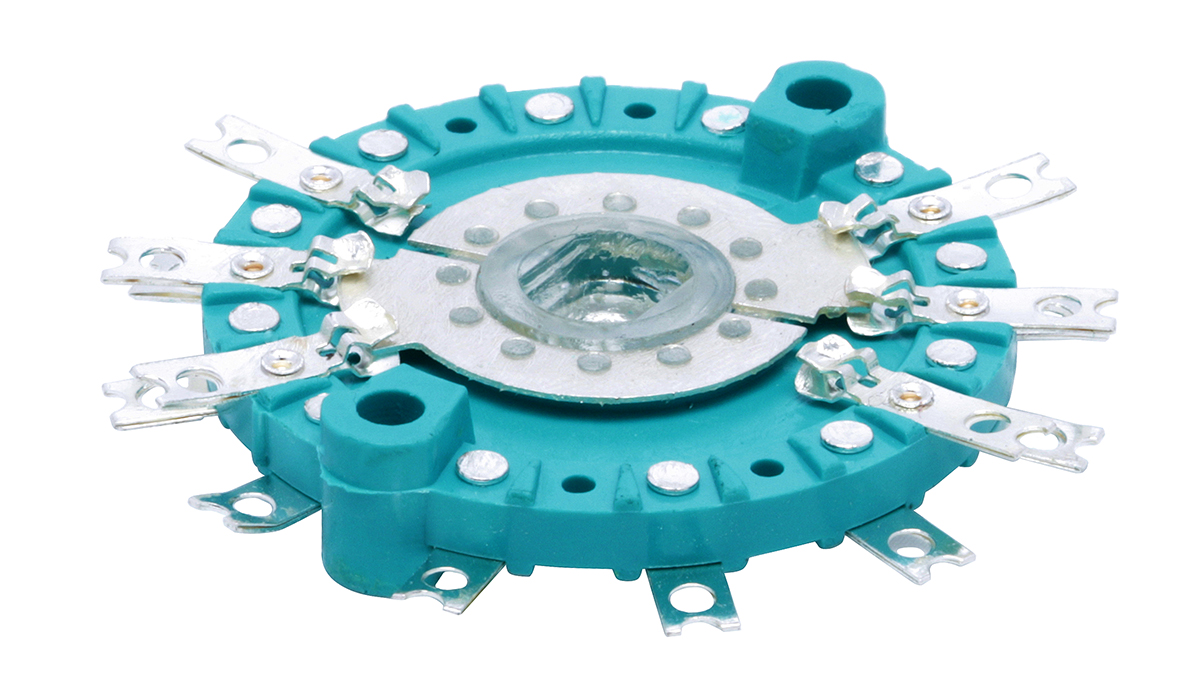

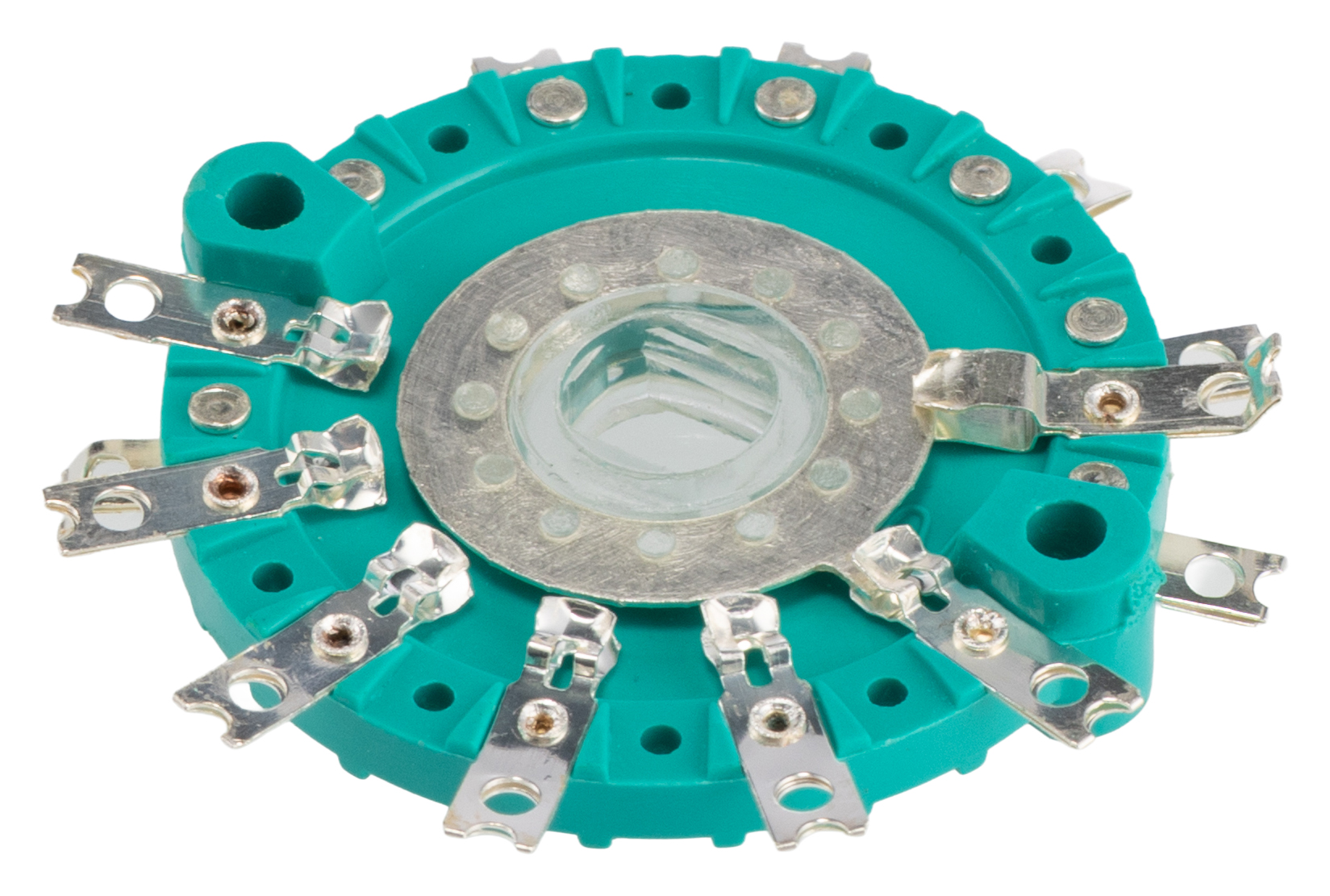

Standard Shaft Assembly & Wafers Standard Shaft Assembly Double-spring detent mechanisms in standard size<BR/>Life expectancy >100000 detent operations<BR/>30° indexing and adjustable end stops<BR/>Takes up to 10 standard wafers (the capacity is reduced if spacers and/or screens are used)<BR/>6mm diameter shaft and M10 x 0.75 mounting bushes<BR/>Overall length 190mm, front shaft length 40mm<BR/>Optional accessories are available for to suit individual requirements Wafers • <a href="/web/p/products/327765">327-765</a> BBM<BR/>• <a href="/web/p/products/327771">327-771</a> BBM<BR/>• <a href="/web/p/products/327787">327-787</a> BBM<BR/>• <a href="/web/p/products/327793">327-793</a> BBM<BR/>• <a href="/web/p/products/327916">327-916</a> BBM<BR/>• <a href="/web/p/products/327822">327-822</a> MBB<BR/>• <a href="/web/p/products/327838">327-838</a> MBB<BR/>• <a href="/web/p/products/327844">327-844</a> MBB Glass-fibre loaded diallyl phthalate stators, polycarbonate rotors and silver-plated contacts<BR/>Available in break before make <B>(bbm)</B>, and make before break <B>(mbb)</B> versions<BR/>40mm diameter

Standard Shaft Assembly & Wafers Standard Shaft Assembly Double-spring detent mechanisms in standard size<BR/>Life expectancy >100000 detent operations<BR/>30° indexing and adjustable end stops<BR/>Takes up to 10 standard wafers (the capacity is reduced if spacers and/or screens are used)<BR/>6mm diameter shaft and M10 x 0.75 mounting bushes<BR/>Overall length 190mm, front shaft length 40mm<BR/>Optional accessories are available for to suit individual requirements Wafers • <a href="/web/p/products/327765">327-765</a> BBM<BR/>• <a href="/web/p/products/327771">327-771</a> BBM<BR/>• <a href="/web/p/products/327787">327-787</a> BBM<BR/>• <a href="/web/p/products/327793">327-793</a> BBM<BR/>• <a href="/web/p/products/327916">327-916</a> BBM<BR/>• <a href="/web/p/products/327822">327-822</a> MBB<BR/>• <a href="/web/p/products/327838">327-838</a> MBB<BR/>• <a href="/web/p/products/327844">327-844</a> MBB Glass-fibre loaded diallyl phthalate stators, polycarbonate rotors and silver-plated contacts<BR/>Available in break before make <B>(bbm)</B>, and make before break <B>(mbb)</B> versions<BR/>40mm diameter

Standard Shaft Assembly & Wafers Standard Shaft Assembly Double-spring detent mechanisms in standard size<BR/>Life expectancy >100000 detent operations<BR/>30° indexing and adjustable end stops<BR/>Takes up to 10 standard wafers (the capacity is reduced if spacers and/or screens are used)<BR/>6mm diameter shaft and M10 x 0.75 mounting bushes<BR/>Overall length 190mm, front shaft length 40mm<BR/>Optional accessories are available for to suit individual requirements Wafers • <a href="/web/p/products/327765">327-765</a> BBM<BR/>• <a href="/web/p/products/327771">327-771</a> BBM<BR/>• <a href="/web/p/products/327787">327-787</a> BBM<BR/>• <a href="/web/p/products/327793">327-793</a> BBM<BR/>• <a href="/web/p/products/327916">327-916</a> BBM<BR/>• <a href="/web/p/products/327822">327-822</a> MBB<BR/>• <a href="/web/p/products/327838">327-838</a> MBB<BR/>• <a href="/web/p/products/327844">327-844</a> MBB Glass-fibre loaded diallyl phthalate stators, polycarbonate rotors and silver-plated contacts<BR/>Available in break before make <B>(bbm)</B>, and make before break <B>(mbb)</B> versions<BR/>40mm diameter

Standard Shaft Assembly & Wafers Standard Shaft Assembly Double-spring detent mechanisms in standard size<BR/>Life expectancy >100000 detent operations<BR/>30° indexing and adjustable end stops<BR/>Takes up to 10 standard wafers (the capacity is reduced if spacers and/or screens are used)<BR/>6mm diameter shaft and M10 x 0.75 mounting bushes<BR/>Overall length 190mm, front shaft length 40mm<BR/>Optional accessories are available for to suit individual requirements Wafers • <a href="/web/p/products/327765">327-765</a> BBM<BR/>• <a href="/web/p/products/327771">327-771</a> BBM<BR/>• <a href="/web/p/products/327787">327-787</a> BBM<BR/>• <a href="/web/p/products/327793">327-793</a> BBM<BR/>• <a href="/web/p/products/327916">327-916</a> BBM<BR/>• <a href="/web/p/products/327822">327-822</a> MBB<BR/>• <a href="/web/p/products/327838">327-838</a> MBB<BR/>• <a href="/web/p/products/327844">327-844</a> MBB Glass-fibre loaded diallyl phthalate stators, polycarbonate rotors and silver-plated contacts<BR/>Available in break before make <B>(bbm)</B>, and make before break <B>(mbb)</B> versions<BR/>40mm diameter

Standard Shaft Assembly & Wafers Standard Shaft Assembly Double-spring detent mechanisms in standard size<BR/>Life expectancy >100000 detent operations<BR/>30° indexing and adjustable end stops<BR/>Takes up to 10 standard wafers (the capacity is reduced if spacers and/or screens are used)<BR/>6mm diameter shaft and M10 x 0.75 mounting bushes<BR/>Overall length 190mm, front shaft length 40mm<BR/>Optional accessories are available for to suit individual requirements Wafers • <a href="/web/p/products/327765">327-765</a> BBM<BR/>• <a href="/web/p/products/327771">327-771</a> BBM<BR/>• <a href="/web/p/products/327787">327-787</a> BBM<BR/>• <a href="/web/p/products/327793">327-793</a> BBM<BR/>• <a href="/web/p/products/327916">327-916</a> BBM<BR/>• <a href="/web/p/products/327822">327-822</a> MBB<BR/>• <a href="/web/p/products/327838">327-838</a> MBB<BR/>• <a href="/web/p/products/327844">327-844</a> MBB Glass-fibre loaded diallyl phthalate stators, polycarbonate rotors and silver-plated contacts<BR/>Available in break before make <B>(bbm)</B>, and make before break <B>(mbb)</B> versions<BR/>40mm diameter

Standard Shaft Assembly & Wafers Standard Shaft Assembly Double-spring detent mechanisms in standard size<BR/>Life expectancy >100000 detent operations<BR/>30° indexing and adjustable end stops<BR/>Takes up to 10 standard wafers (the capacity is reduced if spacers and/or screens are used)<BR/>6mm diameter shaft and M10 x 0.75 mounting bushes<BR/>Overall length 190mm, front shaft length 40mm<BR/>Optional accessories are available for to suit individual requirements Wafers • <a href="/web/p/products/327765">327-765</a> BBM<BR/>• <a href="/web/p/products/327771">327-771</a> BBM<BR/>• <a href="/web/p/products/327787">327-787</a> BBM<BR/>• <a href="/web/p/products/327793">327-793</a> BBM<BR/>• <a href="/web/p/products/327916">327-916</a> BBM<BR/>• <a href="/web/p/products/327822">327-822</a> MBB<BR/>• <a href="/web/p/products/327838">327-838</a> MBB<BR/>• <a href="/web/p/products/327844">327-844</a> MBB Glass-fibre loaded diallyl phthalate stators, polycarbonate rotors and silver-plated contacts<BR/>Available in break before make <B>(bbm)</B>, and make before break <B>(mbb)</B> versions<BR/>40mm diameter

Standard Shaft Assembly & Wafers Standard Shaft Assembly Double-spring detent mechanisms in standard size<BR/>Life expectancy >100000 detent operations<BR/>30° indexing and adjustable end stops<BR/>Takes up to 10 standard wafers (the capacity is reduced if spacers and/or screens are used)<BR/>6mm diameter shaft and M10 x 0.75 mounting bushes<BR/>Overall length 190mm, front shaft length 40mm<BR/>Optional accessories are available for to suit individual requirements Wafers • <a href="/web/p/products/327765">327-765</a> BBM<BR/>• <a href="/web/p/products/327771">327-771</a> BBM<BR/>• <a href="/web/p/products/327787">327-787</a> BBM<BR/>• <a href="/web/p/products/327793">327-793</a> BBM<BR/>• <a href="/web/p/products/327916">327-916</a> BBM<BR/>• <a href="/web/p/products/327822">327-822</a> MBB<BR/>• <a href="/web/p/products/327838">327-838</a> MBB<BR/>• <a href="/web/p/products/327844">327-844</a> MBB Glass-fibre loaded diallyl phthalate stators, polycarbonate rotors and silver-plated contacts<BR/>Available in break before make <B>(bbm)</B>, and make before break <B>(mbb)</B> versions<BR/>40mm diameter

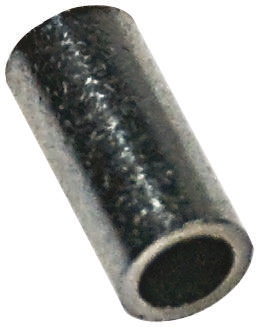

Spacers for Miniature & Standard Shaft Assemblies For use where wide separation of wafers or screens is required<BR/>Use stk no. <a href="/web/p/products/352272">352-272</a> for Miniature shaft assemblies<BR/>Use stk no. <a href="/web/p/products/327872">327-872</a> & <a href="/web/p/products/327888">327-888</a> for Standard shaft assemblies

Spacers for Miniature & Standard Shaft Assemblies For use where wide separation of wafers or screens is required<BR/>Use stk no. <a href="/web/p/products/352272">352-272</a> for Miniature shaft assemblies<BR/>Use stk no. <a href="/web/p/products/327872">327-872</a> & <a href="/web/p/products/327888">327-888</a> for Standard shaft assemblies

Standard Shaft Assembly & Wafers Standard Shaft Assembly Double-spring detent mechanisms in standard size<BR/>Life expectancy >100000 detent operations<BR/>30° indexing and adjustable end stops<BR/>Takes up to 10 standard wafers (the capacity is reduced if spacers and/or screens are used)<BR/>6mm diameter shaft and M10 x 0.75 mounting bushes<BR/>Overall length 190mm, front shaft length 40mm<BR/>Optional accessories are available for to suit individual requirements Wafers • <a href="/web/p/products/327765">327-765</a> BBM<BR/>• <a href="/web/p/products/327771">327-771</a> BBM<BR/>• <a href="/web/p/products/327787">327-787</a> BBM<BR/>• <a href="/web/p/products/327793">327-793</a> BBM<BR/>• <a href="/web/p/products/327916">327-916</a> BBM<BR/>• <a href="/web/p/products/327822">327-822</a> MBB<BR/>• <a href="/web/p/products/327838">327-838</a> MBB<BR/>• <a href="/web/p/products/327844">327-844</a> MBB Glass-fibre loaded diallyl phthalate stators, polycarbonate rotors and silver-plated contacts<BR/>Available in break before make <B>(bbm)</B>, and make before break <B>(mbb)</B> versions<BR/>40mm diameter
