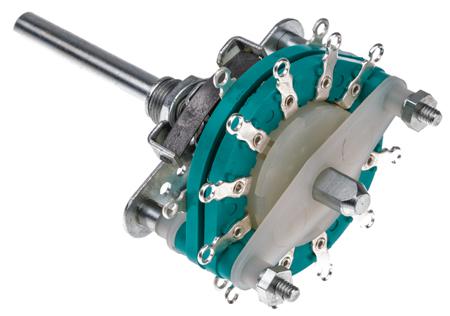

Mains Rated 6A Rotary Switches
From NSF, the MSD heavy duty rotary wafer switch is high current and suitable for a variety of applications.
Features and Benefits:
• Single wafer switches with heavy duty spring loaded break-before-make wiping contacts
• Adjustable rotation limit stops
• Spindle 0.25in dia. with flat
• Contact Resistance: 5mΩ
• Adjustable rotation limit stops
• Spindle 0.25in dia. with flat
• Contact Resistance: 5mΩ
, 6 Position DP6T Rotary Switch, 6 A @ 250 V ac, Solder
Manufacturer:
NSF
Manufacturer Part No:
MU452274MSD1
Enrgtech Part No:
ET13911200
Warranty:
Manufacturer
£ 67.43
Checking for live stock
Contact Configuration:
DP6T
Contact Current Rating:
6 A @ 250 V ac
Number of Switch Positions:
6
Number of Contacts:
2
Voltage Rating:
250 V ac, 30V dc
Diameter:
49.2mm
Mounting Type:
Panel Mount
Terminal Type:
Solder
Contact Material:
Silver Plated Copper
