Hess Series Hall Effect Speed Sensor The Hall Effect speed sensor (HESS) is ideal for sensing steel gears or otherferrous targets from 0 to 10 KHz. This sensor does not have a minimumthreshold speed as does a magnetic pickup sensor. When the sensor isfirst powered up, the output state is indeterminate (Hi or Lo) when the sensor isnot detecting metal. The unit operates from a +8 to +30 V dc power supply andis reverse polarity protected. The sensor face can be mounted flush into metalpanels. The case is stainless steel and is supplied with 10 feet (3 m) of cable.The stranded shield wire is not connected to the sensor circuit or case. Detects steel sensing gears or other ferrous targetsNPN open collector outputOperates from 0 to 10 KHz3/8” diameter stainless steel caseEpoxy encapsulated for oilDirt & moisture resistantIdeal for Tachometric inputsCompatible with all red Lion control sensing gearsCable length of 10 feet (3.05 m)3 wire, 22 AWG stranded shield wire100% foil coverageGrey PVC jacket

The Red Lion Controls industrial Ethernet switch is housed in a rugged industrial metal enclosure and offers a powerful combination of eight 10/100BaseTX copper ports and two SFP gigabit ports. It is ideally suited for use in industrial applications such as factory floor control networks, utilities, wind turbines, wastewater treatment facilities, rail car, intelligent traffic control and transportation applications, and any other application where high reliability, superior noise immunity, extreme ruggedness, and extended distance are required. Store and forward technologyRugged industrial DIN rail enclosureRedundant power inputs

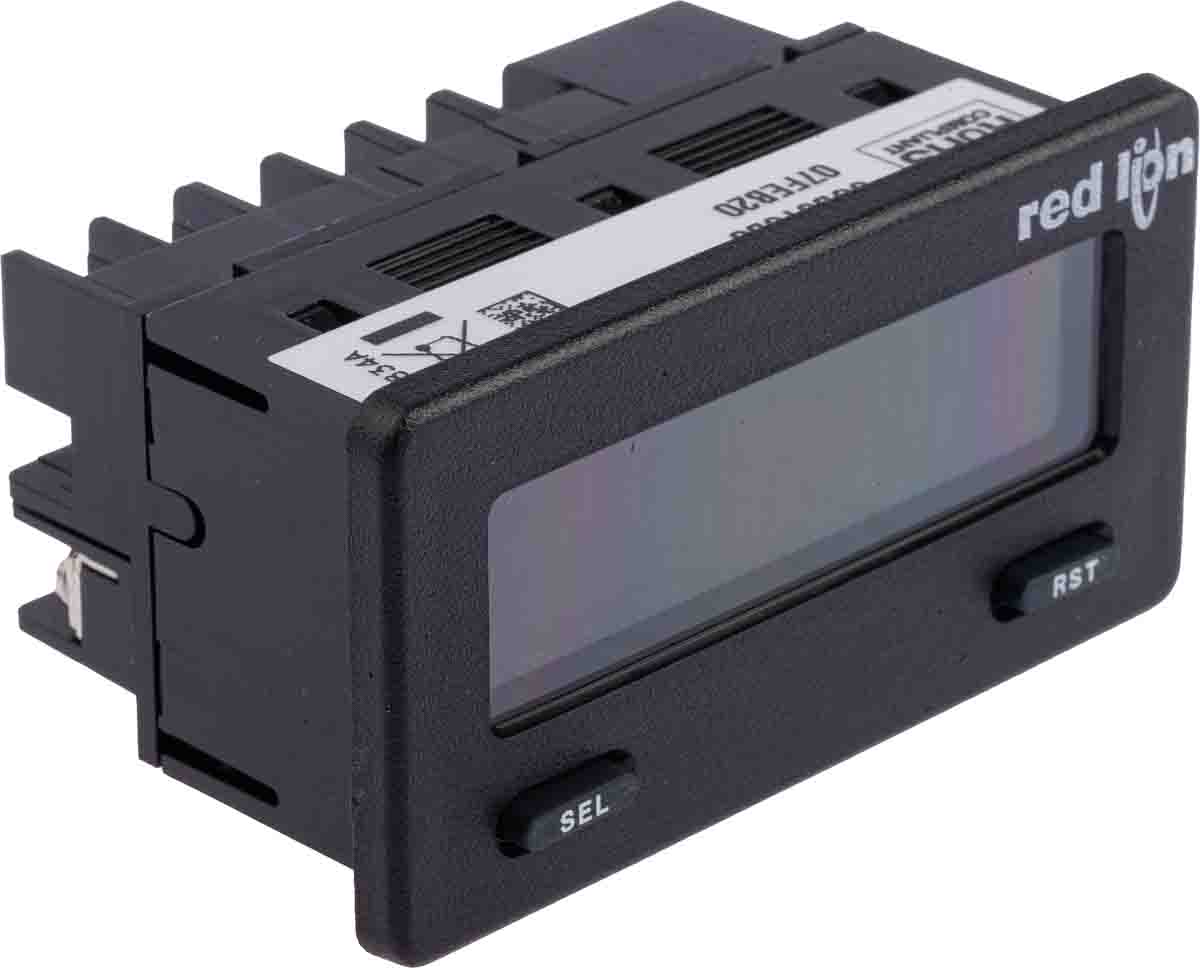

CUB5 - LCD, 5-digit, 200 mA, 12 mm character height Accessories: Small and compact displayFree scaling Relay output module (RS stock no.: 492-7296)Transistor output module (RS stock no.: 653-7738)RS485 serial interface (RS stock no.: 656-5698)RS232 serial interface (RS stock no.: 656-5682)Power supply 12 V 400 mA (RS stock no.: 492-7331)

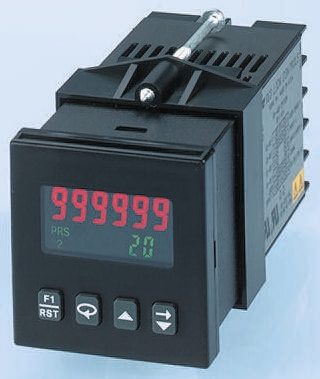

Type C48C - preset counter with 2 presets 18 different counter operation modes, e.g. ascending counter, ascending/descending counter or phase discriminatorVery wide range of applications can be realised with ease

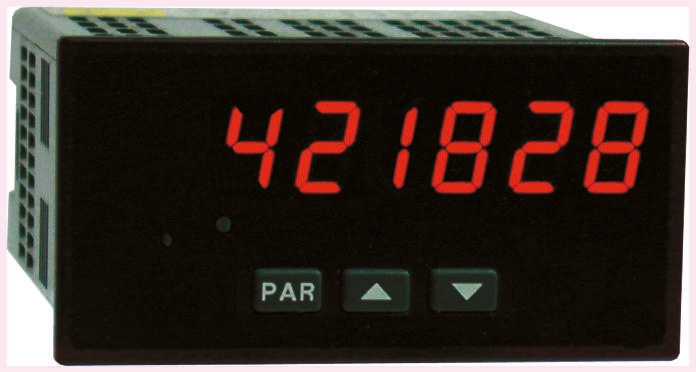

Red Lion Counter The Red Lion PAXLCR series 6-digit LED display, the bi-directional electronic counter is a panel mount device. It has a supply voltage rating between 21.6VDC and 250VDC. This is a dual counter and rate meter with dual relay output. This counter can be reset manually with a maximum count frequency of 25kHz. The meter has been specifically designed for harsh industrial environments. Features and Benefits Measurement ranges between -99999 and 999999 and between 0 and 999999Quadrature sensing (up to 4 times the resolution)Built-in batch counting capabilityProgrammable user inputUniversally poweredMeter accuracy is ±0.01% Operating temperature ranges between 0°C and 60°C Applications Control and monitoring systemsManufacturing assembly lines Certifications CE certifiedCUL recognizedUL approved

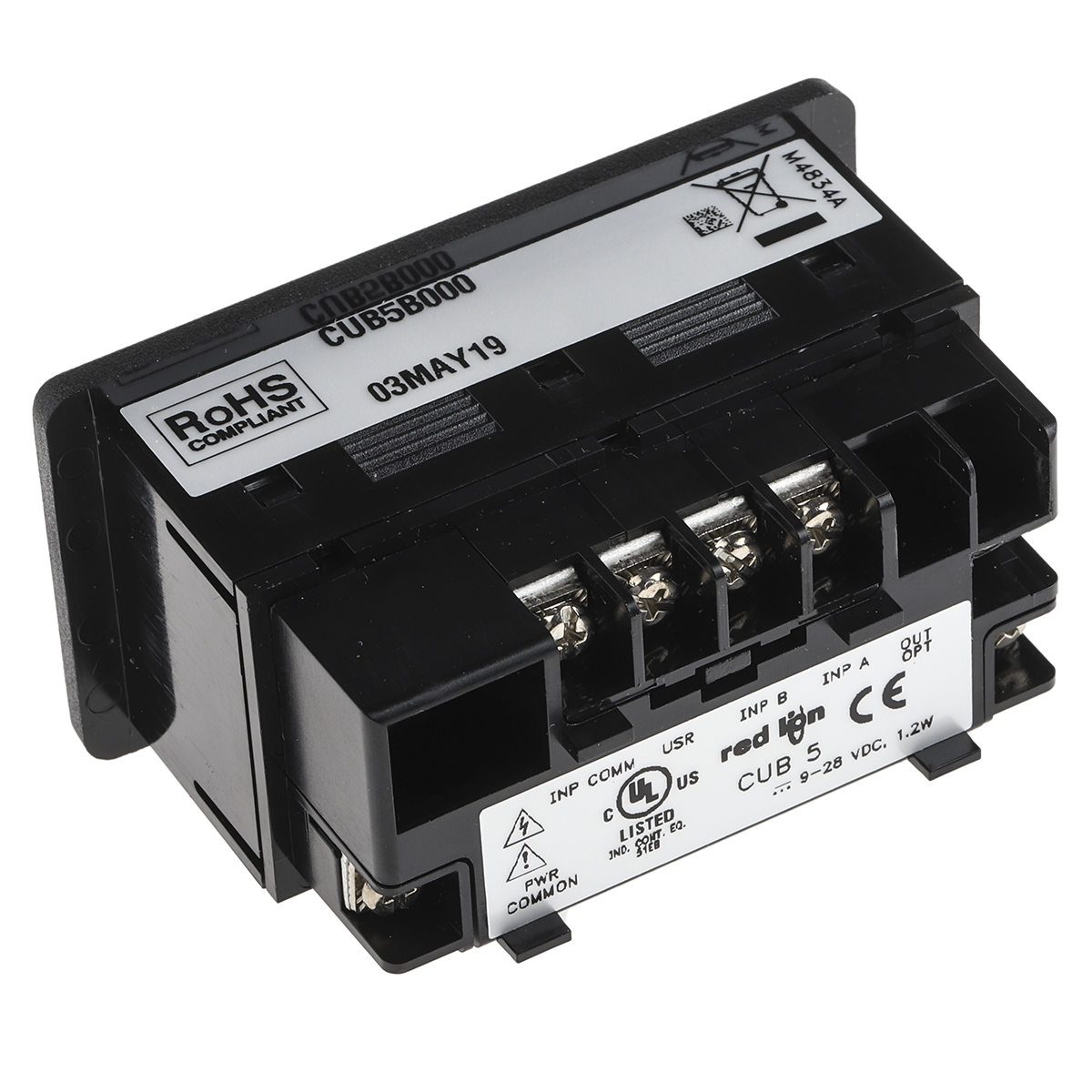

CUB5 counter/tachometer High-precision 8-character counter and tachometer with period measurementFor simultaneous reading of events, positions, travel lengths and speedsStandard LCD or LCD display, backlight can be switched between red / greenDelivery includes fastening material and sealant

The Red Lion SLX-9ES port industrial ethernet switches that provide advanced performance that enables you to achieve real-time deterministic operation.These ruggedized switches are hardened to provide superior reliability. They require no user setup and immediately start operating as soon as power them up. Plug and play saves you time and moneyTruly industrial hardened designHigh performance and value

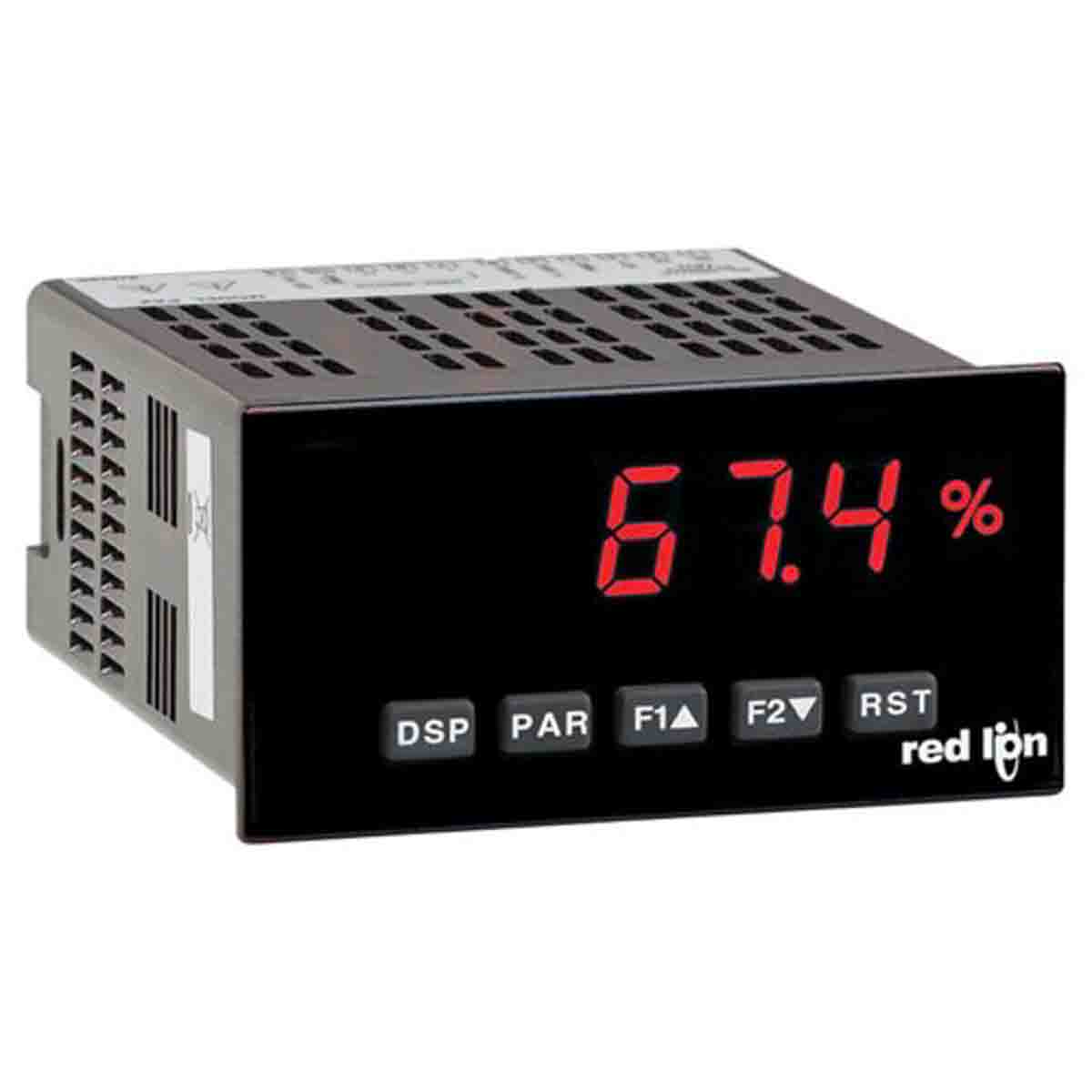

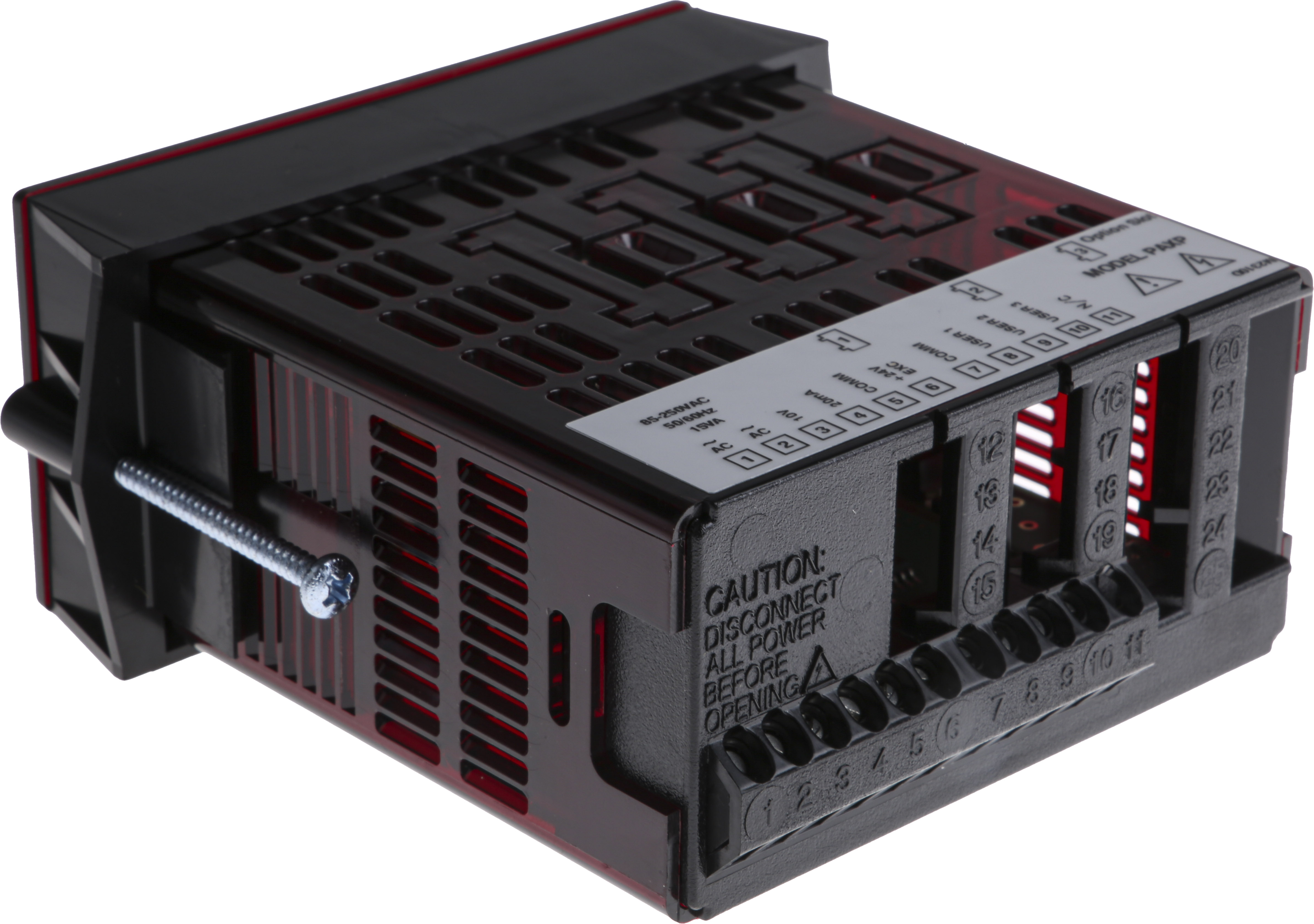

PAX Analogue Input Panel Meter The PAX analogue panel meters offer many features and performance capabilities to suit a wide range of industrial applications. Available in 5 different models to handle various analogue inputs, including DC voltage/current, AC voltage/current, process, temperature and strain gage. 5-digit (14.2 mm) red sunlight readable displayVariable intensity display16 point scaling for non-linear processesProgrammable function keys/user inputs9-digit totalizer (integrator) with batchingOptional custom units overlay with backlightCrimson® programming softwareNEMA 4X/IP65 sealed front bezel Models available: PAXH- AC true RMS voltage/current input (905-5655)PAXP- Process input (905-5686 & 905-5680)PAXS- Strain gage/bridge input (905-5696 & 905-5706)

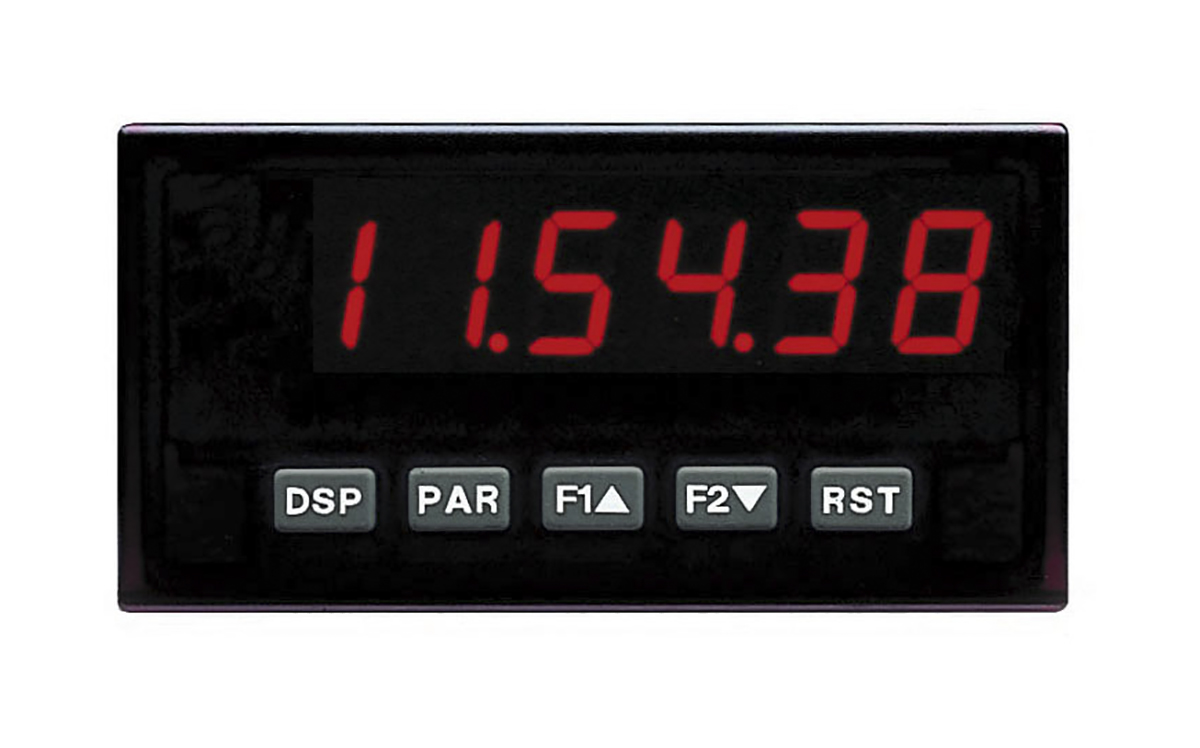

PAX Digital Ratemeter/Counter/Dual Counter The PAX digital input panel meters are available in 3 different models; PAXC Counter/Dual Counter, PAXR Rate Meter and PAXI which offers both counting and rate. They offer many features and performance capabilities to suit a wide range of industrial applications. 6-digit (14.2 mm) LED displayRed, sunlight readable displayVariable intensity display3 programmable keys85-250V ac or 11-36V dc, 24V ac supply voltageFour setpoint alarm outputs (with option cards)Bus capabilities; Devicenet, ModBus and ProfiBus-DPNEMA 4X/IP65 sealed front bezel Models:PAXI (905-5658)- Counter/Dual counter/Rate meter/Slave displayPAXC (905-5630, 905-5649)- Counter/Dual CounterPAXR (905-5699, 905-5692)- Rate Meter

CUB5T Miniature Electronic Preset Timer & Cycle Counter The CUB5T provides the ultimate in timer flexibility, from it's complete user programming to the optional relay output and serial communications capability. The meter functions as an elapsed timer or preset timer and also has a built-in cycle counter. The display can be toggled either manually or automatically between the timer and cycle counter values. 8 Digit (11.7 mm) LCD display, 7-digit Timer displayReflective (905-5510) or backlight (905-5501) displayOptional relay output moduleOptional serial communications module (RS232 or RS485)8 operating modes and 18 selectable timer rangesElapsed timer and preset timer functionalityDisplay colour change capability at preset output (905-5501 only)Operates from 9-28V dc power sourceNEMA 4X/IP65 sealed front bezel

Red Lion Digital Counter The Red Lion LD series digital counter is a 6-digit, 2.25in high display red LED count/rate indicator with dual relay output & RS232/RS485 serial communications. Its voltage rating ranges between 50VAC and 250VAC. This includes bi-directional, quadrature and anticoincidence counting, as well as a dual counter mode. When programmed as a dual counter, each counter has a separate scaling and decimal point selection. This counter has a maximum count frequency of 35KHz. Features and Benefits Light, fully aluminium housing with mounting bracketPlug-in screw terminalCount/Rate indicatorDual 5A form C relayBuilt-in batch counting capabilityProgrammable scaling and decimal pointsSerial communication interface with RS-232 and RS485Programmable user inputOperating temperature ranges between 0°C and 50°C Applications Industrial counting applicationsControl and monitoring systemsManufacturing assembly lines Certifications CSA C22.2 No. 14-M95EN 61010-1 File E137808IEC 529IEC 61010-1IP65 ratedIP64 ratedUL508 approved

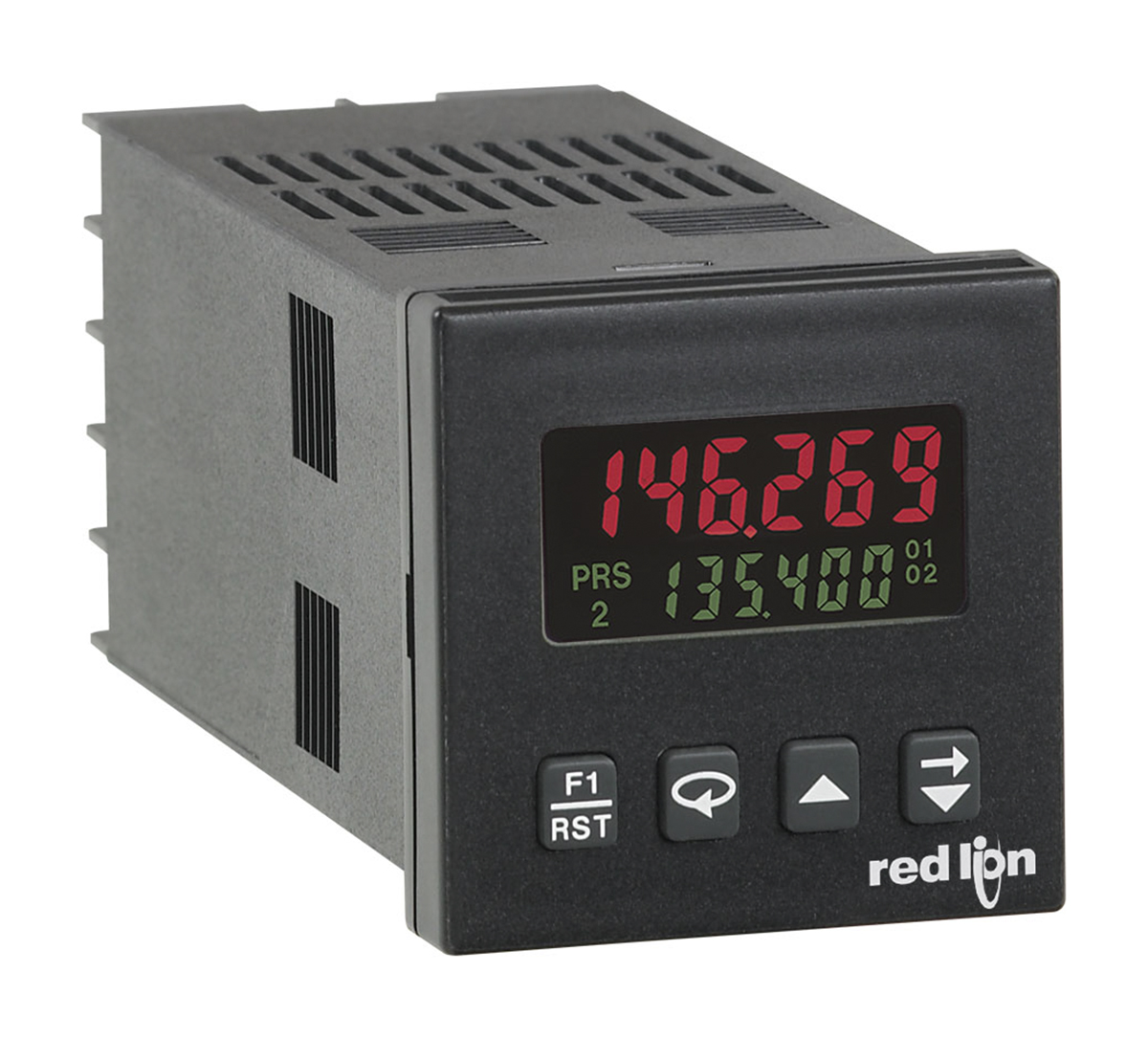

Single Preset Counter- C48C Series The C48C series of Counters is available with single preset and features a 7 segment, 2 line by 6-digit display. The counters offer a choice of nine programmable counting modes for use in applications requiring bi-directional, anti-coincidence and quadrature counting. They can also be programmed to register counts on both edges of the input signal, providing frequency doubling capability. • 7 segment, 2 line 6-digit LCD display• Programmable user inputs and front panel function key• Quadrature sensing (up to 4 times resolution)• Bi-directional counting, up/down control• Status indicators for outputs• Parameter security via programmable operator access privileges and protected value menu• Horizontal or vertical stacking of multiples units• 85-250 V ac power supply• RS485 serial communications option• Choice of numeric data entry modes• NEMA 4X/IP65 sealed bezel
