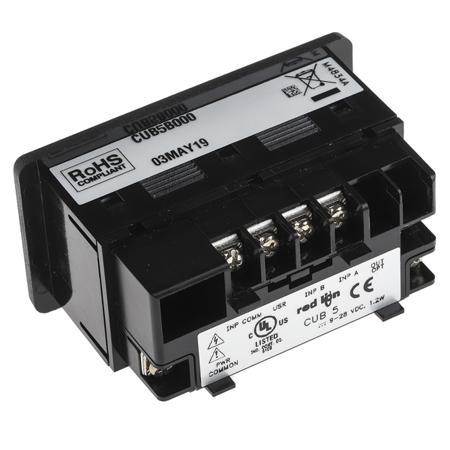

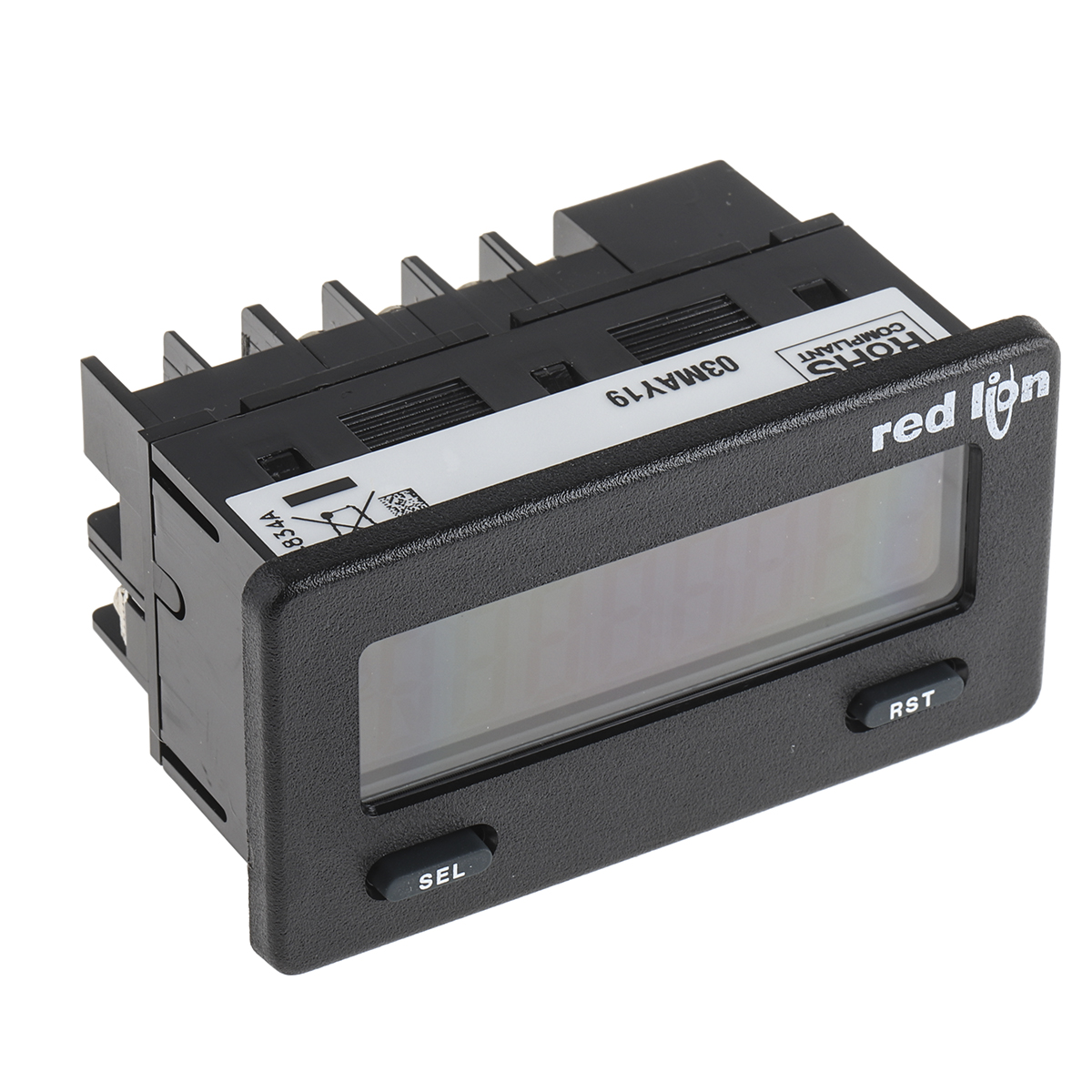

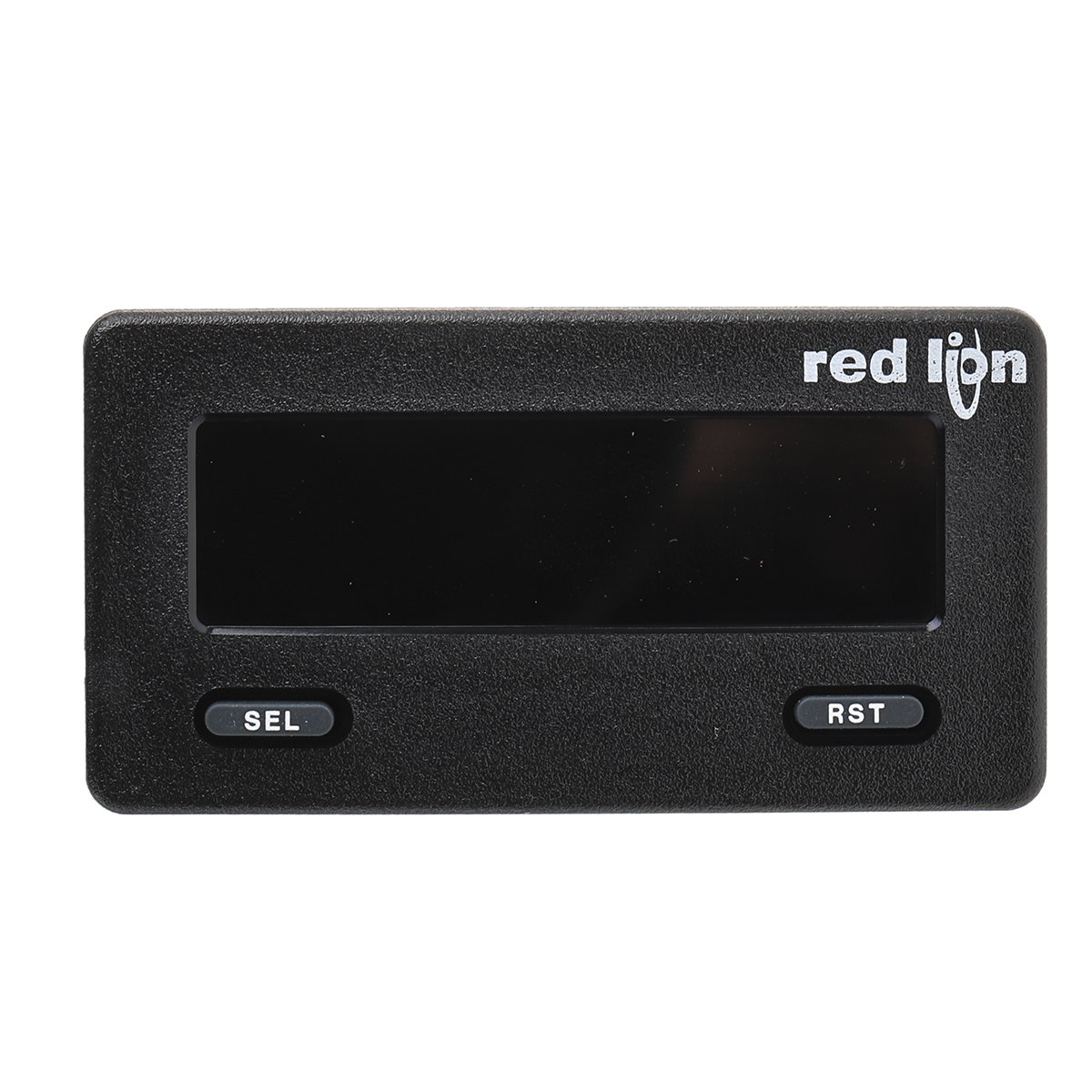

cub5b000 Red Lion Counter, 8 Digit LCD, 20kHz, 9 → 28 V dc

Red Lion Digital Counter The Red Lion CUB5 series digital dual counter and rate indicator is an 8-digit, backlight LCD display miniature electronic device. It has a voltage rating ranges between 9VDC and 28VDC. The intensity of the display can be adjusted from dark room applications to bright light applications. This easy to read display offers 12mm character height. The CUB5 models cover both, digital and analogue signals including count, voltage, current, time, process, rate and temperature inputs. This counter has a maximum count frequency of 20KHz. Features and Benefits Anti-coincidence counting (add/add and add/sub)
Relay output
Programmable scaling for count/rate
Display colour available in red and green
Bi-directional counting, up/down control
Resettable display
Panel cut-out dimensions are 68mm x 33mm
Plug-in screw terminal
Communication option cards include RS-232, RS-485, and USB
Operating temperature ranges between -35°C and 75°C Applications Industrial counting applications
Control and monitoring systems
Manufacturing assembly lines Certifications IP65 rated

For more information please check the datasheets.

Red Lion Counter, 8 Digit LCD, 20kHz, 9 → 28 V dc

Manufacturer:

Red Lion

Manufacturer Part No:

CUB5B000

Enrgtech Part No:

ET16806883

Warranty:

Manufacturer

£ 167.6100

Checking for live stock

Supply Voltage:

9 → 28 V dc

Count Mode:

Seconds

Display Type:

LCD

Input Type:

Voltage

Function:

Counter

Connection Type:

Screw

Reset Method:

Manual

Number of Digits:

Mounting Type:

Panel Mount

Output / Interface:

Relay

Count Direction:

Bi-Directional

Digit Height:

11.7 mm

MODEL CUB5 - MINIATURE ELECTRONIC 8-DIGIT DUAL COUNTER AND RATE INDICATOR Instructions-cd63826c(datasheets)

Datasheet-e80aae42(datasheets)
