20 Channel Expansion Module for DAS240 and DAS240BAT 20 Channel module for the Sefram DAS240 and DAS240BAT multi-channel handheld recorders. • 20 analogue channels module for DAS240 • Input (each channel): voltage, thermocouples, Pt100-1000, current (with optional shunt) • You can add up to 9 modules to the standard set of the DAS240 to reach 200 analogue channels

50 Ohm Shunt for DAS240 and DAS240BAT 50 Ohm shunt for the Sefram DAS240 and DAS240BAT hand held multi-channel recorders. This shunt plugs into the 20 channel module (125-9518). It has an accuracy of 0.01%

The new Data Acquisition Solution DAS60 is part of the family of standalone, portable, battery operated instruments dedicated to high-speed recording. With 6 isolated channels, 16 logical inputs, 2 Pt100/Pt1000 inputs, more than 9 hours autonomy, a 64GB memory, the DAS60 is the ideal tool for R&D, diagnostic and maintenance. With a special function of Power Analysis, you can record all your parameters on a Single-Phase and Three-Phase network up to 400Hz. 6 analogue isolated channelsUniversal inputDC, AC+DC RMS voltage measurementFrequency, counterTemperature: thermocouple, Pt100/Pt1000 (2 separate channels)Network and power analysis function (up to 400Hz) with trigger on parametersInrush current measurementPWM measurement64 GB internal hard disk32 Mword memory Options 2320453 : WiFi option7918071 : External 16 isolated logical channel adapter1259523 : Special cord for logic inputs (banana)

The Sefram combustible gas leak detector is extremely useful as a general purpose tool in any environment where gasoline, propane, natural gas or fuel oil is used. This unit uses a newly developed semi-conductor sensor which is extremely sensitive to variety of general used combustible. Detection of detectable gases gasoline, propane, natural gas or fuel oilSensitivity variable, as low as 5 ppm15,5'' (40 cm) flexible stainless probeMulti colour visual displayBattery life 40 hours

The Sefram Flexible Current Clamp. A 1587 is a single phase flexible current sensor. It consists of one current coil utilizing rogowski measuring principle. A 1587 is powered either by mains or rechargeable batteries. IP64/40 degree of protection

The Sefram current transducer clamp comes with high precision testing and safety. Jaw opening 15 mmTransducer clamp with DC output voltage 25A ACOut put voltage 1V DC / 10A ACBandwidth 40 Hz to 5 KHzSafety : for isolated conductor only

The Sefram current transducer clamp comes with high precision testing and safety. Jaw opening 15 mmCurrent transducer 200A ACOut put voltage 10mV AC/1A ACBandwidth 40 Hz to 5 KHzSafety : for isolated conductor only

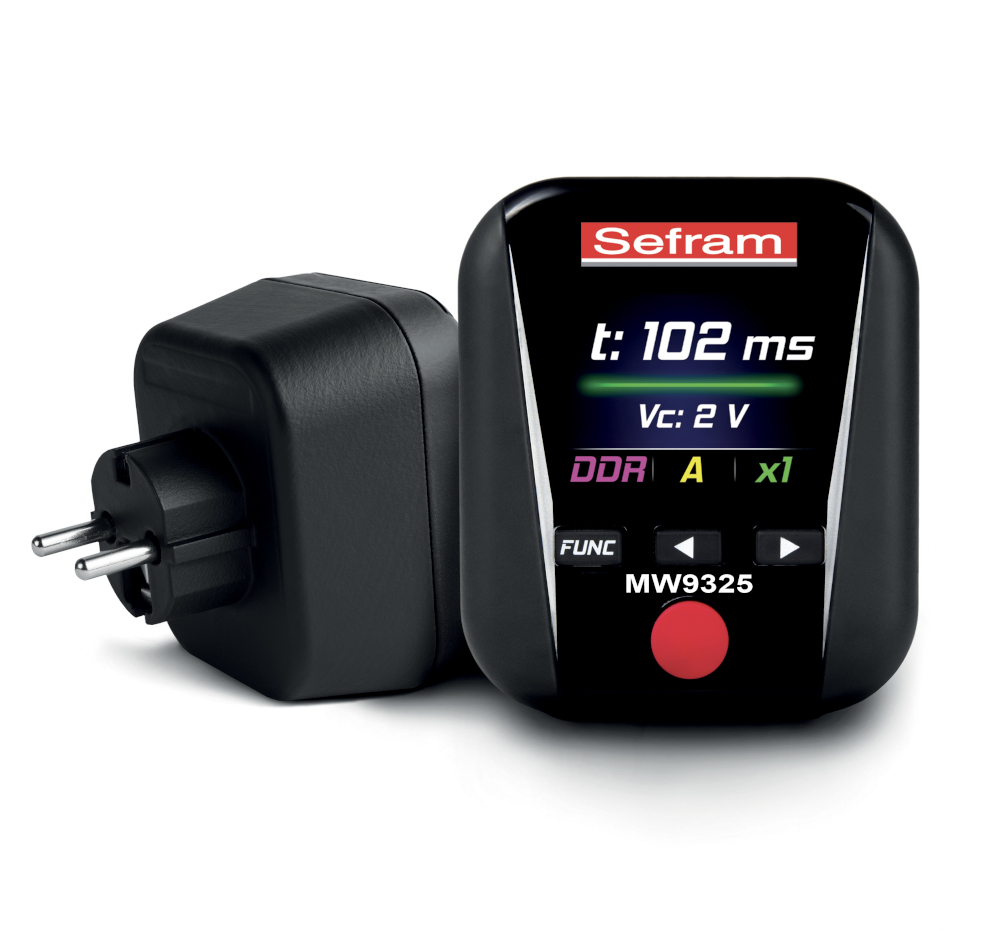

MW9325 Pocket Multifunction Tester The Sefram MW9325 pocket multifunction tester is a compact yet powerful device, empowering electricians, and maintenance professionals to safeguard electrical installations with unwavering confidence. It is compliant with IEC/EN61557-3 and IEC/EN61557-6 standards and is powered directly by the socket without the need for batteries. The MW9325 functionalities elevate it to a versatile tool. Its TRMS multimeter functionality enables accurate AC and DC voltage measurements, while its continuity and resistance tests ensure the integrity of electrical circuits. Beyond standard checks, the MW9325 delves deeper into the electrical landscape, scrutinising the safety of earth connections and leakage currents. Its ground resistance measurement tool detects potential ground fault hazards, while its insulation resistance test unveils the integrity of insulation shielding.The Sefram Pocket Multifunction Tester is a unique, pocket-sized device that combines the functionality of an electrical installation tester. The device is equipped with a "SUPERCAP" component that keeps it switched on and allows for visualising measurements after disconnecting it. It also has an internal memory that saves measurements. Features and Benefits: • Ergonomic design and pocketable size - ideal for field inspections and maintenance procedures• Intuitive interface and clear LCD display ensure effortless operation, even in dimly lit environments.• Earth resistance measurement• Voltage harmonics measurement• TRMS measurement of voltage• Tripping time measurement of RCDs• Internal memory report• CAT III 300V safety rating

The Sefram current transducer clamp comes with high precision testing and safety. Jaw opening 30 mmCurrent transducer 350A ACOut put voltage 1mV AC/1A ACBandwidth 40 Hz to 60 HzSafety : 600 V CAT III

Sefram Data Acquisition The Sefram data acquisition solution has a sampling rate of 2Msps with 6 isolated channels, 16 logical inputs and 2 Pt100/Pt1000 inputs. It has a special function of power analysis, which can record all your parameters on a Single-Phase and Three-Phase network up to 400Hz. Features and Benefits 100kHz bandwidth10in TFT panoramic LCD touch screen110mm Thermal printer module14-bit resolution16 logical channels32 word memory64GB internal hard diskAutonomy: up to 9.5 hoursInterfaces: 2 x USB, Ethernet Applications Maintenance/failure diagnostic on electrical systemsPower analysis for single-phase and three-phase systemsvoltage, current, temperature recording and monitoring Certifications IEC 1010 CAT III 600V Options 2320453 : WiFi option7918071 : External 16 isolated logical channel adapter1259523 : Special cord for logic inputs (banana)

DAS240 and DAS240BAT Multi-Channel Handheld Recorder The new DAS240 and DAS240BAT (15 hour internal battery) recorders have been designed to measure all parameters you can find in a process: voltage measurements, measurements on sensors (0-10V), temperature measurements (thermocouples, Pt100-1000), current measurements (with optional shunt), resistance measurements, pulse counter, frequency. You can view directly the results of measurements (graphs, numerical values) and memorize your results in the recorder or in a USB memory stick. The data transfer, data processing, remote setup can be done with the licence free DasLab software. Choice: DAS240 - RS Stock No. 125-9516 DAS240BAT - RS Stock No. 125-9517 The DAS240BAT is equipped with a built-in battery, making it more suitable for portable and remote applications, while the DAS240 is designed for stationary use with an external power supply. Main Features of the DAS240 and DAS240BAT • 20 to 200 analogue channels• Input: voltage, thermocouple, Pt100-1000, current (with optional shunt), resistance• Voltage: from 1mV to 200V (±100V)• Temperature: thermocouples (all types), Pt100-1000 (2 or 3 wires)• 16 Bit vertical resolution• Max sampling rate: 1ms (1kHz)• 12 logical channels• 4 alarms (output)• 4 logical function input with counter & frequency meter capability• 10 inch colour TFT panoramic touch screen display• Internal hard drive: 32 GB• Interfaces: 2xUSB, Ethernet, Wifi (option)• Lithium-ion battery (factory option): 15h autonomy (DAS240BAT RS 125-9517)• DasLab software (licence free)• MODBUS TCP (slave): Click here to get more details about this function• Safety: IEC61010 CAT I 100V• Application note: Remote control of the DAS240 with a tablet and VNC Multiple Applications The DAS240 recorder is a general purpose recorder for process applications: • Multi channel temperature monitoring and recording• 0 to 10 V sensors monitoring and recording• Voltage measurements• Pulse counting• 4 to 20 mA measurement and monitoring (with optional shunt)

The Sefram refrigerant leakage detector is the perfect tool for maintaining the air-condition or a cooling system with compressor and refrigerant. This unit used newly developed semiconductor sensor which is extremely sensitive to a variety of used refrigerant gas. It has air sucking system function for faster response and higher sensitivity. The device is equipped with microprocessor control with advanced digital signal processing. Heated semiconductor gas sensor3 level sensitivity7 LED Tri-coloured leak level indicatorDetection of R-22, R-32, R-290, R-131a, R-404A, R-410A, R-407C, R-502, R-600A, R-1234yf refrigerants gasBattery life 12 hours15,5'' (40 cm) flexible probe
