DAS240 and DAS240BAT Multi-Channel Handheld Recorder
The new DAS240 and DAS240BAT (15 hour internal battery) recorders have been designed to measure all parameters you can find in a process: voltage measurements, measurements on sensors (0-10V), temperature measurements (thermocouples, Pt100-1000), current measurements (with optional shunt), resistance measurements, pulse counter, frequency. You can view directly the results of measurements (graphs, numerical values) and memorize your results in the recorder or in a USB memory stick. The data transfer, data processing, remote setup can be done with the licence free DasLab software.
Choice:
DAS240 - RS Stock No. 125-9516
DAS240BAT - RS Stock No. 125-9517
The DAS240BAT is equipped with a built-in battery, making it more suitable for portable and remote applications, while the DAS240 is designed for stationary use with an external power supply.
Main Features of the DAS240 and DAS240BAT
• 20 to 200 analogue channels
• Input: voltage, thermocouple, Pt100-1000, current (with optional shunt), resistance
• Voltage: from 1mV to 200V (±100V)
• Temperature: thermocouples (all types), Pt100-1000 (2 or 3 wires)
• 16 Bit vertical resolution
• Max sampling rate: 1ms (1kHz)
• 12 logical channels
• 4 alarms (output)
• 4 logical function input with counter & frequency meter capability
• 10 inch colour TFT panoramic touch screen display
• Internal hard drive: 32 GB
• Interfaces: 2xUSB, Ethernet, Wifi (option)
• Lithium-ion battery (factory option): 15h autonomy (DAS240BAT RS 125-9517)
• DasLab software (licence free)
• MODBUS TCP (slave): Click here to get more details about this function
• Safety: IEC61010 CAT I 100V
• Application note: Remote control of the DAS240 with a tablet and VNC Multiple Applications The DAS240 recorder is a general purpose recorder for process applications: • Multi channel temperature monitoring and recording
• 0 to 10 V sensors monitoring and recording
• Voltage measurements
• Pulse counting
• 4 to 20 mA measurement and monitoring (with optional shunt)
• Input: voltage, thermocouple, Pt100-1000, current (with optional shunt), resistance
• Voltage: from 1mV to 200V (±100V)
• Temperature: thermocouples (all types), Pt100-1000 (2 or 3 wires)
• 16 Bit vertical resolution
• Max sampling rate: 1ms (1kHz)
• 12 logical channels
• 4 alarms (output)
• 4 logical function input with counter & frequency meter capability
• 10 inch colour TFT panoramic touch screen display
• Internal hard drive: 32 GB
• Interfaces: 2xUSB, Ethernet, Wifi (option)
• Lithium-ion battery (factory option): 15h autonomy (DAS240BAT RS 125-9517)
• DasLab software (licence free)
• MODBUS TCP (slave): Click here to get more details about this function
• Safety: IEC61010 CAT I 100V
• Application note: Remote control of the DAS240 with a tablet and VNC Multiple Applications The DAS240 recorder is a general purpose recorder for process applications: • Multi channel temperature monitoring and recording
• 0 to 10 V sensors monitoring and recording
• Voltage measurements
• Pulse counting
• 4 to 20 mA measurement and monitoring (with optional shunt)

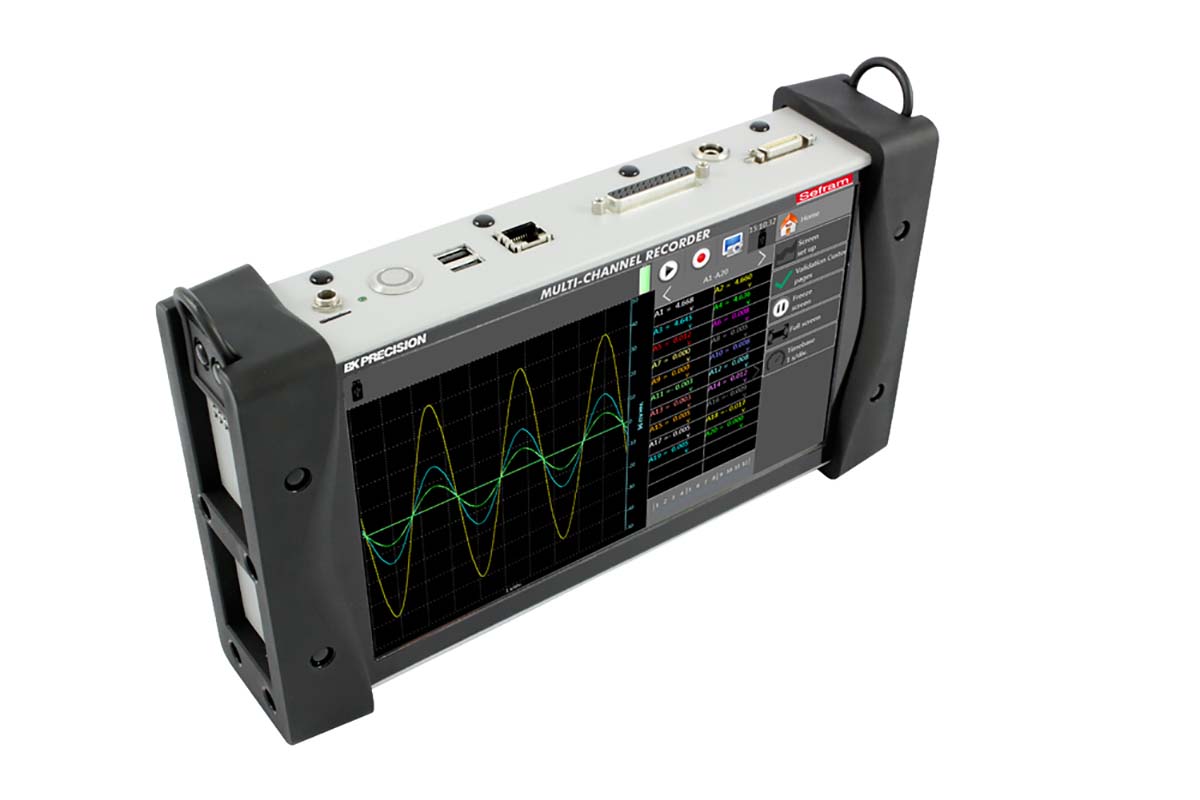

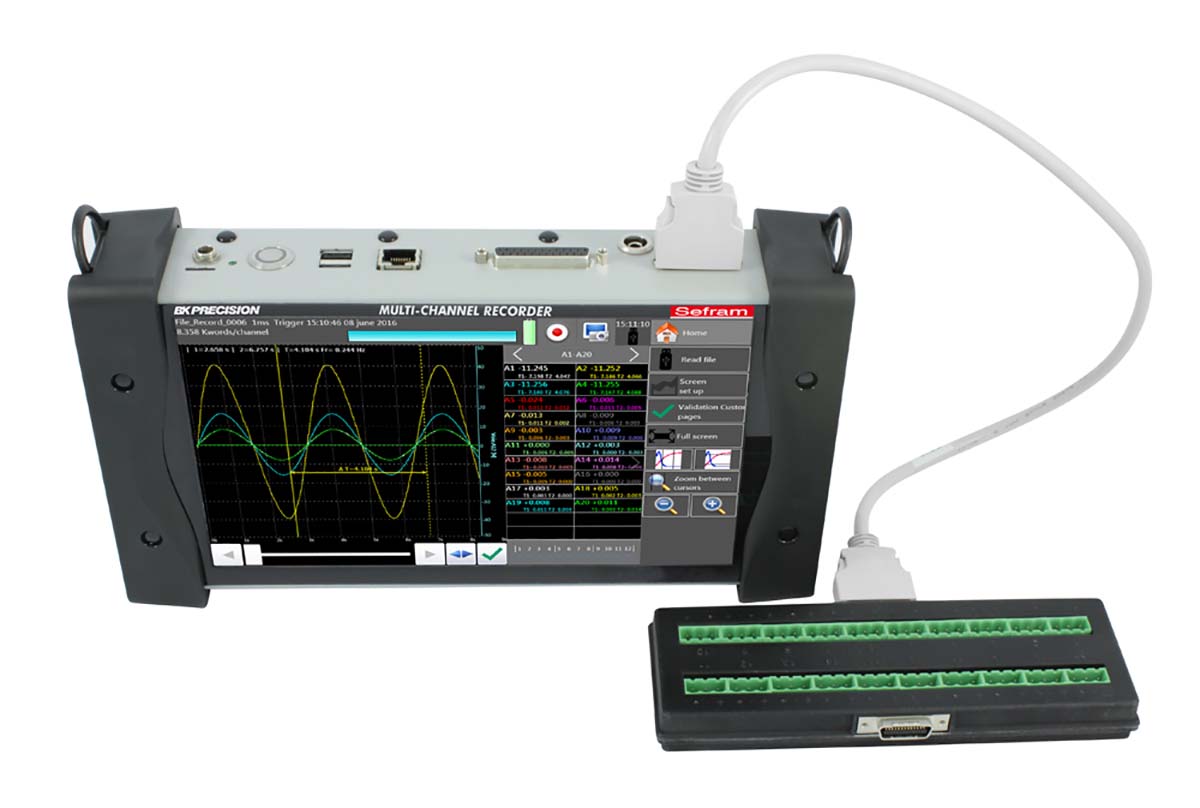

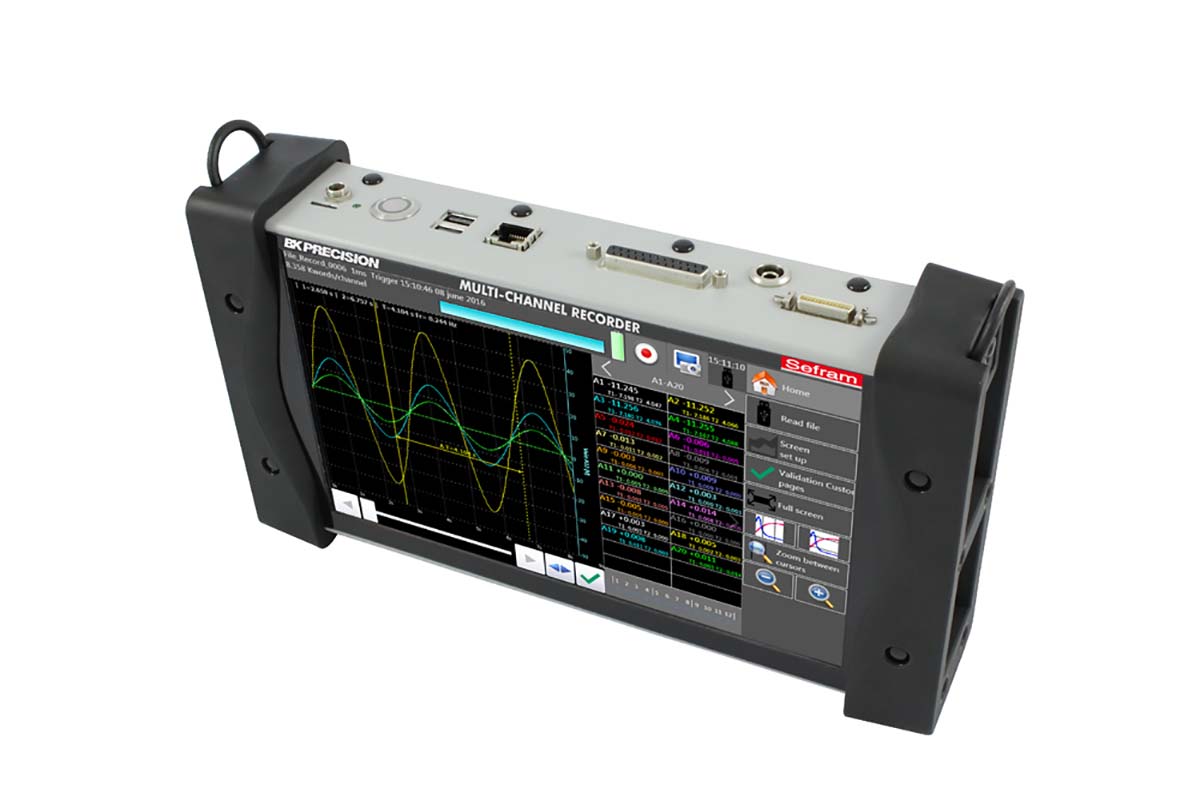

DAS 240 Multipurpose Data Logger, Ethernet, USB, 20 Input Channel(s)
Manufacturer:
Sefram
Manufacturer Part No:
DAS240
Enrgtech Part No:
ET21460835
Warranty:
Manufacturer
£ 3135.45
Checking for live stock
Model Number:
DAS 240
Number of Input Channels:
20
Sensor Type:
B, C, E, J, K, L, N, pt100, pt1000, S, T
Measurement Parameters:
Current, Resistance, Temperature, Thermocouple, Voltage
Interface Type:
Ethernet, USB
Data Logger Type:
Multipurpose
Maximum Voltage Measurement:
200V
Maximum Temperature Measurement:
+1000 (E) °C, +1200 (J) °C, +1300 (N) °C, +1370 (K) °C, +1760 (S) °C, +1820 (B) °C, +2320 (C) °C, +400 (T) °C, +850 (PT100) °C, +850 (PT1000) °C, +900 (L) °C
Power Source:
Mains
Best Temperature Measurement Accuracy:
0.3 °C
Minimum Operating Temperature:
0°C
Maximum Operating Temperature:
+40°C
