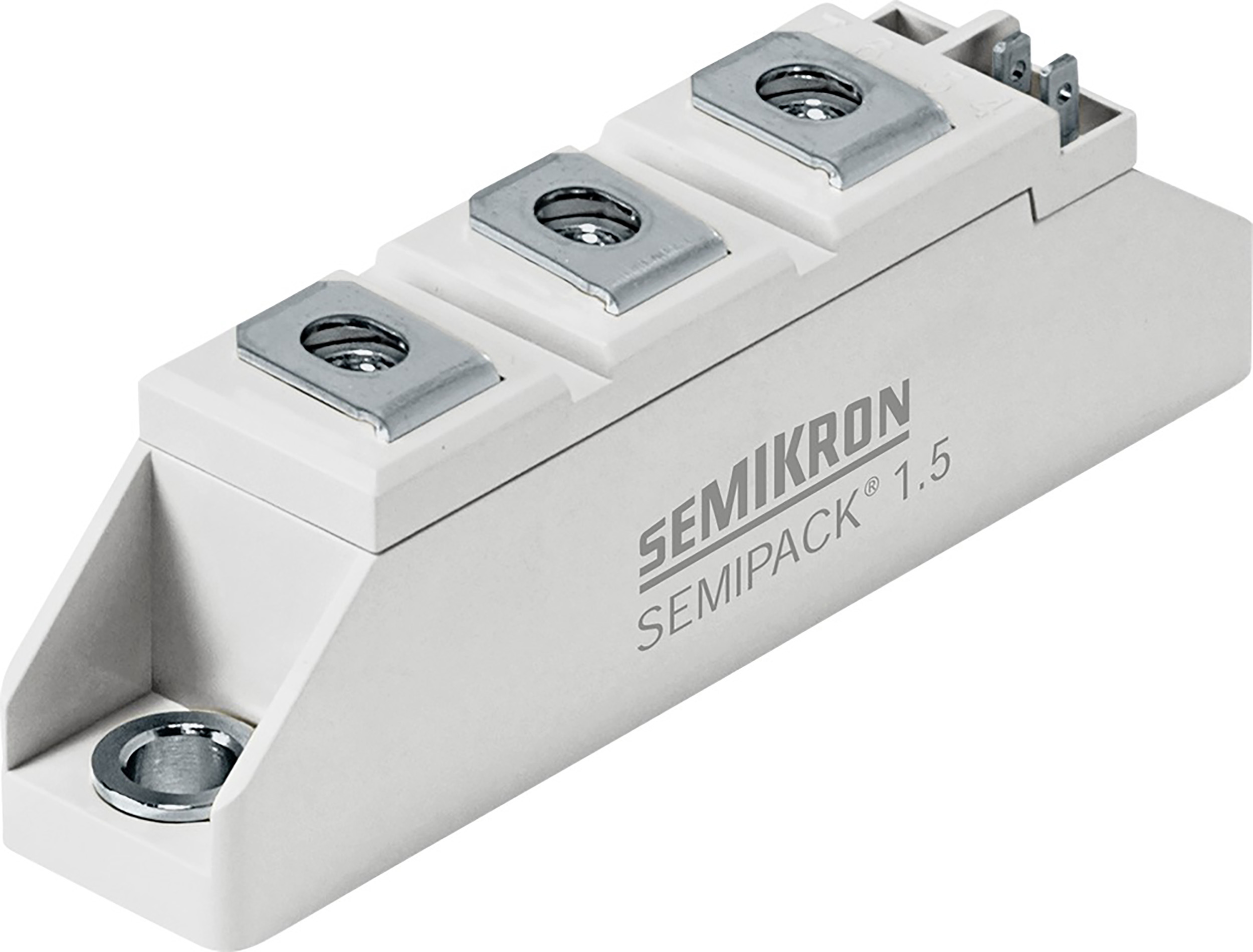

Dual Thyristor Modules, SKKT SEMIPACK 1 Series, Semikron Dual series thyristors

Dual Thyristor Modules, SKKT SEMIPACK 1 Series, Semikron Dual series thyristors

SEMIPACK® SKKE Series Single Diode Modules Heavy-duty single diode modules in a variety of voltage and current ratings. These compact devices are suitable for high-current rectifier applications. Excellent heat transfer through aluminium oxide ceramic isolated metal baseplatePrecious metal contacts for high reliability

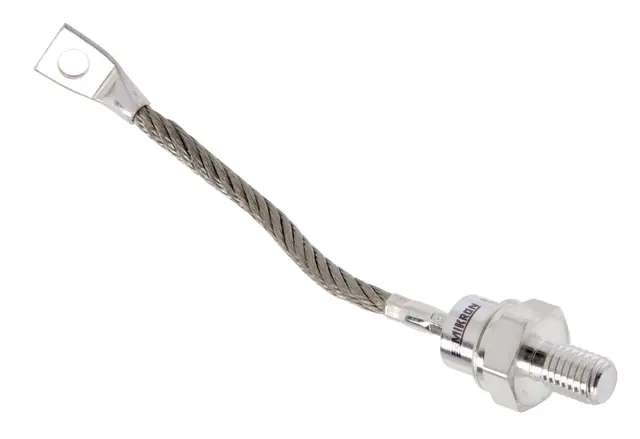

Stud Mounting Rectifier Diodes High current rectifier diodes from Semikron housed in standard stud-mounting cases. Due to the excellent thermal coupling between the device and heatsink stud mounting offers high reliability at high operating currents. With voltage ratings of up to 1700 V these diodes are suitable for most high power rectification applications. Both Stud Anode and Stud Cathode diode configurations are available. High voltage and current ratingsRobust high-reliability hermetically sealed caseLow thermal resistance between device and heatsinkSKN types have the Anode connected to the stud bodySKR types have the Cathode connected to the stud body

The Semikron SEMITRANS series IGBT module has 1200 v collector to emitter voltage. It is mainly used in UPS, electronic welders, inductive heating, switched mode power supplies. Increased power cycling capabilityInsulated copper baseplate using DBC technology (Direct Bonded Copper)For higher switching frequencies above 15kHz

SKYPER® 42 R IGBT Adaptor Board The Board 2 generic SKYPER 42 R is an adaptor board for SKYPER IGBT drivers (e.g. RS 905-6175) in bridge circuits for industrial applications. The adaptor board can be used with one IGBT module, or with two in parallel. The board can be customized allowing adaptation and optimization to the IGBT modules i.e. SEMITRANS™ Low inductance packages, or SEMiX® (solder pin version) flat packages.The switching characteristics of the IGBT can be influenced by user adaptation of the Gate Resistors to change the turn-on and turn-off speed. Furthermore, it is possible to adjust the monitoring level and blanking time for the DSCP (Dynamic Short Circuit Protection). Two output channels adjustable in single or dual modeCollector-Emitter voltage 1700VOutput peak current 30AHalf-bridge switching circuitDynamic Short Circuit ProtectionCollector Series ResistanceAdaptation Gate ResistorsBoost Capacitors

Quad IGBT Modules The series configuration of these Semikron Quad IGBT modules makes them the perfect solution for applications which require a high performance 3-level topology. These compact PCB mounting SEMITOP 3 modules feature single hole fixing with excellent heat transfer and utilise Trench IGBT technology. Typical applications include 3-level DC-AC Inverters and UPS power supplies.

Dual Thyristor Modules, SKKT SEMIPACK 3 Series, Semikron Dual series thyristor

The Semikron SEMITRANS series IGBT module has 1200 v collector to emitter voltage. It is mainly used in UPS, electronic welders, inductive heating, switched mode power supplies. Increased power cycling capabilityInsulated copper baseplate using DBC technology (Direct Bonded Copper)For higher switching frequencies above 15kHz

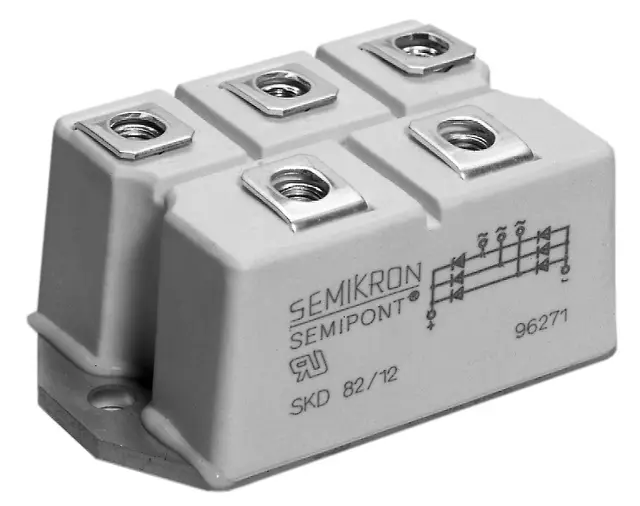

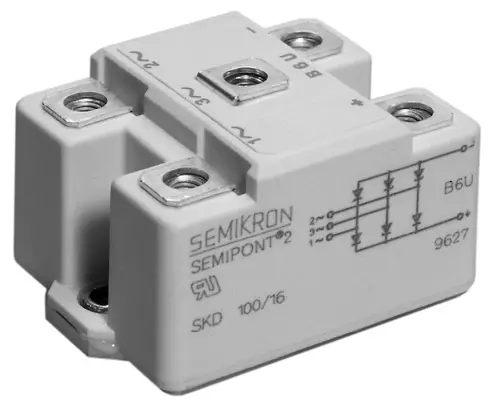

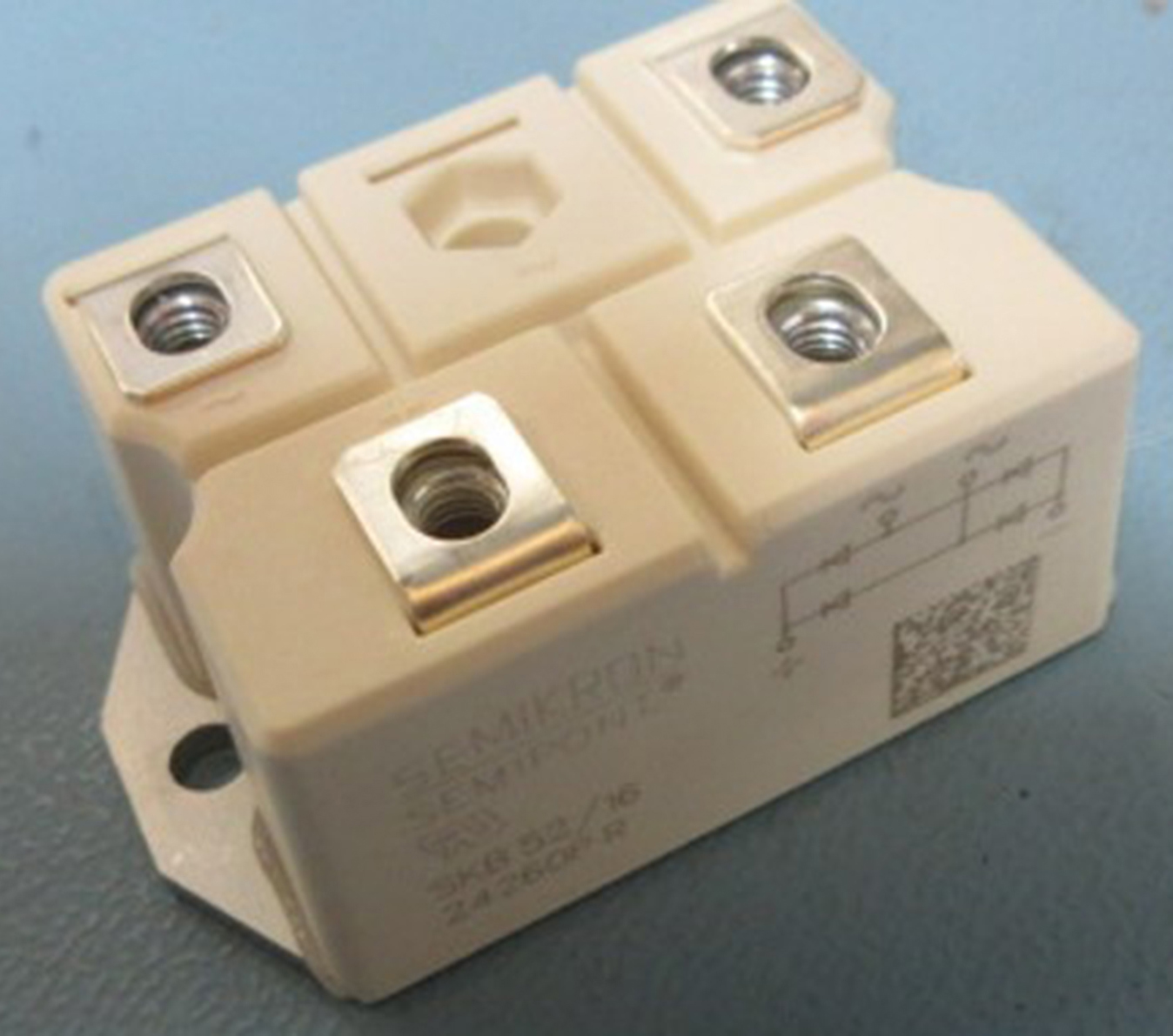

Bridge Rectifier Module with Screw Terminals, Semipont 2 Series SEMIPONT® 2 power bridge rectifiersRobust plastic case with screw terminalsLarge, isolated base plateEasy chassis mounting

Three Phase Bridge Rectifiers, G13/G14/G15 Series Isolated metal case with screw terminalsEasy chassis mounting

The Three Phase Bridge Rectifier is an essential component for converting alternating current to direct current in three phase electrical systems. With six diodes configured in a bridge topology. Featuring a reverse repetitive voltage max of 1.8 kV, it can handle high voltage inputs with ease. Insulated designCompact plastic housingOff state voltages up to 1800 V
