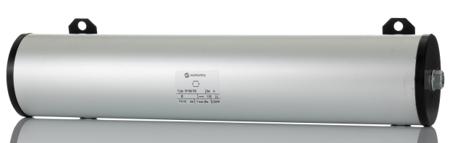

IMI Norgren Air Reservoir, 0 to 10 Bar Operating Pressure, 63.5mm Reservoir Bore - M/163 Series - M/163/100 Get on top of pressure fluctuations with this air reservoir from IMI Norgren. It's an emergency backup that stores compressed air from the control valve to ensure uninterrupted operation in case of an unexpected drop in airflow. A reservoir bore of 63.5mm means you can store up to a litre of air to keep your system running while the problem is righted. To achieve peak performance, use this reservoir in a delay circuit alongside a flow regulator and a pressure-sensitive valve. Features & Benefits • G1/8 port provides a secure and reliable connection
• Works safely in temperatures between -20°C and +80°C
• Maximum delay of 120 seconds allows for the gradual release of air from the reservoir
• For straightforward setup, connect it to the inlet port of your valve Applications • Material handling
• Agricultural equipment
• Vehicle assembly
• Healthcare facilities How accurate is this air reservoir? It has a repeat accuracy of approximately ±5%, ensuring consistent operation. What's the maximum operating pressure of this device? It handles a maximum pressure of 10 bar, which makes it suitable for medium-pressure applications such as conveyor systems.
