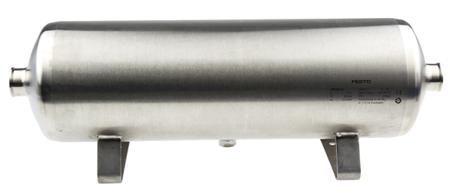

Festo Air Reservoir, 20L Volume, For Compressed Air or Nitrogen - CRVZS-20
To keep your industrial robots on the move, back them up with this air reservoir from Festo. It stores compressed air, so it quickly compensates for pressure fluctuations in your pneumatic circuit. This helps to keep automated machines operating at the right pace and reduces the risk of damage to components. As the tank is made from robust high-alloy steel, you can rest assured of its longevity in harsh operating environments. This metal also resists corrosion, ensuring it can handle humid settings. The air reservoir includes a condensate drain to remove atmospheric moisture from your compressed air and keep your pneumatic system in tip-top shape.
Features & Benefits
• Well-suited to demanding settings thanks to its broad ambient temperature range between -10°C and +100°C
• Free from copper and PTFE for safety in your working environment
• Can also be used with nitrogen for versatility of use Applications • Pharmaceutical manufacturing
• Automotive industry
• Lifting and hoisting equipment
• Industrial automation Can I use the air reservoir to energise a pulsing pneumatic drive? Yes, the tank's capacity of 20L makes it ideal for supplying large amounts of compressed air to fast-pulsing drives.
• Free from copper and PTFE for safety in your working environment
• Can also be used with nitrogen for versatility of use Applications • Pharmaceutical manufacturing
• Automotive industry
• Lifting and hoisting equipment
• Industrial automation Can I use the air reservoir to energise a pulsing pneumatic drive? Yes, the tank's capacity of 20L makes it ideal for supplying large amounts of compressed air to fast-pulsing drives.

Air Reservoir 20 l, G 1, CRVZS Series, 16bar
Manufacturer:
Festo
Manufacturer Part No:
CRVZS-20
Enrgtech Part No:
ET16815052
Warranty:
Manufacturer
£ 690.03
Checking for live stock
Volume:
20 l
Maximum Pressure:
16bar
Port Connection:
G 1
Manufacturer Series:
CRVZS
Reservoir Bore:
40mm
Weight:
10.2g
Maximum Operating Temperature:
+100°C
Minimum Operating Temperature:
-10°C
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1215504&DisplayLogo=False
