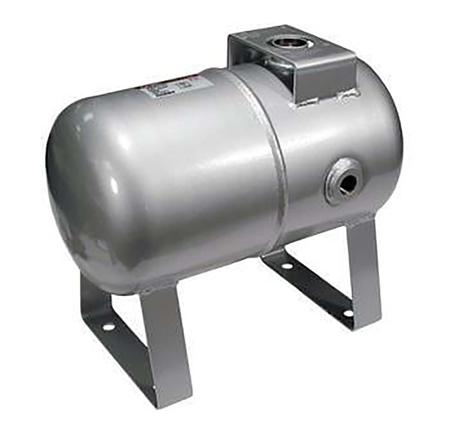

Small capacity air tank to which a booster valve can be connected
Tank capacity: 5 L, 10 L , 20 L, 38 L
Material: carbon steel or stainless steel (SUS304)
Connection port sizes [Rc(PT)]: 3/8, 1/2, 3/4
Tank capacity: 5 L, 10 L , 20 L, 38 L
Material: carbon steel or stainless steel (SUS304)
Connection port sizes [Rc(PT)]: 3/8, 1/2, 3/4
Air Reservoir 10 l, G 1/2, VBAT Series, 20bar
Manufacturer:
SMC
Manufacturer Part No:
VBAT10AF-SV-Q
Enrgtech Part No:
ET19475737
Warranty:
Manufacturer
£ 469.56
Checking for live stock
Volume:
10 l
Maximum Pressure:
20bar
Port Connection:
G 1/2
Manufacturer Series:
VBAT
Reservoir Bore:
180mm
Weight:
10kg
Maximum Operating Temperature:
+75°C
Minimum Operating Temperature:
0°C
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1961210&DisplayLogo=False
