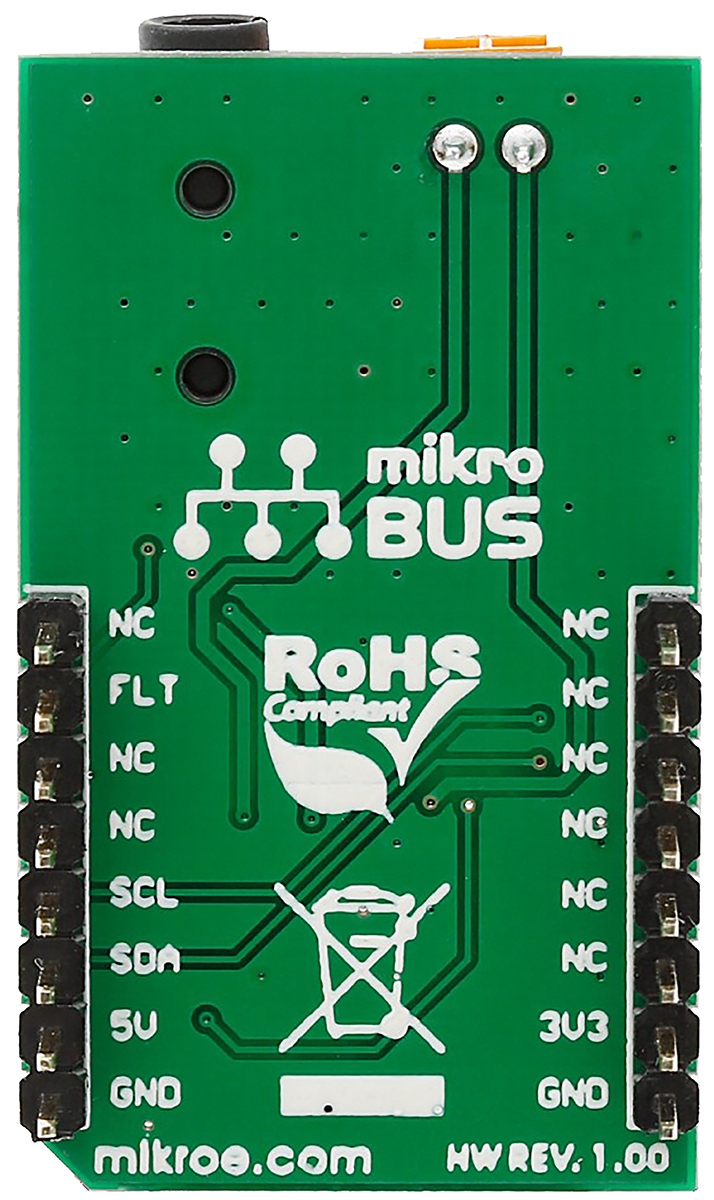

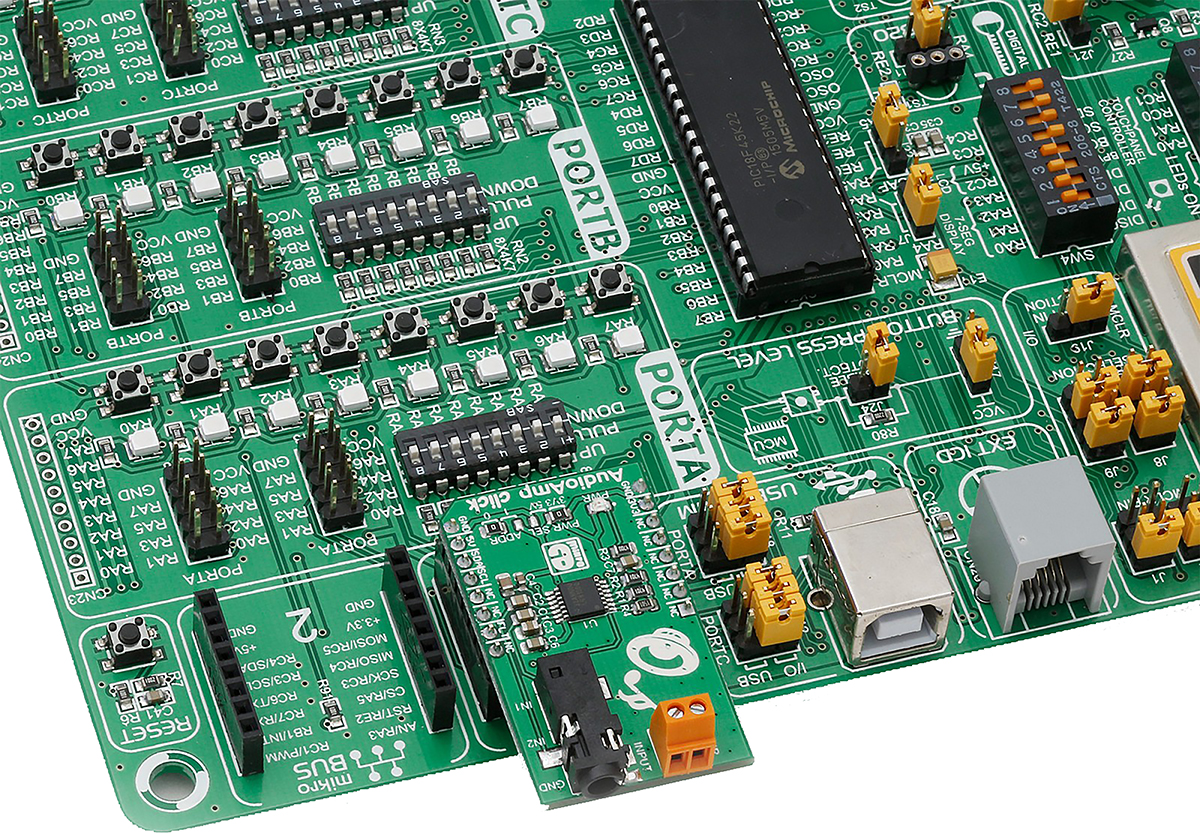

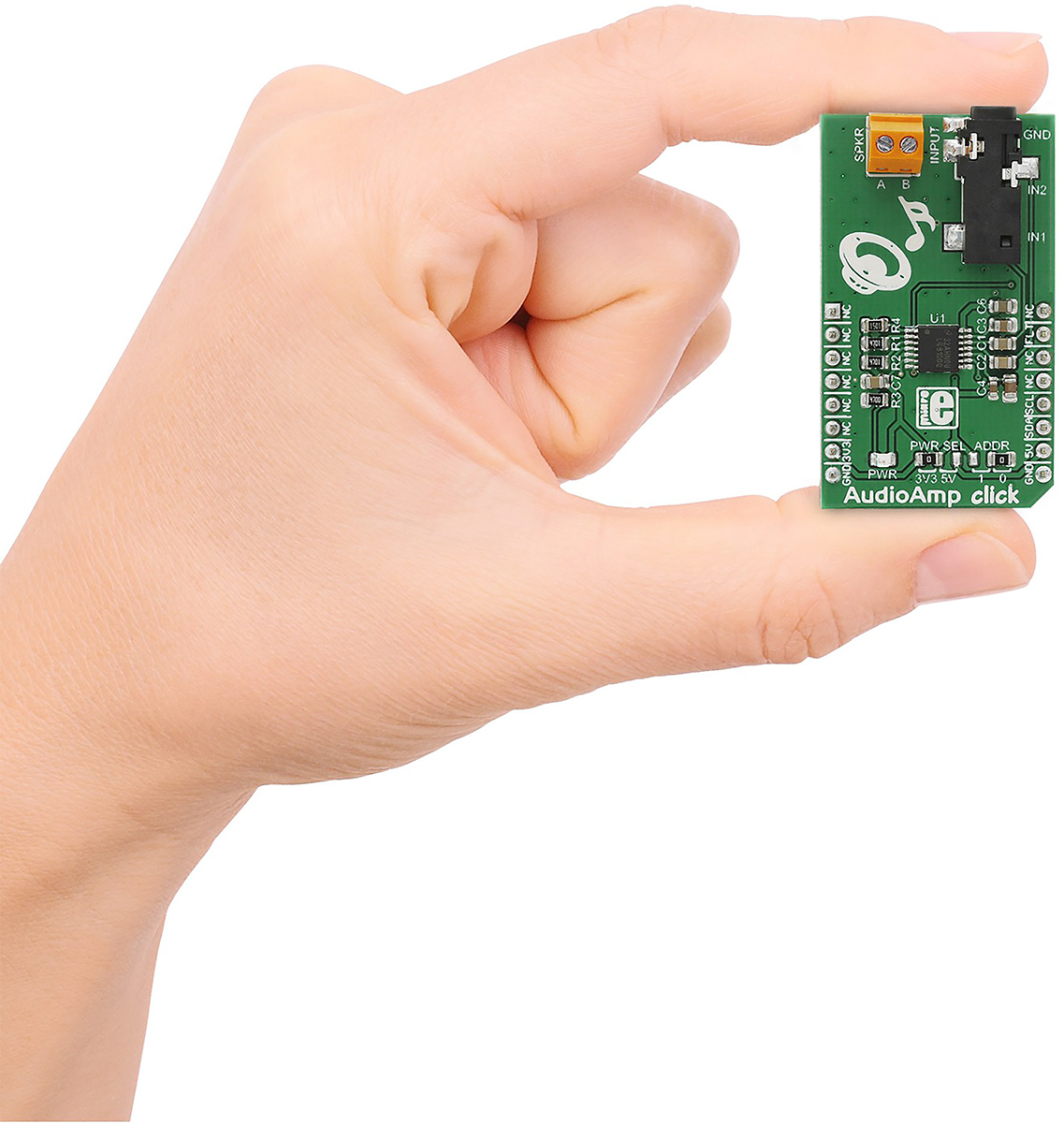

AudioAmp click mikroBUS™ AudioAmp click is a mikroBUS add-on board for adding a mono audio power amplifier. It features the LM48100Q-Q1, a Boomer Mono 1.3 W Audio Power Amplifier with output fault detection and volume control. 1.3 W Output Power to 8 Ω speaker
3.5 mm connector input jack
Screw terminals for speaker output wires connection
Detection and Protection of short circuit and open circuit events
Output Fault Detection on mikroBUS INT pin
32-step volume control on I²C bus
I²C bus binary address hardware jumper
Power shutdown mode typical current (0.01 μA)
3.3 V (default) or 5 V power supply on mikroBUS socket
